Electric bike conversion kits are a popular way to turn your bike into an e-bike. They are a cost-effective alternative to buying a pre-built e-bike and allow for customisation to suit your needs and riding style. The conversion process involves adding an electric motor, battery, and control system to your existing bicycle, transforming it into a pedal-assisted electric bicycle. There are a few key steps to follow when converting your bike, such as assessing your bicycle's suitability, choosing the right conversion kit, and following safety precautions. It is also important to consider the legal requirements for e-bikes in your region.
Characteristics and Values of Converting a Pedal Bike to Electric
| Characteristics | Values |
|---|---|
| Cost | Conversion kits are a cost-effective alternative to buying a pre-built e-bike. |
| Customization | Conversion kits allow for customization to suit your needs and riding style. |
| Installation | Conversion kits can be straightforward to install, but may require mechanical competence and adjustments to the bike's existing components. |
| Performance | The addition of an electric motor increases torque and improves performance, especially when conquering hills and extending riding range. |
| Maintenance | Regular maintenance is required to ensure the longevity of the electric components. |
| Legal Considerations | The legal status of e-bikes varies by region. In the UK and EU, e-bikes with more powerful motors may be classified as mopeds or motorcycles and require licensing and taxation. |
| Suitability | The suitability of the bicycle for conversion should be assessed, including the sturdiness of the frame, available space for the motor and battery, and compatibility with the conversion kit. |
| Types of Kits | There are three main types of conversion kits: front hub motor, rear hub motor, and mid-drive motor, each offering different advantages in terms of installation, handling, and power delivery. |
| Sensors | Kits may include sensors to detect pedaling input and riding speed, allowing for adjustments in power output. |
| Display | A bar-mounted display may be included to control power output and select power modes. |
| Power Source | Conversion kits include a power pack or battery to provide electricity to the motor. |
Explore related products
What You'll Learn

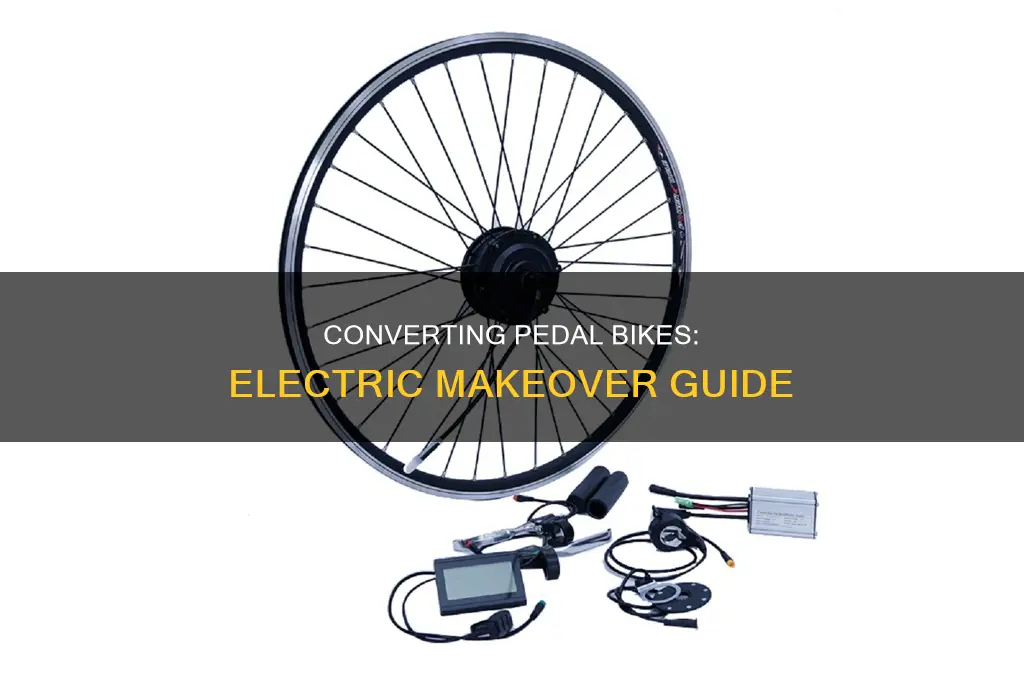

Electric bike conversion kits
There are several options available, depending on your needs and budget. Some of the most popular kits include the Swytch Kit, the Voliamart rear wheel kit, and the Bafang front hub-based motor kit. The Swytch Kit comes with everything you need to convert your bike, including the wheel, power pack, pedal sensor, charger, and cables. It also offers a range of power pack options and is compatible with a wide variety of bicycle types. The Voliamart kit is also an affordable option, but it requires some mechanical knowledge for installation. The Bafang kit is a well-established option that offers a front hub-based motor, which creates a less bulky profile than a mid-motor conversion system.
When choosing a kit, it is important to consider the condition and componentry of your old bike. The extra torque from an electric motor can cause poor performance or damage to a low-quality or worn drivetrain. It is also important to ensure that your brakes are up to standard, as the extra weight and speed of an electric bike will put more stress on them.
Installation processes vary depending on the kit, but generally, they involve removing the old tyre and tube from the front wheel and installing them on the new wheel from the kit. You may also need to attach a cadence or pedal sensor, so the bike can detect when you are pedalling and need assistance.
Electric Bike Fires: A Growing Safety Concern?
You may want to see also
Explore related products
Compatibility and suitability
One important factor to consider is the type of brakes your bike has. For example, the Bafang electric bike motor is only compatible with bikes that have a front disc brake and a Quick-Release axle. Similarly, the Swytch Kit is 100% compatible with disc brakes, but it is not compatible with thru-axles. If your bike has rim brakes, you may want to consider upgrading to disc brakes for safety reasons, as e-bikes can burn through rim brake pads very quickly.
Another factor to consider is wheel size. Some conversion kits may not be compatible with unusual wheel sizes. For example, the Swytch Kit comes with a standard front wheel and a rear wheel, but it is not compatible with thru-axles. The Skarper DiskDrive conversion kit requires you to replace the rear wheel's disc rotor with their own equivalent.
In addition to wheel size, the weight of the motor and battery can also impact your bike's handling and balance. Heavier components can affect agility, so it is important to consider the trade-off between power and maneuverability. To maintain optimal stability and ride quality, you should plan for even weight distribution by strategically positioning the battery and choosing a motor location that balances the weight well.
It is also important to ensure that your bike has enough space for the motor and battery and that it is compatible with the chosen conversion kit's electrical components. For example, you will need to consider whether your bike can accommodate the controller, throttle, and/or pedal assist system without extensive modifications to the wiring.
Finally, it is worth noting that electric bike laws vary by region. In most of the world, the motor needs to be limited to a maximum of 250 watts of continuous power output unless the bike is only used on private land. Additionally, there may be a minimum age requirement to ride an electric bike, such as 14 years in the UK. Therefore, it is important to check that your conversion kit is legal where you live.
Electric Bike Riding: Age Recommendations and Safety Tips
You may want to see also
Explore related products
Installation and setup
Before you begin, it is important to note that converting your bike may void the manufacturer's warranty. Check your bike's warranty terms before proceeding. Also, ensure you have the necessary tools and materials. The specific tools required may vary depending on your chosen kit and bike model. When in doubt, refer to the kit's manual for detailed instructions. Choose a clean, well-lit area with ample space to work on your bike.
First, you need to set up the wheel with a disc rotor, tyre, and inner tube. Then, install that wheel into the bike. You can either replace the front wheel with a motorised one or opt for a rear-wheel setup. If you are using a front-wheel drive setup, disassemble the front wheel, remove the existing tire and tube, and lace the new motor-integrated rim with the existing spokes. Ensure that the motor cable is facing downwards to minimise the risk of water damage.
Next, attach the cadence sensor, which detects when you are pedalling and need assistance. Then, attach the battery and the display (if included). The display allows you to select power levels and track your battery life. Some kits may also include a throttle, which can be added or removed based on your preference.
Once everything is bolted in place, mount the crank arms and test the pedals. You may need to allow Loctite to cure for about 24 hours. With the motor mounted, place the chain on the chainring. "Narrow-wide" chainrings are usually recommended for single-ring setups as they hold on better. After placing the chain, check the shifting and make adjustments as needed. Finally, take note of your bike's chainline after mounting the electric motor.
Electric Bike Laws: Road Rules for E-bike Riders
You may want to see also
Explore related products
Maintenance and troubleshooting
Regular maintenance and lubrication are crucial for your electric bike. A worn-out drivetrain (chain, cassette, derailleurs) can cause several issues. If adjustments don't fix the problem, consider replacing worn components. For complex issues or clarification on troubleshooting steps, consult a qualified e-bike mechanic.
Before riding your converted e-bike, understand the legal and safety requirements for e-bikes in your region. E-bikes are often categorized based on motor power, speed, and pedal-assist functionality, with varying regulations worldwide. For instance, the UK and EU have specific criteria for electrically assisted pedal cycles (EAPC), while individual US states have their own legal frameworks. Ensure your e-bike complies with any registration or licensing requirements.
If your bike is not pedal-assisting, check the positioning of the magnet wheel on the crank. Ensure it is close to the pedal assist sensor to maintain proper functionality. If the magnet wheel is already near the sensor, or if adjusting it does not restore pedal assist, there may be an issue with the sensor or controller.
When troubleshooting, consider the condition of your bike's components. The increased torque from an electric motor can cause poor performance, chain skipping, or snapping if the drivetrain is low-quality or worn. Additionally, the added weight and speed of a converted e-bike will put more stress on the brakes, so ensure they are in good condition.
To optimize performance, experiment with different PAS (Pedal Assist Sensor) levels to balance effort and assistance. If your kit includes a throttle, adjust its response and power output for a smoother riding experience. Online resources, forums, and the DIY e-bike community are valuable sources of troubleshooting tips and advice.
Importing Electric Bikes: China to India Guide
You may want to see also
Explore related products
Legal and safety considerations
Electric bike conversion kits can be a great way to give your old bike a boost and make riding more accessible to you and your family. However, it is important to consider the legal and safety implications of converting your pedal bike to an electric bike.
Legal Considerations
The laws governing electric bikes vary depending on your location. For example, in the UK and the EU, electric bikes that meet the criteria for electrically assisted pedal cycles (EAPC) do not require licensing or taxation. However, if your converted bike exceeds the speed limit specified for EAPC, it may be classed as a moped or motorcycle and will need to be licensed and taxed accordingly. In the United States, the laws differ from state to state, with some states allowing more powerful motors for certain e-bike classes. It is important to familiarize yourself with the specific laws and regulations in your state or country before converting your pedal bike to electric.
Safety Considerations
When converting a pedal bike to electric, it is crucial to consider the safety implications. The added electric motor can increase the torque and speed of your bike, putting more strain on the brakes and drivetrain. Therefore, it is recommended to choose a bike with disc brakes, as they provide better braking performance. Additionally, ensure that your bike's drivetrain is in good condition to avoid issues with shifting and potential chain problems.
Furthermore, consider the safety standards and regulations that your converted electric bike must meet to be considered roadworthy. These standards may include requirements for lights, brakes, reflectors, and other safety features. For example, some electric bikes have a safety feature that automatically cuts off power when you brake. Check your local laws and regulations to ensure your converted bike complies with all necessary safety requirements.
Precautions
Before riding your converted electric bike, take the necessary precautions to ensure your safety and the safety of others. For instance, practice riding and braking to familiarize yourself with the increased power and speed. Additionally, maintain your bike regularly, paying close attention to the brakes and drivetrain, as these components will experience more stress due to the added electric motor.
