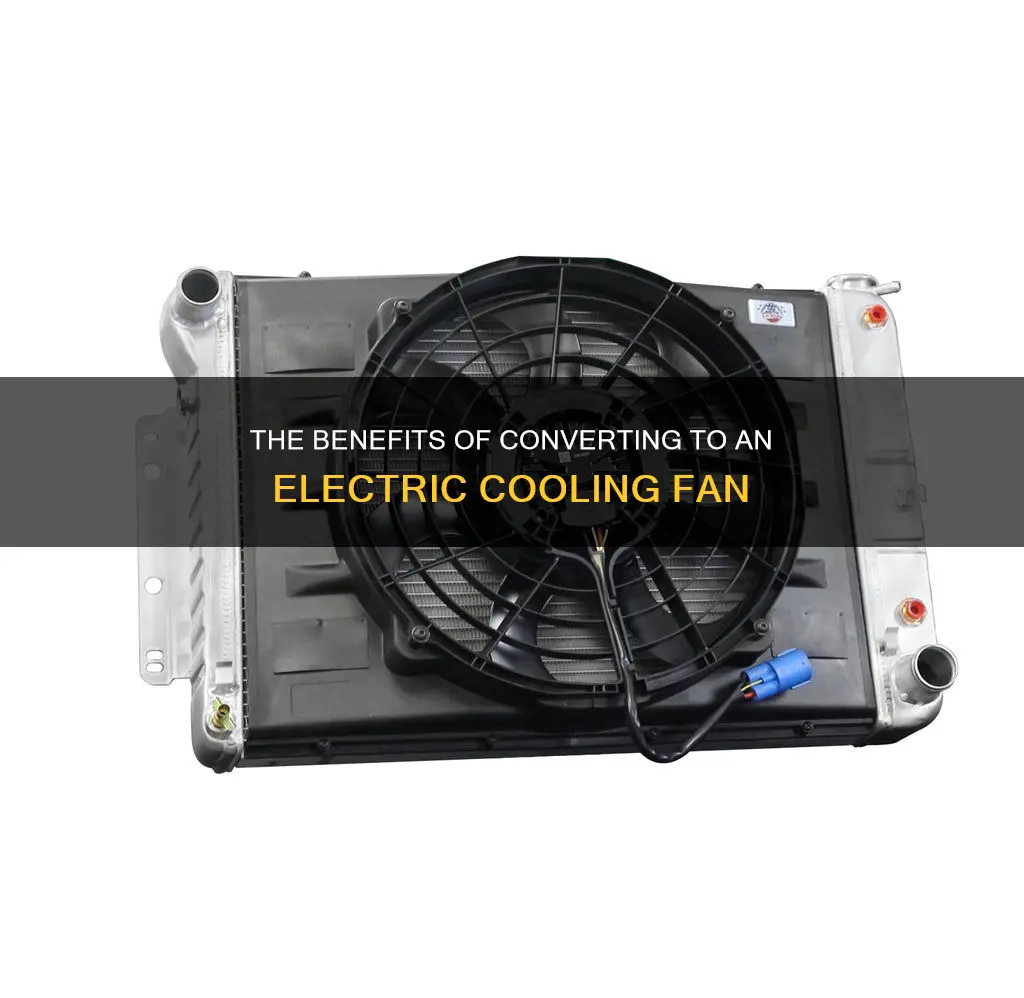

Converting to an electric cooling fan is a modification that can improve the efficiency of your engine's cooling system and save energy. This process involves replacing a belt-driven mechanical fan or fan clutch with an electric fan, which can be mounted either in front of or behind the radiator. The electric fan will only run when needed, and its operation can be controlled by a thermostatic switch or electronic/electro-mechanical thermostat. This conversion can be done on a range of vehicles, including older models like the 1999-2004 GM Trucks and SUVs (Silverado, Sierra, Tahoe) and newer ones like the 2002 GMC 1500HD. The process involves removing the original fan assembly, installing the new electric fan, and making the necessary wiring connections, with some creative solutions required for optimal sensor placement.
Explore related products
What You'll Learn
The benefits of electric fans
Electric cooling fans offer a host of advantages over traditional mechanical fans, making them a popular upgrade for many vehicle owners. One of the key benefits is their ability to optimise air movement across the radiator fins, which is crucial for preventing overheating, especially when a vehicle is idling at traffic lights or stuck in slow-moving traffic. Electric fans provide the necessary airflow assist in such situations, leading to increased engine cooling and improved air conditioning when it is needed the most.
Another advantage of electric fans is that they can be controlled independently of engine speed, allowing for more precise temperature regulation. This results in better overall cooling, which improves engine performance, especially during high-stress scenarios such as towing or off-roading. The improved cooling efficiency also means that the engine doesn't have to work as hard to turn the fan, leading to increased horsepower and improved fuel economy.
The benefits of electric cooling fans extend beyond performance enhancements. Electric fans are a modern solution that is quieter and easier to maintain than their mechanical counterparts. They draw their power directly from the vehicle's electrical system, supplied through the battery and alternator, which means they only run when needed, conserving energy and reducing the overall load on the engine.
Upgrading to electric cooling fans is a forward-thinking decision that can bring your vehicle into the modern age of automotive technology. They offer a range of benefits that improve not only engine performance but also fuel efficiency and the overall driving experience, making them a smart investment for any vehicle owner seeking enhanced performance and fuel savings, along with a more enjoyable ride.
Checking Ikeja Electric Prepaid Balance: Quick and Easy Steps
You may want to see also
Explore related products
Choosing the right fan
Firstly, it is important to consider the type of equipment you are trying to cool. Different fans are designed for different applications, so choosing a fan that is compatible with your equipment is essential. The two main types of fans are axial and centrifugal. Axial fans, the most common type, blow air straight out and are ideal for systems with low static pressure. Centrifugal fans, on the other hand, expel air in a different direction, creating a spiral pattern, and are better suited for overcoming higher static pressures but typically have lower airflow.
The size of the fan is also critical. Cooling fans come in various shapes and sizes, so ensure you select one that fits properly and provides adequate cooling without taking up too much space.
Noise is another crucial factor. Fans vary in noise levels, so choose one that suits your environment. Quieter fans are generally preferred for electronic equipment.
When selecting a fan, it is important to consider the airflow, which is measured in cubic feet per minute (CFM). A fan with a higher CFM rating will move more air and provide better cooling.
Additionally, the speed control of the fan should be evaluated. Modern fans often employ temperature monitoring to adjust the fan speed according to the required level of cooling. Pulse-width modulation (PWM) is a common method used to control fan speed.
Finally, consider the reliability of the fan. Ball-bearing fans, for example, have longer lives, are more versatile, and can better protect against overheating.
Mastering the Singer Electric Sewing Machine
You may want to see also
Explore related products
Installing the fan
Installing an electric fan is a complex process that requires careful planning and execution. Here is a step-by-step guide to help you through the installation process:
Firstly, it is important to select an appropriate electric fan for your vehicle. You can choose from a variety of aftermarket, junkyard, or OE fans that suit your specific application. Ensure that the fan you select is a "pusher" type designed to sit in front of the radiator, as there is limited space between the engine water pump pulley and the back of the radiator. Consider factors such as the fan's diameter and mounting brackets to ensure a proper fit.
Next, prepare the electric fan assembly for installation. Remove any original retaining clips from the OE shroud and transfer them to the new electric fan assembly. This may involve carefully prying and manoeuvring the new fan assembly into place without removing other components. Ensure that the tabs on the fan align with the clips in the radiator end tanks and that the slots in the fan assembly rest on the lip of the lower radiator core support.
Once the fan is in place, secure it by bolting it down. Now, you can proceed with the wiring. Connect the fan harness to the electric fans and mount the relays to a suitable location, such as the outside of the ECM cover, using the supplied screws. Ensure that the wiring provides a direct and robust connection to the battery, as the fan draws a significant amount of power.
For thermostatic control of the fan, you can utilise a commercial electronic or electro-mechanical engine fan thermostat. Alternatively, you can install a temperature sender in the rad tank to measure the coolant temperature and control the fan activation accordingly. Ensure that the fan only turns on when the coolant exiting the radiator approaches the engine operating temperature.
Finally, test the fan's functionality. With the vehicle tuned to enable electric fan control, start the engine and allow it to reach operating temperature. Ensure that the fan activates as intended and provides adequate cooling. Adjust any settings or controls as needed to optimise the fan's performance.
By following these steps, you can successfully install an electric cooling fan, improving the cooling efficiency and performance of your vehicle.
Repairing Electric Golf Cart Batteries: A Step-by-Step Guide
You may want to see also
Explore related products
Wiring the fan
Firstly, you will need to determine the power source for the fan motor. In some installations, the power may come directly from the main power distribution block, as mentioned by one source. This power source ensures a direct and reliable connection to the fan. An inline fuse, typically rated at 30A, is also included in the wiring to protect against electrical surges and potential short circuits. The wiring gauge should be appropriate for the electrical load, with thicker wiring being used for higher currents.
The fan's control module also requires power, and this can be sourced from a convenient circuit, such as the horn relay circuit. This ensures that the fan turns off when the ignition is off but can still run if the key is left in the accessory position, providing flexibility and safety. The fan's negative power wire should be grounded to the chassis, providing a return path for the electrical current and completing the circuit.
In some cases, a custom controller or relay may be required to trigger the fan. This is especially true if you want to control the fan based on temperature. The controller can be designed to monitor the coolant temperature and activate the fan only when needed, preventing the engine from overheating. This type of setup may require some creativity and knowledge of electronics, but it gives you precise control over the fan's operation.
Finally, it is important to securely mount the fan control unit and relay in an appropriate location. While the aesthetic aspect of the wiring setup may be a secondary concern, ensuring that the wiring is neat and organised can make future maintenance and troubleshooting easier.
Overall, wiring the electric cooling fan requires careful consideration of power sources, electrical loads, and control mechanisms. By following these steps and ensuring safe and effective wiring, you can ensure the fan operates as intended, keeping your engine cool and preventing overheating.
Electricity Savings: Tips to Cut Costs and Keep More Cash
You may want to see also
Explore related products
Testing the fan
Understanding the Basics
Before testing, it is important to understand how the electric cooling fan operates. The fan is designed to prevent the engine from overheating by distributing cooler air through the radiator and exchanging engine heat. The fan is typically activated when the engine temperature exceeds a predetermined level, usually between 200 and 220 degrees Fahrenheit.
Visual Inspection
Begin by visually inspecting the fan for any physical damage or debris that may be obstructing its function. Ensure that the fan blades are intact and free from any dirt, leaves, or other debris that could hinder their rotation.
Voltage and Fuse Checks
Use a multimeter to check the voltage of specific fuses in the under-dash and under-hood fuse boxes. For this test, set the multimeter to '20' in the DCV section. Connect the black multimeter probe to the negative battery terminal or a metal ground point, depending on the type of fuse being tested. Then, touch the red probe to the fuse contacts and take readings. The value should be around 12 volts.
Fan Activation Testing
To test if the fan activates at the correct temperature, you can perform a simple test. Allow the engine to idle for 15 minutes or until the coolant temperature reaches 220-230 degrees Fahrenheit. The fan should activate at this temperature. If it doesn't, there may be an issue with the coolant temperature sensor, fan relay, fan electrical circuit, or the fan itself.
Direct Power Test
If the fan is not activating at the correct temperature, you can perform a direct power test. Unplug the fan connector and connect jumper cables directly from the battery to the fan motor. If the fan still does not spin, it may be blown and require replacement.
Sensor and Relay Checks
In addition to testing the fan itself, it is important to verify the proper functioning of the coolant temperature sensor and the fan relay. Ensure the sensor is not faulty by checking if the \"check engine\" light is on and checking for any fault codes. Additionally, consult vehicle-specific service information or scan tool data to verify the temperature at which the fan should activate and to check for any issues with the fan relay or circuit.
How Energy-Efficient Are Your Televisions?
You may want to see also
Frequently asked questions
An automotive electric fan offers a more efficient, energy-saving alternative over a fan clutch or belt-driven mechanical fan.
The fan should be a "pusher" type of fan that is designed to sit in front of the radiator. The fan motor power should come directly from the main power distribution block. The fan's negative power wire should be grounded to the chassis, near the fan on the front bulkhead.
It is important to measure the radiator core area, width, and height to ensure the fan will fit properly. The fan should also be mounted as close to the hot water inlet (top radiator hose) as possible for maximum cooling effect.
