Beatrice Lang

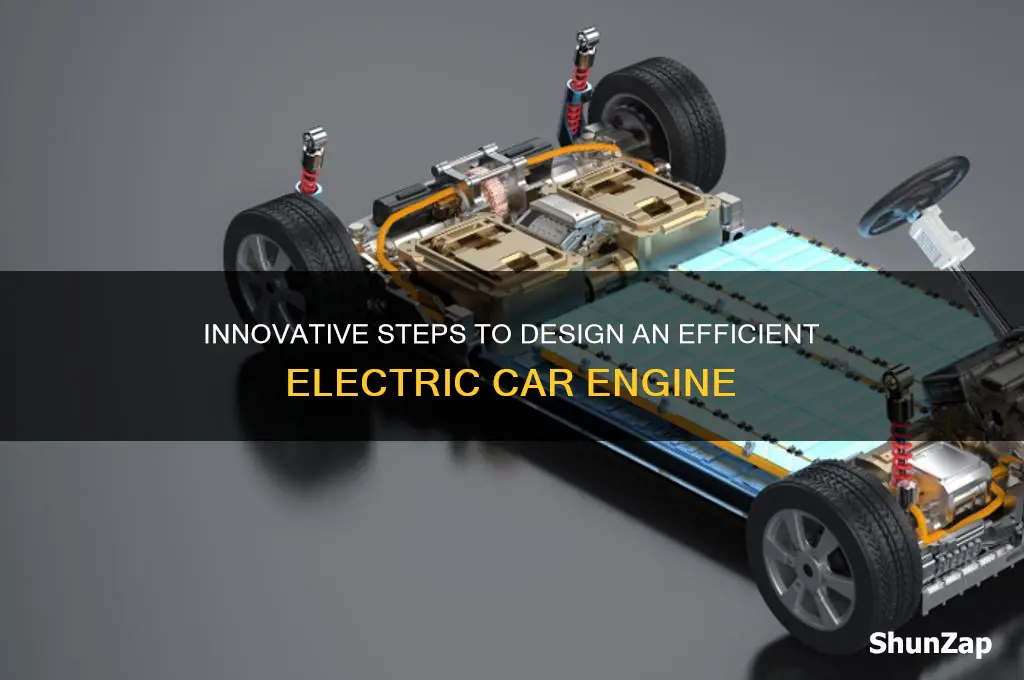

Designing an electric car engine involves a multidisciplinary approach that integrates electrical engineering, mechanical engineering, and materials science to create a highly efficient and reliable powertrain. The process begins with defining the vehicle’s performance requirements, such as range, acceleration, and top speed, which dictate the motor’s power and torque specifications. Engineers then select or design an electric motor, typically an AC induction or permanent magnet synchronous motor, optimized for high efficiency and compactness. Battery integration is critical, requiring careful consideration of energy density, charging capabilities, and thermal management to ensure safety and longevity. The engine’s control system, including inverters and software, must precisely manage power delivery and regeneration during braking. Additionally, cooling systems are essential to prevent overheating, while lightweight materials and aerodynamic designs enhance overall efficiency. Collaboration with automotive designers ensures the engine fits seamlessly into the vehicle’s architecture, balancing performance with practicality. Ultimately, the goal is to create a sustainable, high-performance electric powertrain that meets modern transportation demands.
Explore related products
What You'll Learn
- Battery Selection: Choose high-energy-density, fast-charging, and durable batteries for optimal performance and range
- Motor Type: Select between AC induction or permanent magnet motors for efficiency and power
- Power Electronics: Design efficient inverters and converters to manage energy flow effectively
- Cooling Systems: Implement liquid or air cooling to prevent overheating of components
- Weight Optimization: Use lightweight materials like carbon fiber to enhance efficiency and range
Battery Selection: Choose high-energy-density, fast-charging, and durable batteries for optimal performance and range
The heart of any electric vehicle (EV) is its battery, and selecting the right one is critical for achieving optimal performance, range, and customer satisfaction. High-energy-density batteries are non-negotiable, as they store more power in a smaller, lighter package, directly translating to longer driving distances without adding unnecessary weight. For instance, lithium-ion batteries with nickel-manganese-cobalt (NMC) chemistries offer energy densities of 200–265 Wh/kg, making them a popular choice for EVs like the Tesla Model S. However, emerging solid-state batteries promise densities exceeding 400 Wh/kg, potentially revolutionizing the industry.
Fast-charging capability is equally vital, as it addresses range anxiety and enhances convenience. Batteries with high charge acceptance rates, such as those using silicon-graphene anodes, can reduce charging times from hours to minutes. For example, Porsche’s 800V architecture allows the Taycan to charge from 5% to 80% in just 22 minutes. To achieve this, designers must balance cell chemistry, thermal management, and charging infrastructure compatibility. Caution: Overemphasis on fast charging can degrade battery life, so integrating intelligent charging algorithms is essential to maintain longevity.
Durability is the unsung hero of battery selection, ensuring the EV remains reliable over its lifespan. Batteries must withstand thousands of charge-discharge cycles, extreme temperatures, and mechanical stress. Lithium iron phosphate (LFP) batteries, while offering lower energy density (120–160 Wh/kg), excel in longevity, with some lasting over 4,000 cycles. Pairing robust chemistries with advanced battery management systems (BMS) can further extend life by optimizing charge levels and temperature control. Practical tip: Use LFP for fleet vehicles prioritizing durability over range, and NMC for high-performance consumer EVs.
Comparing battery types reveals trade-offs that designers must navigate. While NMC batteries offer superior energy density and fast-charging, their reliance on cobalt raises cost and ethical concerns. LFP batteries, on the other hand, are cobalt-free and cheaper but fall short in energy density. Solid-state batteries promise the best of both worlds but remain in the experimental stage. Takeaway: Tailor battery selection to the vehicle’s purpose—prioritize energy density for luxury EVs, durability for commercial fleets, and cost-effectiveness for entry-level models.
Finally, integrating battery selection with overall vehicle design is crucial. A high-energy-density battery paired with an inefficient drivetrain negates its advantages. Similarly, fast-charging capabilities are useless without a supporting charging network. Designers must adopt a holistic approach, considering factors like vehicle weight, aerodynamics, and user behavior. For instance, urban EVs may prioritize fast-charging and compact size, while long-range models benefit from maximizing energy density. By aligning battery choice with the vehicle’s intended use, designers can create EVs that meet both performance and market demands.
Why Fusion Reactions Remain Elusive for Electricity Generation
You may want to see also
Explore related products
Motor Type: Select between AC induction or permanent magnet motors for efficiency and power
Choosing the right motor type is pivotal in electric vehicle (EV) design, as it directly impacts efficiency, power, and overall performance. The two primary contenders are AC induction motors (ACIM) and permanent magnet motors (PMSM), each with distinct advantages and trade-offs. AC induction motors, popularized by Tesla, rely on electromagnetic induction to generate torque, eliminating the need for rare-earth magnets. This makes them cost-effective and less susceptible to supply chain disruptions. However, they tend to be heavier and less efficient at high speeds compared to their permanent magnet counterparts.
Permanent magnet motors, on the other hand, use embedded magnets to produce a constant magnetic field, resulting in higher efficiency and power density. This makes them ideal for compact, high-performance EVs like the BMW i3 or Nissan Leaf. However, the reliance on rare-earth materials like neodymium raises concerns about cost, environmental impact, and geopolitical dependencies. Designers must weigh these factors against the motor’s operational efficiency, especially in urban driving cycles where PMSMs excel due to their superior low-speed torque.
When selecting a motor type, consider the vehicle’s intended use case. For long-range highway driving, AC induction motors may offer sufficient efficiency, while permanent magnet motors are better suited for stop-and-go city environments. Additionally, thermal management is critical for both types, as overheating can degrade performance. ACIMs generate heat primarily in the rotor, while PMSMs face demagnetization risks under extreme temperatures. Incorporating liquid cooling systems can mitigate these issues but adds complexity and weight.
A practical tip for designers is to simulate real-world driving conditions to compare motor performance. Tools like MATLAB or ANSYS can model efficiency curves, torque output, and thermal behavior under varying loads. For instance, a PMSM might deliver 95% efficiency at peak power, while an ACIM achieves 92%, but the latter’s lower material costs could offset the efficiency gap in budget-conscious designs. Always benchmark against industry standards like the WLTP or EPA cycles to ensure compliance and competitiveness.
Ultimately, the choice between AC induction and permanent magnet motors hinges on balancing cost, efficiency, and sustainability goals. While PMSMs offer superior performance, their environmental and economic implications cannot be ignored. ACIMs, though less efficient, provide a reliable and cost-effective alternative. By carefully evaluating these factors and leveraging advanced simulation tools, designers can optimize motor selection to meet the demands of modern electric vehicles.
DIY Electric Car Motor: Step-by-Step Guide to Building Your Own
You may want to see also
Explore related products
Power Electronics: Design efficient inverters and converters to manage energy flow effectively
Efficient power electronics are the linchpin of electric vehicle (EV) performance, dictating how effectively energy is converted between the battery, motor, and auxiliary systems. Inverters and converters, in particular, play a critical role in managing the flow of electrical energy, ensuring that power is delivered smoothly and with minimal loss. The inverter, for instance, converts the direct current (DC) from the battery into alternating current (AC) required by the electric motor. A well-designed inverter not only maximizes efficiency but also reduces heat generation, which can degrade components over time. Selecting the right switching frequency—typically between 10 kHz and 20 kHz—balances efficiency with electromagnetic interference (EMI) concerns, as higher frequencies can increase switching losses but minimize filter size.
Converters, on the other hand, manage voltage levels and direct energy flow between the battery, motor, and regenerative braking systems. A DC-DC converter, for example, steps down the high-voltage battery output (often 400V or more) to the 12V required for lighting and infotainment systems. Efficiency here is paramount, as even small losses can significantly impact range. Wide-bandgap semiconductors like silicon carbide (SiC) or gallium nitride (GaN) are increasingly favored over traditional silicon MOSFETs due to their superior thermal conductivity and switching speeds, enabling converters to operate at higher temperatures and frequencies with reduced losses.
Designing these components requires a holistic approach, considering not just electrical efficiency but also thermal management and system integration. Inverters and converters generate heat during operation, necessitating effective cooling solutions such as liquid cooling or phase-change materials. Thermal simulations using tools like ANSYS or COMSOL can predict hotspots and optimize heat dissipation. Additionally, packaging these components compactly while ensuring adequate airflow is crucial for space-constrained EV designs.
A comparative analysis of inverter topologies—such as two-level vs. multilevel inverters—reveals trade-offs between complexity and performance. Multilevel inverters, though more intricate, offer lower harmonic distortion and reduced stress on motor insulation, making them ideal for high-power applications. However, their increased component count and control complexity may not suit all budgets or design constraints. For cost-sensitive projects, two-level inverters with optimized gate-drive circuits can still achieve efficiencies above 95% when paired with advanced semiconductors.
Finally, real-world testing and validation are indispensable. Bench testing under varying load conditions, coupled with on-road trials, ensures that inverters and converters perform reliably across temperature extremes and driving scenarios. Incorporating diagnostics and fault-tolerant designs, such as redundant switching paths, enhances safety and longevity. By prioritizing efficiency, thermal management, and system integration, engineers can create power electronics that not only meet but exceed the demands of modern electric vehicles.
Electric Vehicles: Save Money, Go Green
You may want to see also
Explore related products
Cooling Systems: Implement liquid or air cooling to prevent overheating of components
Electric motors and battery packs generate significant heat under operation, with temperatures potentially exceeding 200°C if left unchecked. This thermal buildup accelerates component degradation, reduces efficiency, and poses safety risks. Implementing effective cooling systems—liquid or air-based—is non-negotiable for maintaining optimal performance and longevity in electric vehicle (EV) powertrains.
Liquid cooling systems, which circulate coolant through channels in direct contact with heat-generating components, offer superior thermal management for high-performance EVs. Glycol-water mixtures, typically operating between 60–90°C, absorb heat via cold plates bonded to battery modules or motor housings. A radiator, pump, and thermostat regulate coolant temperature, while ethylene glycol concentrations (30–50%) prevent freezing and boiling. This method’s efficiency stems from liquid’s higher specific heat capacity (4.18 J/g°C vs. air’s 1.005 J/g°C), enabling rapid heat dissipation even in compact designs. Tesla’s Model S, for instance, uses a liquid-cooled motor and battery pack to sustain peak power output during aggressive driving.
In contrast, air cooling systems rely on convective airflow to remove heat, making them simpler and lighter but less effective for high-power applications. Forced-air systems use fans or vehicle motion to direct air over finned heat sinks attached to components, while passive designs depend on natural convection. Air cooling is ideal for low-power motors (under 50 kW) or mild-hybrid systems, where thermal loads are modest. For example, the Nissan Leaf employs air cooling for its battery pack, prioritizing cost-efficiency and weight reduction over extreme performance. However, airflow obstruction or high ambient temperatures (above 40°C) can compromise its effectiveness, underscoring the need for robust thermal modeling during design.
Selecting between liquid and air cooling requires balancing performance, cost, and packaging constraints. Liquid systems demand additional components (pump, radiator, hoses) and maintenance (coolant replacement every 2–5 years), but they enable higher power densities and thermal stability. Air cooling eliminates these complexities but limits system capabilities. Hybrid approaches, such as liquid-cooled batteries paired with air-cooled motors, offer compromises tailored to specific vehicle architectures. For instance, the Porsche Taycan combines liquid cooling for its 800V battery and motor with targeted air cooling for power electronics, optimizing both efficiency and packaging.
Regardless of the chosen method, integrating thermal management into the design from the outset is critical. Simulations using tools like ANSYS Fluent or COMSOL Multiphysics should model heat generation, material conductivity, and coolant flow to identify hotspots and optimize component placement. Materials like aluminum (237 W/mK thermal conductivity) or copper (401 W/mK) should be prioritized for heat exchangers, while phase-change materials or thermal interface pastes (e.g., Arctic Silver 5, 8.9 W/mK) can enhance heat transfer at interfaces. Regular testing under extreme conditions—simulated desert heat or subzero temperatures—ensures real-world reliability, safeguarding the EV’s performance across its lifecycle.
Is Leasing an Electric Car Tax Deductible? A Comprehensive Guide
You may want to see also
Explore related products
Weight Optimization: Use lightweight materials like carbon fiber to enhance efficiency and range
Every kilogram shaved from an electric vehicle (EV) translates to improved efficiency and extended range. This is because lighter vehicles require less energy to accelerate, maintain speed, and overcome inertia. Traditional materials like steel, while strong, are heavy. Enter carbon fiber, a wonder material boasting a strength-to-weight ratio significantly higher than steel. Its use in critical components like the chassis, body panels, and even battery enclosures can dramatically reduce overall vehicle weight.
For instance, the BMW i3, a pioneer in lightweight EV design, utilizes a carbon fiber-reinforced plastic (CFRP) passenger cell, shaving off hundreds of kilograms compared to a conventional steel structure.
However, carbon fiber isn't a magic bullet. Its cost remains higher than traditional materials, posing a challenge for mass-market EVs. Manufacturing processes for carbon fiber components are also more complex and time-consuming. Striking a balance between weight reduction, cost-effectiveness, and production feasibility is crucial. Engineers must carefully select where to implement carbon fiber, targeting areas with the highest impact on weight savings and performance.
Imagine a surgeon meticulously trimming away excess tissue – the goal is precision, not indiscriminate removal.
The benefits of weight optimization extend beyond range. Lighter vehicles handle better, offering a more engaging driving experience. They also experience less wear and tear on brakes and suspension components, leading to reduced maintenance costs. Furthermore, lighter EVs contribute to a smaller environmental footprint, as less energy is required for production and operation.
While carbon fiber takes center stage, it's not the only player in the weight optimization game. Advanced high-strength steels, aluminum alloys, and even magnesium alloys offer viable alternatives, each with its own strengths and weaknesses. The key lies in a holistic approach, combining material selection with innovative design techniques like topology optimization, which uses computer simulations to identify areas where material can be removed without compromising structural integrity.
Think of it as sculpting the perfect form, where every curve and contour serves a purpose.
Ultimately, weight optimization is a multifaceted endeavor, demanding a delicate balance between performance, cost, and sustainability. By embracing lightweight materials like carbon fiber and innovative design strategies, engineers can unlock the full potential of electric vehicles, paving the way for a future where efficiency and driving pleasure go hand in hand.
Are Cruise Cars Electric? Exploring Autonomous Vehicle Technology and Power Sources
You may want to see also
Frequently asked questions
The key components include an electric motor, battery pack, motor controller, power inverter, transmission (if applicable), cooling system, and regenerative braking system.
The motor size is determined by factors such as vehicle weight, desired performance (torque and speed), efficiency, and power requirements. Use calculations based on peak power, continuous power, and torque needs.
Lithium-ion batteries are commonly used due to their high energy density and efficiency. Battery capacity is calculated based on the vehicle's range, power consumption, and desired efficiency, typically measured in kilowatt-hours (kWh).
Thermal management is critical to ensure the longevity and efficiency of the battery and motor. It involves designing cooling systems (air or liquid-cooled) to regulate temperature during operation and prevent overheating.
