Determining the electrical axis of the heart is an important step in interpreting an electrocardiogram (ECG). The electrical axis of the heart reflects the average direction of ventricular depolarization during ventricular contraction. The direction of depolarization is generally alongside the heart's longitudinal axis, which is typically from the base of the heart to its apex, and to the left and downwards. The QRS axis is considered the most important to determine, and this can be done by examining the limb leads. The QRS complex in each lead should be examined to determine if it is positive, isoelectric, or negative. The axis can also be approximated manually by judging the net direction of the QRS complex in leads I and II.
Explore related products
What You'll Learn
The QRS complex and its relationship with leads I and aVF
The QRS complex is a key component of an ECG, reflecting the net electrical activity of the heart at a given moment. The QRS axis is the major direction of the overall electrical activity of the heart, and it is important to determine it to gain insights into underlying disease states and certain life-threatening arrhythmias.
The QRS complex in leads I and aVF plays a crucial role in determining the electrical axis of the heart. Lead I and lead aVF observe the electrical stimuli from different angles, with lead I at 0 degrees and lead aVF at +90 degrees. The QRS deflection in these leads can be positive, negative, or biphasic depending on the direction of the electrical stimuli in relation to the lead.
If the QRS complex is positive in both lead I and lead aVF, then the axis is normal, falling within the range of -30 degrees to +90 degrees. This indicates that the electrical activity is directed downward and slightly to the left, which is typical under normal circumstances due to the left ventricle generating the most electrical force.
On the other hand, if the QRS complex is negative in lead I and positive in lead aVF, the axis is rightward, indicating a right axis deviation (RAD). This suggests that the electrical activity is predominantly directed to the right side of the heart.
Additionally, if the QRS complex is upright in lead I (positive) and downward in lead aVF (negative), the axis can be between 0 and -90 degrees, which may still fall within normal limits.
By examining the QRS complex in leads I and aVF, clinicians can quickly and accurately assess the electrical axis of the heart, aiding in the diagnosis and management of various cardiac conditions.
Catching Power Thieves: Reporting Electricity Theft
You may want to see also
Explore related products
Positive, negative, and biphasic electrical stimuli
A positive electrical stimulus in the context of an ECG refers to a positive deflection in the wave of depolarization. This occurs when the wave of depolarization spreads toward the positive pole of the lead. For example, in lead II, if the path of atrial stimulation is directed downward and to the patient's left, toward the positive pole, a positive (upward) P wave is observed.
On the other hand, a negative electrical stimulus results in a negative deflection in the wave. This happens when the wave of depolarization spreads toward the negative pole of the lead or away from the positive pole. As an example, in lead aVR, if the atrial stimulation path spreads downward and to the left, away from the positive pole, a negative P wave is seen.
A biphasic electrical stimulus, on the other hand, involves sending two different pulses or phases at two different intensities that alternate. This type of stimulation uses one positive and one negative pulse delivered in quick succession. Biphasic stimulation can be symmetrical, with identical phases that cancel each other out, or asymmetrical, with non-identical phases that may or may not yield a net charge. This type of stimulation is particularly useful for treating a variety of conditions, such as inflammation, neuropathies, and pain, as it can improve circulation, reduce inflammation, and help with muscle contraction and relaxation.
To determine the electrical axis of the heart, the QRS axis, which is the most important, is typically examined first. This can be done by finding the major direction of the QRS complex—positive or negative—in leads I and aVF. If the QRS complex is positive in both leads, then the axis is normal. If it is negative in both leads, it indicates an extreme axis deviation. Additionally, the P wave or T wave axis can also be measured.
Space Heaters: NYC's Legal Electric Warmth
You may want to see also
Explore related products
The vertical axis and its determination
The vertical axis of the heart is determined using three unipolar and three bipolar ECG leads, while the horizontal axis is calculated using chest leads. Each lead has two electrodes connected from one end of the heart to the opposite side. The direction from the negative end to the positive end is called the axis of the lead.
The most efficient way to estimate the axis is to examine the QRS complex in leads I and aVF and determine if it is positive, isoelectric (equiphasic), or negative. If the QRS is positive in both leads, the axis is normal and between 0° and +90°. If the QRS is negative in both, it indicates an extreme axis deviation. If the QRS is negative in lead I and positive in lead aVF, it indicates a right-axis deviation.
A three-lead analysis can also be used, combining leads I, II, and aVF, allowing for a rapid and accurate QRS assessment. If leads I and II are both positive, the axis is between -30° and +90°.
The QRS axis is the most important to determine, but the P wave or T wave axis can also be measured. The limb leads (not the precordial leads) need to be examined to determine the QRS axis.
Vector analysis is used to determine the direction of the net flow of current through the heart. It is important for clinicians to have adequate knowledge and application of vector analysis as it can provide insights into underlying disease states and help with differential diagnoses.
Electric Fences: Effective Deer Deterrent or Waste of Energy?
You may want to see also
Explore related products
The horizontal axis and its calculation

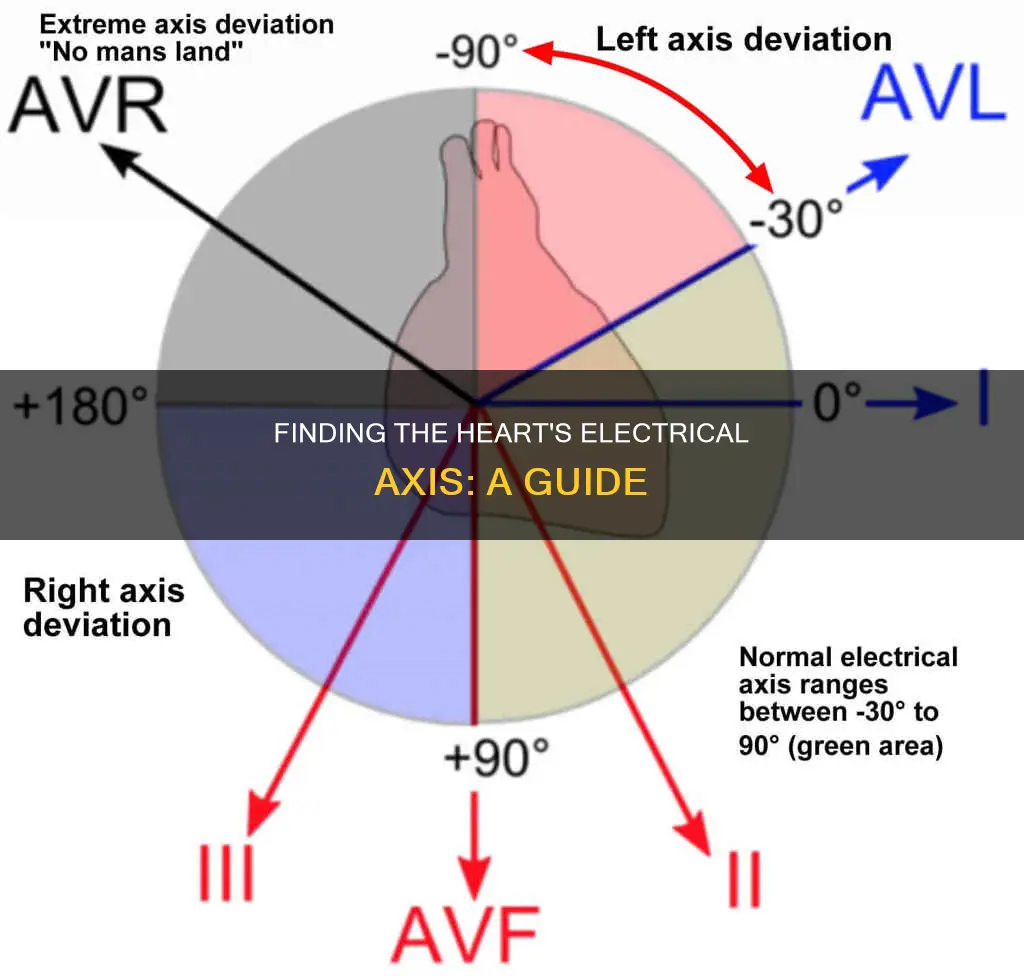

The electrical axis of the heart is the major direction of the overall electrical activity of the heart. It can be normal, leftward (left axis deviation, or LAD), rightward (right axis deviation, or RAD), or indeterminate (northwest axis). The QRS axis is the most important to determine, and it is approximately perpendicular (90°) from the positive pole of the lead. The axis is described in degrees, with 0° indicating a horizontal direction towards the heart’s left side for a vector.
