Electrical continuity tests are used to determine whether electricity can flow freely through a closed circuit. This is done by placing a small voltage between two or more endpoints of the circuit and measuring the resistance. Low resistance means the circuit is closed and has electrical continuity, while high resistance means the circuit is open and lacking continuity. Continuity tests can be performed using a multimeter with a continuity setting, or by using a simple resistance tester. It is important to ensure that no active electrical signal is flowing through the circuit when performing a continuity test, as this will not work and may be dangerous.
| Characteristics | Values |
|---|---|
| What is continuity? | The presence of a complete path for current flow. |
| When to use a continuity test? | To determine damaged components or broken conductors in a circuit, to check soldering, or to verify/reverse-engineer an electrical circuit or connection. |
| How to perform a continuity test? | Using a multimeter, set it to the "Continuity" function, or select a midrange resistance setting in ohms. Turn off the breaker that controls the circuit and verify no electricity is flowing. |
| What to do if there is no dedicated continuity setting? | Turn the dial to the lowest number in resistance mode. |
| How does it work? | Continuity testing sends a small current through the circuit to measure resistance in the circuit. |
| What is the role of a beeper? | A digital multimeter with a continuity beeper notifies technicians when a closed circuit is detected. |
| What is a safe practice? | Continuity testing should be attempted only when voltage is not present in the circuit being tested. Always unplug the device or turn off the main circuit breaker before testing. |
Explore related products
$45.88
What You'll Learn

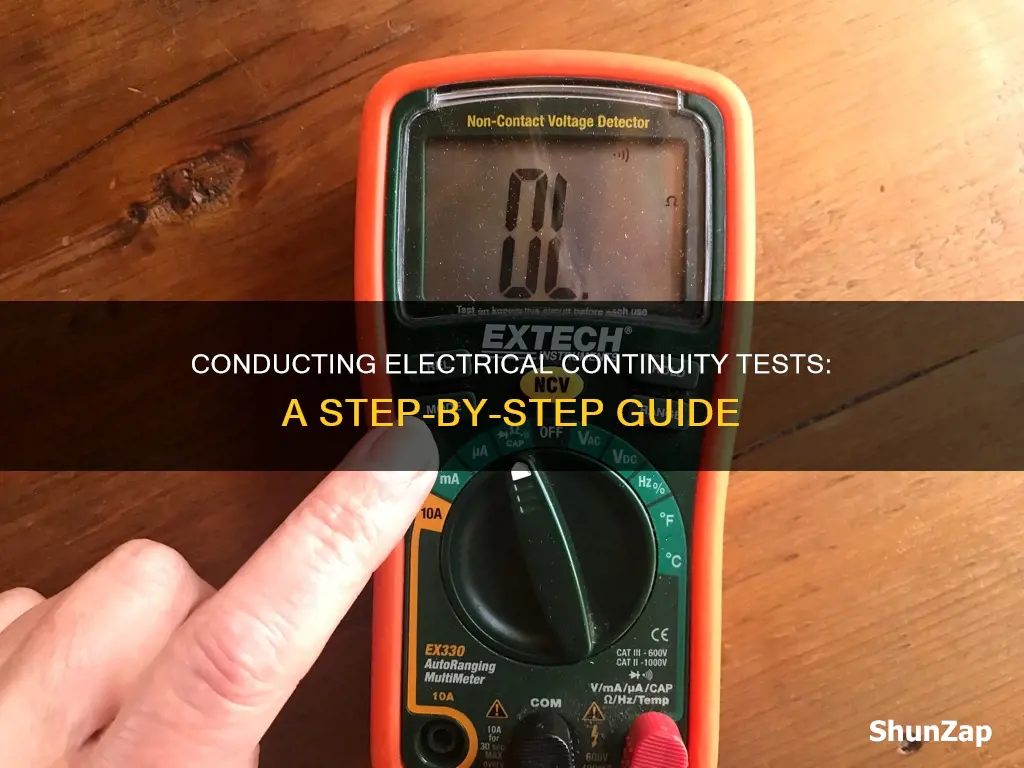

Continuity tester setup
To set up a continuity tester, you will need a multimeter with a continuity test mode. This may be indicated by a diode symbol, which is a triangle with a line on the right side, or a symbol that looks like sound waves. If your multimeter does not have a dedicated continuity setting, you can set it to the lowest number in resistance mode, measured in ohms.
Once you have selected the correct mode, you will need to calibrate the continuity setting. To do this, touch the metal parts of your multimeter's terminals together and hold them in place. If your multimeter is functioning correctly, it should beep or register 0 ohms of resistance.
If you are testing an open current, place the terminals anywhere on the plate of an outlet or the frame of an appliance. This will connect the two terminals using the wire, outlet, or fuse as a conduit, and the current will automatically be sent to the other terminal to render a reading.
If you are testing a switch, there should be no continuity reading when the switch is in the off position. If you are testing a fuse, place one terminal anywhere on the body of the fuse, but ensure that the two terminals do not touch, as this will interfere with your reading.
It is important to note that continuity testing should only be attempted when voltage is not present in the circuit being tested. Always turn off the power and verify that no electricity is flowing before conducting a continuity test.
Safe Electric Heater Disposal: What You Need to Know
You may want to see also
Explore related products
Testing switches
Prepare the Switch
Before beginning any electrical testing, safety should be the top priority. Ensure that the power to the circuit is turned off at the breaker and verify that there is no live electricity using a voltage tester. If possible, remove or isolate the switch from its operational environment. This may involve unscrewing the switch from the wall and pulling it out, with the wires still attached.
Set Up the Multimeter
Multimeters are versatile tools that can measure various electrical properties such as voltage, amperage, and resistance. To test a switch, you will specifically be using the continuity test mode. Turn the dial on the multimeter to the continuity setting, which is often symbolized by an arrow forming a circle or a sound wave symbol. If your multimeter does not have a dedicated continuity setting, you can use the lowest setting in resistance mode (measured in ohms, Ω). Consult your multimeter's manual for specific instructions.
Conduct Continuity Test
With the switch in the "off" position, there should be no continuity. Touch one probe of the multimeter to one of the switch's terminal screws, and the other probe to the other terminal screw. The multimeter should not beep or show continuity. Now, turn the switch on and repeat the test. If the switch is functioning properly, the multimeter should beep, indicating continuity, and show zero ohms of resistance.
Voltage Check
In addition to the continuity test, you can also perform a voltage check to further verify the switch's functionality. Connect one probe of the multimeter to the terminal connected to the power source and the other probe to the output terminal. Flip the switch on. A reading close to the source voltage indicates that the switch is working as intended.
Advanced Testing
For more complex switch issues or for a deeper analysis of switch performance, you can employ advanced techniques such as measuring voltage drop across the switch or dynamic load testing. These methods can help identify issues that impede circuit efficiency without completely preventing current flow.
Safe Electric Burner Disposal: Step-by-Step Guide
You may want to see also
Explore related products
Testing fuses
Fuses are safety devices in electrical circuits that protect against excessive current flow. They are designed to protect power lines, cables, and equipment from excessive temperature and power surges. A fuse contains a metal filament that burns when the fuse blows during a current overload. When an overload or short circuit occurs, the high current heats the fuse element, creating a gap within the fuse.
To test a fuse, you will need a multimeter, a fuse puller or insulated pliers, and safety equipment such as safety glasses and gloves. Before you begin, ensure that the power supply to the device or circuit is disconnected. This step is crucial to avoid electric shock and potential damage to the equipment being tested.
Next, carefully remove the fuse from its holder using the fuse puller or insulated pliers. Take care not to damage the fuse or surrounding components.
Now you can begin testing for continuity. Touch the multimeter probes to each end of the fuse. Polarity does not matter for continuity testing. If the fuse has continuity, the multimeter will emit a beep or show a reading indicating continuity, meaning the fuse is still functional. If there is no continuity, it indicates a blown fuse that needs to be replaced.
You can also test for resistance. Touch the multimeter probes to each end of the fuse. A good fuse should show a low resistance value, close to zero. If the multimeter displays a high resistance value or shows "OL" (open loop), it indicates a blown fuse that needs replacement.
Carbon Monoxide and Electrical Appliances: What's the Risk?
You may want to see also
Explore related products
Testing soldering
Once your multimeter is set up, you can begin the testing process. Place the red terminal of the multimeter on the other end of the material being tested. It is important that the metal piece at the end of the terminal maintains constant contact with the piece being tested. For instance, if you are testing an appliance and wire connection for safety reasons, press the red terminal against the wire or fuse.
If you are testing an outlet, you may need to first unscrew the faceplate and mounting screws to slightly pull out the outlet. Then, place the black terminal on the metal screw on the side of the outlet. If you are testing an appliance and wire connection for safety, press the black terminal against the metal frame of the appliance.
Finally, wait for the numbers on the multimeter screen to stabilize. A reading of 0 indicates perfect continuity. This step is crucial as the numbers will initially jump up and down as the multimeter adjusts to the current. Waiting 3-4 seconds and keeping the terminals as still as possible will ensure an accurate reading.
Lincoln Electric Welders: Made in the USA?
You may want to see also
Explore related products
Testing electrical connections
To perform a continuity test, you will need a multimeter, which measures electrical currents. Modern multimeters are portable devices that can also test diodes and capacitors. On the front of the device, you will see an LED display that lets you select the parameter you want to measure. You will also see ports for the test leads, including one labelled common (COM) and one for voltage/resistance (V/Ω).
Before testing, ensure that no electricity is flowing through the circuit or connection. If you are testing an installed outlet, flip the breaker on the fuse box to shut off the current. If you are testing a wall switch, do not turn off the breaker, as electricity can "leak" in from other live circuits. Instead, disconnect the wires from the switch after turning off the breaker. If you are testing components of an electrical appliance, simply unplugging it will usually do the trick.
Once you have ensured that no electricity is flowing, you can set up your multimeter. Turn the dial to the continuity setting, which may be indicated by a diode symbol (a triangle with a line on the right side) or a symbol that looks like sound waves. If your multimeter does not have a dedicated continuity setting, you can turn the dial to the lowest number in resistance mode (measured in ohms, Ω). If in doubt, consult your multimeter's manual.
To perform the test, insert the black test lead into the COM jack and the red lead into the VΩ jack. Then, with the circuit de-energized, connect the test leads across the component being tested. The multimeter will send a small electric current through the circuit to measure resistance. If there is continuity, the multimeter will show zero resistance and you may hear a beep. If there is a break in the circuit or device, the meter will show infinite or high resistance and remain silent.
The Magic of AC Electricity in Passenger Buses
You may want to see also
Frequently asked questions
A continuity test is used to verify that current will flow in an electrical circuit, i.e., that the circuit is continuous. It can also help determine damaged components or broken conductors in a circuit.
First, ensure that the power is off and no electricity is flowing through the circuit. Then, place a small voltage between two or more endpoints of the circuit. You can verify the flow of current qualitatively, by observing a light or a buzzer, or quantitatively, by using a multimeter to measure the resistance.
Always ensure that the power is off and unplug or flip the breaker on the signal you're testing to prevent shocks or fires. Additionally, wait for at least an hour after unplugging devices like hot tubs, radios, or car systems, as they can store a charge even after being turned off.
