Wiktor Wise
Setting up electricity for a pool pump can be a complex task, and it is important to get it right to ensure the safety of your family and compliance with local regulations. The process involves considerations such as the distance of the pool from the electrical source, the type of pump and its energy requirements, and the need for a dedicated circuit to avoid tripping the breaker. Overhead electrical lines should be at least 22.5 feet above the water level, and no wires can run beneath the pool or within five feet of its perimeter. Underground wiring requires burial in a conduit, with specific requirements for depth and the type of conduit used. Ground fault circuit interrupters (GFCIs) are crucial for outlets near the pool to ensure they shut off automatically if they come into contact with water. Consulting a licensed electrician is often recommended to ensure a safe and proper installation.
| Characteristics | Values |
|---|---|
| Pool type | Above-ground or fixed (permanently installed) |
| Pool pump type | Single or three-prong plug |
| Pool pump power | 120V or 240V |
| Pool pump motor | 1 HP or 1.5 HP |
| Pool pump distance from pool | Not less than 5 ft nor more than 20 ft |
| Electrical panel | Must be able to handle power demands of the pool |
| Electrical lines | No overhead lines; underground wiring must not be within 5 ft of the pool's perimeter |
| Outlets | GFCI or GFCI duplex outlet with a weather cover; convenience outlet must be 10-20 ft from the pool |
| Wiring | Individual conductor THWN with an insulated, green ground wire |
| Shutoff | Must be in sight of the pool |
| Bonding | Electrically bond the rebar in the deck, panels, ladders, dive stands, metal fencing, pump, light housing, SWCG, hand rails, heaters, etc. |
| Drain hole | Drill a 1/8" hole in the bottom of the FD box to reduce water leakage |
| Permits | May be required by town or city; an electrical inspection may also be required |
Explore related products
What You'll Learn
Pool pump electrical safety
Comply with Electrical Codes and Regulations
All pools should be installed and maintained in compliance with the relevant electrical codes and regulations. The National Electrical Code (NEC) provides specific guidelines for electrical safety in swimming pools, including requirements for wiring, bonding, and the use of Ground Fault Circuit Interrupters (GFCIs). Public pools should adhere to the ANSI/APSP/ICC-1 2014 American National Standard for Public Swimming Pool. It is important to consult local regulations and seek guidance from qualified electricians to ensure compliance with the applicable codes.
Maintain Safe Distances
Keep electrical outlets, fixtures, and equipment at a safe distance from the pool. The recommended distances may vary depending on local codes, but as a general guideline, electrical devices should be at least 20 to 30 feet away from the pool. Overhead power lines should maintain a minimum height of 22.5 feet above the water level. Communication cables should be at least 10 feet above the water or diving platform.
Use Ground Fault Circuit Interrupters (GFCIs)
GFCIs are essential for pool electrical safety. They detect ground faults or current leakage and automatically shut off the power, preventing electric shock hazards. Install GFCI-protected receptacles for the pump and motor, placing them 6 to 10 feet from the pool walls. For general-use receptacles without GFCI protection, maintain a distance of at least 20 feet from the pool. Regularly test and inspect GFCI devices to ensure they are functioning properly.
Regular Inspections and Maintenance
Schedule regular inspections and maintenance of electrical components, including the pool pump, motor, lighting, and wiring. Look for any signs of wear, damage, or malfunction. Conduct periodic checks of GFCI devices to ensure they are operating correctly. Proper maintenance helps identify potential hazards and ensures the electrical safety of the pool.
Educate Users and Post Warning Signs
Educate pool users about electrical safety precautions, such as avoiding the use of electrical devices near the pool and not swimming during thunderstorms. Post visible warning signs around the pool area to remind users of electrical hazards and safety practices. It is important for swimmers to be aware of the potential risks and take the necessary precautions.
By following these guidelines and prioritizing electrical safety, pool owners can create a safer and more enjoyable swimming environment for everyone. Remember, when in doubt, always consult with a licensed electrician who specializes in pool electrical systems to ensure compliance and protect swimmers from electrical hazards.
Electric Fire Safety: Do They Deplete Room Oxygen?
You may want to see also
Explore related products
Wiring a pool pump
Firstly, you must determine the voltage requirements of your pool pump. Pool pumps are typically wired to run on either 230V or 115V, with most being preset at 230V by the manufacturer. It is important to ensure that the electrical supply matches the motor's voltage, phase, and cycle. You can refer to the pump's manual or motor label for specific wiring instructions.
Next, you need to run power from your home's electrical panel to the pool area. This involves installing a conduit, which can be made of PVC or metal, depending on your local codes and regulations. The conduit depth and wiring specifications will depend on your specific pump model and local electrical codes. It is important to follow these codes and regulations to ensure a safe installation.
Once the conduit is installed, you can feed the insulated wires through it. The wires are typically colour-coded as black, white, and green, with the green wire being the ground wire. Connect these wires to a weatherproof electrical box near the pool pump, installing a twist-lock receptacle if the pump is within a certain distance from the pool rim.
Finally, you will need to install a circuit breaker, such as a GFCI breaker, in the main electrical panel and connect the wires from the pool pump circuit to this breaker. Ensure that all connections are tight and secure. You may also want to consider installing a timer to control the pump's operation automatically.
Some additional considerations include bonding all metal components of the pool and the pump, as well as obtaining any necessary permits and inspections for the pool installation.
Voltage and Electric Potential: What's the Difference?
You may want to see also
Explore related products
Pool pump power sources
Pool pumps are the leading contributors to high energy consumption in pools. They are the largest electric motors in most homes, and they can consume up to a few thousand kilowatt-hours per year, costing you as much as $270 in utility bills.
There are various power sources for pool pumps, and the choice depends on your pool type and location, as well as your budget and energy preferences.
For above-ground pools, you can run power to the pool motor from an existing power source. This requires electrical wiring knowledge and adhering to local codes and regulations. The wiring must be done in a conduit, and the wire must be an individual conductor with an insulated green ground wire.
For in-ground pools, you will likely need a new power source. This usually involves installing a subpanel near the pool equipment to supply electricity. You will need to consult an electrician to ensure the work is done safely and correctly.
To reduce energy consumption, you can use a smaller, higher-efficiency pump, operate it less, or use an ENERGY STAR-certified pump. Variable speed pumps are also more efficient and can save you money on your energy bills. Additionally, using a pool cover at night and when the pool is not in use can help retain heat and lower energy demands.
Electric Cord Length: Audio Distortion Culprit?
You may want to see also
Explore related products

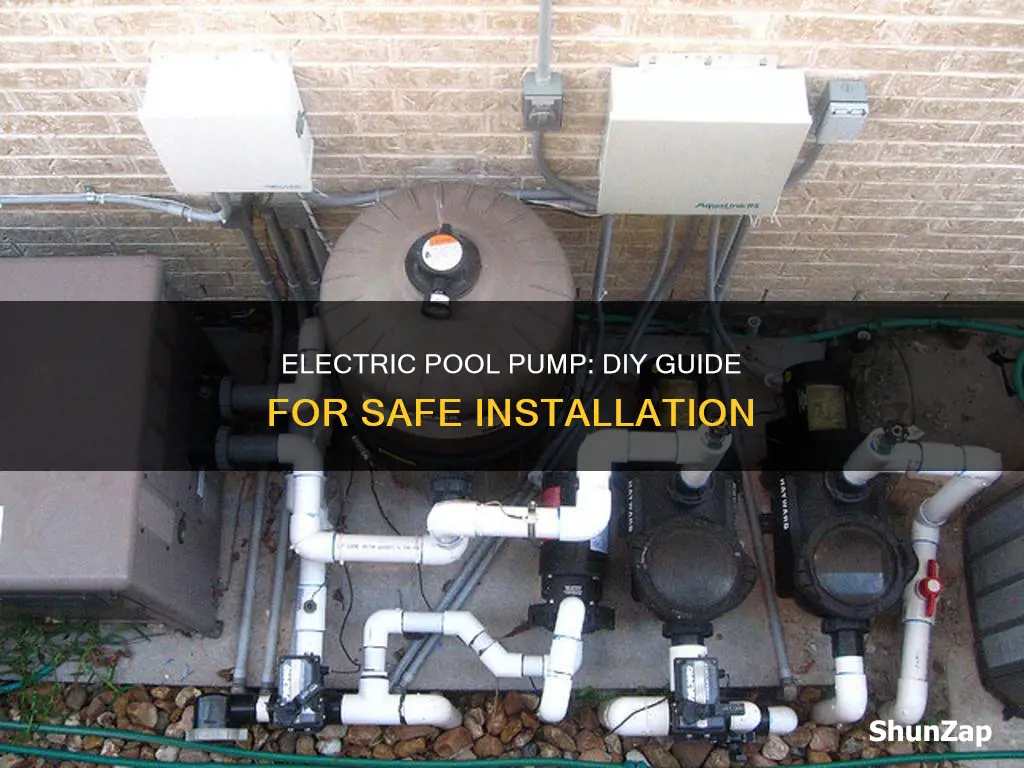

Pool pump installation
Firstly, select a level area near the pool to place the pump, ensuring it is positioned below the water level of the pool to prevent air from entering the system. The pump must be on a GFCI breaker or have a GFCI disconnect at the pump, and it must have a disconnect if it is hard-wired. If the pump is within 5-10 feet of the pool rim, the plug must be a twist-lock type.
If you are installing electrical wiring, it is important to follow the relevant codes and regulations. For example, the National Electrical Code (NEC) in the US contains specific requirements for wiring a pool. The wire must be individual conductor THWN with an insulated, green ground wire, and the conduit must be 12" deep to the top of the pipe. There are also requirements for outlets in the area of the pool, and you are required to have a shut-off in sight of the pool.
Once the pump is installed, it must be primed by filling it with water to ensure proper suction. Priming is essential to ensure the proper functioning of the pool system, as it can lead to issues with water quality and filtration if not done correctly.
Finally, check unions and other connections for any leaks that may cause the pump to not prime properly.
Electric Poultry Net: Effective Goat Barrier?
You may want to see also
Explore related products
Pool pump maintenance
Regular Cleaning and Inspection
- Turn off the pump and remove the lid to access the pump basket, which collects debris before it reaches the impeller. Regularly clean and remove any debris or leaves from the basket to prevent clogs and ensure proper water flow.
- After cleaning the basket, utilise a hose to rinse the basket thoroughly and inspect it for any cracks or damage. If the basket is damaged, replace it immediately.
- Reinstall the clean basket, ensuring the lid is tightly secured to avoid air entry into the system.
- Open the pump housing by removing the lid or opening the access panel. Carefully inspect and remove any debris or leaves from the pump, using your hands or a small brush. Be cautious not to damage any internal components.
- The impeller can accumulate debris, impacting the pump's efficiency. Gently clean the impeller blades with a soft brush or toothbrush, removing any dirt or obstructions. Avoid bending or damaging the blades during cleaning.
- After cleaning, flush the pump housing with water to remove any remaining dirt or debris from hard-to-reach areas.
- Check for leaks around the pump housing and connections. If leaks are detected, address them promptly to prevent further issues.
- Lubricate the pump lid O-rings to ensure a tight seal and efficient operation.
Prevent Common Issues
- Check the pool pump parts weekly for leaks, broken or decayed seals, unusual sounds, or abnormalities. This proactive approach can help catch minor issues early, preventing costly repairs and extending the life of your pump.
- Monitor the pump's pressure and refer to the owner's manual for the suggested pressure level. If the pressure is significantly above the guideline, consider cleaning the filters or backwashing the pool to prevent damage to the motor and pipes.
- Ensure a consistent water flow to the pump to avoid pump seal leaks. If the pump seal leaks, replace it promptly to prevent water from entering the motor and causing damage to the bearings.
- Establish a consistent maintenance schedule, including professional maintenance, to perform thorough inspections of the pump, motor, electrical connections, and internal components.
Electrical Considerations
- Ensure proper electrical connections and grounding. Refer to the National Electrical Code (NEC) for specific guidelines, such as Article 680 for wiring a pool.
- The pump must be on a GFCI breaker or have a GFCI disconnect at the pump for safety.
- If your pump is hard-wired, it must have a disconnect, which can be a cord, plug, or weatherproof enclosure if not hard-wired.
- If your pump is within a certain distance of the pool rim (typically 5 to 10 feet), use a twist-lock type plug.
- Consider upsizing the conductors to #10 to reduce voltage drop and save energy.
- Consult with experienced electricians to ensure safety and compliance with local regulations.
By diligently following these maintenance guidelines, you can optimise the performance of your pool pump, ensuring a smooth and enjoyable swimming experience.
The Best Ways to Sharpen Electric Knife Blades at Home
You may want to see also
Frequently asked questions
You will need to ensure that your electrical panel can handle the power demands of the pool. Consult a licensed electrician to determine whether your house needs a service panel upgrade.
Utility lines should be at least 22.5 feet above the water level or the base of the diving platform. Communication cables should be at least 10 feet above the water level.
No wires can run beneath the pool itself. Underground wires must not be placed within five feet of the pool's perimeter, except in rare cases where a protected area is installed.
You should use a ground fault circuit interrupter (GFCI) outlet, which shuts off automatically if it comes into contact with water. The pump must be on a GFCI breaker or have a GFCI disconnect at the pump.
You should not have any overhead wires running directly over your pool. You will also need to ensure that your pool is properly bonded, which can be a difficult concept even for an electrician. Consult a professional to ensure the safety of your family.
