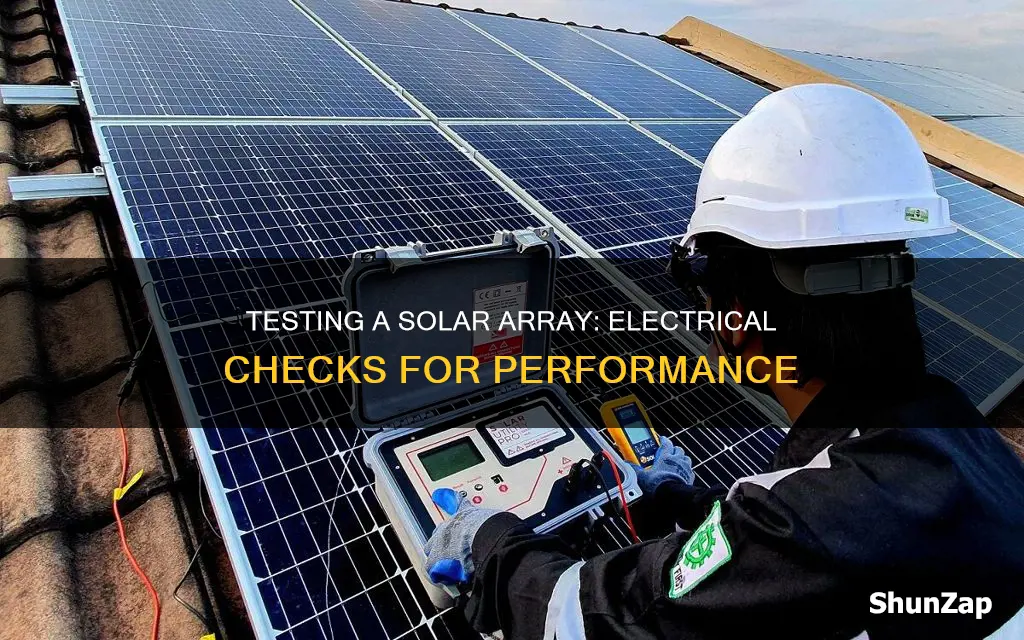

Solar panels should be tested before installation and periodically as part of regular maintenance. Testing solar panels is a crucial step in transitioning to clean energy, as it ensures that the panels are functioning correctly and producing the maximum amount of power. The most common tools used for testing are multimeters, clamp meters, and I-V curve tracers, which measure the voltage, current, and resistance of an electrical circuit. It is important to test solar panels in unobstructed sunlight conditions, as this will provide the most accurate results. When testing, it is also essential to inspect the panels for any damage, such as cracks, loose connections, corrosion, or oxidation, which can all impact the panel's performance.
How to Electrically Test a Solar Array
| Characteristics | Values |
|---|---|

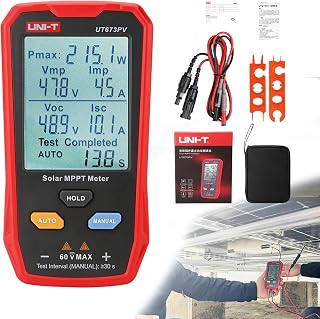

| Testing Tools | Multimeters, clamp meters, I-V curve tracers, voltmeters, amp meters, MPPT solar charge controllers, DC amp reading meters, insolation or solar radiation meters, globes |
| Testing Techniques | Check open-circuit voltage (Voc), short-circuit current (Isc), amperage (Imp), voltage, current, resistance, wiring, corrosion, oxidation, cracks, hot spots, diode orientation, diode damage, loose connections, angle of the sun, load on the panel |
| Testing Conditions | Bright and clear day with unobstructed sunlight, full sunlight, near noon with the sun directly overhead, no shadows |
| Testing Frequency | Before installation, every five years, after extreme weather events, periodically |
Explore related products
What You'll Learn
Use a multimeter to test voltage, current, and resistance
To test a solar array, a multimeter is a handy device that can be used to measure voltage, current, and resistance. It has two probes that are connected to the terminals of the solar panel. The multimeter will then display the value of the property on its screen.
Before testing, ensure that the solar panel is placed in direct and unobstructed sunlight to obtain an accurate reading. It is also important to check the solar panel's rating by flipping the panel over and locating a sticker with relevant metrics. Pay attention to the open-circuit voltage (Voc) and the solar panel amperage (Imp).
To test voltage, set the multimeter to the DC "volts" setting. Connect the negative probe (black) to the port labelled COM and the positive probe (red) to the port labelled V/Ω/mA. Touch the multimeter probes to the solar panel leads, matching their corresponding polarity. The multimeter will display the voltage of the panel in volts.
To measure current, set the multimeter to the DC current mode, usually marked with an A and a line with dots underneath. Connect the probes in series with the solar panel and the load by breaking the circuit and inserting the multimeter between the panel and the load. The multimeter will display the current in amps.
To test resistance, place one probe of the multimeter on a wire, while placing the other probe on an insulated part of the solar cell or module. The meter will provide a resistance reading in ohms (Ω).
Benjamin Franklin's Lightning Discovery: Electricity Unveiled
You may want to see also
Explore related products
Check for wiring issues, loose connections, and damage
Before testing your solar array, ensure you know its rating. This information can be found on a sticker on the back of the panel. Pay attention to the open-circuit voltage (Voc) and the solar panel amperage (Imp). The Voc is the maximum electrical potential of the panel in direct sunlight, and the Imp is the maximum current.
Next, visually inspect the array for any signs of damage, such as cracks or loose connections. Birds can sometimes scratch the panel glass or damage exposed wiring, so it is important to inspect the array regularly. Keep an eye out for hairline cracks caused by extreme weather or falling debris, and check for signs of corrosion or oxidation, which can obstruct the panel's electricity production.
If your solar array is not generating any power, there may be a problem with one or more of the modules. Use a multimeter, clamp meter, or I-V curve tracer to check the voltage and current of each module. If you are using a multimeter, set it to DC voltage mode and connect the red lead to the positive terminal and the black lead to the negative terminal. Place the solar module in direct sunlight or under a bright artificial light source and take note of the voltage reading. The voltage output should be within 10% of the rated output; if it is significantly lower, it may indicate a problem with the module.
If one module's measurements are significantly lower than the others, it may indicate a problem with the wiring connections. Inspect the wiring connections between the modules, inverter, and battery, and ensure all connections are secure and free of damage. If the solar array is generating power but not charging the battery, the inverter may be the issue. Check the inverter's display for any error messages and consult the manufacturer's manual for troubleshooting steps.
Computing Electricity Consumption: A Guide for Philippines Residents
You may want to see also
Explore related products
$19.99
Test on a bright, clear day with unobstructed sunlight
To electrically test a solar array on a bright, clear day with unobstructed sunlight, follow these steps:
Firstly, angle the solar panel towards the sun at the correct pitch. Ensure the solar panel is disconnected from any regulators or batteries. Set your multimeter to DC Voltage mode, often displayed as "V---" on the device. Connect the positive lead of the multimeter to the positive wire or terminal of the solar panel, and the negative lead to the negative wire or terminal. Take note of the voltage reading. Repeat this process for each solar panel in the array.
The voltage output of a solar module should be within 10% of its rated output. If the voltage output is significantly lower, it may indicate a problem with the module. You can also calculate the wattage by multiplying the volts by the amps, giving you a rough idea of the panel's performance.
If you are experiencing issues with your solar array, you can also use a clamp meter or I-V curve tracer to identify problems. Poor wiring connections can also impact performance, so ensure all connections are secure and free of damage.
It is recommended to test your solar array yearly, even if there are no visible issues. Regular testing can help identify drops in energy production and ensure your electricity generation is at an optimum level.
Electric Toothbrushes: Gum Recession Culprit or Coincidence?
You may want to see also
Explore related products
Compare output to the panel's rating and specifications
To compare the output of a solar array to the panels' rating and specifications, you can perform a few tests to measure the voltage, current, and power output. Firstly, it is important to know the panels' ratings and specifications. This information can be found on a sticker on the back of the panel, which includes the open-circuit voltage (Voc) and the solar panel amperage (Imp).
To measure the voltage output, a multimeter can be used. Set the multimeter to DC voltage mode and connect the red lead to the positive terminal and the black lead to the negative terminal of the solar panel. Place the panel in direct sunlight or under bright artificial light, and take note of the voltage reading. The voltage output should be within 10% of the rated output. If it is significantly lower, there may be a problem with the panel.
You can also measure the short-circuit current (Isc) with a multimeter. First, remove any leads from the panel and move the multimeter leads to the current-measuring jacks. Ensure the multimeter's fuse is larger than the potential amperage from the panel and preset the knob to the current measuring position. With the multimeter preset to read current and the leads in the proper jacks, you can now read the short-circuit current.
Another way to test the panels is to use an I-V curve tracer, which measures the current and voltage output of the panel in various conditions. This tool creates a graph displaying the module's performance, which can then be analysed to determine if it is within specifications.
Additionally, a simple visual inspection can be done. Observe if the power (volts x amps) is within a reasonable range, depending on the time of day and weather conditions. You can also use a DC amp reading meter that clamps around the wires being tested, eliminating the need to worry about fuses.
By comparing the output measurements to the panels' ratings and specifications, you can identify any discrepancies that may indicate a problem with the panel's performance.
Android Dreams: Electric Sheep Sparknotes Explained
You may want to see also
Explore related products
Use an I-V curve tracer to measure current and voltage output
To test a solar array, you can use an I-V curve tracer to measure its current and voltage output. This device will vary the load across the cell and measure the corresponding current and voltage. The I-V curve tracer will sweep through various voltages, recording the current output at each point to generate the I-V curve.
Before you begin, ensure that the solar array is exposed to consistent light conditions, typically using a solar simulator or natural sunlight. Connect the I-V curve tracer to the solar array according to the manufacturer's instructions. Place the solar array in direct sunlight. Install the IRR2-BT irradiance meter according to the manufacturer's instructions.
Run the I-V curve test. The I-V curve tracer creates a graph displaying the array's current and voltage output in various situations. Analyze the graph to determine if the array performs within its specifications. If your solar array is not generating power, there may be a problem with one or more of the modules.
The voltage and current ratings of an I-V curve tracer determine the size of the PV system it can measure safely. For example, 1000 V (instead of 600 V) means an instrument can measure a greater range of PV systems, giving technicians the flexibility to maintain a wider range of systems with fewer tools.
