Wiktor Wise

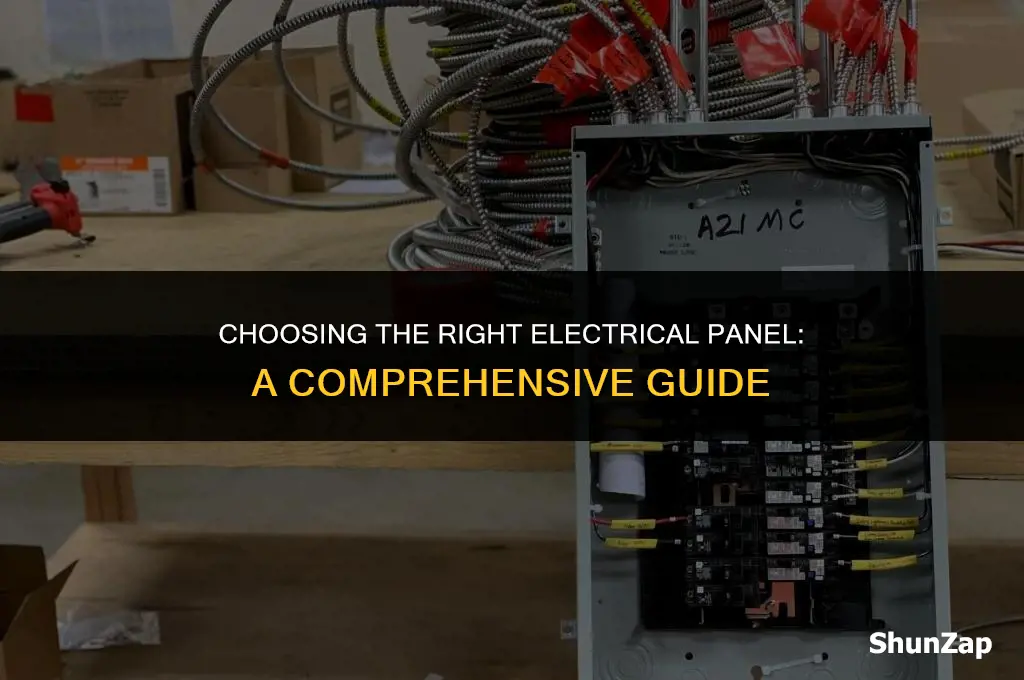

When embarking on an electrical project, one of the crucial initial steps is determining the appropriate electrical panel to use. This decision is based on several factors, including the power requirements of the circuit, the type of electrical system (residential, commercial, or industrial), and compliance with local electrical codes. Understanding these factors ensures that the electrical panel can safely and efficiently manage the electrical load, preventing potential hazards such as overloads or short circuits. In residential settings, for instance, a typical 100-amp or 200-amp service panel might suffice, whereas commercial or industrial applications may require larger, more complex panels with higher amperage ratings and additional safety features. Consulting with a licensed electrician or electrical engineer is always advisable to ensure that the selected panel meets all necessary specifications and standards.
Explore related products
![The DIY Off Grid Solar Power Bible: [10 in 1] The Most Complete and Updated Guide to Design, Install, and Maintain Solar Energy Systems for Tiny Homes, Cabins, Rvs, and Boats](https://m.media-amazon.com/images/I/71bMt-eRXOL._AC_UL320_.jpg)
What You'll Learn
- Assess Power Needs: Calculate the total power requirements of all devices and appliances to be connected
- Panel Capacity: Ensure the electrical panel's capacity exceeds the total power needs by at least 20%
- Circuit Breaker Type: Choose between standard, GFCI, or AFCI breakers based on the specific electrical loads and safety requirements
- Panel Location: Select a location that is easily accessible, dry, and free from obstructions for safety and convenience
- Compliance with Codes: Verify that the chosen panel meets all local electrical codes and standards for safe installation and operation
Assess Power Needs: Calculate the total power requirements of all devices and appliances to be connected
To accurately assess power needs, begin by making a comprehensive list of all devices and appliances that will be connected to the electrical panel. This includes everything from lighting fixtures and HVAC systems to smaller electronics like computers and televisions. Once you have this list, the next step is to determine the power requirements for each item. This information is typically found on the device itself or in the user manual and is measured in watts.
After identifying the wattage of each device, calculate the total power requirements by adding these values together. This sum will give you an idea of the minimum power capacity needed from your electrical panel. However, it's important to note that this total should not exceed 80% of the panel's maximum capacity to ensure safe operation and avoid overloading the system.
In addition to considering the wattage, you should also factor in the type of devices being used. For instance, devices with motors, such as refrigerators and air conditioners, require more power to start up than they do to run continuously. This starting power, known as inrush current, can temporarily increase the load on your electrical panel and should be accounted for when assessing your power needs.
Another consideration is the potential for future expansion. If you anticipate adding more devices or appliances in the future, it's wise to choose an electrical panel with a higher capacity to accommodate these additions without the need for an upgrade.
Finally, consult with a licensed electrician to review your calculations and ensure that your electrical panel is properly sized for your current and future power needs. They can also provide guidance on the best type of panel for your specific requirements and help you avoid common mistakes that could lead to safety hazards or inefficiencies.
Harnessing Green Power: Exploring Plants as Renewable Electricity Sources
You may want to see also
Explore related products
Panel Capacity: Ensure the electrical panel's capacity exceeds the total power needs by at least 20%
Determining the appropriate electrical panel capacity is crucial for ensuring the safe and efficient operation of your electrical system. To begin, you'll need to calculate the total power requirements of all the devices and appliances that will be connected to the panel. This involves adding up the wattage ratings of each item and then multiplying by the estimated usage time to get the total energy consumption in watt-hours (Wh). Once you have this figure, it's essential to select a panel with a capacity that exceeds these needs by at least 20%. This buffer is necessary to accommodate fluctuations in power demand and to prevent overloading the system, which can lead to overheating, fires, or equipment damage.
When selecting a panel, it's also important to consider the type of devices and appliances that will be connected. For example, if you have high-power equipment such as air conditioners, electric dryers, or large motors, you may need a panel with a higher capacity to handle the increased demand. Additionally, you should check the panel's maximum circuit capacity to ensure it can accommodate the number of circuits required for your installation.
Another factor to consider is the panel's efficiency. Modern electrical panels often come with features such as arc fault circuit interrupters (AFCIs) and ground fault circuit interrupters (GFCIs), which can help improve safety and reduce the risk of electrical fires. While these features may increase the upfront cost of the panel, they can provide valuable protection for your electrical system and your home.
In summary, when determining the appropriate electrical panel capacity, it's essential to calculate your total power requirements, select a panel with a capacity that exceeds these needs by at least 20%, and consider the type and number of devices and appliances that will be connected. By taking these factors into account, you can ensure the safe and efficient operation of your electrical system.
Using a Dethatching Blade on Electric Mowers: What You Need to Know
You may want to see also
Explore related products
$24.49 $27.99
Circuit Breaker Type: Choose between standard, GFCI, or AFCI breakers based on the specific electrical loads and safety requirements
When selecting a circuit breaker type for an electrical panel, it's crucial to consider the specific electrical loads and safety requirements of the circuit. Standard circuit breakers are suitable for general-purpose circuits, such as lighting and receptacles, but may not provide adequate protection for circuits with high electrical loads or those that are prone to ground faults.
GFCI (Ground Fault Circuit Interrupter) breakers are designed to protect against electrical shock by quickly tripping the circuit if a ground fault is detected. They are commonly used in wet locations, such as bathrooms and kitchens, where the risk of electrical shock is higher. AFCI (Arc Fault Circuit Interrupter) breakers, on the other hand, are designed to protect against fires caused by arcing faults. They are typically used in circuits that supply power to outlets in living areas, such as living rooms and bedrooms.
To determine the appropriate circuit breaker type, it's essential to assess the electrical load and safety requirements of each circuit. For example, a circuit that supplies power to a high-power appliance, such as an air conditioner or refrigerator, may require a standard breaker with a higher amperage rating. A circuit that supplies power to outlets in a bathroom, on the other hand, would require a GFCI breaker to protect against electrical shock.
It's also important to consider the compatibility of the circuit breaker with the electrical panel. Different panels may have different bus configurations and mounting requirements, so it's crucial to select a breaker that is compatible with the panel being used. Additionally, it's essential to ensure that the breaker is properly installed and secured to the panel to ensure reliable operation.
In summary, selecting the appropriate circuit breaker type is a critical aspect of electrical panel design. By considering the specific electrical loads and safety requirements of each circuit, as well as the compatibility with the electrical panel, it's possible to choose a breaker that will provide reliable protection and ensure the safe operation of the electrical system.
Understanding Orange Electrical Wire: Common Uses and Applications Explained
You may want to see also
Explore related products
Panel Location: Select a location that is easily accessible, dry, and free from obstructions for safety and convenience
Selecting the optimal location for an electrical panel is crucial for both safety and convenience. The ideal spot should be easily accessible, ensuring that maintenance and emergency shut-offs can be performed swiftly. It should also be dry to prevent any risk of electrical hazards due to moisture. Additionally, the area should be free from obstructions that could impede access or pose a risk during operation.
When considering accessibility, think about the layout of your home or building. The electrical panel should be situated in a central location that can be reached quickly from various points. This is particularly important in emergency situations where every second counts. For instance, placing the panel near the main entrance or in a hallway can be advantageous.
Dryness is another critical factor. Moisture can lead to corrosion of electrical components and increase the risk of electrical shocks. Therefore, avoid installing the panel in areas prone to dampness, such as basements, bathrooms, or outdoor locations exposed to the elements. If the panel must be placed in a potentially damp area, ensure it is properly sealed and protected from moisture ingress.
Freedom from obstructions is also essential. The panel should have enough clearance around it to allow for easy access and operation. This includes ensuring there is sufficient space to open the panel door fully and maneuver tools and equipment as needed. Avoid placing the panel in cramped spaces or behind furniture or other objects that could hinder access.
In summary, when selecting an electrical panel location, prioritize accessibility, dryness, and freedom from obstructions. This will help ensure the safety and convenience of your electrical system, making maintenance and emergency procedures more manageable.
Understanding R150 Electricity Consumption: Units Used Explained
You may want to see also
Explore related products
Compliance with Codes: Verify that the chosen panel meets all local electrical codes and standards for safe installation and operation
Ensuring compliance with local electrical codes is a critical step in selecting the right electrical panel. These codes are in place to guarantee the safety and reliability of electrical installations. To verify that a chosen panel meets all necessary standards, one must first identify the relevant local codes. This can typically be done by contacting the local building department or electrical inspector's office. They can provide the most current codes and any specific requirements for your area.
Once the relevant codes have been identified, the next step is to review the specifications of the electrical panel in question. This includes checking the panel's rating, the type of circuit breakers it uses, and its compatibility with the electrical system in the building. The panel should be rated for the appropriate amperage and voltage for the building's needs. Additionally, it should be compatible with the type of wiring used in the building.
It's also important to consider the environmental conditions where the panel will be installed. For example, if the panel will be located in an area with high humidity or extreme temperatures, it should be designed to withstand these conditions. Furthermore, the panel should be installed in a location that is easily accessible for maintenance and inspections.
In addition to these technical considerations, it's crucial to ensure that the installation of the panel is done by a licensed electrician. This not only ensures that the installation is done correctly but also that it complies with all local codes and regulations. The electrician should also provide a certificate of compliance upon completion of the installation.
Finally, regular maintenance and inspections of the electrical panel are essential to ensure ongoing compliance with codes and standards. This includes checking for any signs of wear or damage, ensuring that all connections are secure, and testing the panel's functionality. By following these steps, one can ensure that the chosen electrical panel is not only suitable for the building's needs but also safe and compliant with all relevant codes and standards.
Daily Electric Toothbrush Use: Safe, Effective, or Overkill for Oral Health?
You may want to see also
Frequently asked questions
To determine the appropriate electrical panel, consider the electrical load requirements of your property. This includes the number of circuits needed, the type of appliances and equipment you have, and any future expansion plans. Consult with a licensed electrician to assess your specific needs and ensure compliance with local electrical codes.
When choosing an electrical panel, consider factors such as the panel's capacity (measured in amps), the number of spaces for circuit breakers, the type of breakers (standard or arc-fault circuit interrupters), and the panel's compatibility with your existing wiring. Additionally, consider the panel's location, accessibility, and any specific features you may need, such as surge protection.
It is generally recommended to hire a licensed electrician to upgrade your electrical panel. Electrical work can be dangerous and requires specialized knowledge to ensure safety and compliance with local codes. An electrician will be able to properly assess your needs, obtain necessary permits, and perform the upgrade safely and efficiently.
Signs that you may need to upgrade your electrical panel include frequent tripping of circuit breakers, dimming or flickering lights, the presence of outdated or damaged wiring, the addition of new appliances or equipment, or if your panel is undersized for your current electrical load. If you experience any of these issues, consult with a licensed electrician to evaluate your panel and discuss potential upgrades.
