If you're experiencing issues with a dead electrical circuit, it's important to take a systematic approach to identify the root cause. This can be a complex process, and in some cases, it may be necessary to consult a licensed electrician. However, there are several steps you can take to troubleshoot the issue. First, check if the circuit breaker has tripped and reset it if necessary. If the problem persists, inspect the wiring for any loose connections, broken wires, or burned spots, especially near the dead plug closest to the panel. You can also try the wiggle procedure by gently wiggling the receptacle and circuit breakers to see if that restores power. If these initial steps don't work, more advanced techniques, such as using a toner and probe to locate the origin of the issue, may be required.
| Characteristics | Values |
|---|---|
| Cause of dead circuit | Loose wire nuts, loose receptacle screws, burned connection in the backstab of a receptacle, faulty back stab terminals, broken wire |
| Tools | Toner and probe, non-contact AC voltage tester, multimeter |
| Actions | Identify and turn off the circuit, reset breakers, wiggle the receptacle, visually trace wires, locate junction box, consult an electrician |
Explore related products
What You'll Learn
Identify the circuit and turn it off
If you have a dead electrical circuit, it is important to identify the circuit and turn it off for safety. This can be done by following a few steps. Firstly, if you have a non-contact AC voltage tester and a multimeter, use them to test the circuit. If the last outlet on the circuit is working, then the problem is likely with the first non-working outlet. If the first outlet on the circuit is not working, then the problem may be with the last working outlet.
In both cases, remove the outlet from the box and check for a loose or broken wire. If a wire is loose, it may be necessary to simply push it back into place and replace the outlet. If the wire is broken, strip the wire and repair the connection. If this does not work, the problem may be with the breaker box panel. Check that no breakers have been tripped and, if they have, reset them.
If the problem persists, it may be necessary to use a toner and probe to locate the box where the wires are originating from. A toner and probe kit can be purchased and used to tone out the wires and locate the box. Once the box has been located, open it up and look for a red and blue wire.
If you are unable to identify the issue, it is important to consult a licensed electrician for further assistance.
Rendering Electricity in Maya: A Step-by-Step Guide
You may want to see also
Explore related products
Check for loose, broken, or burned wires
When checking for electrical issues, it is important to inspect all wires for any visible damage or abnormalities. Start by turning off the circuit breaker that controls the electrical circuit you are troubleshooting. This is a critical safety step as it ensures that no power is running through the wires while you inspect them. Once the power is off, examine the wires for any signs of looseness or damage. Loose connections can cause arcing, which may lead to a fire hazard, so it is important to tighten any loose wires or connections. Look for signs of burning or charring on the wires, as this could indicate a serious issue, such as a short circuit. Pay close attention to the insulation on the wires; frayed or damaged insulation could expose the conductive wires, leading to a potential safety hazard. If you observe any broken or damaged wires, they will need to be replaced. Make sure to consult a certified electrician if you are unsure about handling electrical wires, as incorrect handling can be dangerous.
Another important aspect to check is the presence of corroded wires, especially in older homes or in areas with high humidity. Corrosion can cause resistance in the circuit, leading to heat buildup and potential fire hazards. Carefully inspect all connections, including wire nuts and terminals, for any signs of green or white corrosion. If you notice any corroded wires, it is important to replace them to ensure the circuit functions properly and safely. Additionally, look for any signs of pest infestation, as rodents or insects can chew through wires, causing damage and exposing the conductive elements.
It is also important to examine the wire colors and ensure they match the standard color coding. For example, black wires are usually hot, carrying power from the circuit, while white wires are neutral, and green or copper wires are the ground. If you notice any wires with unusual color combinations or configurations, this could indicate an improper wiring job, and it may be necessary to consult an electrician to ensure it is corrected safely. As you inspect the wires, also feel for any warmth or heat emanating from them. Warm wires could indicate an issue with the circuit or a potential short circuit, so it is important to address this promptly.
Additionally, when checking for electrical issues, take note of any strange smells, such as a burning odor, which could indicate an overloaded circuit or a short circuit. A rotten egg smell could indicate a natural gas leak, which is a serious safety hazard. If you notice any unusual or concerning odors, it is important to address them immediately and consult a professional if necessary. By thoroughly inspecting the wires for damage, corrosion, and proper installation, you can help ensure the electrical circuit is safe and functional, reducing the risk of fire hazards and other electrical issues.
Comparing Real Flame Electric Fireplaces: A Comprehensive Guide
You may want to see also
Explore related products
Use a multimeter to test wires
Using a multimeter is a safe and effective way to test wires in a dead electrical circuit. It is a versatile tool that electricians commonly use for troubleshooting and testing electrical circuits and general electrical measurements. Here are some detailed instructions on how to use a multimeter to test wires safely and effectively:
Inspect Your Multimeter and Understand the Basics:
Before using a multimeter, ensure that it is in good working condition. Check for any exposed wires or damage to the device. A typical multimeter has two probes: one red and one black. These probes are connected to the device under test to establish an electrical connection. The red probe is typically connected to the VΩmA port, while the black probe is connected to the COM (common) port. The COM port is used for the negative or ground part of the circuit.
Identify the Wires:
It is crucial to know which wire you want to test. Typically, the black wire is the "hot" wire, carrying the current from the power source. Red wires can also be "hot." White or green wires are often neutral or ground wires.
Set Up Your Multimeter:
Set your multimeter to the appropriate measurement mode. If you are measuring voltage, set it to “AC” (Alternating Current) mode. If measuring resistance, ensure no power source is connected to the circuit to prevent inaccurate readings.
Place the Test Leads:
Place one test lead on the wire you want to test. For household AC testing, you can place the other lead on a ground wire or neutral. If testing exposed wires, place one lead on the ground (any metal surface) and the other lead on the exposed wire. If testing a switch circuit, remove the switch first.
Interpret the Readings:
If the multimeter displays a voltage close to the expected value (e.g., ~120V for standard US households), the wire is live. A reading of zero or close to zero indicates that the wire is not live. If testing DC voltage, the multimeter will show a positive or negative reading, indicating the polarity of the wire.
Safety Precautions:
Always prioritize safety when working with electrical circuits. Turn off the main power source before testing. Use one hand when probing to minimize the risk of a circuit passing through your body. Stand on an insulated rubber mat to further reduce the risk of electrocution. Ensure the multimeter probes are in good condition and keep your fingers away from the metal probe tips.
Mothball Fumes: Electrical Connections' Silent Killer?
You may want to see also
Explore related products
Try the Wiggle Procedure
If you're dealing with a dead electrical circuit, one troubleshooting method you can try is the Wiggle Procedure. This procedure can help you identify any loose or bad connections that might be causing the issue.
Here's how you can try the Wiggle Procedure:
- Plug a device, such as a vacuum cleaner or a blow dryer, into one of the dead outlets. Avoid using electronic devices like radios for this step.
- With the device plugged in, slightly wiggle it from side to side. You can also try using a cube tester or any plug and wiggling it in each outlet.
- As you wiggle the device or plug, watch the test lamp or listen for any audible alerts.
- If there is a loose or bad connection, the wiggling action may cause a brief connection, which will be indicated by the lamp lighting up or other audible alerts.
- Once you've identified the suspected outlet with a potential connection issue, you can proceed to correct the bad connection.
The Wiggle Procedure is a straightforward and effective way to troubleshoot a dead electrical outlet. It's worth trying this method before resorting to more invasive solutions that require opening up electrical boxes or cutting into walls.
Refrigerator Electricity Usage: Summer's Impact Explored
You may want to see also
Explore related products

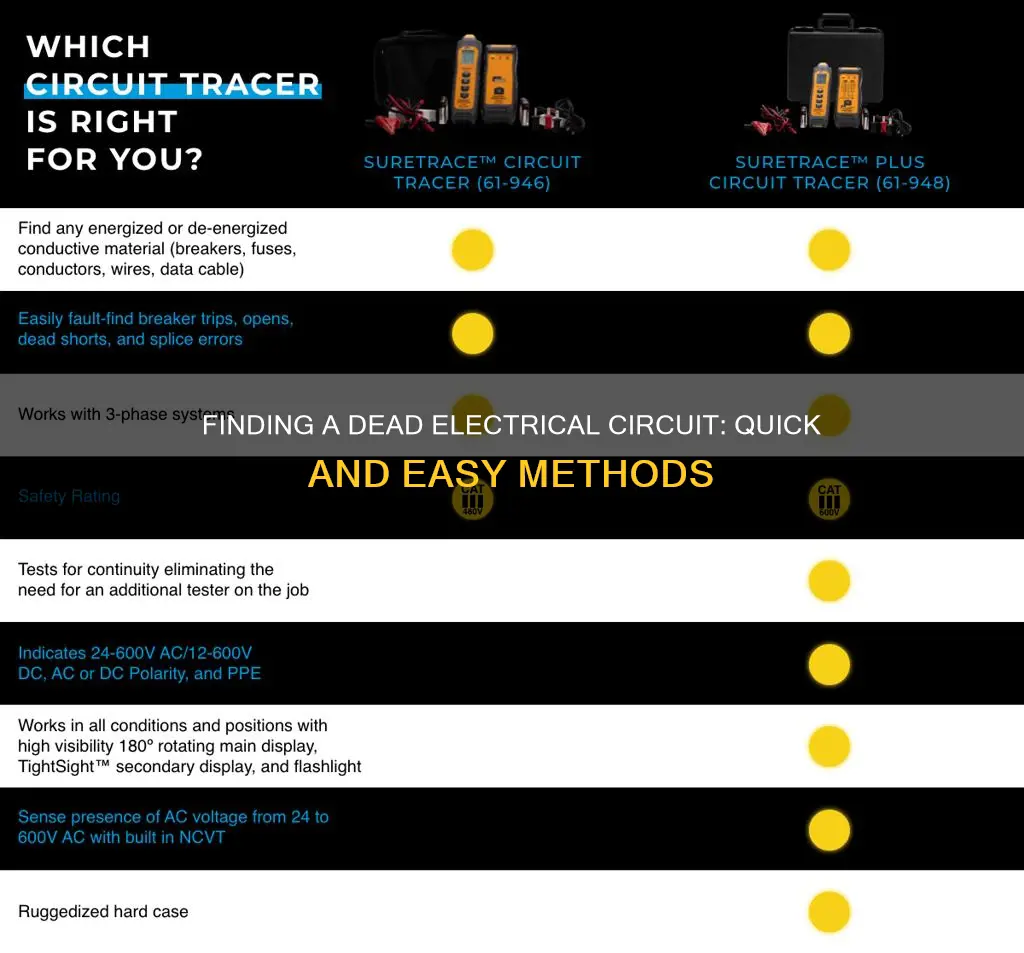

Use a toner and probe to locate the box
A toner and probe, also known as a tone and probe kit, is a pair of handheld tools used for tracing and identifying cables in networking, telecommunications, and electrical systems. It is a useful tool for someone installing electrical cabling as it allows the user to find individual leads among possibly hundreds in a cable trunk, without having to strip or connect the remote end.
The tone generator unit has alligator-type clip-on test leads. These are connected to the bare copper ends of a pair of wires at one end of the cable that needs to be located. The probe, sometimes referred to as a “rocket”, picks up the signal wirelessly through induction. The signal is then amplified to create an audible tone that sounds through a speaker built into the probe.
Before using the toner and probe, ensure that the battery is working by flipping the toner to “continuity” and touching the test leads together. If the light is bright, you’re ready to go. To begin toning out a wire, connect each tone generator lead to a different conductor of the “target” wire to be toned out. Briefly switch the generator to the “Continuity” function, then proceed with toning. After verifying that there is no short, switch to “Tone” mode, and move to the area you suspect the wire is located. Activate the probe, and move it across the wall or other surface nearest to the wire.
If you find that the tone is faint and difficult to pick up, adding a signal ground can help. A signal ground is just a point of reference with respect to the other end of the tone generator. This need not be an actual electrical ground, although it can be. You can use anything metallic and separate from the wire you're testing. This can be an electrical outlet box or screw, metallic conduit, or a metal window frame. You can even use yourself as a signal ground by holding onto the bare metal of one alligator clip lead.
Switching Electric Suppliers in PA: A Simple Guide
You may want to see also
Frequently asked questions
If you are unable to visually trace the wires, you or an electrician will need a toner and probe to identify the box where the wires are originating from. Kill the power to the circuit breaker and place the toner at the dead receptacle.
A dead electrical circuit can be caused by loose wire nuts, loose receptacle screws, or a burned connection in the backstab of a receptacle.
The Wiggle Procedure is a temporary solution that involves wiggling the receptacle to potentially restore power.
