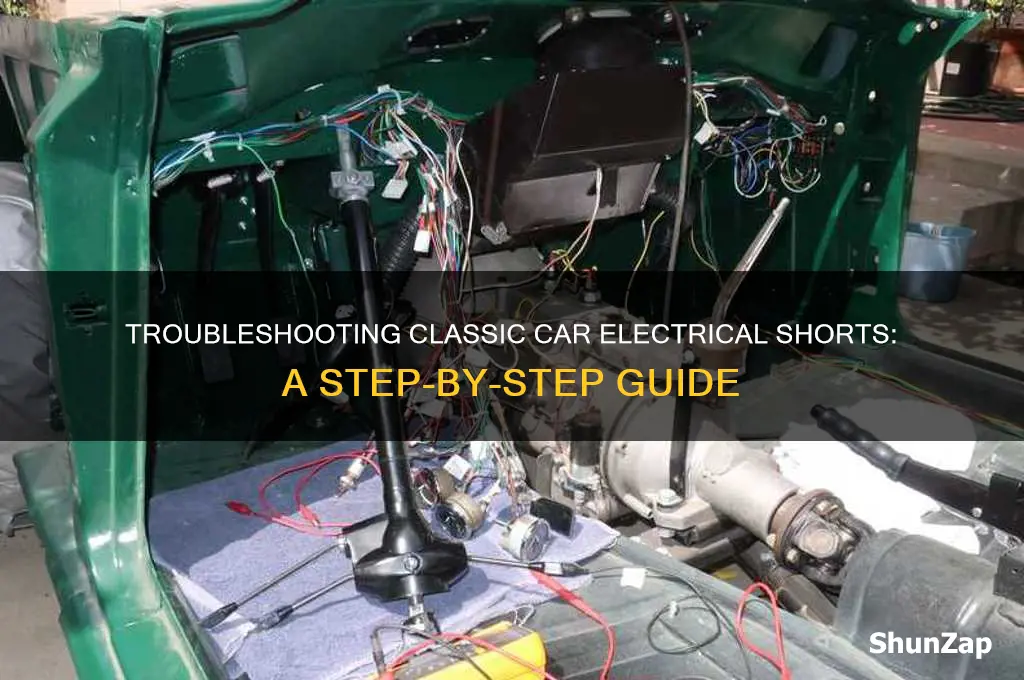

Finding an electrical short in a classic car can be a challenging but rewarding task, as these vehicles often have simpler wiring systems compared to modern cars, yet their age can lead to deteriorated insulation and connections. To begin, gather essential tools such as a multimeter, wiring diagram, and a test light, and ensure the car’s battery is disconnected for safety. Start by identifying the affected circuit using the wiring diagram, then systematically inspect wires for visible damage, corrosion, or loose connections, particularly in areas prone to wear like the engine bay, doors, and trunk. Use the multimeter to test for continuity and resistance, isolating sections of the circuit to pinpoint the short. Patience and a methodical approach are key, as electrical issues in classic cars often require tracing wires and testing components one by one to locate the fault.
| Characteristics | Values |
|---|---|
| Common Symptoms | Flickering lights, dead battery, blown fuses, intermittent electrical failures, burning smell |
| Tools Required | Multimeter, test light, wiring diagram, fuse puller, electrical tape, wire strippers |
| Diagnostic Steps | 1. Inspect fuses and relays 2. Check battery and ground connections 3. Use multimeter to test circuits 4. Isolate affected circuits 5. Trace wiring for damage or corrosion |
| Common Causes | Frayed wires, corroded connections, damaged insulation, faulty components, rodent damage |
| Precautions | Disconnect battery before testing, avoid working on live circuits, use insulated tools |
| Classic Car Specific Challenges | Aged wiring, lack of modern diagnostics, limited replacement parts, complex wiring harnesses |
| Professional Help | Recommended for complex issues or lack of experience with electrical systems |
| Preventive Measures | Regularly inspect wiring, use dielectric grease on connections, keep interior dry |
| Cost of Repair | Varies widely ($50-$500+ depending on severity and parts needed) |
| Timeframe for Repair | 1-8 hours depending on complexity and location of the short |
Explore related products
What You'll Learn
- Identify Symptoms: Flickering lights, dead battery, blown fuses, or unusual smells indicate potential electrical shorts
- Use Multimeter: Test circuits for continuity, resistance, and voltage drops to locate shorted wires
- Inspect Wiring: Check for damaged, frayed, or corroded wires, especially in classic car harnesses
- Isolate Circuits: Disconnect components one by one to pinpoint the circuit causing the short
- Ground Testing: Verify proper grounding and test for shorts between wires and chassis
Identify Symptoms: Flickering lights, dead battery, blown fuses, or unusual smells indicate potential electrical shorts
Classic cars, with their timeless charm, often come with a unique set of challenges, particularly when it comes to electrical systems. One of the first signs of an electrical short is flickering lights. This isn’t just a minor annoyance; it’s a red flag. Flickering can occur when there’s an intermittent connection in the wiring, causing the flow of electricity to fluctuate. For instance, if your dashboard lights dim or brighten unpredictably, or your headlights pulse while driving, it’s time to investigate. This symptom often points to a loose wire, corroded connection, or a failing component like a voltage regulator. Addressing it promptly can prevent more severe issues, such as a complete loss of lighting or damage to sensitive electronics.
A dead battery is another telltale symptom of an electrical short, especially in classic cars where wiring systems are older and more prone to wear. If your battery drains overnight or after short periods of inactivity, it’s not always the battery’s fault. An electrical short can create a parasitic draw, where power continues to flow even when the car is off. To diagnose this, use a multimeter to measure the current draw with the car in standby mode. A reading above 50 milliamps typically indicates a problem. Common culprits include faulty alternators, malfunctioning relays, or damaged wiring harnesses. Regularly checking for parasitic draws can save you from repeated battery replacements and pinpoint the root cause.
Blown fuses are a direct and immediate indicator of an electrical short. Fuses are designed to protect circuits by breaking the connection when excessive current flows. If you find yourself replacing the same fuse repeatedly, it’s a clear sign of a short circuit downstream. Start by identifying which circuit the fuse protects—refer to your car’s manual for a fuse box diagram. Inspect the wiring and components in that circuit for damage, such as frayed wires, melted insulation, or corroded terminals. Replacing the fuse without addressing the underlying issue is a temporary fix at best and can lead to more extensive damage, including fires.
Unusual smells, particularly a burning odor, should never be ignored. This scent often accompanies an electrical short as wires overheat or insulation melts. The smell might be faint at first, noticeable only when the car is running or after driving. If you detect a burning smell, immediately turn off the engine and inspect the wiring, especially around the engine bay and interior components. Look for discolored wires, smoke, or charring. In classic cars, rubber insulation can degrade over time, increasing the risk of shorts. Addressing this symptom promptly not only prevents further damage but also reduces the risk of fire, a serious concern with older vehicles.
In summary, identifying symptoms like flickering lights, a dead battery, blown fuses, or unusual smells is crucial for diagnosing electrical shorts in classic cars. Each symptom provides a clue to the nature and location of the problem. By systematically investigating these signs—using tools like multimeters, referring to wiring diagrams, and conducting visual inspections—you can isolate and repair the issue before it escalates. Regular maintenance and vigilance are key to preserving the electrical integrity of your classic car, ensuring it remains both functional and safe to drive.
Electric Razor Usage: How Many Men Opt for Cordless Shaving?
You may want to see also
Explore related products
Use Multimeter: Test circuits for continuity, resistance, and voltage drops to locate shorted wires
A multimeter is your best friend when hunting down electrical gremlins in a classic car. Think of it as a detective, using its probes to interrogate wires and components, revealing hidden faults. By testing for continuity, resistance, and voltage drops, you can pinpoint the exact location of a short circuit, saving you hours of frustration and potentially expensive repairs.
Forget guesswork and visual inspections alone. While they're helpful, they often lead to dead ends. A multimeter provides concrete data, allowing you to systematically eliminate possibilities and zero in on the culprit.
Continuity: The Path of Least Resistance
Start by setting your multimeter to the continuity setting (usually represented by a diode symbol or a sound wave). Touch the probes together; a beep indicates a complete circuit. Now, disconnect the suspected circuit at a convenient point, like a fuse box or connector. Touch one probe to each end of the wire or component you're testing. If the multimeter beeps, the circuit is complete, meaning no break or open circuit exists. If there's no beep, you've likely found a break or a faulty connection.
Remember, continuity testing only tells you if a path exists, not if it's the correct path. A short circuit can also show continuity, so further tests are necessary.
Resistance: Measuring the Flow
Switch your multimeter to the resistance setting (represented by the Greek letter omega, Ω). Resistance measures how much a material opposes the flow of electricity. A short circuit has very low resistance, almost zero, because the electricity is taking an unintended, low-resistance path.
Touch the probes to the ends of the wire or component. A reading close to zero ohms indicates a short circuit. Compare this reading to the expected resistance for the component or wire gauge. For example, a healthy wire should have a resistance proportional to its length and thickness.
Voltage Drop: Following the Current
Voltage drop testing is crucial for identifying high-resistance connections or damaged wires that can cause intermittent shorts. Set your multimeter to the voltage setting (DCV for most car systems). With the circuit powered, touch one probe to the positive side of the power source (battery or fuse) and the other to the component or wire you're testing.
A significant voltage drop (more than a few tenths of a volt) between the source and the component indicates a problem. This could be a corroded connector, a loose terminal, or a damaged wire with increased resistance.
Combining the Evidence: A Systematic Approach
By combining continuity, resistance, and voltage drop tests, you can build a clear picture of the electrical fault. Start with continuity to check for complete circuits, then use resistance to identify shorts and high-resistance areas. Finally, voltage drop testing reveals hidden weaknesses in connections and wiring.
Remember, safety first! Always disconnect the battery before working on any electrical system. Use insulated tools and wear safety goggles. With patience, a multimeter, and this systematic approach, you'll be able to track down those elusive electrical shorts in your classic car and get it back on the road.
Pyroelectric Sensors: How They Work and Their Applications Explained
You may want to see also
Explore related products
Inspect Wiring: Check for damaged, frayed, or corroded wires, especially in classic car harnesses
Classic car wiring harnesses are often the culprits behind electrical shorts due to their age and exposure to elements. Unlike modern vehicles, these harnesses lack advanced insulation and are more susceptible to wear and tear. Start by visually inspecting the wiring for any signs of damage, such as cracks, fraying, or exposed copper. Pay close attention to areas where wires bend frequently, near moving parts, or in contact with sharp edges. A single frayed wire can cause intermittent issues or complete system failures, making this step critical in diagnosing electrical problems.
Analyzing the condition of the wiring insulation is key. Over time, rubber or plastic insulation can degrade, especially in classic cars exposed to heat, moisture, or chemicals. Look for brittle or crumbling insulation, which can expose wires to short circuits. Corrosion is another red flag, particularly at connectors and terminals. Use a multimeter to test for continuity and resistance, ensuring wires are intact and connections are secure. If you find damaged wires, isolate them by tracing their path and marking their location for repair or replacement.
When inspecting classic car harnesses, consider the environment in which the vehicle has been stored. Garages with high humidity or temperature fluctuations can accelerate wire degradation. Rodent damage is also common, as critters may chew through insulation for nesting material. To prevent further issues, clean the wiring harness thoroughly and apply dielectric grease to connectors. For severe cases, consult a wiring diagram specific to your vehicle’s make and model to ensure accurate repairs.
A comparative approach reveals that modern wiring systems often include color-coded wires and standardized connectors, simplifying diagnostics. Classic cars, however, may have non-standard wiring or custom modifications, complicating the process. If you’re unsure about the wiring layout, invest in a factory service manual or seek advice from a classic car specialist. Replacing an entire harness might be costly but is often more efficient than piecemeal repairs, especially if multiple wires are compromised.
In conclusion, inspecting wiring for damage, fraying, or corrosion is a foundational step in resolving electrical shorts in classic cars. By systematically examining the harness, testing connections, and addressing environmental factors, you can identify and rectify issues before they escalate. Patience and attention to detail are essential, as overlooking even minor damage can lead to recurring problems. With the right tools and knowledge, you can preserve your classic car’s electrical system and ensure its reliability for years to come.
Choosing the Perfect Electric Motor for Your Go-Kart Build
You may want to see also
Explore related products
Isolate Circuits: Disconnect components one by one to pinpoint the circuit causing the short
A systematic approach to isolating circuits is often the most effective way to identify the source of an electrical short in a classic car. Begin by creating a prioritized list of components to disconnect, starting with those most likely to cause issues, such as aftermarket accessories or recently installed parts. This methodical process allows you to narrow down the problem area without overwhelming yourself with the complexity of the entire electrical system. By disconnecting one component at a time and testing the circuit after each disconnection, you can efficiently pinpoint the culprit.
Consider the process as a diagnostic funnel, where each step refines your focus. For instance, if the short disappears after disconnecting the fuel pump, you’ve isolated the circuit but not necessarily the exact cause. Proceed by inspecting the wiring harness for chafing, corrosion, or damaged insulation in that area. Classic cars often suffer from age-related wear, such as brittle wires or failing connectors, making this step crucial. Use a multimeter to test continuity and resistance in the disconnected circuit, ensuring you’re not missing subtle issues like partial shorts.
While this method is effective, it requires patience and organization. Label each disconnected component clearly to avoid confusion, especially in complex systems. Keep a log of your steps, noting which components were disconnected and in what order. This documentation can save time if you need to backtrack or consult a mechanic. Additionally, work with the battery disconnected to prevent accidental shocks or further damage to the system. Safety should always be a priority when dealing with electrical issues.
Comparing this approach to other methods, such as using a fuse-by-fuse elimination process, highlights its precision. While removing fuses can quickly narrow down the problematic circuit, it lacks the granularity of disconnecting individual components. For example, a short in a tail light circuit might be caused by a faulty bulb, a damaged socket, or a compromised wire. Disconnecting components one by one allows you to identify the exact source, ensuring a more accurate and lasting repair.
In conclusion, isolating circuits by disconnecting components systematically is a reliable strategy for diagnosing electrical shorts in classic cars. It combines precision with practicality, allowing you to address the root cause rather than just the symptoms. By staying organized, using the right tools, and prioritizing safety, you can efficiently resolve even the most stubborn electrical issues. This method not only saves time but also preserves the integrity of your classic car’s electrical system for years to come.
Why Tractors Still Rely on Diesel Instead of Electric Motors
You may want to see also
Explore related products
![Power Probe III Clamshell - Red (PP3CSRED) [Car Automotive Diagnostic Test Tool, Digital Volt Meter, AC/DC Current Resistance, Circuit Tester]](https://m.media-amazon.com/images/I/51deRU83gCL._AC_UL320_.jpg)
Ground Testing: Verify proper grounding and test for shorts between wires and chassis
A classic car's electrical system relies heavily on a solid ground connection. Poor grounding can mimic symptoms of a short circuit, leading to frustrating diagnostics. Ground testing is a critical step in isolating electrical issues, ensuring your classic runs smoothly and safely.
Before diving into complex wiring diagrams, verify the integrity of your grounding points. Start by locating all ground connections, typically found on the engine block, chassis, and battery. Clean these points thoroughly with a wire brush to remove corrosion, ensuring a solid metal-to-metal contact. A weak ground connection can cause voltage drops, leading to dim lights, erratic gauge behavior, and even starting difficulties.
To test for proper grounding, use a multimeter set to the continuity or resistance setting. Touch one probe to the battery negative terminal and the other to each ground point. A reading of near zero ohms indicates a good ground. Any significant resistance suggests a problem – either a loose connection, corroded terminal, or a broken ground strap. Address these issues before proceeding further.
Remember, ground testing isn't just about finding a single point of failure. It's about ensuring a network of reliable connections throughout the vehicle. A weak link anywhere in this network can cause problems elsewhere.
Once you've confirmed good ground connections, it's time to test for shorts between wires and the chassis. This is crucial because a short can drain your battery, cause overheating, and even lead to fires. Isolate each circuit by disconnecting fuses or relays. Using your multimeter set to the ohms setting, touch one probe to the wire you're testing and the other to a clean chassis ground point. A reading of infinity (open circuit) is ideal. Any reading indicating continuity suggests a short to ground, requiring further investigation into the wiring harness for damage or chafing.
Be methodical in your testing, focusing on areas prone to wear and tear, such as door jambs, firewall passages, and undercarriage wiring. Patience and a systematic approach are key to successfully identifying and resolving electrical shorts in your classic car.
Millbrae BART Station: Electric Car Charging Availability Explained
You may want to see also
Frequently asked questions
Start by disconnecting the battery and using a multimeter to check for continuity between the positive and negative terminals of the fuse box or wiring harness. If the multimeter shows a low resistance reading, it indicates a short circuit.
Common causes include frayed or damaged wiring, corroded connections, faulty switches, or improper grounding. Age and exposure to moisture can also degrade insulation, leading to shorts.
Isolate sections of the wiring harness by disconnecting components one at a time while testing for continuity. Focus on areas prone to damage, such as under the dashboard, near the engine, or in the trunk. A wiring diagram for your specific model can help guide your search.
