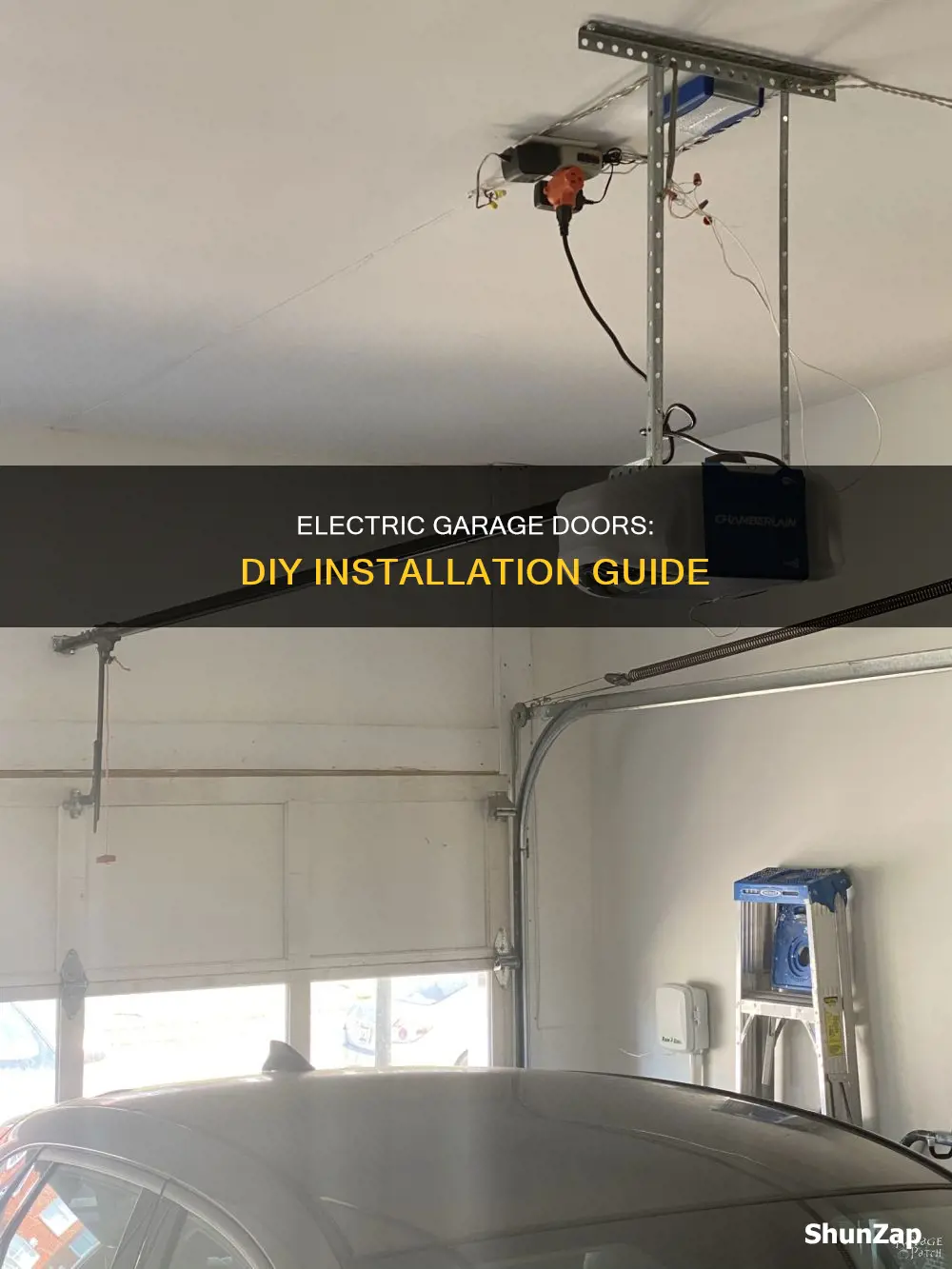

Installing an electric garage door is a DIY project that can be completed in an afternoon, although it may be a more complex and expensive process for canopy garage doors. Before starting, it is important to ensure that there is an electrical outlet near the opener motor, which is usually mounted on the ceiling. The garage door should be balanced and functioning properly, with all worn or damaged parts replaced. The complete retractable motorised system typically requires a motor and a belt or chain mechanism, and can be fitted with a simple tool kit.
Characteristics and Values Table for Installing an Electric Garage Door
| Characteristics | Values |
|---|---|
| Installation location | Internal face installation is the most common and effective way to maximise drive-through height and width. It is also the most concealed installation. |
| Electrical outlet | Ensure there is an electrical outlet near the opener motor. If not, install one or have one installed by a licensed electrician. |
| Garage door type | Most one-piece up-and-over garage doors can be converted to electric operation with a remote control package. |
| Safety | Install an electric eye safety system. Adjust the safety reverse system and the electric eye system properly. |
| Optional equipment | Install and program optional equipment such as a keypad for exterior door opening or remote openers. |
| Lighting | Insert a lightbulb into the socket in the garage door opener compartment. |
| Tools | A simple tool kit is usually sufficient for fitting a retractable up-and-over garage door. |
| Time | Installation should take a few hours. |
Explore related products
$289.96
$169 $179.99
What You'll Learn
Check for a nearby electrical outlet and install one if needed
Before installing an electric garage door, it is important to check for a nearby electrical outlet and install one if needed. This is because the garage door opener needs a power source to operate.
If you do not have an electrical outlet in the immediate area of the opener motor, you will need to install one or have one installed by a licensed electrician. Most building codes require that specific guidelines are followed when installing electrical outlets, and these codes may vary from one jurisdiction to another. Therefore, it is important to research the codes in your local area to ensure that your project is completed properly.
To install an electrical outlet, start by turning off the power at the breaker box for the circuit on which you are installing the new outlet. Place a ladder in the area where the garage door opener is or will be, and locate the ceiling joists using a stud finder. Mark the location of the joists with a pencil, and cut an opening the size of the electrical box using a drywall saw. Feed the electrical wire through the ceiling so that it connects to the circuit and reaches the location of the new electrical box, using a wire fish to pull it through.
Attach the wire box to the ceiling joist with a hammer and the nails on the box. Strip 6 inches of outer insulation from the wiring using a utility knife, and cut 1 inch of insulation from the inner white and black wires using wire strippers. The white wire is neutral and the black wire is hot; the white wire goes on the silver screw, and the black wire goes on the brass screw. Attach the wires to the posts on the outlet using a screwdriver to tighten the posts. The ground wire will be either green or a bare wire, and this should be attached to the ground post in the breaker box, tightening the screw with a screwdriver.
Finally, tighten the wire clamp on the breaker box to secure the wire in place, and turn the power on for the electrical circuit in the breaker box. Plug the garage door opener into the outlet and test it.
Understanding Your Fridge's Electric Consumption
You may want to see also
Explore related products
Assemble the carriage tube and verify the length
To assemble the carriage tube, follow the manufacturer's instructions. The carriage tube will allow the carriage to travel from the power unit to the front wall of the garage to raise and lower the door. Ensure that the carriage tube pieces are securely seated. Once assembled, measure the length of the tube to verify that it matches the manufacturer's specifications. If there are any discrepancies, make the necessary adjustments with a socket wrench or another appropriate tool as directed.
The carriage tube is an essential component of an electric garage door as it houses the mechanism that enables the door to open and close. It is usually mounted to the front of the power unit, with rail clamps attached to connect to a bracket on the wall above the door. In some cases, additional switches and wiring may need to be installed at this stage.
It is important to note that before assembling the carriage tube, you should confirm that you have all the required parts for the garage door opener. Additionally, ensure that the garage door is balanced and functioning properly. Lubricate the door and opener with a lithium-based grease to ensure smooth operation.
When working with electrical components, safety should be a priority. Always disconnect the power at the main breaker box before attempting any wiring connections. Ensure that the power cord of the garage door opener is connected to a properly grounded outlet to prevent electrical shock.
By following these steps and instructions, you can safely and effectively assemble the carriage tube for your electric garage door, ensuring that the length meets the manufacturer's requirements.
Cutting Electric Supply: A Step-by-Step Guide
You may want to see also
Explore related products
Install the electric eye safety system
The electric eye safety system is an essential component of your garage door, preventing the door from closing on a person or object and causing potential harm. Here is a step-by-step guide to installing this crucial mechanism:
Firstly, you will need to run two small wires down to the bottom of one side of your garage door. These wires will power the electric eye and ensure its functionality. The electric eye sensor itself should then be mounted on that same side of the garage door, no more than 6 inches from the floor. This low placement is vital to detect a person or object at ground level.
Next, on the opposite side of the garage door, you will need to mount a reflector. This reflector works in tandem with the electric eye to create a beam. The beam should not be more than 20 feet from the electric eye sensor. This distance is important as it covers the width of most garage doors, ensuring comprehensive protection.
Once installed, you can test the system by breaking the beam during the door's closing cycle. To do this, simply wave an object in front of the sensor as the door is closing. The door should immediately stop and reverse to the fully open position. This automatic reversal is a safety measure to prevent accidents.
It is important to test the electric eye safety system regularly, as per the manufacturer's guidelines. This ensures the system is always functioning correctly and can help prolong its lifespan. If the system ever fails to detect the beam being broken, you may need to adjust the sensor's alignment or consider replacing the electric eye sensor.
Lubricating Your Philips Electric Razor: A Step-by-Step Guide
You may want to see also
Explore related products
Install optional equipment like a keypad or remote
Once you have installed the main garage door opener, you can install optional equipment like a keypad or remote.
A keypad garage door opener is a device installed outside your garage door. You select a series of numbers to serve as a "key" for opening your garage door. The device acts as a lock, ensuring your garage door remains securely closed. Keypads offer enhanced security and convenience, as you won't need to carry around multiple keys or create duplicates for family members.
To install a keypad, follow the instructions provided with your unit. Typically, you will need to insert batteries into the keypad, program it, and screw it to the outside of your house. You can install it yourself or hire a professional.
If you want to add a remote control to your garage door opener, you can purchase a remote control package from various manufacturers. These kits are often easy to install, but safety should be a priority as you are adding remote control functionality to your garage door.
To program a new remote, you will usually need to clear the memory on your garage door opener first. Press and hold the "Learn" button on the garage door opener until the LED goes out (usually about 6 seconds). Then, press and release the "Learn" button, and within 30 seconds, press and hold the button on your new remote. Release the button once the garage door opener light blinks or you hear a clicking sound. Test the remote to ensure it works.
You can also use your smartphone to control your garage door with smart home technology.
Chemically Neutral vs Electrically Neutral: Understanding the Difference
You may want to see also
Explore related products
Test the garage door to ensure it's working correctly
Once you've installed your electric garage door, it's important to test it to ensure it's working correctly. Here are some detailed steps to help you with the testing process:
Check the Sensors
Automatic garage doors have infrared sensors with LED lights mounted a few inches above the ground on both sides of the opening. These sensors ensure safety by preventing the door from closing if something obstructs the electronic beam. Check the LED lights on the sensors. If they are blinking, it indicates that the sensors are misaligned. Reposition the sensors so that the photo eyes face each other correctly. If the lights are not on at all, check the wiring and power supply.
Test the Safety Features
Place a cardboard box or a similar object in the door's path and initiate the closing process using the remote control. If the sensors are working, they will signal the opener, and the auto-reverse mechanism will be activated, causing the door to change direction and move upward. If the door does not reverse and moves downward, there might be an issue with the safety reverse system, and you should consider troubleshooting or resetting the sensors.
Inspect for Obstructions
Ensure that there are no obstructions blocking the door's movement. Check that the area around the door is clear and that no objects are hindering the door's path or the opener's movement.
Evaluate Noise Levels
Some electric garage doors can be loud during operation, so don't be concerned if there is some level of noise. However, if the noise seems excessive or unusual, it may indicate an issue with the installation or the door's mechanism.
Check for Smooth Movement
Observe the door's movement as it opens and closes. Ensure that the door moves smoothly and without any abrupt jerks or resistance. If the movement is not smooth, it could indicate an issue with the installation or the door's mechanism.
By following these steps, you can thoroughly test your electric garage door to ensure it is functioning correctly and safely.
Projector Power Consumption: Energy Efficiency Explored
You may want to see also
Frequently asked questions
There are two main types of electric garage doors: retractable and canopy. Retractable doors are smoother and require less maintenance, while canopy doors have a less sophisticated movement and may need a more complex conversion kit.
First, ensure that there is an electrical outlet near the opener motor, and install one if not. Then, lay out all the parts and assemble the carriage tube as directed by the manufacturer. Next, mount the carriage tube to the front of the power unit and attach the rail clamps. Finally, install any optional equipment, such as a keypad or remote opener, and test the door to ensure it is working correctly.
Install an electric eye safety system by running two small wires down to the bottom of one side of the garage door, along with an electric eye and a reflector on the opposite side. Also, ensure that your garage door is balanced and opens and closes properly, and clean and lubricate the tracks.
Internal face installation is the most common and effective way to maximise drive-through height and width, as well as providing the most concealed installation. However, external installation can also be considered to maximise available space in the garage.
