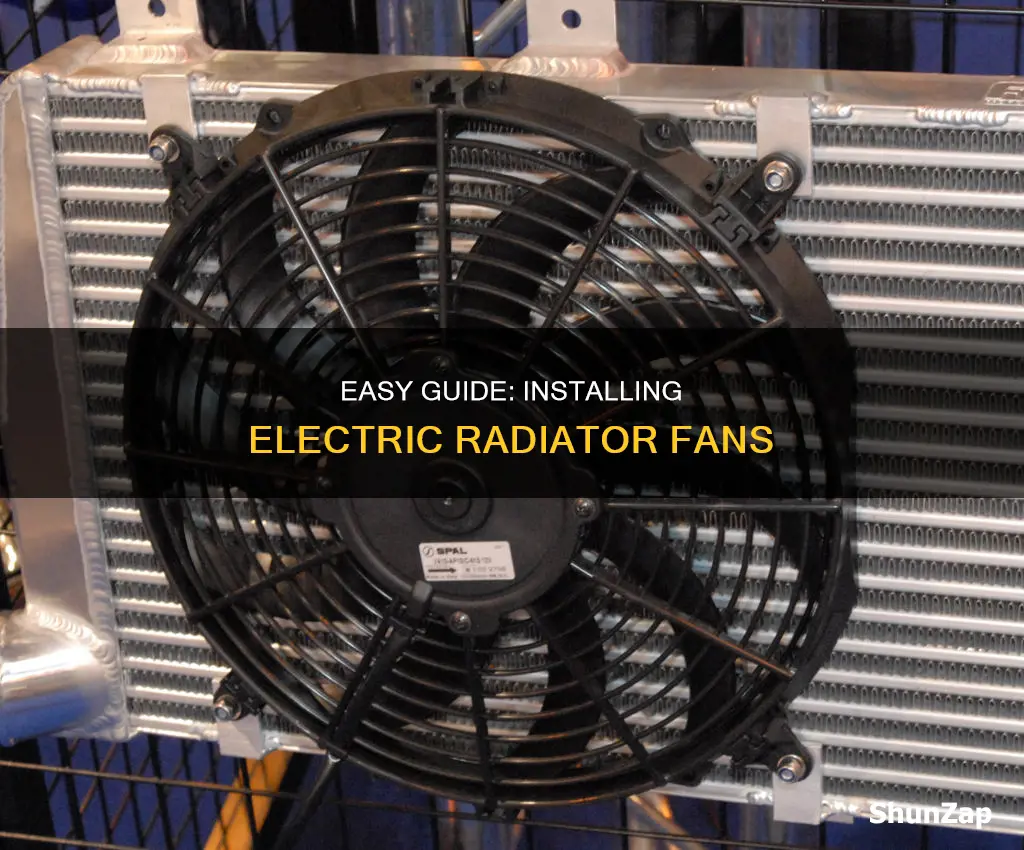

Electric radiator fans are a popular option for car owners due to their low cost, simplicity, and efficiency in cooling the engine. The installation process involves cutting and drilling the inner wing, fitting the temperature sensor and control unit, and wiring the system. The fan should be positioned close to the radiator, ensuring proper airflow and cooling. Racers and hot rodders often prefer electric fans as they can be turned on and off, freeing up power. The type of fan and its placement depend on the car's make and model, with some requiring special types of fans and mounting methods.
Explore related products
$38.98 $45.04
What You'll Learn
Choosing the right electric fan
When choosing the right electric radiator fan, there are several factors to consider. Firstly, electric fans can either push or pull air through the radiator. Puller fans are generally more efficient and provide more cooling capacity, but pusher fans are useful if space is limited. If you have a four-row radiator, avoid using a puller fan as it may struggle to draw air through the thicker core.
Secondly, consider the airflow, measured in CFM (cubic feet per minute). The more power your engine generates, the higher the CFM you need. For a 4-cylinder engine, a CFM of 1300-1600 is recommended, while a 6-cylinder engine requires 2000 CFM, and a V8 engine needs 2800-3000 CFM. Larger V8 engines may require 4500 CFM or more.
Another factor is the diameter of the fan. Choose a fan that covers as much of the radiator core as possible. Remove the existing fan and shroud to measure the area and determine the size of the fan that will fit. Single and dual electric fan setups are available, with dual fans being suitable for larger engines or those with added horsepower.
Additionally, consider the blade type. Curved blades offer quieter operation but move less air, while straight blades move more air but are louder. If you have a high-performance engine, straight blades are recommended. Also, ensure your fan has a high-performance electric motor that is sealed to prevent contamination from dirt and water.
Lastly, when wiring the electric fan, use a relay kit with a sending unit to control the temperature at which the fan starts working. A fan shroud is also essential to direct airflow through the radiator core.
Testing an Electric Breaker: A Step-by-Step Guide
You may want to see also
Explore related products
Removing the radiator
Firstly, it is important to place your car on a stable and level surface, such as an axle stand, and remove the road wheel for better access to the radiator. Next, you will need to drain the cooling system by locating the drain plug at the bottom of the radiator and placing a drain pan underneath to collect the coolant. Once drained, make sure to safely dispose of the coolant, as it can be harmful to the environment.
Now, you can begin to disconnect the radiator. Start by releasing the radiator securing bolts, which hold the radiator in place within the engine bay. With the bolts removed, carefully lift the radiator out of the engine bay, being mindful of any hoses or wires that may still be attached. If your car has a transverse engine with a side-mounted radiator, you may also need to remove the drive belt, fan bolts, and the existing fan before you can access and remove the radiator.
With the radiator removed, you should clean the area and inspect for any damage or leaks. It is important to take note of the radiator's orientation and any attached hoses or wires, as you will need to reconnect them later during the installation of the electric fan. Ensure you refer to your car's manual or a mechanic for specific instructions for your vehicle's model.
Electric Utilities: Retirement Bonds or Risky Business?
You may want to see also
Explore related products
Cutting and drilling
When fitting an electric radiator fan, you will need to do some cutting and drilling. The exact specifications will depend on the type of car and fan you have, so always refer to the kit fitting instructions for your specific model.
First, you may need to remove the radiator to cut out the hole in the cowling. This will involve draining the cooling system, releasing the radiator securing bolts, and lifting it out of the engine bay. You will also need to remove the drive belt, fan bolts, and fan, before refitting the water pump pulley and fan bolts.
Next, you will need to cut and drill the inner wing. Mark and drill four 8mm holes in the wing to secure the motor and bracket. Make sure to keep the nuts and bolts tight.
When fitting the fan, ensure that the correct side faces the front of the car. You may need to cut out the entire side of the cowling nearest the front of the car, leaving the flanges that attach to the radiator. You can use a hacksaw for this.
Finally, you will need to refit the radiator and connect the sensor tube and wiring. Straighten the end of the sensor tube and insert it into the radiator top inlet stub, then fit the hose over the seal and tube and tighten the clip. Run a wire from the live terminal on the fan motor to an ignition-controlled feed and fit an inline fuse holder.
Jeffrey Dahmer's Electric Chair: A Desire or Punishment?
You may want to see also
Explore related products
Wiring the fan
Now, reconnect the battery, then turn the thermal switch adjusting screw fully clockwise. Start the engine and let it warm up until the temperature gauge reads just above normal. Turn the adjusting screw slowly anticlockwise until the fan starts. The fan should run for 20-30 seconds before cutting out.
The coolant temperature at which the fan will be turned on or off depends upon the sensor used. There is no adjustment using this system, but the sensor can be changed to a different temperature rating if desired. An adjustable fan controller can be purchased to allow for adjustment of the coolant temperature at which the fan will run.
Free Nights and Weekends: Texas Electricity's Secret
You may want to see also
Explore related products
Testing the fan
Once you have fitted your electric radiator fan, you will need to test it to ensure it is functioning correctly. Here is a step-by-step guide to testing your newly installed electric radiator fan:
- Reconnect the battery: Ensure that your car battery is securely connected. This will provide power to the fan and allow you to test its functionality.
- Adjust the thermal switch: Locate the thermal switch and turn the adjusting screw fully in a clockwise direction. This will set the initial temperature threshold for the fan to activate.
- Start the engine: Turn on the engine and let it warm up. Observe the temperature gauge and wait until it reads just above the normal operating temperature. This step may take several minutes, depending on the vehicle.
- Activate the fan: Once the engine has warmed up, slowly turn the adjusting screw anticlockwise. Continue turning slowly until you hear the fan start up. Ensure that the fan runs for at least 20-30 seconds before cutting out.
- Check the switch: Observe the fan's behaviour as the engine warms up. The fan should switch off before the needle returns to the normal position. Lock the switch in this position with the provided screw.
- Test at different temperatures: Adjust the thermal switch to test the fan's activation at different temperatures. This will ensure that the fan operates within the desired temperature range. You can adjust the activation temperature by turning the screw on the thermal switch as needed.
- Inspect for any issues: During the testing process, be vigilant for any unusual behaviour or noises. Ensure that the fan is securely mounted and that there is no interference with other components, such as the water pump pulley.
By following these steps, you can ensure that your electric radiator fan is functioning correctly and efficiently. Proper testing will help maximise the cooling performance of your fan and prevent potential overheating issues. Remember to consult your vehicle's manual or seek professional advice if you encounter any problems during the testing process.
Electric Dryer Fuse: What You Need to Know
You may want to see also
Frequently asked questions
Electric fans are more efficient than mechanical fans as they only run when needed, freeing up power that would otherwise be used to turn a mechanical fan. Electric fans are also more streamlined and don't consume power in the same way as engine-driven fans.
The type of fan you choose will depend on the size of your engine and the amount of space around the radiator. If you have a restricted amount of space, you may need to fit a suction fan, which is mounted differently from a standard electric fan.
The installation process will vary depending on the type of fan and vehicle, but here are some general steps:
- Refer to the kit fitting instructions for your specific fan.
- Drain the cooling system and remove the radiator.
- Cut and drill the inner wing as needed.
- Fit the temperature sensor, control unit, and wiring.
- Secure the fan to the radiator using the provided ties, washers, and nuts.
- Connect the fan to a power source, ensuring you do not use the positive terminal at the ignition coil.
After installation, reconnect the battery and start the engine. Allow the engine to warm up, and adjust the thermal switch until the fan starts. The fan should run for 20-30 seconds before cutting out. If the fan does not activate or cuts out too quickly, the thermostat may be faulty.
