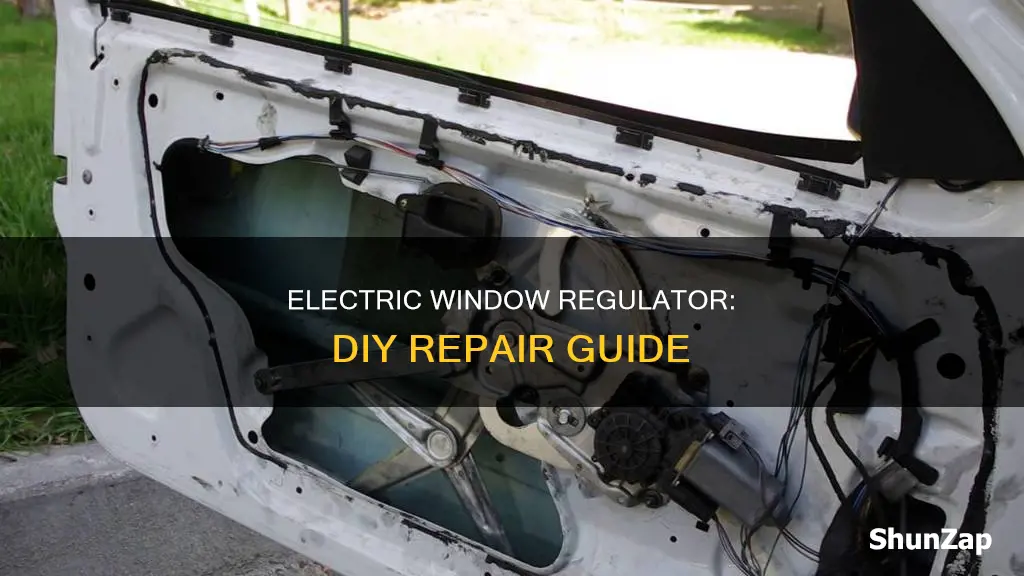

Car windows that won't roll up or down can be a real nuisance, especially when outside temperatures are less than comfortable. While there are several reasons why a window may not operate properly, one of the most common causes is a faulty window regulator. In this article, we'll explore the steps necessary to diagnose and repair an electric window regulator, so you can get your car window functioning properly again.
| Characteristics | Values |
|---|---|
| Difficulty Level | Medium |
| Time Required | 2-3 hours |
| Tools Required | Screwdriver, Socket Wrench, Knife, New Window Regulator Motor |
| Cost | Varies, approximately $50 - $200 for parts |
| Skills Required | Basic mechanical and electrical knowledge, soldering skills may be required |
| Steps Involved | 1. Remove door panel 2. Disconnect electrical connectors and remove old motor 3. Install new motor and connect electrical connectors 4. Test the window operation 5. Reinstall the door panel |
| Common Issues | Broken wires, faulty motor, damaged regulator track |
| Safety Considerations | Work with a helper, wear safety gloves and glasses, keep children and pets away |
| Vehicle Compatibility | Varies, specific to make, model, and year of the car |
| Online Resources | Numerous YouTube videos and step-by-step guides are available online |
| Professional Service Alternative | Professional mechanics can be hired, but it may cost significantly more |
Explore related products
What You'll Learn
Diagnosing the issue
The next step is to examine the window regulator itself. Try to locate the regulator, which is usually situated inside the door panel. You may need to remove the inner door panel to access it. Once you have visual access to the regulator, inspect it for any visible damage, such as broken components or disconnected cables. Look for signs of corrosion or wear and tear as well, as these could be indicators of the root cause.
If everything appears intact and functional upon initial inspection, the issue could lie with the power supply or the window switch. To test this, you will need a multimeter to check for voltage and continuity. Set the multimeter to the appropriate settings and probe the power supply going into the window regulator. If there is no power reaching the regulator, the issue could be a blown fuse, a faulty relay, or a problem with the wiring.
In case you find that power is reaching the regulator, the next step is to test the window switch. With the multimeter still set to test for continuity, probe the switch to ensure it is functioning correctly. A faulty window switch may not be completing the circuit, preventing power from reaching the regulator and resulting in the window malfunction. By systematically testing each component, you can narrow down the potential causes and identify the root of the issue.
Stick's Knowledge: Did He Know About Electra's Black Sky?
You may want to see also
Explore related products
Disassembling the door panel
To gain access to the window regulator, you will need to remove the door panel. Here is a step-by-step guide on how to do this:
Begin by parking your car in a well-lit area and gathering the necessary tools, which may include a set of screwdrivers, a pry bar, and a door panel removal tool. It is also recommended to have a small tray or container to place the screws and clips in as you remove them, so they remain organized and do not get lost.
Start the disassembly process by locating and removing any screws or bolts holding the door panel in place. These are typically found along the bottom edge of the panel and may be concealed by small plastic covers or plugs. Use the appropriate screwdriver to remove these screws and set them aside safely.
Next, gently pry the door panel away from the door, starting from the bottom and working your side to the top. Be careful not to use excessive force, as you may damage the panel or the clips holding it in place. Once you have created a gap between the panel and the door, locate and disconnect any electrical connectors attached to the door panel. These may be for components such as power windows, mirrors, or speakers.
Continue prying the panel away from the door, being mindful of any remaining clips or fasteners holding it in place. Use your pry bar or door panel removal tool to carefully disengage these clips, working your way around the perimeter of the panel. Once all the clips have been released, carefully lift the door panel away from the door, taking care not to stretch or damage any wiring harnesses that may still be attached.
With the door panel removed, you should now have access to the inner door components, including the window regulator and glass. Place the door panel in a safe location, keeping any screws, clips, or fasteners organized and close by, ready for when you need to reinstall the panel.
This process may vary slightly depending on your vehicle's specific make and model, so it is always recommended to refer to a repair manual or seek guidance if you are unsure about any steps.
Robots, Dreams, and Electric Sheep: Exploring AR's Potential
You may want to see also
Explore related products
Repairing or replacing the regulator
To repair or replace a window regulator, you will need to remove the door panel and inspect the regulator and window track for any signs of damage or malfunction. Here's a step-by-step guide:
- Remove the trim panel: Start by prying off the trim panel to access the window regulator. This process varies by car model, but generally involves removing screws, prying off panels, and disconnecting electrical connectors. Work slowly and gently to avoid breaking any plastic clips or tabs. Once the panel is removed, set it aside, being careful not to strain or damage the wiring harnesses attached to the panel.
- Inspect and diagnose the issue: With the door panel removed, you can now inspect the window regulator and track for damage. Common issues include a broken regulator, damaged cables, or a malfunctioning window motor. If the regulator is visibly damaged or the window is off its track, replacement is likely necessary.
- Disconnect the old regulator: Before removing the old regulator, make sure to note the routing of the cables and the attachment points. Disconnect the cables from the regulator, and if necessary, remove any screws or bolts holding the regulator in place. You may also need to remove the window glass to access the regulator fully. Be very careful when handling the glass, and support it with your hand or a prop if needed.
- Install the new regulator: Start by positioning the new regulator in place and routing the cables as they were originally. Secure the regulator with the appropriate screws or bolts. If you removed the window glass, carefully reinstall it, ensuring it sits properly in the regulator's tracks.
- Test the window: With the new regulator installed, reconnect the battery and test the window operation. Ensure the window moves smoothly and fully in both directions. If it doesn't, recheck your work and ensure all connections are secure and the regulator is properly installed.
- Reinstall the door panel: Once you've confirmed the window is functioning, you can reinstall the door panel and any other components you removed during the process. Ensure all wiring harnesses are connected and routed correctly, and secure the panel with the appropriate screws or clips.
Remember to work carefully and methodically, especially when dealing with electrical components and glass. If you're unsure or uncomfortable with any part of the process, it's always best to consult a professional or experienced mechanic.
Three-Phase Power: Common in Commercial Buildings
You may want to see also
Explore related products
Testing the window function
Step 1: Observe Symptoms
Start by noting the specific problems you're facing with the electric window. Common issues include the window falling down inside the door, abnormal noises during operation, slow or jammed movement, a crooked window, or the window not responding to the switch.
Step 2: Initial Checks
If the window switch isn't responding at all, start by checking the fuses. If the fuses are intact, proceed to check the voltage at the motor using a voltmeter. You can turn the meter's large red range switch three clicks counter-clockwise to the "20 Volt" scale. This will help you measure the voltage between the wires at the motor or the window switch. Ensure you connect the test leads correctly to avoid a minus sign in front of the voltage reading.
Step 3: Differentiate Between Regulator and Motor Issues
If the fuses and voltage are fine, it's time to differentiate between a faulty window regulator and a malfunctioning motor. A failing window regulator often exhibits symptoms such as creaking or grinding noises from its cables, gears, and brackets. This can be caused by dirt, debris, or lodged items. Additionally, watch out for a window panel that refuses to move, as it could indicate a seized or jammed regulator.
On the other hand, if the window rolls up slower or faster than usual, it's more likely an issue with the motor. A faulty motor may also cause the window to fall back down after being raised, which could be due to the anti-pinch function in some cars.
Step 4: Further Diagnostics
For more in-depth diagnostics, you can refer to the electrical diagram of your vehicle to check the power window circuit. If the window goes down smoothly but struggles to go up, you may need to inspect the window run channels and the regulator mechanism. Lubricating these components might solve the issue.
Step 5: Reset and Relearn Procedures
In some cases, after replacing the window motor or regulator, you may need to reset the power window settings or perform a relearn procedure for the anti-pinch function to work correctly. Refer to your car's owner's manual or search online for specific instructions for your car's make and model.
Safety Precautions:
Always exercise caution when working on power windows, as issues with the window regulator or motor can pose safety risks. Working power windows are crucial for security, and a window that fails to close completely can expose your vehicle to the elements. If you're unsure or uncomfortable performing these tests and repairs, it's best to consult a dealer or a reputable auto repair shop.
How Electric Furnaces Work in Travel Trailers
You may want to see also
Explore related products
Reassembling the door panel
Start by placing the door panel back into its original position, ensuring that it is properly aligned with the door frame. Secure it in place by reinserting the screws that you had previously removed. Be careful to tighten them in a diagonal pattern, much like you would when changing a tire, to ensure an even and secure fit.
Next, if your vehicle has them, reconnect any electrical connectors that control features such as power locks or mirrors. These connectors should click into place securely. Ensure that the window glass is properly seated within the window regulator and that the regulator is fully secured to the door.
Gently lower the window glass back into the door, being careful not to pinch or damage the weather stripping. Guide the glass into the window tracks and ensure that it moves up and down freely. Test the operation of the window to ensure that it functions smoothly and without any binding or catching.
Reattach any interior trim pieces or panels that you had removed earlier, such as the door handle, armrest, or speaker grille. Make sure that all components are securely fastened and properly aligned. Finally, if your vehicle has them, reattach the retaining clips or fasteners that hold the door panel to the door frame. These may click into place or require gentle tapping with a plastic or rubber mallet.
Once the door panel is fully reassembled, test the power window switch to ensure that the window operates normally. It is important to verify that the window seals properly and does not make any unusual noises during operation. With the door panel securely reassembled, you can be confident that your power window is safe and functional once again.
Electric Razor: Less Irritation, Better Shave?
You may want to see also
Frequently asked questions
There could be several reasons for this, including a blown fuse, a faulty switch, or a broken regulator motor. First, check the fuses to see if any are blown and replace if necessary. If the fuses are fine, then the issue could be with the switch or the motor. You will need to test both using a multimeter to check for continuity.
Removing the door panel varies slightly depending on your car make and model, but generally, you will need to remove the screws holding the panel in place, as well as any bolts or clips around the perimeter of the panel. Start by prying off the trim panel to access the screws, then carefully lift and remove the door panel. Always disconnect the electrical connectors to any switches or locks before removing the panel completely.
You will need a few basic tools, including a screwdriver set (flathead and Phillips), a socket wrench set, a trim panel removal tool, and a multimeter to test for continuity in the switches and motor. It is also useful to have a rubber mallet to gently tap the new regulator into place, as well as a helper to guide the window glass into the regulator channel.
Depending on your level of mechanical skill and the specific issue with your window regulator, you may be able to fix it yourself. If the issue is a blown fuse or a faulty switch, these are relatively easy to diagnose and replace. However, if the regulator motor is broken or the window is off its track, the repair may be more complex and may require the expertise of a professional mechanic. Always consult your car's repair manual for specific instructions pertaining to your vehicle.
