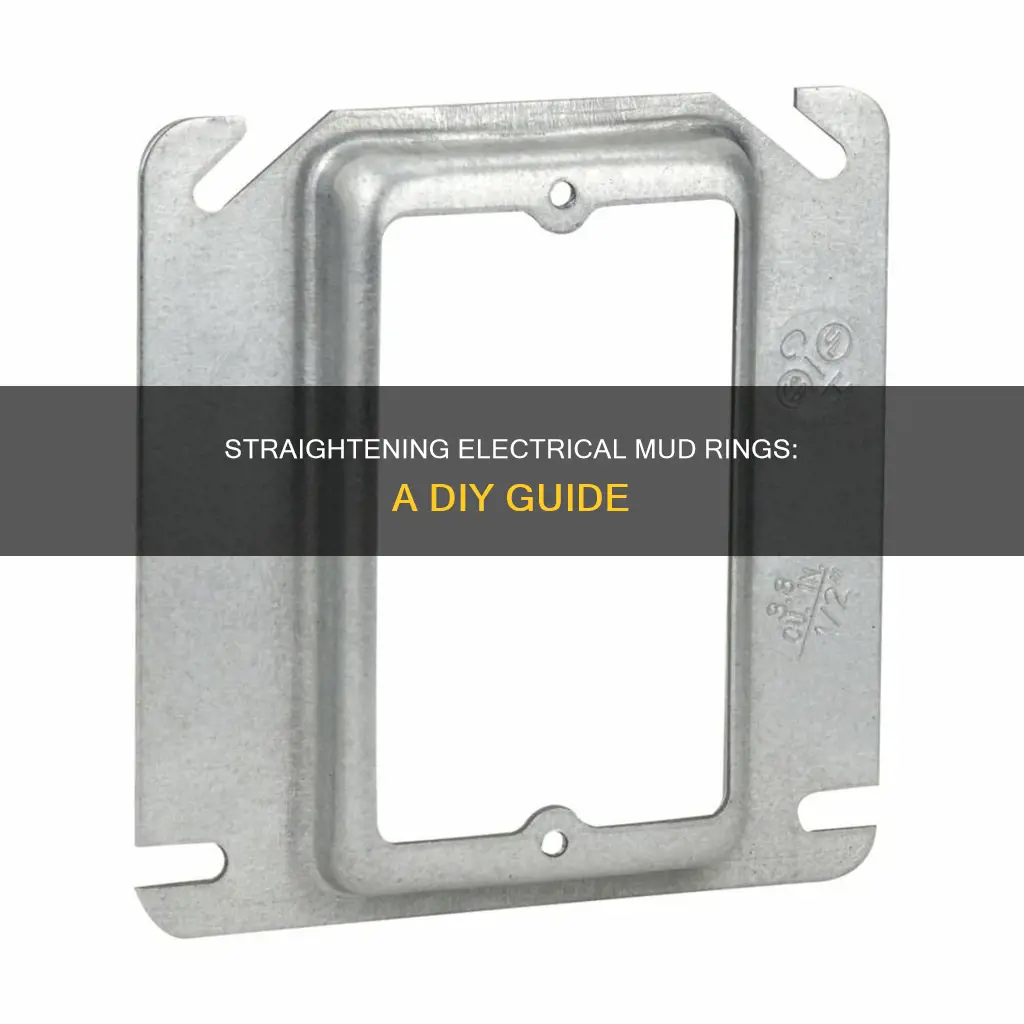

A mud ring is a device used in electrical work to ensure that outlets and switches are flush with the wall. When installing electrical boxes, it is important to ensure that they are correctly aligned to avoid issues with the mud ring, such as protruding or crooked rings. In this article, we will explore the causes of crooked electrical mud rings and provide step-by-step instructions on how to fix them, including cutting out the drywall, using spacers or box extenders, and adjusting the mud ring to ensure a proper fit.
Explore related products
What You'll Learn
Cut out the drywall and use spacers or box extenders
If you're dealing with a crooked electrical mud ring, one solution is to cut out the drywall and use spacers or box extenders. This approach can help you rectify the issue without needing to remove the existing box. Here's a step-by-step guide on how to tackle this:
Step 1: Cut Out the Drywall
Use a utility knife, a drywall saw, or a multitool to carefully cut out the drywall that is covering any part of the box. Be precise and ensure you only cut away the necessary portions.
Step 2: Choose Spacers or Box Extenders
You can opt for spacers or box extenders, depending on your preference and the specific requirements of your project. Spacers are useful if you want to create a gap between the box and the wall surface, ensuring that screws have something to hold on to. Box extenders, on the other hand, are ideal if there is a large gap between the face of the box and the wall surface, as they fill that gap.
Step 3: Install the Spacers or Box Extenders
Follow the manufacturer's instructions for installing the spacers or box extenders. Ensure that you choose the appropriate spacers or extenders based on the material of your box (metal or plastic). For instance, you can find Ideal spacers Model # 172451L Gardner Bender GSP-24 24 Piece Switch and Receptacle Spacers, Neon Green.
Step 4: Adjust and Secure
Once the spacers or box extenders are in place, bring the receptacle out to the proper position. You may need to adjust the depth or angle of the box to ensure it sits flush with the wall. Secure the box and receptacle firmly in place.
Step 5: Final Touches
Check that all screws are tight and that there is no risk of the receptacle becoming loose over time. If needed, retrim the drywall around the box to ensure a neat and tidy finish.
Remember to exercise caution when working with electrical components, and always shut off the power before beginning any work.
Electrical Schematics: A Beginner's Guide to Reading Circuit Diagrams
You may want to see also
Explore related products
Use a utility knife to dig out, space out and trim
Using a utility knife is a quick and effective way to fix a crooked electrical mud ring. This method involves digging out, spacing out, and trimming the area around the mud ring to create a flush surface.
Firstly, use a utility knife to carefully dig out the area around the mud ring. This may involve cutting away drywall or plaster to expose the box and gain access to the mud ring. Be cautious when cutting to avoid damaging any wires or electrical components.
Once the area is dug out, you can then space out the components to ensure proper positioning. This may include adjusting the outlet or device within the box to ensure it sits at the correct depth and alignment.
Finally, use the utility knife to trim the excess material and create a neat finish. This may involve trimming drywall, plaster, or other surrounding materials to ensure they sit flush with the mud ring and any cover plates. Take care not to trim too much material, as this may affect the structural integrity or cosmetic appearance.
In some cases, it may be necessary to retrim the drywall or add electrical spacers to achieve the correct positioning. It is important to work carefully and methodically throughout this process to ensure a precise and secure installation.
By following these steps and using a utility knife for digging out, spacing out, and trimming, you can effectively fix a crooked electrical mud ring and restore a flush and secure installation.
Rhode Island Electricity Prices Surge: What's Behind the Hike?
You may want to see also
Explore related products
Cut off the protruding part of the ring and use a flat old work low voltage ring
If you are dealing with a protruding mud ring, you can cut off the protruding part of the ring with an angle grinder. This is a straightforward solution, but it is important to ensure there is still enough volume in the box after removing the protrusion. This method will also result in the loss of the tab with the mounting hole for the device.
An alternative approach is to use a flat old work low voltage ring. These non-metallic mounting brackets are designed for installing vintage low voltage light switches, phone outlets, cabling, and coax jacks. They are suitable for wall surfaces that are 1/4" to 1-1/2" thick. To install, place the bracket against the wall between the framing and ensure it is level. Trace around the inside of the bracket and then cut an opening slightly larger than the traced line to accommodate the thickness of the bracket. Once the opening is cut, tighten the pre-mounted screws to firmly grip the wall.
This approach avoids the need to cut the protruding part of the ring and provides a neat way to mount replacement low voltage switches in existing walls. It is important to note that this solution does not include a back box and is for low voltage Class 2 use only.
When deciding between these two options, consider factors such as the available volume in the box after removing the protrusion, the importance of retaining the mounting hole tab, and the desired appearance of the final installation.
The Depth of Electric Lines: How Deep Are They Buried?
You may want to see also
Explore related products
Cut the drywall to the box size and change to a 2-gang ring
To fix a crooked electrical mud ring, you can cut the drywall to the box size and change to a 2-gang ring. Here's a step-by-step guide on how to do this:
First, you need to determine the size of the box you'll be using. A standard old-work box is about 4" tall by 3-1/8" wide, while a single-switch box is typically 2" by 4". If you're using a 4" by 4" box, you'll need to cut the drywall to match these dimensions.
Before you begin cutting, plan where you will place your new electrical box by measuring up from the floor and leveling the area. Mark the wall where the top of the box will be located, ensuring it is level. Use a pencil to trace along the outside of the box onto the wall, creating an outline for your cut.
Now, you can start cutting the drywall. Using a drywall saw or an oscillating multi-tool with a vibrating blade designed for drywall, punch through the drywall just inside the marked outline and then complete the cut. Make sure you do not cut the area behind the flanges or metal tabs at the top and bottom of the box, as these will be used to secure the new box in place.
Once you've cut the drywall to the box size, you can install the 2-gang ring. Fit the new box into the hole, ensuring that the box flanges are tight against the face of the drywall. If the fit is too tight, you may need to trim the opening slightly to enlarge it. Push the box fully in and secure it in place using the appropriate screws.
With the new 2-gang ring in place, you can now attach your electrical device, such as a switch or outlet, following standard installation procedures. Make sure to follow electrical safety guidelines and ensure the power is shut off before proceeding.
By following these steps, you can fix a crooked electrical mud ring by cutting the drywall to the box size and installing a 2-gang ring, providing a neat and secure solution for your electrical installation.
Xcel Electricity in Longmont: Who's the Provider?
You may want to see also
Explore related products
Use adjustable mud rings
If you're dealing with a crooked electrical mud ring, one possible solution is to use adjustable mud rings. Here's a step-by-step guide on how to approach this fix:
First, assess the situation and determine if using a mud ring is the best course of action. Ensure that your electrical box is installed correctly and securely, and identify if the mud ring is the only component that requires adjustment. This is important because, in some cases, the entire electrical box may need to be repositioned or replaced.
Next, familiarize yourself with the type of electrical box you have. Mud rings are typically designed for use with specific types of boxes, such as 4" x 4" square boxes. Confirm that your electrical box is compatible with adjustable mud rings.
Now, it's time to procure the necessary materials. Adjustable mud rings can be purchased from hardware stores or online suppliers. Ensure you acquire a reputable brand that meets electrical safety standards. Additionally, gather any tools you may need, such as a utility knife or a multitool, which can be used for cutting and adjusting the mud ring during installation.
With the materials and tools ready, carefully cut out the drywall covering any part of the electrical box. Take precise measurements and cut only as much drywall as necessary to access the box. This step will provide the space needed to install the adjustable mud ring.
After exposing the electrical box, carefully fit the adjustable mud ring onto the box according to the manufacturer's instructions. Ensure that the mud ring is securely attached and positioned correctly in relation to the electrical devices within the box.
Finally, once the adjustable mud ring is in place, you can proceed to reinstall the drywall or cover the box with a suitable plate. Ensure that any screws or fasteners used are tight and secure, preventing the mud ring from becoming loose or crooked again.
Using adjustable mud rings can be an effective way to fix a crooked electrical mud ring, but it's important to approach this task with caution. Always ensure that power is shut off before working on any electrical components, and if you're unsure about any steps, consult a professional electrician for guidance.
Exploring Androids, Dreams, and Electric Sheep: A Deep Analysis
You may want to see also
Frequently asked questions
An angle grinder, utility knife, or multitool can be used to cut off the protruding part of the ring.
One way is to cut out the drywall covering the box, then use spacers or box extenders to bring the receptacle out to the proper position. Another way is to cut the mud ring flush and drill and tap the back of the box.
Before hanging the drywall, hold a small drywall piece across two studs in front of the box. If the box interferes with the drywall, it is set too far forward or is mounted to a crooked stud.
