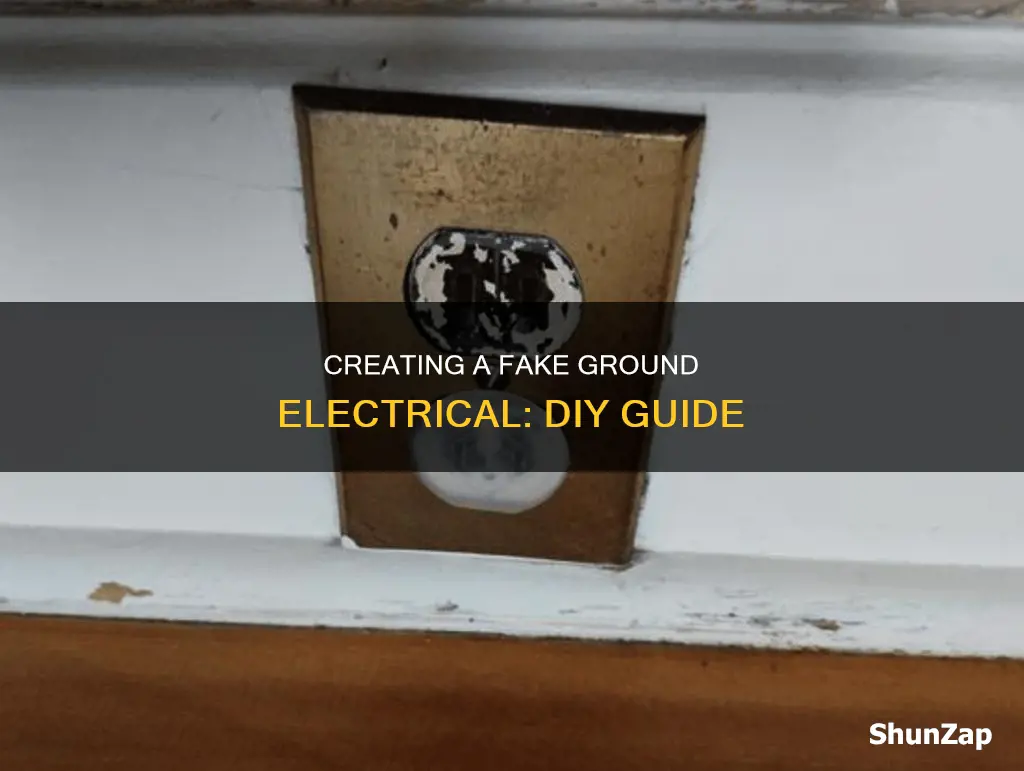

Creating a fake ground electrical connection, also known as a bootleg ground, is a dangerous practice that can lead to electrical shocks and even death. A bootleg ground occurs when the neutral side of a receptacle or light fixture is connected to the ground lug or enclosure of the wiring device, energizing the exposed casing. This hazardous connection can result in people coming into contact with deadly voltages and can even cause electrocution. While it may be tempting to attempt a bootleg ground in older houses with missing or faulty ground connections, it is important to prioritize safety and consult a professional appliance maintenance person to ensure that any electrical work is done correctly and in compliance with local regulations.
| Characteristics | Values |
|---|---|
| Purpose | To create a ground connection for a house outlet without a ground wire |
| Method | Drilling a hole in the wall behind the oven, running a copper wire down the wall and into the earth, and connecting it to the oven's green wire |
| Concerns | Power consumption, potential increase in electricity bill, safety hazards |
| Safety Hazards | Electrical shocks, electrocution, death |
| Alternatives | Checking wire isolation, hiring a professional appliance maintenance person, installing a GFCI and leaving the grounding terminal screw unconnected |
Explore related products
What You'll Learn
Understanding the dangers of bootleg grounds
Bootleg grounds, also known as false grounds, are dangerous for several reasons. A bootleg ground is created when a jumper wire is installed on an electrical receptacle between the ground screw and the neutral screw. This is usually done when a two-prong receptacle is replaced with a three-prong one, and the jumper is added in an attempt to ground the receptacle.
Firstly, if there is an issue with the receptacle containing the bootleg ground, such as the neutral wire becoming damaged or disconnected, anything plugged into that receptacle will become energised. This puts anyone in the home at risk of electrocution by simply touching the device. For example, if a refrigerator is plugged into a receptacle with a bootleg ground, the entire body of the refrigerator will be energised.
Secondly, a bootleg ground in combination with reverse polarity creates the same hazardous situation. In this case, the body of anything plugged into the receptacle will become energised, again posing a serious risk of electrocution to anyone who comes into contact with it.
Thirdly, GFCI-protected outlets downstream from a receptacle with a bootleg ground may not trip in the event of a ground-fault situation. GFCIs are safety mechanisms designed to protect against electrocution, so a non-tripping GFCI further increases the risk of electrocution.
In addition, a fault condition on a bootleg ground will not trip a GFCI breaker, nor will it protect a receptacle that is wired from the load side of a GFCI receptacle. This means that a bootleg ground can create a situation where people can come into contact with a deadly voltage that will not trip a circuit breaker or GFCI quickly enough to prevent electrocution.
Overall, bootleg grounds are prohibited by the National Electrical Code because they create dangerous situations that put occupants at risk of electrocution. Understanding the dangers of bootleg grounds is crucial to ensure the safety of any electrical installations and prevent hazardous situations that could lead to serious injuries or even loss of life.
Understanding Electrical Wiring Diagrams: A Beginner's Guide
You may want to see also
Explore related products
Using a GFCI as an alternative to ground wiring
A ground fault circuit interrupter (GFCI) is a circuit breaker designed to prevent electrical faults in and around your home. GFCI outlets work by monitoring the amount of electrical current flowing to and from your electrical appliances and products. If the GFCI monitoring system detects a difference in current that exceeds five milliamperes, it will trip the power, potentially saving you from electrocution.
GFCI outlets are extremely important for keeping you and your family safe from electrical shocks, but they can be hard to spot. You can identify an ungrounded outlet by its two-prong design, and you’ll usually find them in older homes. These outlets don’t have a grounding path to allow electrical surges to travel down to the ground rather than your devices or body. As such, they’re not nearly as safe as a grounded outlet. Keep in mind that some three-prong outlets are also ungrounded.
You can replace ungrounded outlets with GFCI outlets, and it does make the outlet safer than if you didn't have one installed. If your circuit doesn’t have a ground wire, you can still install a GFCI outlet for protection. GFCI outlets without a ground wire are legal and work; however, choosing to install GFCI outlets without a ground wire does come with some disadvantages. For example, your electronic devices won't be protected if there's a ground fault, and a plug-in tester on the GFCI outlet won't work.
In the United States, before 1996, it was common to ground the frames of large 120/240-volt permanently-connected appliances (such as a clothes dryer or oven) to neutral conductors. This has been prohibited in new installations since the 1996 National Electrical Code. A bootleg ground (or false ground) is a connection between the neutral side of a receptacle or light fixture and the ground lug or enclosure of the wiring device. This can be hazardous because the exposed casing can become energized.
Electric vs Manual Knife Sharpeners: Which Is More Effective?
You may want to see also
Explore related products
Creating a ground terminal
To create a ground terminal, you will need some basic materials, many of which can be commonly found at home. These materials include a bolt, washers, nuts, a paperclip, and a ground wire. The bolt size does not matter as much, as long as the washers and nuts are compatible with it.
- Place one washer onto the bolt, followed by the paperclip, and then add the second washer on top.
- Twist one nut onto the bolt until it secures the washers around the paperclip.
- Attach a second nut to the bottom of the structure and tighten it to secure the bolt.
- Add a ground wire to the paperclip by twisting it on or using alligator clips. Ensure that the ground wire is electrically connected to the bolt.
- Connect the ground wire to your circuit ground.
- Add ground wires for each component that requires a ground connection.
This design provides a simple and secure way to connect the ground leads of various components in your circuit. It helps simplify the circuit by providing a solderless point of electrical connection and managing the wires to prevent tangles.
It is important to note that this design may not be suitable for all projects, and you should always consult an expert or a licensed electrician if you are unsure about electrical safety or local regulations.
How Do Eyes Process Visual Information?
You may want to see also
Explore related products
Drilling a hole in the wall to run a copper wire
Before you start drilling, it's crucial to determine the location of your electrical wires and plumbing pipes to avoid any accidental damage. Electrical wires typically run vertically, up and down the sides of studs, to reach receptacles, ceiling lights, and fans. To be safe, avoid drilling or nailing above a receptacle or light switch. If you must drill in these areas, be extremely cautious and avoid the side that the receptacle is attached to. For horizontal wiring, there is usually some leeway, and you can avoid most damage unless you drill into the stud where the wires pass through.
To identify the presence of pipes or wires behind the wall, you can use tools like a stud finder or an electrical wire detector. Mark the locations of any obstructions to plan your drilling path accordingly. It's also recommended to cut horizontally first when dealing with drywall. This way, if you encounter a stud or pipe, you can adjust your plan and create a new hole instead of making a long vertical cut and realizing too late that you've cut through something important.
When drilling, pay attention to any resistance you encounter. If you meet unexpected resistance, stop and assess the situation. It's better to back off and reevaluate than to force your way through and risk damaging pipes or wires. Remember that copper tubing and pipes can be curved, and drilling into them may result in leaks.
As you drill, adhere to the electrical code guidelines for your region. For example, in Ontario, Canada, metal plates are required to protect wires if they are within 1 1/4" of the outside of a stud. Respect these guidelines to ensure your safety and the integrity of your electrical system.
Finally, when running the copper wire through the drilled hole, be cautious and gentle to avoid any sharp edges that could damage the insulation of the wire. Ensure the wire is securely in place without compromising its integrity.
By following these instructions and staying vigilant, you can successfully drill a hole in the wall to run a copper wire while minimizing the risks associated with electrical wiring and home improvement projects.
Electric Eels' Breeding Secrets in Bermuda's Triangle
You may want to see also
Explore related products
The importance of ground connections in different countries
Grounding or earthing refers to an electrical connection to the ground or earth. It is a critical safety feature in electrical systems, providing a safe path for fault currents and preventing shocks, fires, and equipment damage. While the concept of grounding is universal, the specific regulations and practices vary across different countries.
In the United States, for example, older homes may have two-pronged electric outlets, while newer homes are required to have three-pronged outlets. The third prong serves as a grounding connection, providing an additional layer of safety. Before 1996, it was also common to ground large appliances to neutral conductors, but this practice has since been prohibited in new installations due to safety concerns.
In contrast, a user from Colombia mentions that their country has regulations requiring a ground connection, but their old house was built before these regulations were implemented, making it challenging and expensive to make the necessary connections.
The importance of ground connections is further highlighted in high-voltage direct-current (HVDC) power transmission systems, especially those with submarine cables. In these systems, the ground is used as a second conductor, and seawater, being a good conductor, plays a crucial role in facilitating the connection to the earth.
Different types of grounding systems, such as solid grounding, resistance grounding, and reactance grounding, are employed depending on factors like the age of the building, local building codes, and specific electrical requirements. Solid grounding directly connects the neutral point to the earth, while resistance grounding limits fault current magnitude by adding a resistor. Reactance grounding uses an inductor or reactor to control the rate of rise of fault currents in high-voltage systems or where stability is a priority.
Voltage Standards in the US: What You Need to Know
You may want to see also
Frequently asked questions
A bootleg ground, also known as a false ground, is a connection between the neutral side of a receptacle or light fixture and the ground lug or enclosure of the wiring device. This can be hazardous as it can energize the exposed casing of an appliance or lamp.
A bootleg ground can lead to electrical shocks and even death. It creates an alternate path for current to flow back on the grounding system, and a fault condition may not trip a GFCI breaker, leading to potential electrocution.
You can consider drilling a hole in the wall behind an oven, running a copper wire down the wall and into the earth, and then connecting it to the oven's green wire. However, this may impact power consumption and increase your electricity bill.
Instead of creating a fake ground, you can consult a professional to get the necessary test kit and guidance. You can also explore options like GFCI protection, which provides an alternative to ground wiring in certain cases.
You can build a basic ground terminal using materials readily available at home. For example, you can use a paperclip, washers, bolts, and a ground wire. Connect the ground wire to the paperclip or bolt, and then connect it to your circuit ground. This can help simplify your circuit and provide a secure electrical connection.
