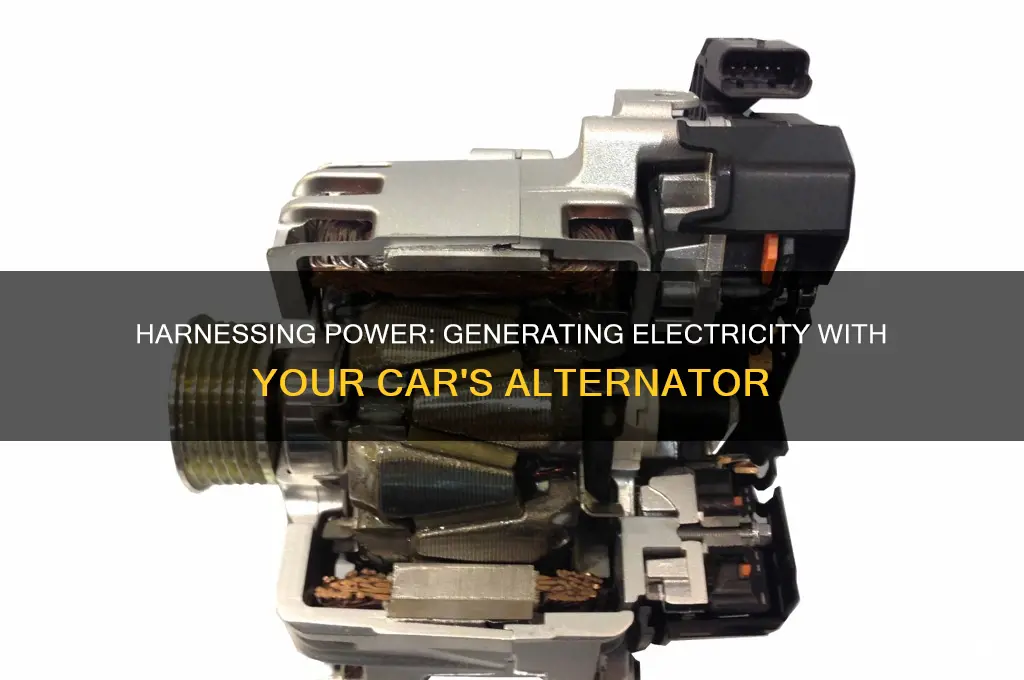

Generating electricity from a car alternator involves harnessing the mechanical energy produced by the engine and converting it into electrical power. The alternator, a key component in a vehicle’s charging system, works by spinning a magnetic field within a coil of wire, inducing an electric current through electromagnetic induction. To utilize this for electricity generation, the alternator can be disconnected from the car’s battery and connected to an external load or storage system, such as a battery bank or inverter. This setup is often used in off-grid applications, emergency power solutions, or DIY projects, where the alternator is driven by an external power source like a gasoline engine or even human-powered mechanisms. Proper regulation and safety measures, such as voltage regulators and cooling systems, are essential to ensure efficient and safe operation.
Explore related products
What You'll Learn
- Alternator Basics: Understand alternator components, function, and how it converts mechanical energy into electrical energy
- Belt Drive System: Learn how the serpentine belt transfers engine power to the alternator pulley
- Voltage Regulation: Explore how the voltage regulator controls alternator output to maintain battery charge
- DIY Setup: Steps to connect an alternator to a motor for generating electricity off-grid
- Safety Precautions: Essential safety measures to prevent accidents when working with alternators and electricity
Alternator Basics: Understand alternator components, function, and how it converts mechanical energy into electrical energy
An alternator is a crucial component in a vehicle’s charging system, responsible for converting mechanical energy from the engine into electrical energy to power the vehicle’s electrical systems and recharge the battery. Understanding its basic components, function, and energy conversion process is essential for anyone looking to generate electricity from a car alternator. The alternator consists of several key parts: the rotor, stator, diode rectifier, voltage regulator, and pulley. The rotor is a rotating electromagnet powered by direct current (DC) from the battery, while the stator is a stationary set of wire coils that surrounds the rotor. As the rotor spins within the stator, it creates a magnetic field that induces alternating current (AC) in the stator windings. This AC is then converted into DC by the diode rectifier, making it usable for the vehicle’s electrical system.
The primary function of the alternator is to maintain the electrical charge in the battery and supply power to the vehicle’s components while the engine is running. When the engine operates, the crankshaft drives the alternator’s pulley via a serpentine belt, causing the rotor to spin at high speeds. This mechanical energy from the engine is the driving force behind the alternator’s operation. The faster the engine runs, the more electricity the alternator produces, though the voltage regulator ensures the output remains within a safe range (typically around 13.5 to 14.5 volts) to prevent overcharging the battery.
The process of converting mechanical energy into electrical energy relies on the principles of electromagnetic induction. As the rotor’s magnetic field passes through the stator windings, it generates an AC current due to the changing magnetic flux. This AC is then rectified into DC by the diode trio (a set of six diodes arranged in a bridge configuration), which allows current to flow in only one direction. The resulting DC is then distributed to the battery and the vehicle’s electrical systems. This efficient conversion ensures a steady supply of power, even at low engine speeds.
To generate electricity from a car alternator outside of a vehicle, one must replicate the mechanical input typically provided by the engine. This can be achieved by connecting the alternator to a manual or motorized system that spins the pulley, such as a bicycle setup or a small motor. The alternator’s output can then be regulated using an external voltage regulator or charge controller to ensure the electricity produced is safe for use or storage in a battery. Understanding these basics is crucial for designing a system that effectively harnesses the alternator’s capabilities.
In summary, the alternator’s ability to convert mechanical energy into electrical energy hinges on its components working in harmony. The rotor and stator interact to generate AC, which is then converted to DC by the diode rectifier. The voltage regulator maintains a stable output, ensuring the system operates efficiently. By grasping these fundamentals, one can explore practical ways to utilize a car alternator for electricity generation in various applications, from emergency power solutions to off-grid setups.
