Obtaining a stable 5-volt supply from a car’s electrical system is essential for powering USB devices, microcontrollers, or other low-voltage electronics. Cars typically operate on a 12-volt system, so a step-down conversion is necessary. The most common method involves using a DC-DC converter or a voltage regulator, such as the popular LM7805, which reduces the 12-volt input to a regulated 5-volt output. Alternatively, a USB car charger or a dedicated 5-volt power adapter designed for automotive use can be employed. It’s crucial to ensure proper wiring, including fusing the circuit to protect against overcurrent, and connecting to the car’s battery or accessory power source to maintain a reliable voltage supply, even when the engine is off.
| Characteristics | Values |
|---|---|
| Voltage Source | Car's 12V electrical system (battery or alternator) |
| Target Voltage | 5V |
| Methods to Achieve 5V | Linear Regulator, Switching Regulator, USB Car Adapter, Voltage Divider (not recommended for high current), Zener Diode (limited efficiency) |
| Recommended Method | Linear Regulator (LM7805) or Switching Regulator for efficiency |
| Input Voltage Range | 7V to 35V (for LM7805 with heatsink) |
| Output Current (LM7805) | Up to 1.5A (with adequate heatsink) |
| Efficiency (Linear Regulator) | ~40-60% (inefficient for high current loads) |
| Efficiency (Switching Regulator) | ~80-95% (more efficient for high current loads) |
| Components Needed (LM7805) | LM7805 IC, Input/Output Capacitors (0.1µF), Heatsink (for high current) |
| Safety Considerations | Use proper gauge wires, fuse protection, avoid overloading the circuit |
| Applications | Powering USB devices, microcontrollers, sensors, etc. |
| Cost | Low ($1-$5 depending on components) |
| Complexity | Low to Moderate (depends on method chosen) |
| Reliability | High (with proper implementation and components) |
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
What You'll Learn

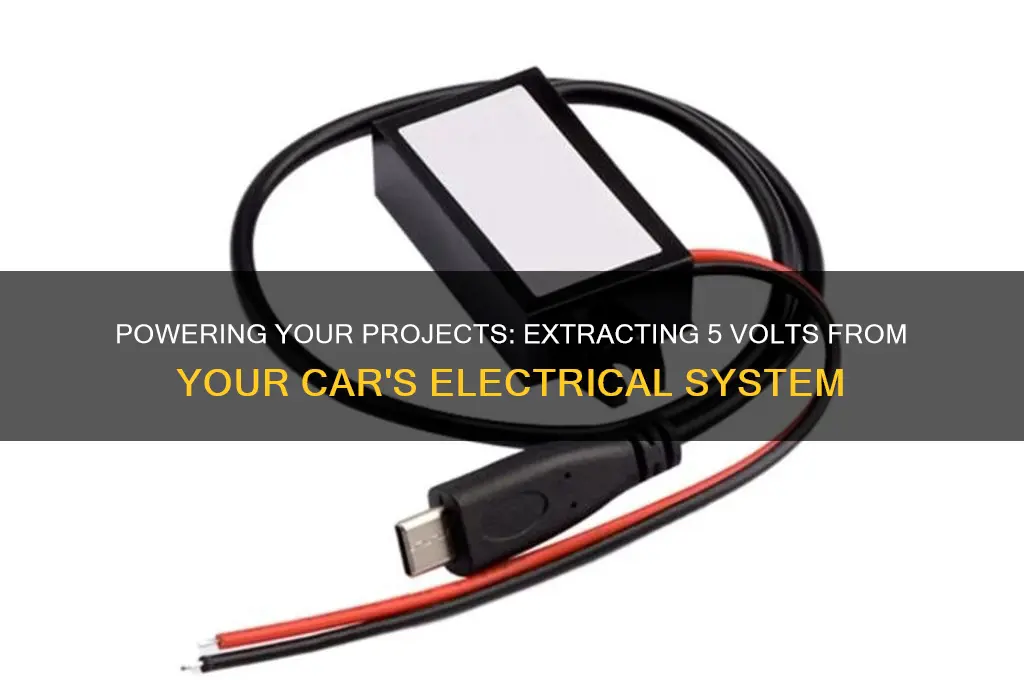

- Using a DC-DC Converter: Step-down converters regulate car voltage (12V) to stable 5V for electronics
- Linear Voltage Regulators: Simple 7805 IC reduces 12V to 5V with minimal components
- USB Car Chargers: Plug-and-play adapters convert car power to 5V USB output
- Resistor Dividers: Basic voltage division method (not efficient) for low-current 5V needs
- Buck Converters: Efficient switching regulators step down 12V to 5V with low heat loss
Using a DC-DC Converter: Step-down converters regulate car voltage (12V) to stable 5V for electronics
Car electrical systems typically operate at 12 volts, but many portable electronics require a stable 5-volt supply. This voltage mismatch can damage devices or prevent them from functioning correctly. A DC-DC step-down converter bridges this gap by efficiently reducing the car’s 12V output to a consistent 5V, ensuring compatibility with USB-powered devices, Raspberry Pis, or other low-voltage electronics. These converters are compact, affordable, and widely available, making them a practical solution for powering gadgets on the go.
To implement this solution, select a DC-DC step-down converter with specifications matching your needs. Look for a module rated for input voltages between 6V and 32V to accommodate fluctuations in the car’s electrical system, and ensure it can deliver the required output current (e.g., 2A for charging multiple devices). Popular options include adjustable converters like the LM2596-based modules, which allow fine-tuning of the output voltage. Connect the converter’s input terminals to the car’s 12V supply via a fused circuit to protect against short circuits, and attach the output to your device using a USB connector or direct wiring.
While DC-DC converters are straightforward to use, caution is necessary to avoid common pitfalls. Overloading the converter can cause overheating or damage, so ensure the total current draw of connected devices does not exceed the converter’s rated capacity. Additionally, some converters lack built-in reverse polarity protection, so verify the correct wiring of positive and negative terminals to prevent immediate failure. For added safety, consider using a converter with over-current or thermal shutdown features.
In practice, this setup is ideal for applications like powering dashcams, GPS units, or mobile phones during long drives. For example, a 3A-rated step-down converter can simultaneously charge a smartphone and tablet while maintaining a stable 5V output, even as the car’s voltage fluctuates between 12V and 14.4V during charging. By leveraging this technology, you transform your vehicle’s electrical system into a versatile power source for modern electronics, combining convenience with reliability.
Electric Cars for Low Mileage Drivers: A Smart Investment?
You may want to see also
Explore related products
![200W Car Power Inverter DC 12V to 110V AC,Cigarette Lighter Adapter Plug with [65W USB-C]/USB-Fast Charger 24W/Multiple USB/Laptop car Charger with Voltage Display](https://m.media-amazon.com/images/I/71jyR2fhh1L._AC_UL320_.jpg)
Linear Voltage Regulators: Simple 7805 IC reduces 12V to 5V with minimal components
Car electrical systems typically operate at 12V, but many electronic devices require a steady 5V supply. The 7805 linear voltage regulator IC offers a straightforward solution, reducing 12V to 5V with minimal components. This three-terminal device (input, output, and ground) is designed for simplicity and reliability, making it ideal for automotive applications. Its operation is based on a pass transistor that adjusts current flow to maintain a constant 5V output, regardless of input voltage fluctuations between 7V and 35V. This makes it robust enough to handle the varying voltage levels in a car’s electrical system, such as during engine start-up or when the alternator is charging.
To implement the 7805 IC, you’ll need just a few additional components: two capacitors (one 0.1μF or 0.33μF ceramic capacitor at the input and one 0.1μF or 0.33μF ceramic capacitor at the output) to stabilize the regulator and reduce noise, and a heat sink if the current draw exceeds 1A. The input capacitor filters high-frequency noise, while the output capacitor improves transient response. For example, if powering a Raspberry Pi or Arduino from your car’s 12V system, this setup ensures a clean 5V supply without interference from the car’s electrical noise. The 7805 can deliver up to 1.5A, but for higher currents, a larger heat sink or a switching regulator might be necessary.
One key consideration is efficiency. Linear regulators like the 7805 dissipate excess energy as heat, which can be a drawback in high-current applications. For instance, if drawing 1A, the regulator dissipates (12V - 5V) * 1A = 7W of power as heat. This inefficiency is acceptable for low-current devices but becomes problematic for power-hungry applications. To mitigate this, ensure proper heat sinking or consider a switching regulator if efficiency is critical. However, for most hobbyist or small-scale projects, the 7805’s simplicity outweighs its inefficiency.
A practical tip is to test the circuit under load before permanent installation. Connect a 5V device or a dummy load (e.g., a 5Ω resistor for 1A draw) and monitor the output voltage with a multimeter. Check the regulator’s temperature after 10–15 minutes of operation to ensure it’s within safe limits (typically below 70°C). If the temperature is too high, add a larger heat sink or reduce the load. Additionally, always use fused wiring when tapping into the car’s electrical system to prevent short circuits and potential damage.
In summary, the 7805 linear voltage regulator is a cost-effective and simple solution for deriving 5V from a car’s 12V system. Its minimal component count and ease of use make it accessible even to beginners, while its robustness ensures reliability in automotive environments. By addressing efficiency and heat management, you can create a stable power supply for a variety of 5V devices, from GPS units to microcontrollers, without overcomplicating the design.
Reviving Historic Electric Racetracks: Hidden Value or Forgotten Relics?
You may want to see also
Explore related products
USB Car Chargers: Plug-and-play adapters convert car power to 5V USB output
Car electrical systems typically operate at 12V, but most modern devices require a steady 5V supply for charging via USB. USB car chargers bridge this gap by acting as plug-and-play adapters, converting the car’s 12V DC power to the 5V DC output needed for smartphones, tablets, and other USB devices. These chargers are designed for simplicity: insert the charger into your car’s 12V outlet (cigarette lighter port), and it instantly becomes a USB power source. This direct conversion eliminates the need for external transformers or complex wiring, making it an accessible solution for anyone, regardless of technical expertise.
The core technology behind USB car chargers involves a step-down voltage regulator, which reduces the 12V input to a stable 5V output. Quality chargers also include safety features like overcurrent protection, short-circuit prevention, and temperature control to safeguard both the charger and the connected device. For instance, a charger rated at 2.4A can deliver sufficient power to fast-charge modern smartphones, while dual-port models allow simultaneous charging of multiple devices without compromising efficiency. When selecting a charger, look for certifications like CE, FCC, or RoHS, which indicate compliance with safety and performance standards.
One practical tip for maximizing the lifespan of your USB car charger is to avoid leaving it plugged in when not in use, as this can expose it to voltage fluctuations and heat buildup. Additionally, ensure the charger is compatible with your car’s 12V outlet, as some older vehicles may have outlets that don’t provide a consistent power supply. For heavy users, investing in a charger with a built-in LED indicator can help monitor charging status and ensure devices are receiving the correct voltage. These small considerations can significantly enhance the reliability and longevity of your charger.
Comparing USB car chargers to alternative methods of obtaining 5V from a car’s electrical system highlights their convenience. DIY solutions, such as using a voltage regulator circuit or a DC-DC converter, require technical knowledge and can be time-consuming to implement. In contrast, USB car chargers offer a ready-to-use solution that’s both affordable and widely available. While hardwiring a USB port into your car’s electrical system provides a more permanent fix, it involves splicing wires and may void warranties, making plug-and-play chargers the safer, more practical choice for most users.
In conclusion, USB car chargers are an essential accessory for anyone looking to harness their vehicle’s electrical system for 5V USB charging. Their plug-and-play design, combined with built-in safety features, ensures a reliable and user-friendly experience. By understanding their functionality and following simple maintenance tips, you can make the most of these adapters, keeping your devices charged and ready wherever the road takes you. Whether for daily commutes or long road trips, USB car chargers remain a versatile and indispensable tool in the modern driver’s arsenal.
Choosing Your Perfect Electric Car: A Comprehensive Buyer's Guide
You may want to see also
Explore related products
![[2025 Upgraded] 7 in 1 Cigarette Lighter Adapter, JOYROOM 179W Car Charger Adapter with PD30W Charge(3.3FT Cable), 24V/ 12V Cigarette Lighter Splitter with Independent Switches & LED Voltage Display](https://m.media-amazon.com/images/I/61qXWvj9TbL._AC_UL320_.jpg)
![400W Power Inverter, FSATBTNE DC 12V to 110V AC Car Plug Adapter Outlet Converter with [65W PD USB-C] & [18W QC USB-A] Fast Charging Ports and 2 AC Outlets Car Power Inverters for Vehicles](https://m.media-amazon.com/images/I/71obrX4Rn8L._AC_UL320_.jpg)
Resistor Dividers: Basic voltage division method (not efficient) for low-current 5V needs
Car electrical systems typically operate at 12V or 24V, far exceeding the 5V required for many low-current devices like microcontrollers or USB accessories. A resistor divider is a straightforward method to step down this voltage, though it’s inefficient for higher loads due to power dissipation. This method leverages Ohm’s Law and the principle of voltage division, where two resistors in series split the input voltage proportionally to their values. For instance, to achieve 5V from a 12V source, you’d select resistors such that the ratio of R2 (bottom resistor) to R1 (top resistor) equals (12V – 5V) / 5V, or 1.4. A common pair is R1 = 3.3kΩ and R2 = 2.2kΩ, but these values must be adjusted based on the load’s current draw to avoid excessive heat generation.
While resistor dividers are simple and require minimal components, they are inherently inefficient because the excess voltage is converted to heat across the resistors. For example, if your load draws 100mA, the power dissipated in the divider is (12V – 5V) * 0.1A = 0.7W, which can overheat small resistors. To mitigate this, use resistors rated for at least twice the expected power dissipation, such as 1W or higher. Additionally, this method is only suitable for low-current applications (typically under 50mA) because higher currents exacerbate inefficiency and heat issues. For precision, ensure the load’s resistance is significantly higher than R2 to minimize voltage drop under load.
A practical example illustrates the process: to power a 5V microcontroller drawing 20mA from a 12V car system, calculate the resistors using the formula R2 = R1 * (Vin – Vout) / Vout. With R1 = 4.7kΩ, R2 = 3.3kΩ, the divider provides a stable 5V output. However, the resistors dissipate (12V – 5V) * 0.02A = 0.14W, which is manageable for ¼W resistors. Always verify the output voltage under load, as small deviations in resistor tolerances or load fluctuations can affect the result. For added stability, consider adding a capacitor (e.g., 100nF) across the output to filter noise.
Despite its simplicity, the resistor divider method has critical limitations. It’s unsuitable for applications requiring stable voltage under varying loads, as the output voltage drops when the load increases. Moreover, it wastes energy as heat, making it impractical for power-sensitive or high-current scenarios. For instance, powering a 500mA USB device would require resistors dissipating 3.5W, which is unsafe without proper heat management. Alternatives like linear regulators or switching converters are far more efficient and reliable for such cases, though they add complexity and cost.
In summary, resistor dividers are a quick, low-cost solution for low-current 5V needs from a car’s electrical system but come with trade-offs. They’re best for temporary or prototype setups where efficiency and load stability aren’t critical. Always prioritize safety by using appropriately rated resistors and avoiding this method for high-current applications. For long-term or demanding projects, invest in a dedicated voltage regulator to ensure reliability and efficiency.
Electric Cars: Uncovering the Environmental Impact Beyond Zero Emissions
You may want to see also
Explore related products
![[Pure Copper] USB C Car Charger, SUPERONE 45W Dual USB Car Charger Adapter with 27W/20W PD Port, Fast QC3.0 LED Voltmeter for iPhone 15 14 13 Max/Pro/Plus/Mini, Pixel 7/6/5, Samsung S22/21 More](https://m.media-amazon.com/images/I/61jnR6YzW7L._AC_UL320_.jpg)
Buck Converters: Efficient switching regulators step down 12V to 5V with low heat loss
Cars typically supply 12V through their electrical systems, but many modern devices require 5V to operate safely. This voltage mismatch creates a need for efficient conversion methods. Buck converters emerge as a standout solution, leveraging switching regulators to step down voltage with minimal energy loss. Unlike linear regulators, which dissipate excess energy as heat, buck converters actively switch the input voltage on and off, storing energy in an inductor and releasing it at the desired output voltage. This process significantly reduces heat generation, making buck converters ideal for automotive applications where space and thermal management are critical.
The efficiency of a buck converter hinges on its ability to minimize power loss during the conversion process. By rapidly switching the input voltage using a transistor, the converter spends most of its time in either a fully on or fully off state, reducing resistive losses. The inductor and capacitor in the circuit smooth out the output voltage, ensuring a stable 5V supply. For instance, a well-designed buck converter can achieve efficiencies of 90% or higher, meaning only 10% of the input power is lost as heat. This efficiency is particularly important in cars, where electrical systems are already under load and additional heat can strain components.
Implementing a buck converter in a car requires careful consideration of the components and their ratings. The inductor, for example, must be chosen to handle the expected current and voltage levels, typically with a saturation current rating well above the maximum load. The switching transistor should have a high current and voltage rating, often exceeding the car’s 12V supply to account for transients. A practical tip is to use a pre-designed buck converter module, such as those based on the LM2596 or MP1584 chips, which simplify the process and ensure compatibility with automotive environments. These modules often include built-in protections against overcurrent, overvoltage, and thermal overload.
One common misconception is that all buck converters are created equal. In reality, the switching frequency plays a crucial role in performance. Higher frequencies allow for smaller inductors and capacitors, reducing the overall size of the converter, but they can also increase switching losses. For automotive applications, a frequency between 100 kHz and 500 kHz strikes a balance between efficiency and component size. Additionally, using a synchronous buck converter, which replaces the catch diode with a second transistor, can further improve efficiency by reducing voltage drop during the off cycle.
In conclusion, buck converters offer a highly efficient and reliable way to step down a car’s 12V electrical system to 5V. Their ability to minimize heat loss makes them superior to linear regulators, especially in the confined and thermally sensitive environment of a vehicle. By selecting appropriate components, considering switching frequency, and opting for synchronous designs where possible, enthusiasts and professionals alike can ensure a stable and efficient power supply for their devices. Whether powering a smartphone, a dashcam, or a Raspberry Pi, a well-implemented buck converter is a cornerstone of modern automotive electronics.
Electric Cars Explained: Fun, Simple Science for Curious Kids
You may want to see also
Frequently asked questions
While a car battery provides 12V, directly connecting a 5V device can damage it. Use a voltage regulator (like a 7805) or a DC-DC converter to safely step down the voltage to 5V.
Use a buck converter or a car USB adapter, which regulates the voltage to 5V despite fluctuations in the car's electrical system (typically 12V to 14.4V when the engine is on).
No, using a resistor is inefficient and unsafe for powering devices. It wastes energy as heat and doesn't provide a stable voltage. Always use a voltage regulator or converter instead.
