Electric ranges are a convenient addition to any kitchen, but they can be tricky to install. The process involves a lot of wiring, and it's important to get it right to avoid any safety hazards. The wiring setup can vary depending on the type of range and the existing wiring in your home. In this discussion, we will cover the different wiring setups, the tools and preparation required, and the step-by-step process of how to safely hook up an electric range.
Characteristics and Values of Hooking Up an Electric Range
| Characteristics | Values |
|---|---|
| Wiring | 3-wire or 4-wire hookup |
| Wire Colours | Black, white, red, green (grounding wire) |
| Wire Type | Copper or aluminium |
| Electrical Outlet Placement | 6 inches from the floor and 6 inches from the right-side cabinet |
| Power Cord Connection | Black, white, and red wires connected to the terminal block |
| Grounding | Ground and neutral bonded in the main panel |
| Voltage | 240V or 120V |
| Safety | Turn off the breaker connecting to the oven range outlet |
Explore related products
What You'll Learn
- Electric range installation: outlet placement and power cord setup
- Wiring an electric range: 3-wire vs. 4-wire connections
- Safety considerations: avoiding common hazards with ground and neutral wires
- Electric stove hookup: connecting to old wiring and receptacles
- Electric range maintenance: initial use, cleaning, and troubleshooting
Electric range installation: outlet placement and power cord setup
If you're renovating your kitchen or building a new one, it's recommended that the electrical outlet for your electric range is installed 6 inches from the floor and 6 inches from the right-side cabinet. This is the ideal placement for the outlet. After you've carefully inspected your new range, place it where you intend to install it, leaving the back exposed as this is where you will be connecting the power cord.

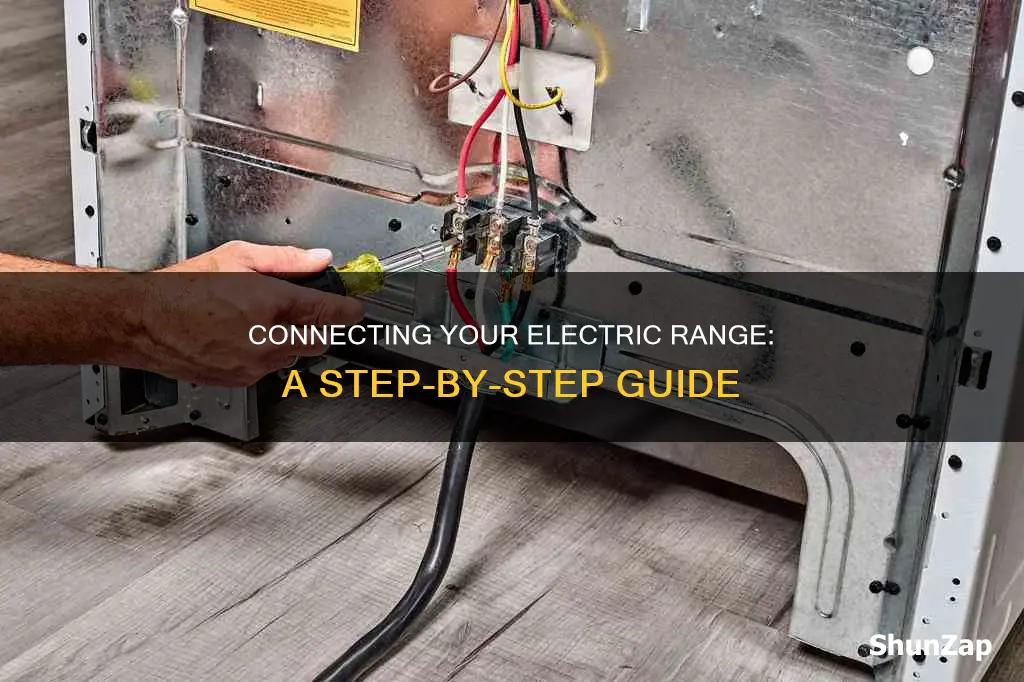

Before you begin, turn off the breaker that connects to your oven range outlet. You can refer to the diagram provided by the manufacturer on how to hook up your 3 or 4-wire power cord to your new appliance. The diagram will show you the black, white, and red wires connected to the terminal block, as well as the green ground screw.
For a 4-wire setup, you will need to remove the screws from the bottom row of each block and then remove the green ground screw. The neutral and ground wires must be separated from each other. You can cut the copper link in two places and remove the middle, or cut it in one place and curl up the remaining ends.
For a 3-wire setup, remove the screws holding the terminal block access cover and pull off the cover. You will see a black, white, and red wire connected to the terminal block. Leave the copper tag in the green ground screw as is. Pull your power cord through the connection plate and connect the 3 wires to the black, white, and red terminal blocks. The middle wire of your 3-wire cord should be attached to the middle white terminal block.
The cord strain relief usually has 2 pieces. Place the piece with the smaller screw holes behind the cord, with the angle tab inserted through the hole of the connection plate. Place the second piece in front, with its angle tab inserted through the hole of the connection plate. Finally, insert the screws to form a tight clamp.
Electric Sheep Dreams: Androids and Their Cinematic Story
You may want to see also
Explore related products
Wiring an electric range: 3-wire vs. 4-wire connections
If you are installing a new electric range, you must follow the most recently adopted electrical code. In 1996, the National Electric Code (NEC) updated the requirements for 240-volt appliances, changing them from 3-wire cords and receptacles to 4-wire cords and receptacles. This code applies only to homes built after 1996.
If your home was built before 1996, it is considered code-compliant to continue using a 3-prong cord for your electric range. If you are not running a new cable and are using an existing 3-wire setup, it is okay to continue using it. However, if you are installing a new cable from the breaker box to the outlet, you must run a 4-wire cable, install a 4-wire receptacle, and use a 4-wire cord on the range.
The difference between the two setups is that the legally-installed 3-wire cord consisted of wiring configured with two hot wires and one neutral wire. The 4-wire setup provides an additional grounding wire (the fourth wire) that serves as a fault current return path for the metal frame and housing of the range in the case of a short to ground situation. This fourth wire attaches to the metal frame and housing of the range and trips the circuit breaker in the event of a short to the ground.
To install a 3-wire cord, remove the screws holding the terminal block access cover and pull off the cover. You will notice a black, white, and red wire connected to the terminal block. The middle wire of your 3-wire cord should always be attached to the middle white terminal block. For a 4-wire setup, you will also notice a green ground screw. Remove the bottom row screws of each block and then remove the green ground screw.
Electric Fences: Effective Deer Deterrent or Waste of Energy?
You may want to see also
Explore related products
Safety considerations: avoiding common hazards with ground and neutral wires
Safety should be a top priority when hooking up an electric range. Here are some important safety considerations to avoid common hazards with ground and neutral wires:
Understanding the Wires: It is crucial to understand the difference between ground and neutral wires. The ground wire is a safety feature that redirects electricity safely into the ground in the event of a fault. On the other hand, the neutral wire completes the electrical circuit and usually has the same electrical potential as the ground wire. In a typical 240-volt power cord for an electric range, you will find two hot wires (often red and black), one neutral wire (usually white), and one ground wire (usually green).
Grounding and Neutral Wiring Hazards: One common hazard is the incorrect connection of ground and neutral wires. Historically, stove installers would sometimes connect the ground wire to the neutral wire, which can be dangerous. This practice was initially adopted during World War II to conserve copper in cables and later due to the convenience of using three-wire connections. While modern stoves should be set up for four-wire connections (with separate ground and neutral wires), it is important to consult the owner's manual and ensure proper wiring.
Frayed or Cracked Cords: Always inspect the power cord for any signs of damage, such as fraying or cracking. Using a damaged power cord can lead to electrical fires, so it is essential to replace the cord if it shows any wear and tear.
Strain Relief: When connecting the power cord, ensure that you attach the strain relief to prevent damage to the cord. Gently squeeze the two halves of the strain relief together with tongue-and-groove pliers while installing the screws. Do not overtighten the strain relief clamp, as this can fray the cord insulation and expose the wires, creating a fire hazard.
Qualified Electricians: Unless you have the necessary knowledge and experience, it is generally recommended to hire a qualified electrician for installing or modifying electrical wiring. This is especially important when dealing with ground wires and adding new grounds to a power distribution region.
Electric Chair Execution: Instant Death or Slow Torture?
You may want to see also
Explore related products
Electric stove hookup: connecting to old wiring and receptacles
When hooking up an electric stove to old wiring, it is important to follow safety protocols. Ensure you avoid water or working with wet hands, never use frayed wires or broken equipment, and always turn off the main power. Be sure to use insulated tools and wear gloves and safety goggles when working.
Before 1996, electric ranges were wired with three conductors: two hots and one neutral. The appliance body was grounded through the neutral, so the dryer cord and receptacle did not have a separate ground. After 1996, a new code was introduced, requiring a four-conductor power cord with a separate ground wire that connects to the ground screw on the appliance. This new system is safer, but the old system can still be used if you are simply replacing a range and have a three-slot range receptacle already. In this case, you can install a three-prong plug, but you must buy a matching NEMA 14 receptacle and connect the two hots to the two hots, the neutral to neutral, and the ground wire to the ground terminal.
If you are installing a new receptacle, you must use a four-conductor circuit with a four-prong cord plug. This involves removing the back access panel on the range, threading the power cord into the panel, and then connecting the wires to matching screw terminals. The power cord is usually purchased separately and must be connected to the range.
When connecting a new electric stove to old wiring, it is important to consult the manual for the proper connection. The manual will show you the correct way to connect a three-wire service. If you want to change a three-way receptacle to a four-wire receptacle, you must pull new wires, or you will be violating the code by improperly wiring the outlet.
Electric Dryer Fuse: What You Need to Know
You may want to see also
Explore related products
Electric range maintenance: initial use, cleaning, and troubleshooting
Initial Use
Before using your electric range for the first time, carefully inspect the unit and ensure it is set up correctly. Refer to the manufacturer's instructions for guidance on the setup process, as different models may have unique requirements. It is recommended to place the unit with its back exposed, as this is where you will be installing the power cord.
If you are connecting a new electric range to existing wiring, ensure that the wiring is compatible with the new unit. Consult a licensed electrician if you are unsure about the wiring or if you need assistance with the installation.
Once your electric range is properly installed, it is normal to notice a smoky odor during the initial operation. This is typical for new ovens and will dissipate over time. To expedite this process, it is advisable to run a self-clean cycle for a minimum of 2 hours before the first use. Refer to your manufacturer's instructions or online support resources for detailed guidance on using the self-clean feature.
Cleaning
Regular cleaning of your electric range is essential to maintain its performance and longevity. Here are some general cleaning tips:
- Always ensure the power is turned off at the breaker before commencing any cleaning or maintenance work.
- Refer to the manufacturer's instructions for specific cleaning guidelines, as different models may have varied requirements.
- Clean the exterior surfaces of your electric range regularly with a soft, damp cloth. Avoid using abrasive cleaning agents or harsh chemicals, as they may damage the finish.
- Pay particular attention to the area around the power cord connection. Keep this area free from debris and grease to minimize the risk of electrical issues.
Troubleshooting
If you encounter any issues with your electric range, follow these basic troubleshooting steps:
- Consult the manufacturer's troubleshooting guide or online support resources for specific guidance pertaining to your model.
- Ensure that the unit is properly connected to a power source. Check for any loose connections or damaged wiring.
- If you are experiencing intermittent power outages or issues with the oven's performance, it may be necessary to consult a licensed electrician to diagnose and rectify the problem.
Safety Precautions
When working with electricity, always prioritize safety. Here are some key precautions to observe:
- Always turn off the breaker connecting to your oven range outlet before performing any installation, maintenance, or cleaning tasks.
- If you are uncomfortable or unfamiliar with electrical work, it is best to seek the assistance of a qualified electrician.
- Ensure that your electric range complies with local electrical codes and safety standards.
By following these maintenance, cleaning, and troubleshooting guidelines, you can ensure the optimal performance and longevity of your electric range.
Preventing Electrical Fires: The Role of Breakers
You may want to see also
Frequently asked questions
The electrical outlet should be installed 6 inches from the floor and 6 inches from the right-side cabinet.
After delivery and careful inspection of your new electric range, place the unit where it will be installed, leaving the back exposed as this is where you will be installing the power cord.
First, remove the screws holding the terminal block access cover and pull off the access cover. You will notice a black, white, and red wire connected to the terminal block. There is also a green ground screw. For the 4-wire setup, remove the bottom row screws of each block and then remove the green ground screw.
Remove the screws holding the terminal block excess cover, and pull off the access cover. You will notice a black, white, and red wire connected to the terminal block. Because there is no ground wire, leave the copper tag in the green ground screw.
In a 3-wire setup, the ground and neutral wires are bonded, which means they are connected to the same terminal. In a 4-wire setup, the ground and neutral wires are separated and connected to their respective terminals.
