Installing an electric baseboard heater thermostat is a complex process that requires careful planning and execution. Electric baseboard heaters typically operate at 240 volts, and it is crucial to ensure that the power is turned off before beginning any electrical work. The location of the thermostat is important, with interior walls across from the heater being recommended. This guide will cover the steps for installing a single or double pole thermostat, which differ in their number of electrical connections and level of control over the heating system. Running cables from the breaker panel to the thermostat and then to the heater forms the basis of the installation process. The wires must then be connected correctly, joined with wire nuts, and the thermostat secured to the junction box. Finally, the thermostat's functionality should be tested by adjusting the temperature settings.
Explore related products
What You'll Learn
Choosing the right type of thermostat
When choosing the right type of thermostat for an electric baseboard heater, there are several factors to consider. Firstly, it is important to select a thermostat with the correct voltage requirements. Electric baseboard heaters typically require a line or high-voltage thermostat, operating at 120 or 240 volts of electricity. In contrast, low-voltage thermostats, which are commonly used for central heating systems, operate at a lower voltage of 12 to 24 volts. Connecting a low-voltage thermostat to an electric baseboard heater can be unsafe and may damage the thermostat.
Secondly, compatibility is crucial. Not all smart thermostats are compatible with all home systems. It is essential to ensure that the chosen thermostat is compatible with the specific electric baseboard heater and any other smart devices in the home. This includes considering factors such as the maximum wattage, connectivity, and the number of wires required for the thermostat.
Thirdly, the type of thermostat should be considered. There are several types of thermostats available, including mechanical, electronic, and smart thermostats. Mechanical thermostats are the least expensive but also the least accurate due to their lower sensitivity to temperature changes. Electronic thermostats, on the other hand, are more precise and can help save energy costs. Smart thermostats offer the advantage of remote control and scheduling features, allowing for greater convenience and energy efficiency.
Additionally, the number of electrical connections in the thermostat is an important factor. Single-pole thermostats have one electrical connection and are suitable for basic heating and cooling systems. On the other hand, double-pole thermostats have two electrical connections, providing separate control over heating and cooling functions and offering more flexibility.
Lastly, safety should be a primary consideration. It is recommended to consult a qualified professional for installation to ensure compliance with local electrical codes and regulations. Additionally, when selecting a thermostat, it is important to choose one with the proper wattage to avoid the risk of fire. For instance, if the total wattage of the baseboard heaters in a room exceeds the thermostat's capacity, an upgrade to a higher-wattage thermostat may be necessary.
Spotlighting Opera: Pre-Electricity Techniques Unveiled
You may want to see also
Explore related products
Preparing the wires
The number and type of wires required will depend on the type of thermostat being installed. A single pole thermostat, which regulates temperature without an on/off feature, typically uses two electrical wires. On the other hand, a double pole thermostat, which allows for completely cutting power to the heater, uses four wires and provides more control and flexibility.
When installing a 240-volt electric baseboard heater, it is essential to run two lengths of NM cable. One cable should be run from the main service panel to the thermostat location, and the other cable should go from the thermostat to the baseboard heater location. The standard circuit cable for a 20-amp circuit is 12-gauge, while a 30-amp circuit requires a 10-gauge cable.
To prepare the wires for connection, use wire cutters and strippers to cut and strip the wires connected to the old thermostat. Strip about 3/4 inch of insulation from each conducting wire in both cables. Then, connect the ground wire from the circuit breaker to the thermostat or wiring box.
Additionally, it is important to identify the hot supply wires, typically marked as "L1" or "Line," and connect them accordingly. Connect the "T1" or "Load" wire to the corresponding supply wire feeding the baseboard heater. Also, ensure that the white wire is connected to the matching supply wire.
Electric Scooters in North Carolina: What's the Law?
You may want to see also
Explore related products
Installing the junction box
Installing a junction box for an electric baseboard heater thermostat is a careful process that requires some electrical knowledge and caution. Here is a step-by-step guide to installing the junction box:
Firstly, ensure that the power to the baseboard heater is turned off at the circuit breaker. This is an essential safety precaution to prevent electrical shocks or accidents. Verify that there is no electrical current running through the wires using a voltage tester.

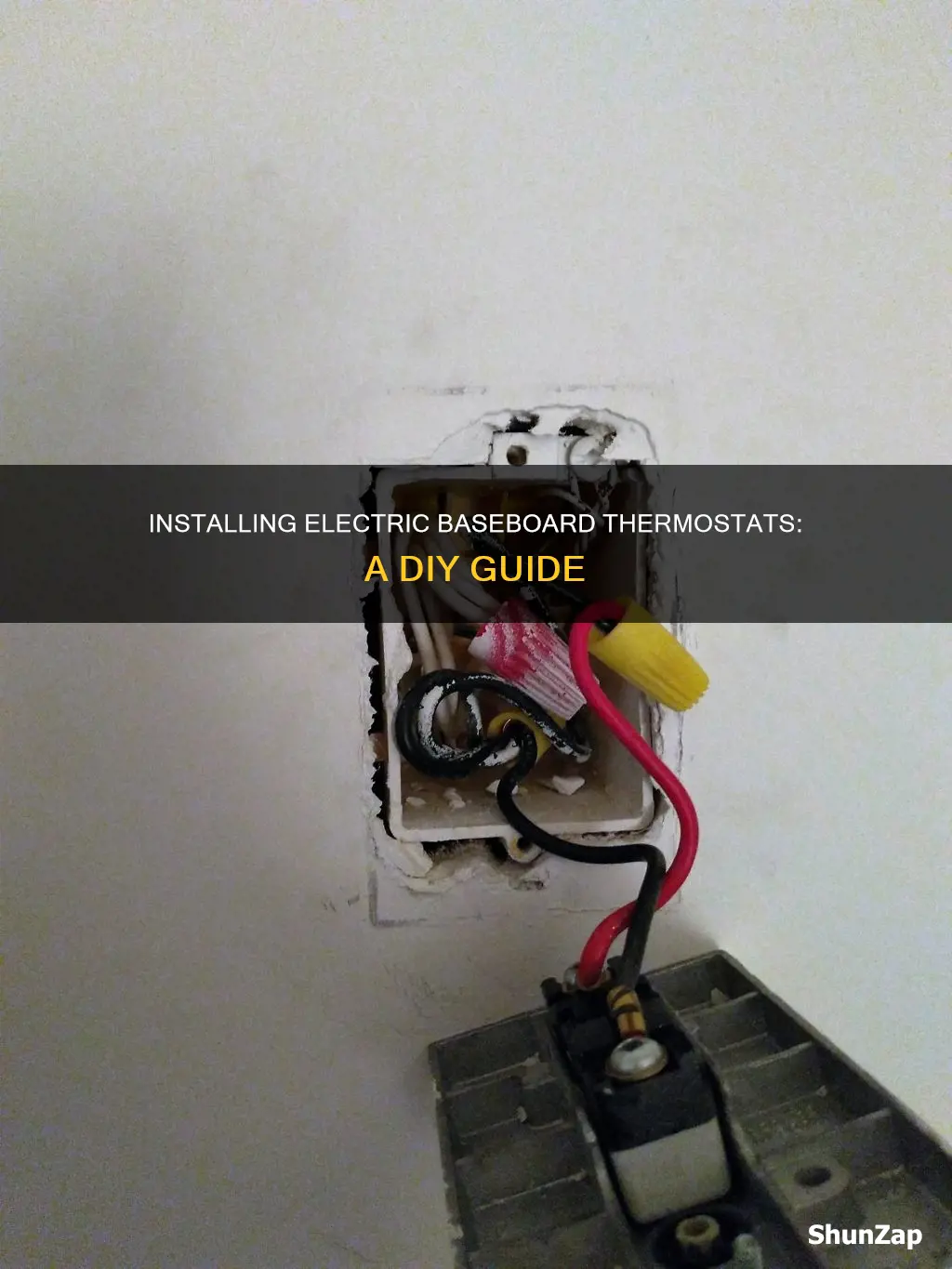

Now, you can begin the installation. Remove the cover of the existing thermostat and take out the screws attaching it to the junction box. Carefully lift the thermostat away from the box, being cautious not to touch any wires.
Next, remove one of the junction box covers at the end where you plan to wire. Disconnect only one factory connector, leaving two loose heater wires. Connect the supply grounding wire to the green grounding screw.
At this point, you can start making the necessary wire connections. Follow the thermostat manufacturer's instructions to connect the wires correctly. Typically, you will connect the ground wire from the circuit breaker to the ground wire in the junction box. Then, connect the hot supply wire, usually marked "L1" or "Line," to the thermostat wires.
Connect the "T1" or "Load" wire to the supply wire feeding the baseboard heater. Ensure that the wires are colour-coded correctly. Connect the black hot supply wire to the first thermostat wire, and then connect the remaining supply wire to the second thermostat wire, usually marked "L2" or "Line."
Finally, fold the wires into the box, attach the thermostat to the junction box, and reposition the cover. Make sure to test your heater by turning the thermostat to a high temperature to ensure it functions correctly.
Note: Some sources suggest installing a junction box behind the drywall, lined up directly behind the baseboard heater. This method involves spooling extra wire inside the junction box and then installing the drywall and baseboard in front of it. Consult an electrician or a professional for advice on the best installation method for your specific situation.
How Electricity Travels to the Ground Safely
You may want to see also
Explore related products
Connecting the wires
To connect the wires, start by pulling cables from the breaker/fuse panel to the desired thermostat location. This may involve fishing or snaking the cables between points, which can be time-consuming. Next, pull another cable from the thermostat location to the heater. At this point, you should have two lengths of cable: one from the main service panel to the thermostat and another from the thermostat to the heater.
Now, disconnect the existing cable from the heater and remove it. Then, connect the new cable to the heater, following the manufacturer's instructions. Make the necessary connections at the thermostat, ensuring that the wires are securely joined using wire connectors or wire nuts.
For a 240-volt heater, you will typically connect the ground wire from the circuit breaker to the ground wire at the thermostat or wiring box. Then, connect the hot supply wire, usually marked "L1" or "Line," to the thermostat wires. Connect the "T1" or "Load" wire to the corresponding supply wire feeding the baseboard heater.
Additionally, if your heater has a factory wiring connection, you will need to connect one factory wire to a hot power wire from the circuit cable and the other factory wire to the second hot power wire. Mark the white wire with black electrical tape to indicate it is a hot wire. Finally, connect the remaining wires according to the colour-coding and ensure they are securely joined.
Switch Off to Save: Power Wastage and Your Wallet
You may want to see also
Explore related products
Testing the heater
Testing the electric baseboard heater is a crucial step to ensure it is functioning correctly and safely. Here are the detailed steps to test your heater:
Testing the Thermostat
Firstly, turn off the power to the circuit before beginning any testing. Then, remove the cover from the thermostat to access the wiring. Use a multimeter or a circuit tester to check the power. Place it across the ground wire and each of the other wires to ensure no voltage is flowing. If your heater operates at 240 volts, you should see readings of ~120v between one hot and ground wire and ~240v between the two hot wires.
Next, test the thermostat for functionality. Turn the dial to the maximum temperature and listen for a click. Wait a few minutes, and then hold your hand near the heater to feel for warmth. Now, turn the dial down to a low temperature and feel again to ensure the heat dissipates. If the heater does not respond as expected, there may be an issue with the thermostat's calibration or the dial.
To test the heater itself, you will need to determine the resistance of the heater. First, calculate the amperage by dividing the heater's wattage by its voltage. Then, find the resistance in ohms by dividing the voltage by the amperage. With a screwdriver, remove the cover from the heater to access the wiring. Connect an ohmmeter to the two wires leading to the heater. If the resistance reading matches your calculation, the heater is likely functioning correctly. If the reading is zero or very high, there may be a short in the heating element.
Safety Precautions
It is important to exercise caution when working with electrical equipment. Always ensure the power is turned off before handling any wires or terminals. Be cautious when testing the heater to avoid electric shocks, which can be serious or even fatal. If you are unsure about any aspect of the testing process, consult a professional.
How Reverse Osmosis Systems Use Electricity
You may want to see also
Frequently asked questions
A high-voltage, 240-volt thermostat is required for an electric baseboard heater. Do not use a low-voltage thermostat, as it is dangerous for a high-voltage system.
The thermostat should be placed on an interior wall, across from the heater, and slightly higher than a typical wall switch. It should not be located above a heater or other heat source, or in a dead air space such as behind a door.
You will need a flat-head screwdriver, wire cutters, wire strippers, a voltage tester, pliers, wire nuts, a level, and a junction box.
First, turn off the power to the circuit. Then, remove the junction box cover and disconnect the wires. Pull a cable from the breaker panel to the thermostat location, and then from the thermostat location to the heater. Connect the new cable to the heater and to the breaker panel. Finally, turn the power back on.
Turn the thermostat up to a high temperature to ensure the heater produces heat and responds accurately to the thermostat settings. Then, turn the thermostat off and make sure the heater shuts off.
