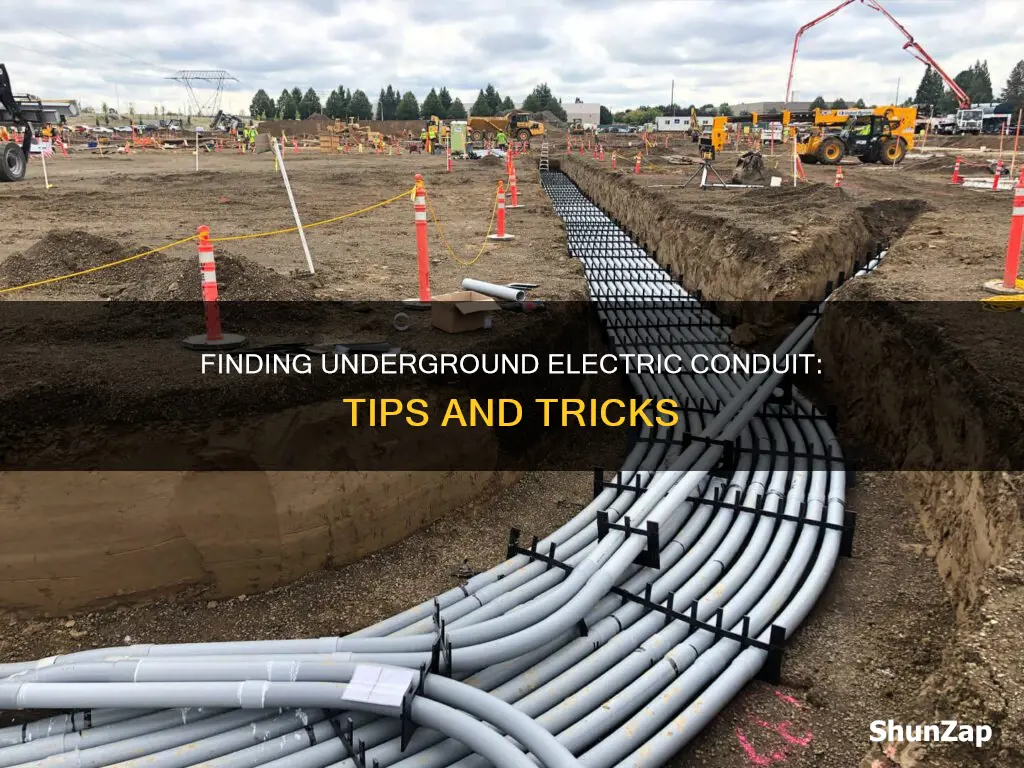

Underground electric conduits are essential components of modern infrastructure, providing protective pathways for electrical wiring, telecommunication cables, water pipes, and gas lines. These conduits, typically made from PVC, metal, or fiberglass, safeguard utilities from physical damage, environmental factors, and other hazards. Conduit systems are pivotal in ensuring safety, organisation, and longevity in electrical installations. Identifying underground electric conduits can be done through methods such as ground-penetrating radar, specialised tools like the Ideal SureTrace, or careful manual excavation and inspection.
| Characteristics | Values |
|---|---|
| Material | Metal, Plastic (PVC), Fiberglass |
| Form | Rigid or Flexible |
| Installation Location | Exposed locations (exterior wall surface), unfinished areas (basements, crawl spaces, attics), surface-mounted installations outdoors |
| Function | Protect electrical wiring, provide a grounding path, organize wiring for easier troubleshooting and repair |
| Installation Considerations | Local building codes, depth requirements, avoidance of crushing force, impact, water intrusion, corrosive chemicals, high heat, UV exposure |
| Maintenance | Periodic inspections, replacements |
| Safety | Call local utility services to identify underground utility lines before digging, obtain electrical permits and inspections as required |
Explore related products
What You'll Learn
- Identify the location of existing lines by calling your utility service
- Understand the different types of electric conduit, including rigid vs. flexible tubing
- Know the depth requirements for burying electric conduit, which vary depending on location and type of conduit
- Recognise the importance of conduit systems in protecting electrical wiring and ensuring safety
- Learn about the National Electrical Code (NEC) and local regulatory standards for electrical conduit installation
Identify the location of existing lines by calling your utility service
Identifying the location of existing utility lines is crucial before commencing any digging or excavation work. Calling your utility service is a straightforward and effective way to accomplish this. In the US, you can conveniently dial 811 or visit www.call811.com to initiate the process. This simple step can prevent potential damage to critical public utility infrastructure, such as electric, gas, water, cable TV, and telephone lines.
When you call 811, your call will be directed to a central call centre, where a dispatcher will gather information about your planned digging project. They will then coordinate with the relevant public utility companies in your area to ensure that the location of underground utilities is accurately identified and marked. In some cases, private companies working under contract with the utility companies may perform these tasks. It is essential to provide full access to your property for the technician's visit, ensuring a smooth and efficient process.
The utility markings provided are generally considered valid for about a month. However, if your project is delayed and more than 30 days have passed since the initial marking, it is important to call 811 again to request a re-marking. This service is provided free of charge and is designed to ensure your safety and the integrity of the utility infrastructure. In most areas, this service is known as "Call Before You Dig," while in New England, it is referred to as "Dig Safe."
By calling your utility service, you can obtain accurate information about the location of existing lines. This knowledge will enable you to plan your digging project accordingly and avoid potential hazards. It is worth noting that irrigation lines, landscape lighting conduits, and cables might not be identified by 811 location services. Therefore, it is crucial to dig carefully and slowly, constantly checking for unexpected pipes and cables. Additionally, remember to respect the tolerance zone or buffer around utility lines, which typically extends up to 24 inches, and only dig outside this area.
Electricity's Intricate Cell-to-Cell Journey: Unraveling the Mystery
You may want to see also
Explore related products
Understand the different types of electric conduit, including rigid vs. flexible tubing
Electrical conduits are durable tubes or enclosures that protect electrical wiring. They are typically made of metal or plastic and come in rigid or flexible forms. Conduits are used in exposed locations, unfinished areas, and surface-mounted installations outdoors.
The two main types of metallic conduit are rigid and flexible. Rigid conduits offer solid protection, while flexible metal conduits allow for bends and twists without the need for extra hardware.
- Rigid Metal Conduit (RMC): Heavy-duty galvanized steel tubing installed with threaded fittings. It is used outdoors to provide protection from damage and structural support for electrical equipment.
- Intermediate Metal Conduit (IMC): Has a thicker, galvanized wall, making it suitable for outdoor applications.
- Galvanized Rigid Conduit (GRC): The thickest option, offering the most protection.
- Electrical Metallic Conduit (EMT): A rigid, thin-walled metal conduit typically made of galvanized steel. EMT is technically tubing and is lightweight, making it easy to bend with a conduit bender. It is commonly used for exposed indoor wiring and must be assembled with watertight fittings if installed outdoors.
Examples of flexible metal conduits include:
- Flexible Metal Conduit (FMC) or Greenfield: This has a spiral construction, allowing it to bend easily and simplifying installation in walls. It is used for short runs in exposed locations, such as wiring for garbage disposers.
- Liquid-tight Flexible Metal Conduit (LFMC): A special type of FMC with a plastic coating and sealed fittings to make it watertight. It is commonly used with outdoor equipment, such as air conditioners.
Non-metallic conduits, typically made from PVC, are also available in rigid and flexible forms. Blue electrical non-metal tubing (ENT) is flexible corrugated plastic tubing that is moisture-resistant and flame-retardant but is for indoor use only. Flexible non-metallic tubing is strong, watertight, non-corrosive, and lightweight. It is important to always run a ground wire when using PVC conduit.
How Electricity Interacts with Dense Materials
You may want to see also
Explore related products
Know the depth requirements for burying electric conduit, which vary depending on location and type of conduit
The depth requirements for burying electric conduits vary depending on location and type. The National Electrical Code (NEC) is the benchmark for safe electrical design and installation across all 50 states. It is essential to follow the NEC and local codes when installing electrical wiring outdoors.
The burial depth depends on the type of conduit, wire, or cable used. For instance, galvanized rigid metal electrical conduits should be buried at least 6 inches deep, while PVC conduits must be buried at a minimum depth of 18 inches. Direct-buried cable, which is placed at the bottom of the trench without conduit protection, must be installed deeper, at a minimum of 24 inches.
The type of wire also determines burial depth. Low-voltage wires (12-24V) must be buried at a minimum depth of 6 inches, whereas all other direct burial wires require a depth of at least 24 inches.
Location plays a role in burial depth requirements. Commercial sites may have different depth requirements than residential sites due to the types of locations encountered. For example, underground electrical installations beneath parking lots must be buried at a depth of 24 inches, regardless of the wiring method used.
It is important to consult the NEC and local codes, as well as seek guidance from a local inspector, to ensure compliance with specific depth requirements for a given location and conduit type.
Electric Fence Circuits: Do They Touch the Ground?
You may want to see also
Explore related products
Recognise the importance of conduit systems in protecting electrical wiring and ensuring safety
Conduit systems are essential for safeguarding electrical wiring and ensuring safety in various settings, including homes, buildings, and outdoor environments. Here's why recognising their importance is crucial:
Firstly, electrical conduits provide substantial protection to enclosed electrical conductors. They act as a safeguard against physical damage, moisture, and chemical vapours, ensuring that wires remain intact and functional. This protection is available in both rigid and flexible conduit options, catering to different installation needs. Rigid conduits offer solid protection, while flexible conduits, like flexible metallic conduits (FMC), allow for bends and twists without requiring additional hardware.
Secondly, conduits simplify wiring design and construction. They allow for multiple conductors of varying numbers, sizes, and types to be pulled through, eliminating the need for multiple runs of cables or costly customised composite cables. This simplicity translates into safer and more straightforward wiring changes, as existing conductors can be withdrawn and replaced with new ones with minimal disruption.
Additionally, conduit systems offer versatility in their application. They are used in exposed locations, such as along exterior walls, as well as in unfinished areas like basements, crawl spaces, and attics. Conduits are also employed in surface-mounted outdoor installations, showcasing their adaptability to diverse environments.
Conduits are also essential in maintaining safety standards. In all 50 states, the National Electrical Code (NEC) sets the benchmark for safe electrical design and installation. By adhering to the NEC and local regulations, conduit systems ensure that electrical wiring complies with safety requirements, protecting both the wiring system and the people who rely on it.
Moreover, conduits provide defence against specific environmental factors. For instance, metal conduits can shield sensitive circuits from electromagnetic interference and prevent the emission of such interference from enclosed power cables. This feature ensures that electrical systems function optimally without causing disruptions to other devices or systems.
In conclusion, recognising the importance of conduit systems is vital as they play a protective role, ensuring safety, simplifying wiring alterations, offering versatility, maintaining safety standards, and providing defence against specific environmental factors. By choosing the right types of conduits and installing them correctly, we can safeguard our electrical wiring and maintain a secure environment for everyone.
Electric Fireplaces: Are They a Health Hazard?
You may want to see also
Explore related products
Learn about the National Electrical Code (NEC) and local regulatory standards for electrical conduit installation
The National Electrical Code (NEC) is the most widely adopted code in the world for the safe installation of electrical wiring and equipment. It is a set of rules that govern electrical installations to ensure safety for people and property. While it is not a US law, it is commonly mandated by state or local law and compliance is necessary for electrical contractors. The NEC is composed of an introduction, nine chapters, annexes, and an index. The first four chapters cover definitions and rules for installations, circuits and their protection, wiring methods and materials, and general-purpose equipment. The next three chapters deal with special occupancies, equipment, and conditions. Chapter 8 covers additional requirements for communication systems, and Chapter 9 includes tables regarding conductor, cable, and conduit properties.
The NEC is revised every three years by the National Fire Protection Association's Committee to ensure it remains up-to-date with technology and safety advancements. It is important to refer to the NEC to determine the requirements and code specific to your project, as well as checking with local inspectors and obtaining any necessary permits.
Local regulatory standards for electrical conduit installation may vary, but the NEC provides a benchmark for safe electrical design and installation. Electrical conduits are metal or plastic pipes that protect electrical wires in exposed locations, unfinished areas, and surface-mounted outdoor installations. Conduits can be rigid or flexible, and non-metallic conduits made from PVC are commonly used for residential applications. It is recommended to run a ground wire when using PVC conduit, and electrical code may allow the metal conduit itself to serve as a grounding conductor.
It is important to choose the appropriate type of conduit for your home to ensure your electrical wiring is protected and your power runs efficiently.
Electrical Towers: Safe to Live Nearby?
You may want to see also
Frequently asked questions
You can use a Ground Penetrating Radar (GPR) device to locate underground electric conduits. You can also use a signal transmitter and AM radio to track the signal over the ground surface.
Electric conduits are typically made from PVC, metal, or fiberglass. They can be either rigid or flexible.
Electric conduits serve as protective pathways for electrical wiring, ensuring safety, organisation, and longevity in electrical installations.
In all 50 states, the National Electrical Code (NEC) is the benchmark for safe electrical design and installation. It's important to check with local inspectors and code enforcement agencies for specific requirements in your area.
