Increasing the electrical capacity of a circuit is necessary for older homes that cannot support modern electrical equipment and devices. This process involves upgrading the circuit's amperage and voltage. Amperage measures how much electricity can flow through a circuit, while voltage is the pressure exerted on the electricity. To increase amperage, one must ensure that the wiring and circuitry can support a larger amperage. Increasing voltage and decreasing resistance in a circuit may require rewiring the entire circuit unit. This involves disconnecting the power source, replacing wires and outlets, and mounting new outlets onto the outlet box. It is important to consult a professional electrician to ensure the safety of the electrical system.
| Characteristics | Values |
|---|---|
| Amperage | Can be increased by removing resistance, allowing electricity to move more quickly through the circuit |
| Voltage | Increase to increase electrical capacity |
| Resistance | Decrease to increase electrical capacity |
| Rewiring | Rewiring the entire circuit unit is usually necessary when increasing voltage and decreasing resistance |
| Circuit breaker | Upgrade to a higher capacity, e.g., from 100-amp to 200-amp |
| Wiring and circuitry | Ensure they have the capacity to support a larger amperage of electricity |
| Power strips | Do not increase the capacity of the circuit they are plugged into |
| Outlets | Ensure they can withstand the higher loads |
| Cables | Ensure they can withstand the higher loads |
| Circuitry | Ensure it can handle the amperes |
Explore related products
What You'll Learn

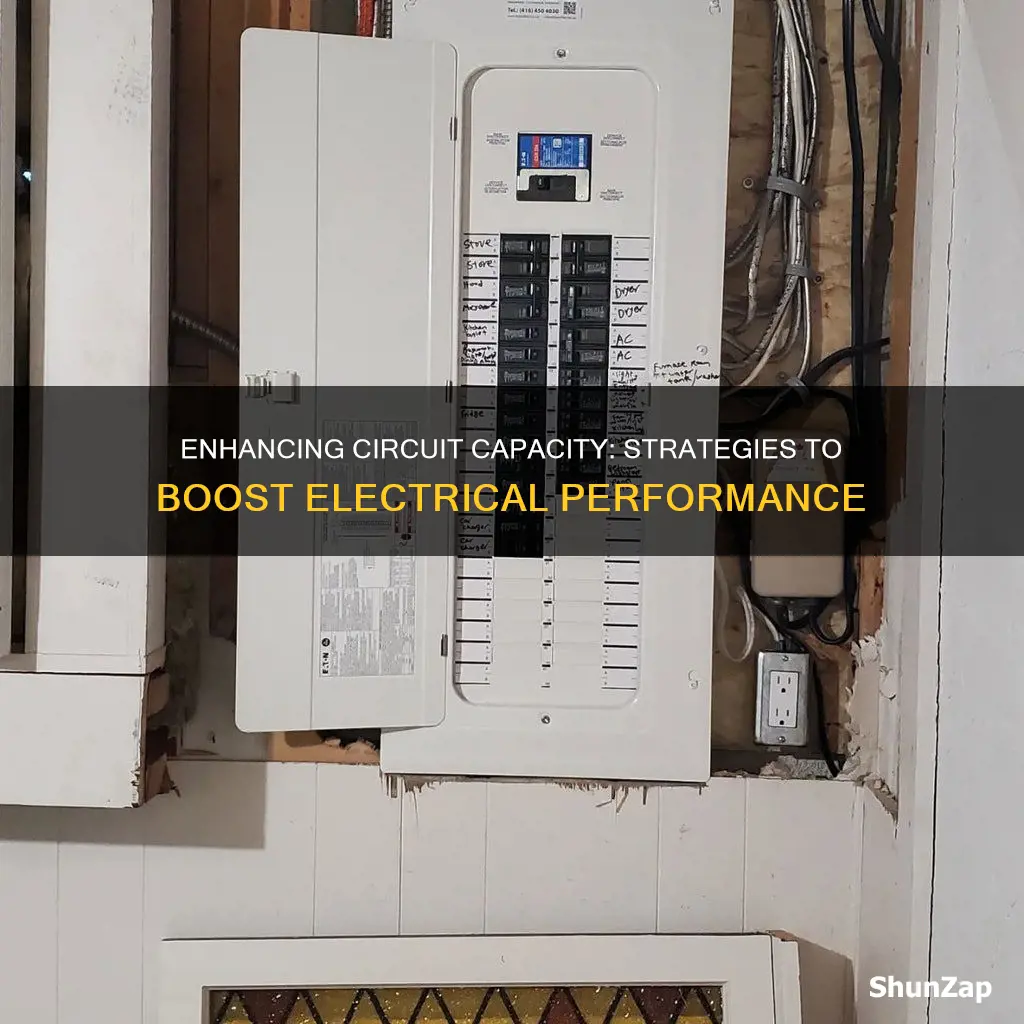

Upgrade the electrical panel to a higher capacity
If your home was built several decades ago, it may be time to upgrade your electrical panel to handle modern appliances and electronics. Older homes often have a 60-amp service, which may not be sufficient for modern power requirements. Newer homes typically have at least 100-amp service, and many are rated at 200 or even 300 amps.
Upgrading your electrical panel can increase safety, especially if your old panel is overloaded with new appliances, HVAC systems, or solar panel units. A higher-amperage panel allows for more electrical power to be distributed throughout your home, reducing the risk of electrical fires and system overloads. This means you can power more devices and appliances simultaneously without overloading the panel.
When upgrading your electrical panel, you can choose to replace an old panel with a new one of the same size or upgrade to a larger size. Upgrading to a larger size will not save you much money, as the labour costs will be similar. The cost of upgrading an electrical panel ranges from $1,300 to $3,000 on average, but can be as low as $500 or as high as $25,000, depending on factors such as the required size of the panel, labour costs, and any additional upgrades.
It is important to hire a professional electrician when upgrading an electrical panel, as it can be dangerous work that requires a high level of technical skill. An electrician can help you determine if you need a service upgrade or transformer replacement, which can significantly increase the cost. They can also advise on the correct wire for the amperage rating and ensure your home is functioning at its highest efficiency.
Greasing Electric Piano Keys: A Step-by-Step Guide
You may want to see also
Explore related products
Ensure the electrical load is evenly distributed
To ensure that the electrical load is evenly distributed, it is important to understand the concept of phase balancing. Phase balancing is the process of distributing electrical loads evenly across the different phases of your electrical service, also known as load balancing. In a three-phase electrical system, the total load is divided among three phases: Phase A, Phase B, and Phase C.
To achieve proper phase balancing, it is recommended to use three-phase equipment whenever possible. Three-phase equipment is designed to evenly distribute the load across all three phases, optimizing energy consumption and helping to maintain balanced loads throughout your electrical system. If you notice significant load imbalances, you may need to redistribute the loads across the phases. This can be done by transferring some electrical loads from heavily loaded phases to phases with a lower load. It is important to consult with a licensed electrician to ensure that any load redistribution is done safely and correctly. In some cases, a phase swap may be necessary, which involves swapping the electrical connections between two phases.
Another way to ensure even distribution of the electrical load is to regularly monitor the load distribution using a power monitor or energy management system. These tools provide real-time data that can help you identify any load imbalances. If an imbalance is detected, you can take corrective measures to adjust the loads accordingly. By regularly monitoring and adjusting the load distribution, you can improve system performance, increase equipment lifespan, and enhance energy efficiency.
Additionally, it is important to consider the number of outlets and appliances connected to each circuit. In a residential setting, it is recommended to have a reasonably equal number of outlets on each circuit to ensure even distribution. This means that the circuits should be distributed evenly throughout the home, rather than having a few circuits handle the majority of the load. If you are using multiple appliances simultaneously, ensure that the sum of the currents is less than the circuit breaker rating to avoid tripping the breaker.
Finally, it is worth noting that increasing the voltage and amperage of a circuit may also help to distribute the load more evenly. Older homes with lower amperage service, such as 60-amp service, may not be sufficient to meet the power demands of modern equipment and appliances. Upgrading to a higher amperage service, such as 100 or 200 amps, can provide more electricity to support your devices and appliances. However, increasing voltage and decreasing resistance in a circuit typically requires rewiring the entire circuit unit, which should be done by a qualified electrician.
Carmen Electra's Sister: Tragic Death Explained
You may want to see also
Explore related products
Rewire the entire circuit unit
If you're looking to increase the electrical capacity of your circuit, rewiring the entire unit is a comprehensive solution. This process involves several steps to ensure a safe and functional upgrade.
Firstly, turn off all power to the circuit breaker. This is a crucial safety measure as it ensures no electricity is flowing through the circuit while you work. Once the power is off, disconnect all outlets from the power source. This step allows access to the wiring and ensures no live wires are exposed during the rewiring process.
Next, you'll need to cut the existing wires and replace them with new wiring that has a higher amperage rating. It's important to ensure that all the wiring and circuitry can support a larger amperage of electricity. You can consult an employee at a hardware store to choose the correct wire for your desired amperage rating.
After replacing the wires, connect them to the junction box. This box acts as a central hub for the wiring, allowing safe and organised connections. Then, connect the wires from the junction box to the circuit breaker. This establishes the pathway for electricity to flow through the circuit.
Once the wiring and connections are complete, it's time to mount the new outlets onto the outlet box. This step ensures that your appliances can be plugged into the upgraded circuit. Finally, reattach the electrical panel and turn the circuit breaker back on. Your upgraded circuit is now ready to use!
Rewiring the entire circuit unit is a detailed process that requires careful planning and execution. It's important to ensure that all connections are secure and that the wiring is appropriately rated for your desired increase in electrical capacity.
UNC and Duke: A Close Rivalry
You may want to see also
Explore related products
Upgrade outdated wiring
Upgrading outdated wiring is a crucial step in improving the electrical capacity of your circuit and ensuring the safety of your home. Older homes may have wiring that isn't designed to handle modern electrical loads, leading to potential hazards such as electrical fires or circuit overloads. Here are some steps to upgrade outdated wiring:
Firstly, it is essential to assess the current electrical load and capacity. Identify all appliances, devices, and lighting fixtures, and calculate their total power consumption. This information will help determine if your circuit can handle the load and if an upgrade is necessary. You can calculate your electrical load by adding up the electrical ratings of each device, typically listed in watts or amps.
Next, consider upgrading your electrical panel to increase capacity. Older homes may have fuse boxes or outdated circuit breaker panels with insufficient ampere ratings. Replacing these with modern, higher-capacity panels will improve safety and allow for additional electrical capacity to accommodate more appliances. This may involve upgrading the service line from the utility company to handle more power.
Upgrading involves running new cables with thicker gauges to replace lower-amp circuits with higher-amp ones. For example, replacing a 15-amp circuit with a 20-amp circuit will give you a total capacity of 30-35 amps. This also allows for "balancing" the load, ensuring no single circuit gets overloaded, which can cause tripped breakers.
Additionally, consider installing sub-panels to provide extra slots for new circuit breakers. This option requires professional expertise, so hiring a qualified electrician is advisable. They can properly install and connect the sub-panels, ensuring safe and reliable electrical distribution.
Finally, always consult a licensed electrician for guidance and assistance throughout the upgrading process. They can help identify potential issues, ensure your system's safety, and meet the specific needs of your home's electrical system.
By upgrading outdated wiring, you can prevent overloads, improve electrical efficiency, and enhance the safety of your home.
Electric Scooters: Legal Status in Pennsylvania
You may want to see also
Explore related products
Increase voltage and decrease resistance
Increasing voltage and decreasing resistance in a circuit can be achieved through several methods, but it nearly always involves rewiring the entire circuit unit. Before attempting any modifications, it is crucial to turn off all power to the circuit breaker to ensure safety.
One approach to increasing voltage is by utilising a step-up transformer, specifically for Alternating Current (AC). Transformers consist of two inductors coupled together, allowing the current in one to induce a current in the other. By having more turns in the secondary coil of the transformer, the voltage can be increased. It is important to note that transformers do not regulate voltage and require additional components or circuitry for voltage control.
Switching regulators can also be employed to boost voltages. These regulators utilise external components to filter and smooth the output, similar to the principles of bucking voltage. Additionally, voltage multiplier circuits can be used to increase voltage levels.
To decrease resistance in a circuit, it is essential to remove or reduce the sources of resistance. This can be achieved by using wires and components with lower resistance values, ensuring they have the capacity to support the desired amperage. Resistance can also be decreased by shortening the length of the wire used, as longer wires inherently have higher resistance.
It is important to note that increasing voltage and decreasing resistance should be approached with caution. Ensuring that all wiring, circuitry, and components are compatible with the intended amperage is crucial to prevent overheating, damage, or safety hazards. Consulting with a professional or a knowledgeable employee at a hardware store can provide guidance on selecting the appropriate materials and ensuring a safe implementation.
Understanding VAT on Business Electricity Expenses
You may want to see also
Frequently asked questions
You can increase the electrical capacity of your kitchen circuit by upgrading the electrical panel to a higher capacity. For example, you can move from a 100-amp panel to a 200-amp panel. This may involve rewiring the entire circuit unit.
Electrical load capacity is the total amount of electrical power that your home’s system can handle safely. This capacity is measured in amperes (amps). Each appliance, device, and lighting fixture draws a specific amount of electrical current.
To calculate the electrical load capacity of your home, you need to identify all appliances, devices, and lighting fixtures and calculate their total power consumption. Each device’s power requirement is typically listed in watts on the manufacturer’s label.
Amperage measures how much electricity can flow at a given time, while voltage is the pressure of the electricity. Multiply the two together and you get wattage, which is how the electricity used by appliances is typically measured.
To increase the amperage of your circuit, you need to ensure that all the wiring and circuitry have the capacity to support a larger amperage of electricity. You can do this by upgrading outdated wiring and ensuring that your wiring and breaker match in terms of capacity.
