Installing a 220V electric baseboard heater can be a straightforward process if you follow the necessary safety precautions and steps. Before beginning, ensure that you have the appropriate tools and materials, including the heater itself, mounting brackets, screws, a voltage tester, wire connectors, and a conduit for the wiring. It's crucial to turn off the power to the circuit where the heater will be installed to prevent electrical shock. Next, locate the wall studs and mark the positions for the mounting brackets, ensuring they are level and securely fastened. Run the conduit along the wall, connecting it to the heater's junction box, and then wire the heater according to the manufacturer's instructions, typically involving connecting the hot, neutral, and ground wires. Once the wiring is complete, attach the heater to the brackets and restore power to the circuit. Test the heater to ensure it's functioning correctly, and enjoy the warmth it provides to your space.
| Characteristics | Values |
|---|---|
| Voltage | 220V |
| Type | Electric baseboard heater |
| Installation Location | Along walls, baseboards |
| Heating Element | Resistive heating coils |
| Control Type | Manual or digital thermostat |
| Safety Features | Overheat protection, tip-over switch |
| Power Consumption | Varies by model, typically 1500-2500 watts |
| Installation Requirements | 220V electrical circuit, mounting brackets |
| Dimensions | Length: 24-72 inches, Height: 6-12 inches, Depth: 2-4 inches |
| Weight | 5-20 pounds |
| Noise Level | Low, almost silent |
| Maintenance | Minimal, occasional cleaning |
| Lifespan | 10-20 years |
| Cost | $50-$300 depending on size and features |
| Energy Efficiency | Moderate, depends on usage and insulation |
| Compatibility | Works with standard 220V electrical systems |
| Additional Features | Some models include timers, remote controls |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off, use proper tools, and wear protective gear
- Choosing the Right Heater: Select a heater suitable for your room size and voltage
- Mounting the Heater: Secure the heater to the wall, ensuring it's level and properly aligned
- Electrical Connections: Connect the heater to the 220V power supply, following the manufacturer's instructions
- Testing and Troubleshooting: Turn on the heater, test for proper operation, and address any issues
Safety Precautions: Ensure power is off, use proper tools, and wear protective gear
Before beginning the installation of a 220v electric baseboard heater, it is crucial to prioritize safety. The first and most important precaution is to ensure that the power is completely turned off at the circuit breaker. This step cannot be overstated, as working with live electrical wires can result in severe injury or even death. Double-check that the breaker is in the "off" position and, if possible, lock it to prevent accidental activation.
Next, it is essential to use the proper tools for the job. This includes a voltage tester to confirm that the power is indeed off, wire strippers for preparing the electrical connections, and a screwdriver for securing the heater to the wall. Using the wrong tools can not only make the installation process more difficult but also increase the risk of damage to the heater or injury to yourself.
In addition to using the correct tools, wearing appropriate protective gear is vital. This includes safety glasses to protect your eyes from debris, gloves to safeguard your hands from sharp edges and electrical hazards, and sturdy shoes to prevent foot injuries. If you are working in a dusty or poorly ventilated area, a dust mask may also be necessary to protect your respiratory system.
When handling the electrical components of the heater, it is important to be aware of the potential risks associated with electrical shock. Always assume that wires are live unless you have personally verified that the power is off. If you are unsure about any aspect of the installation process, it is better to consult a professional electrician than to risk your safety.
Finally, be sure to follow all manufacturer instructions and local building codes when installing the heater. These guidelines are in place to ensure that the heater is installed safely and efficiently. By adhering to these precautions and guidelines, you can help to minimize the risk of accidents and ensure a successful installation.
Eco-Friendly Warmth: Heating Your Bathroom Without Electricity
You may want to see also
Explore related products
Choosing the Right Heater: Select a heater suitable for your room size and voltage
To ensure optimal performance and safety when installing a 220V electric baseboard heater, selecting the appropriate heater for your room size and voltage is crucial. Begin by measuring the square footage of the room where the heater will be installed. This measurement will help determine the wattage required to effectively heat the space. As a general rule, you'll need approximately 10 watts of power per square foot for a standard 8-foot ceiling.
Next, consider the voltage of your electrical system. In North America, residential electrical systems typically operate at 120V or 240V. Since you're installing a 220V heater, ensure your system can accommodate this voltage. If necessary, consult a professional electrician to upgrade your electrical system or install a compatible transformer.
When choosing a heater, look for models specifically designed for baseboard installation. These heaters are typically longer and narrower than other types, allowing them to fit seamlessly along the base of your walls. Additionally, consider the material of the heater. Steel and aluminum are common choices due to their durability and heat conductivity.
It's also important to select a heater with a suitable thermostat. Some baseboard heaters come with built-in thermostats, while others require a separate unit. Choose a thermostat that allows for precise temperature control and is compatible with your heater's voltage and wattage.
Finally, consider the safety features of the heater. Look for models with overheat protection, which will automatically shut off the heater if it becomes too hot. Additionally, ensure the heater has a grounded plug to prevent electrical shocks.
By carefully selecting a heater that matches your room size, voltage, and specific needs, you can ensure a safe and efficient installation that will provide reliable warmth for years to come.
Troubleshooting and Repairing Your Electric Pool Heater: A Comprehensive Guide
You may want to see also
Explore related products
Mounting the Heater: Secure the heater to the wall, ensuring it's level and properly aligned
Begin by marking the wall where the heater will be mounted, ensuring that it’s at a safe distance from any flammable materials. Use a level to ensure that the heater will be perfectly horizontal once installed. Drill pilot holes at the marked locations and insert wall anchors if necessary. Carefully align the heater with the pilot holes and secure it to the wall using screws. Double-check that the heater is level and properly aligned before proceeding.
When mounting the heater, it’s crucial to ensure that it’s securely fastened to the wall to prevent any accidents or damage. Use a stud finder to locate the wall studs and mark them accordingly. If the studs are not aligned with the pilot holes, you may need to adjust the position of the heater or use additional wall anchors. Once the heater is mounted, test it to ensure that it’s functioning properly and that there are no loose connections.
In addition to ensuring that the heater is level and properly aligned, it’s also important to consider the electrical connections. Make sure that the power supply is turned off before beginning the installation process. Connect the wires to the corresponding terminals on the heater, ensuring that the connections are secure and that there are no exposed wires. Once the electrical connections are complete, turn the power supply back on and test the heater to ensure that it’s functioning properly.
When installing a 220v electric baseboard heater, it’s essential to follow all safety guidelines and building codes. If you’re unsure about any aspect of the installation process, it’s best to consult with a professional electrician. By taking the time to properly mount and align the heater, you can ensure that it will function efficiently and safely for years to come.
Reviving Your Neglected Electric Water Heater: A Step-by-Step Guide
You may want to see also
Explore related products
Electrical Connections: Connect the heater to the 220V power supply, following the manufacturer's instructions
To ensure a safe and effective installation of your 220V electric baseboard heater, it is crucial to follow the manufacturer's instructions for electrical connections. Begin by verifying that the power supply matches the heater's voltage requirements. Most residential heaters operate on 220V or 240V circuits, so confirm this before proceeding.
Next, locate the electrical panel and identify the appropriate circuit breaker for the heater. Ensure the breaker is in the "off" position before attempting any connections. If you are unsure about which breaker controls the heater circuit, consult the electrical panel's labeling or seek assistance from a qualified electrician.

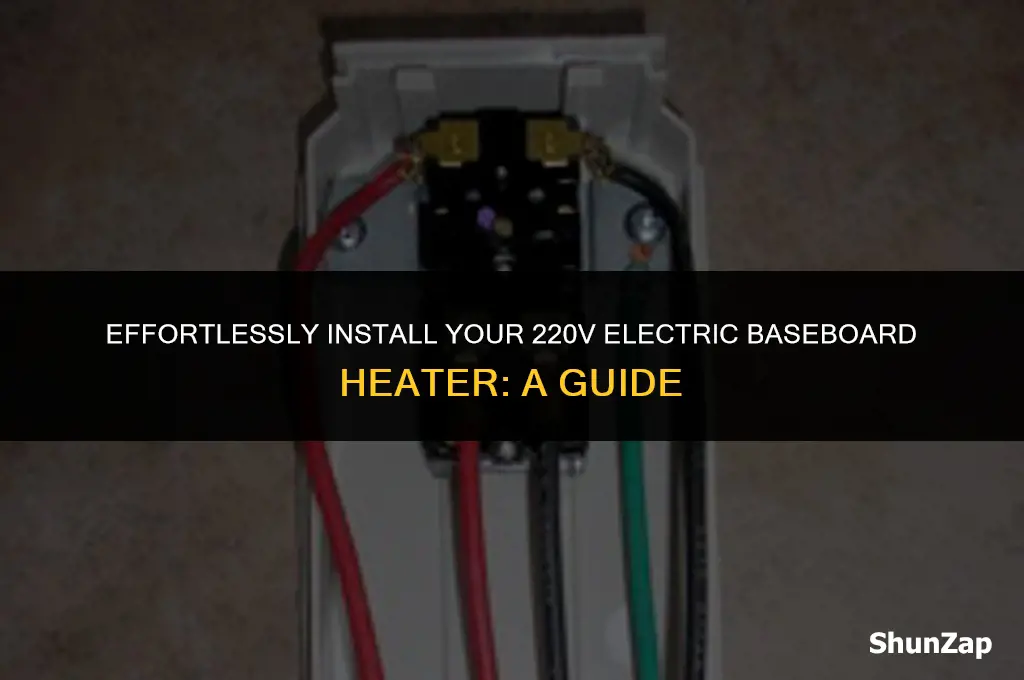

Carefully remove the cover plate from the heater's electrical connection box, typically located at one end of the unit. Inside, you will find the wiring connections necessary for installation. Match the wires from the heater to the corresponding wires in the electrical box: the black wire to the black wire, the white wire to the white wire, and the bare copper wire to the grounding screw or wire.
Secure the connections by tightening the wire nuts or screws, ensuring they are snug but not over-tightened. Replace the cover plate on the heater's connection box and restore power to the circuit by turning the breaker back to the "on" position.
Test the heater to ensure it is functioning correctly. If the heater does not operate, check the connections and consult the troubleshooting section of the manufacturer's instructions. Remember, safety should always be your top priority when working with electrical systems. If you are uncomfortable or unsure about any aspect of the installation process, do not hesitate to seek professional assistance.
Draining Your Richmond Electric Hot Water Heater: A Step-by-Step Guide
You may want to see also
Explore related products
Testing and Troubleshooting: Turn on the heater, test for proper operation, and address any issues
Once the 220V electric baseboard heater is installed, it's crucial to test its operation to ensure everything is functioning correctly. Begin by turning on the heater and observing its initial behavior. Check for any unusual noises, vibrations, or smells that could indicate a problem. If the heater fails to turn on, verify that the power supply is active and that all connections are secure. Use a multimeter to test the voltage at the heater's terminals; it should match the specified 220V.
If the heater turns on but doesn't heat up, inspect the heating elements for continuity using the multimeter. A reading of zero ohms indicates a broken element, which will need to be replaced. Additionally, check the thermostat to ensure it's set correctly and functioning properly. If the thermostat is faulty, the heater may not receive the signal to activate.
In cases where the heater operates but doesn't provide sufficient heat, examine the airflow around the unit. Ensure that there are no obstructions blocking the heat distribution. Clean the heater's surface and check the air vents to remove any dust or debris that could impede airflow. If the issue persists, it may be necessary to adjust the thermostat's settings or consider additional heating solutions for the space.
Throughout the testing and troubleshooting process, always prioritize safety. Ensure that the power is turned off before performing any maintenance or repairs. If you're unsure about any aspect of the testing or troubleshooting, consult the heater's user manual or seek assistance from a qualified electrician. By following these steps, you can identify and resolve any issues with your 220V electric baseboard heater, ensuring efficient and safe operation.
