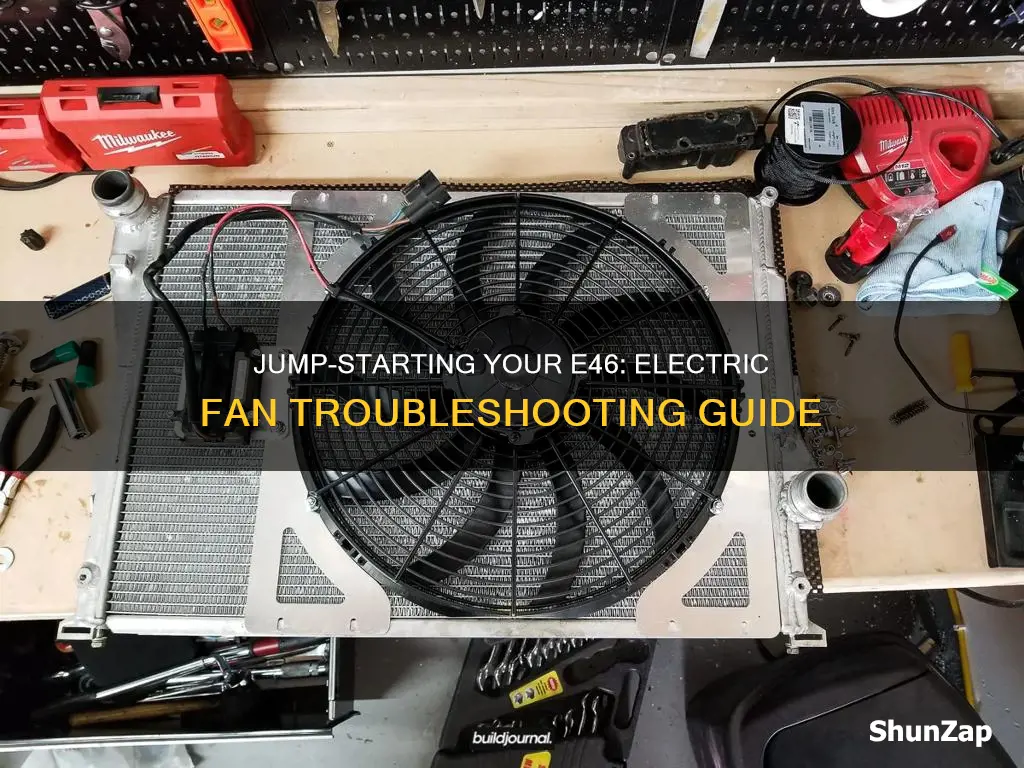

The BMW E46 is a beautiful and timeless car, but like all machines, it has its flaws. One common issue is the electric fan, which can be prone to failure. When this happens, it can leave you stranded, so it's important to know how to troubleshoot and potentially jump-start the fan to get you out of a bind. In this guide, we will cover the steps to identify and address fan issues, including temporary fixes to get your E46 running again until you can perform a more permanent repair. We will also discuss preventative measures to reduce the likelihood of fan failure and keep your E46 on the road where it belongs.
Characteristics and Values Table
| Characteristics | Values |
|---|---|
| Fan stays on | Disconnect the pigtail to shut off |
| Fan not working | Check for fractured solder joints on the board |
| Check if the capacitor on the board is functional | |
| Try soldering in a new capacitor | |
| Check for a faulty sensor | |
| Check if the fan is faulty | |
| Check if the PWM interpreter inside your Siemens motor is shot | |
| Check if the PWM circuit on your fan motor board is functional | |
| Check the relays | |
| Check the fuse | |
| Check the series resistor for low-speed running |
Explore related products
What You'll Learn
Jump-starting a dead car battery
Prepare the Necessary Tools and Park the Vehicles
Firstly, ensure you have a pair of jumper cables. These should be kept in your car for emergencies and ideally be 10-20 feet long. If you don't have jumper cables, you can use a portable jump starter, which is a great option if you don't want to rely on another vehicle for assistance. If using another vehicle, ensure both cars are parked safely, with the ignition turned off and parking brakes engaged. Position the vehicles close enough for the jumper cables to reach both batteries without stretching too tightly.
Connect the Jumper Cables
Before connecting the jumper cables, it is essential to understand the basics of battery terminals. The positive terminal is usually marked with "POS" or "+", while the negative terminal is marked with "NEG" or "-". Start by connecting the red clamp of the jumper cable to the positive terminal (+) of the working battery. Then, connect the other red clamp to the positive terminal (+) of the dead battery. After that, attach the black clamp to the negative terminal (-) of the dead battery. Finally, connect the remaining black clamp to an unpainted metal surface on the engine block of the working car, away from the battery.
Starting the Vehicle and Removing the Cables
Once the cables are connected, attempt to start the vehicle with the dead battery by turning the key in the ignition. If it doesn't start immediately, check the connections and wait a few minutes to allow the battery to charge. Once the vehicle is running, remove the jumper cables in the reverse order of connection. Start by removing the black clamp from the working car's engine block, followed by the black clamp from the dead battery. Then, remove the red clamp from the positive terminal of the dead battery and, lastly, the red clamp from the positive terminal of the working battery.
Post-Jump Start Considerations
Keep the jumped car running for at least 20-30 minutes to allow the alternator to recharge the battery, especially if the battery died due to lights being left on or similar issues. Additionally, it is important to identify the root cause of the battery issue. In some cases, a dead battery might be a one-time occurrence due to human error. However, if the problem persists, it could indicate a failing battery or another underlying issue. Refer to your car's owner's manual for specific instructions and safety precautions related to jump-starting your particular vehicle model.
Electric vs Manual Toothbrush: Which Cleans Better?
You may want to see also
Explore related products
Disconnecting the pigtail to shut off the fan
Disconnecting the pigtail is a way to force the fan on, as well as to shut it off.
If you want to force the fan on, you can disconnect the lower rad hose coolant temp sensor. This will set the fan to 100%. However, if the PWM interpreter inside your Siemens motor is damaged, this method will not work.
If you want to shut the fan off, you can disconnect the pigtail. This will prevent the fan from running constantly and draining the battery.
To disconnect the pigtail, you can follow these steps:
- Disconnect the battery.
- Remove the old radiator fan and shroud.
- Replace the temperature sensor in the lower radiator hose.
- For automatic cars, remove the auxiliary fan by removing the air duct in front of it, the four nuts securing it, and then unclipping it from the top and pulling it forward.
- Cut the old fan connector off the car, or use the pigtail from the auxiliary fan to make an adapter.
- Strip the end of the wire insulation off the wires.
- Slip wire seals over the end of the wires, leaving the bare wires exposed.
- Crimp new pins onto the wires and gently onto the wire seals.
- Insert the wires into the correct positions: brown wire into position 1, red/blue wire into position 2, and small black/green wire into position 4.
It is important to note that disconnecting the pigtail is a temporary solution and that you should eventually replace the fan or the temperature sensor to address the root cause of the issue.
Shape Memory Alloys: Electric Reaction Exploration
You may want to see also
Explore related products
Replacing the fan
If your E46 electric fan is faulty, you will need to replace it.
Step 1: Disconnect the fan
First, disconnect the fan by pulling out the plug. This will prevent the battery from running flat.
Step 2: Purchase a replacement fan
You can either purchase a new fan from a dealer or look for a used one in a junkyard. If you are replacing the fan in a BMW E46, you can call Pelican Parts specialists at 1-888-280-7799 to determine the correct part or repair kit.
Step 3: Remove the old fan
The process of removing the old fan can be challenging, especially for automatic cars. Make sure to follow the instructions specific to your car model.
Step 4: Install the new fan
If you are converting from a mechanical fan to an electric fan, the installation process may be as simple as plugging in the new fan to the existing electrical harness. However, in some cases, a software update may be required to activate the fan.
Step 5: Test the new fan
Once the new fan is installed, test it to ensure it is functioning correctly. Check the engine and radiator outlet temperature using a BMW scan tool. The fan should turn on when the engine or radiator temperature exceeds the specified threshold.
Optional Step: Modify the fan control
If desired, you can modify the fan control to add a manual fan override switch or hot wire the fan to a toggle switch, allowing you to turn the fan on and off manually. However, this modification may require additional technical expertise.
How Deep Is Your Electric Range? Handle Included?
You may want to see also
Explore related products
Testing the fan
Verifying Fan Operation:
First, you need to understand when the fan should normally operate. Typically, the E46 electric fan activates when the engine coolant temperature reaches approximately 95-98°C. So, if your car has been running and the coolant temperature is within this range, the fan should be operational.
Visual and Auditory Inspection:
Pop open the hood of your car and locate the electric fan. With the engine running and the coolant temperature in the normal operating range, listen carefully for any sounds of the fan spinning. Additionally, you can visually inspect the fan to see if it's rotating. If you can hear the fan and observe it spinning, that's a good indication that the fan is functional.
Temperature Monitoring:
Keep a close eye on the coolant temperature gauge or sensor. If the temperature continues to rise significantly above the normal operating range without the fan activating, it's likely that the fan is not functioning properly.
INPA Fan Test:
One effective method to test the E46 electric fan is by using a tool like INPA (Integrated Network Programming and Analysis). INPA allows you to monitor various parameters, including the PWM (Pulse Width Modulation) signal and RPM ( Revolutions Per Minute) of the fan. By performing a simple INPA fan test, you can verify the relationship between the PWM signal and the fan speed. This helps ensure that the fan is responding correctly to the PWM signal sent by the Bosch interpreter.
Temporary Wiring Test:
If you don't have access to specialised tools like INPA, there's a low-tech solution. You can perform a temporary wiring test by wiring a 2-wire cable from the radiator fan connector to a small lamp bulb. With the engine running, park your car and observe if the lamp bulb illuminates. If it does, and the fan isn't spinning, it's likely that the fan has failed and needs replacement.
Sensor and Component Checks:
Sometimes, the issue may not lie with the fan itself but with associated sensors and components. Check for fractured solder joints on the board and inspect the capacitor to ensure it's functional. You can also try unplugging the coolant temperature sensor on the lower radiator hose to force the fan on. If the fan still doesn't work, consider replacing the fan motor and final stage, as these components tend to fail over time.
Remember, it's important to be cautious when working with electrical systems in your vehicle. Always disconnect the battery before performing any diagnostics or repairs involving electrical components. If you're unsure, consult a qualified mechanic or seek advice from online communities dedicated to E46 enthusiasts.
Hand Blender Repair: DIY Troubleshooting Guide
You may want to see also
Explore related products
Troubleshooting the fan
Firstly, it is important to understand the different components involved in the fan's operation. The fan is controlled by the car's computer, known as the Digital Motor Electronics (DME). The DME uses various inputs to determine the fan speed, including radiator outlet temperature, catalyst temperature, vehicle speed, battery voltage, and A/C pressure. The DME requires a sine-wave signal to activate the fan.
If your fan is not turning on, there are several potential causes and troubleshooting steps you can take:
- Check the temperature sensor in the lower radiator hose: Disconnect the sensor and run the A/C to force the fan on. If the fan still doesn't work, the issue may lie elsewhere.
- Inspect the DME: Diagnose the DME to check for any faults. In one case, a user found that one of the resistors in the DME was off, causing the fan issue.
- Test the fan control unit and fan itself: Diagnose these components to ensure they are functioning properly.
- Check for fractured solder joints on the board and try soldering a new capacitor if the old one is faulty.
- Replace the fan: If all else fails, consider replacing the fan with a new one. This is often a straightforward process and can resolve various issues.
If your fan is constantly running, even when the ignition is off, there are a few potential solutions:
- Disconnect the pigtail or fan plug: This will force the fan to shut off, but it will need to be done manually each time you park the car.
- Replace the sensor: In some cases, a faulty sensor may cause the fan to run constantly. Replacing the sensor can resolve this issue.
- Hardwire the fan to a toggle switch: This allows you to manually control the fan, turning it on and off as needed.
It is important to note that these are general troubleshooting steps, and the specific process may vary depending on your vehicle's configuration and the nature of the issue. If you are unsure or uncomfortable with performing these tasks, it is recommended to consult a professional mechanic or a specialist.
Understanding Electricity Costs: Who Pays and Why?
You may want to see also
Frequently asked questions
If your electric fan is faulty, it may exhibit signs such as staying on constantly, even when the ignition is off, or failing to turn on at all.
There are several potential causes, including a faulty sensor, a failing capacitor, fractured solder joints on the board, or issues with the PWM circuit or PWM interpreter.
You can try disconnecting the lower radiator hose coolant temp sensor to force the fan on. However, please note that this will result in the fan running constantly at 100% speed, and you will need to disconnect the pigtail to turn it off manually.
For a more permanent fix, you may need to replace the fan motor and final stage. You could also consider upgrading to a newer fan module assembly or installing a manual fan override switch for control during hot weather.
To prevent battery drain, you can disconnect the fan by pulling out the plug when you park your car. This will ensure there is enough power to start the car, but it will also require you to manually reconnect the plug before driving.
