Electrical contacts can stick together due to a variety of reasons, including arcing, corrosion, and degradation of the contacts. Arcing occurs when small sparks are created as the contacts open and close, causing them to weld together. Corrosion and degradation of the contacts can also lead to sticking. To prevent electrical contacts from sticking, regular cleaning and maintenance are important. Additionally, using durable metals and alloys, such as silver tungsten, silver tungsten carbide, or copper tungsten, can enhance performance and reduce the likelihood of sticking.
| Characteristics | Values |
|---|---|
| Cause of electrical contact sticking | Small sparks called "arcs", corrosion, overcurrent, short circuit, degradation of contacts, dirt, foreign particles, difficult atmospheric conditions, switching at high current, error in star-delta transition, high inrush current |
| Prevention methods | Use durable metals and alloys such as Silver Tungsten, Silver Tungsten Carbide, Copper Tungsten, or Silver Graphite; Clean contacts with a burnishing tool or fine grit emery paper; Add a load in parallel with the relay coil; Use a DC relay and a DC source; Install an Inrush Current Limiter in series with the relay |
Explore related products
![WD-40 Specialist Contact Cleaner Spray, 11 oz. [6-PACK]](https://m.media-amazon.com/images/I/91BFits2CDL._AC_UL320_.jpg)
What You'll Learn
Use durable metals and alloys
Electrical contacts are prone to sticking due to various factors, including arcing, corrosion, and degradation of the contacts. To prevent this issue, it is essential to choose durable metals and alloys that can withstand these challenges. Here are some options to consider:
Silver Tungsten: This alloy offers superior conductivity and resistance to mechanical and electrical wear. Its high conductivity ensures efficient electrical flow, while its mechanical strength prevents wear and tear, reducing the chances of sticking. Silver tungsten is a reliable choice for electrical contacts due to its ability to withstand frequent use and resist degradation.
Silver Tungsten Carbide (AgWC): Silver tungsten carbide is known for its exceptional resistance to oxidation, which is a common cause of electrical contact sticking. By choosing this alloy, you can significantly reduce the likelihood of oxidation-induced sticking. AgWC is particularly useful in environments where oxidation is prevalent, providing a durable and reliable solution.
Copper Tungsten (CuW): Copper tungsten offers a cost-effective solution for applications prone to oxidation. While it shares similar oxidation resistance properties with silver tungsten carbide, CuW is more affordable. This alloy is ideal for budget-conscious projects without compromising on quality and performance.
Silver Graphite (AgC): Silver graphite is commonly used in stationary contact material, often coupled with AgW or AgWC. It provides excellent electrical conductivity and lubrication, reducing friction and the likelihood of sticking. AgC is particularly useful in applications where stationary contacts are required, ensuring smooth and consistent electrical connections.
By selecting these durable metals and alloys, you can effectively reduce the chances of electrical contact sticking. These materials offer superior resistance to corrosion, oxidation, and mechanical wear, ensuring reliable and long-lasting performance in various electrical applications. Remember to consult with experts and follow manufacturer guidelines to choose the most suitable option for your specific requirements.
Carmen Electra: Then and Now
You may want to see also
Explore related products
Prevent corrosion and arcing
Small sparks, or "arcs", can cause electrical contacts to corrode and stick together. This is more likely to occur when more current is passed through the contacts than they can carry, which can cause them to overheat. Arcing can also cause carbon build-up on the contacts, leading to sticking. To prevent arcing, it is recommended to select a contactor according to the load that will pass over it. For example, in motor applications, it is better to choose according to AC-3 values rather than AC-1 values.

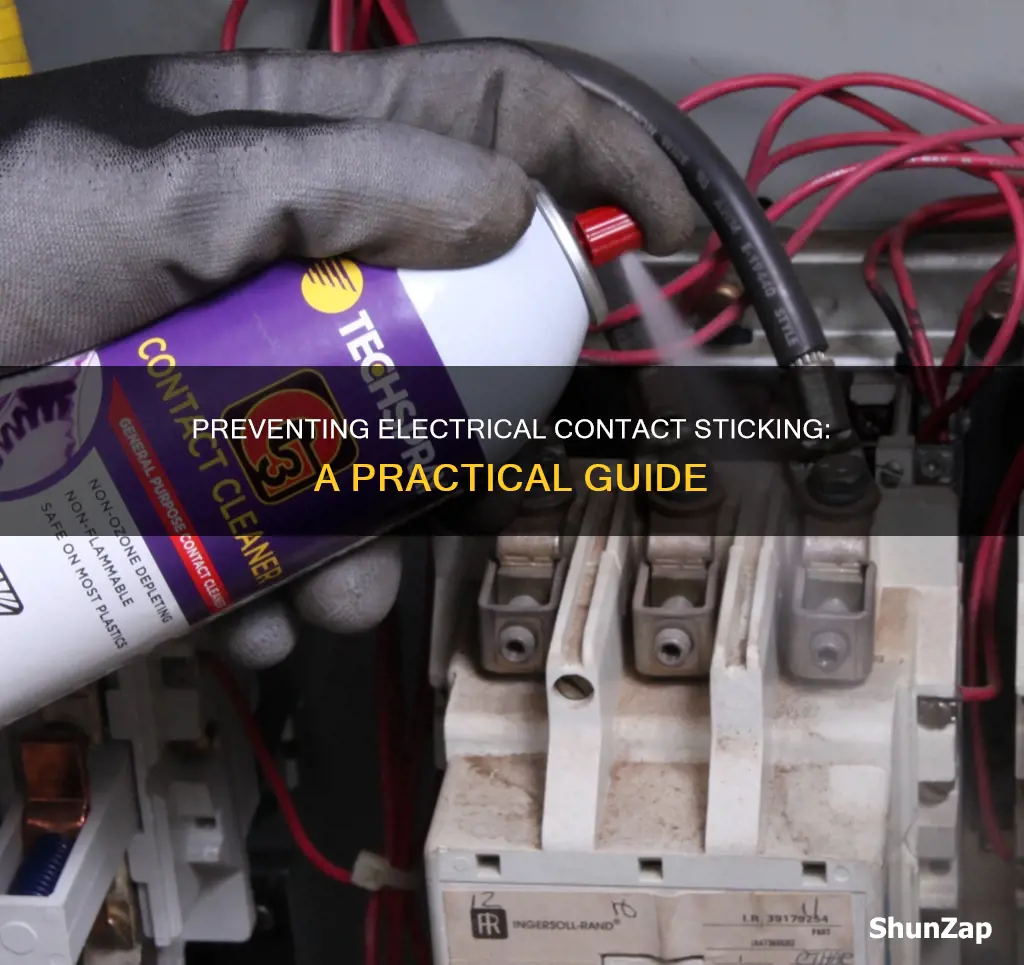

Corrosion can also cause electrical contacts to stick. To prevent corrosion, durable metals and alloys such as silver tungsten, silver tungsten carbide, copper tungsten, and silver graphite can be used. Silver tips can also be brazed onto copper backing to help prevent electrical sticking. If corrosion does occur, contacts can be cleaned with a burnishing tool or fine-grit emery paper, if they are not sealed.
The Quickest Way to Inflate Balloons: Using an Electric Pump
You may want to see also
Explore related products
$17.99 $22.91
Clean contacts with emery paper
Sticking relay contacts can be cleaned with fine-grit emery paper. To do this, first turn off the equipment to avoid electric shock. Cut the emery paper into small strips and fold them in half so that the grit is exposed on both sides. Insert the emery paper between the contacts to be cleaned, and rub it back and forth several times until the contacts are clean. Badly pitted contacts will take more work. If you have access to a burnishing tool, it is recommended to use that instead.
Small sparks, known as "arcs", can cause electrical contacts to stick together. This is because arcs can corrode the metal and cause degradation. In addition, corrosion, dirt, and foreign particles can also cause contacts to stick. Therefore, it is important to clean electrical contacts to reduce sticking.
Unplug to Save: The Cost of Convenience
You may want to see also
Explore related products
Avoid overloading circuits
Electrical contacts can stick together due to a variety of reasons, including:
- Small sparks, known as "arcs", which can corrode the metal and cause contacts to stick together.
- Corrosion, which can be caused by dirt or foreign particles.
- Overheating due to more current being passed through the contacts than they can carry.
- Switching at high current, short circuit, or error in star-delta transition.
- Capacitive loads, which can cause contacts to weld together.
To avoid electrical contacts from sticking due to overload, the following precautions can be taken:
Use Appropriate Materials
The use of durable metals and alloys can help limit degradation of the contacts, which is a common cause of sticking. Silver tungsten, for example, offers superior conductivity and resistance to mechanical and electrical wear. Silver tungsten carbide (AgWC) is also an option, as it is resistant to oxidation, which can cause sticking. Copper tungsten (CuW) is a lower-cost alternative for oxidation-prone applications.
Select Contactors According to Load
Contactor selection should be based on the load that will pass over it. If a short circuit occurs, the cause must be identified and the control circuit fuse must be renewed. Miniature circuit breakers, for instance, are designed to protect against overload and short circuit conditions.
Prevent Overheating
Ensure that the current passed through the contacts is within their capacity. Overheating can cause the contacts to stick together.
Avoid Capacitive Loads
Capacitors and induction motors can have large initial inrush surge currents, which can cause contacts to weld together. An inrush current limiter can be installed in series with the relay to alleviate this issue.
Clean and Maintain Contacts
Regular cleaning and maintenance of contacts can help prevent sticking. If accessible, contacts can be cleaned with a burnishing tool or fine grit emery paper. If corrosion is present, ensure the contacts are thoroughly cleaned and protected from further corrosion.
Modern Dishwashers: Conveniently Plug-and-Play?
You may want to see also
Explore related products
Choose correct contactor
When choosing a contactor, it is important to consider the specific application and operating conditions to prevent electrical contact sticking. Here are some factors to consider when selecting the correct contactor:
Firstly, ensure that the contactor is suitable for the load that will pass through it. If the contactor is overloaded, it may not function properly, leading to contact sticking. Choose a contactor with a sufficient closing and breaking capacity that exceeds the expected current values.
Secondly, consider the type of current you will be dealing with. For alternating current (AC) applications, select a contactor according to AC-3 values, which account for a higher load tolerance. For direct current (DC) applications, you may need to implement a diode across the coil to suppress arcs and prevent contact welding.
Thirdly, examine the length of the control circuit cables. Longer cables can cause issues due to voltage drops and cable capacitance, making it difficult for the contactor to open and close. Keep the control circuit cables as short as possible to mitigate these problems.
Additionally, pay attention to the environment in which the contactor will be used. The presence of dirt, dust, or foreign particles can interfere with the contactor's operation, especially in remote-controlled setups. Ensure that the enclosure is well-sealed and protected to prevent contamination.
Finally, consider using durable metals or alloys for the electrical contacts to reduce degradation and sticking. Silver tungsten, for example, offers superior conductivity and resistance to mechanical and electrical wear. Silver tungsten carbide (AgWC) is also a good option for its resistance to oxidation, which can cause sticking.
Remember to consult manufacturer specifications and select a contactor that aligns with the technical data and operating conditions of your application to ensure optimal performance and minimize the chances of contact sticking.
Conductors vs Insulators: Electric Transmission's Yin and Yang
You may want to see also
Frequently asked questions
Electrical contacts may stick due to corrosion, dirt, or small sparks called "arcs" that can corrode the metal and cause contacts to weld together.
To prevent electrical contacts from sticking, you can use durable metals and alloys such as Silver Tungsten, Silver Tungsten Carbide, Copper Tungsten, or Silver Graphite. Additionally, ensure that the contacts are not exposed to excessive current, short circuits, or errors in star-delta transition.
If your electrical contacts are already sticking, you can try cleaning them with a burnishing tool or fine grit emery paper. Cut the emery paper into small strips, fold them in half to expose the grit on both sides, and insert it between the contacts, rubbing back and forth until they are clean.
Yes, if cleaning the contacts does not solve the issue, you may need to replace the electrical contacts with new ones made of suitable materials, such as CDA-110 electrical copper or silver-tipped variants.
