Otis Singleton

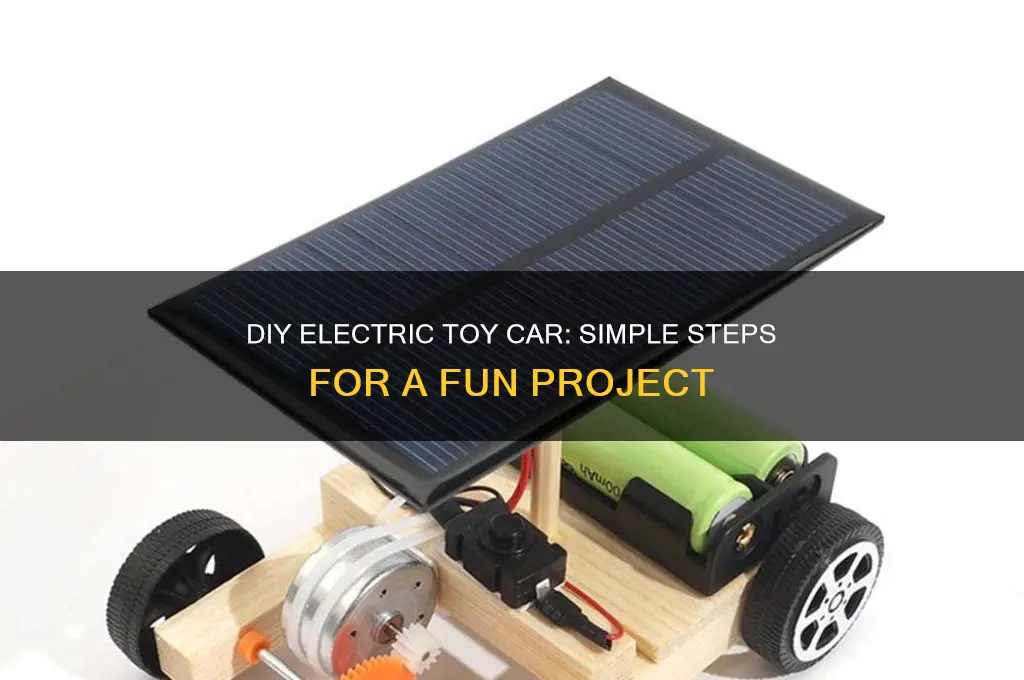

Creating an easy electric toy car is a fun and educational project that combines basic electronics, mechanics, and creativity. By using simple materials like a small DC motor, a battery, wires, and a lightweight chassis, you can build a functional vehicle that demonstrates the principles of electric power and motion. This hands-on activity is perfect for beginners, requiring minimal tools and offering a rewarding end result. Whether for a school project, hobby, or just for fun, making an electric toy car is an accessible way to explore STEM concepts while crafting something you can play with or display.
| Characteristics | Values |
|---|---|
| Power Source | Rechargeable battery (AA or AAA), 9V battery, or USB power bank |
| Motor | Small DC motor (e.g., 3V-6V, 10000-30000 RPM) |
| Chassis | Lightweight material (cardboard, foam board, plastic, or wood) |
| Wheels | Small plastic or rubber wheels (toy car wheels, bottle caps, or 3D-printed wheels) |
| Axles | Metal or plastic rods (skewers, straws, or thin dowels) |
| Switch | Simple SPST (Single Pole Single Throw) switch |
| Wires | Insulated copper wire (22-24 AWG) |
| Gearbox (Optional) | Small plastic or metal gearbox for torque |
| Speed Control (Optional) | Variable resistor (potentiometer) or PWM (Pulse Width Modulation) circuit |
| Tools Required | Screwdriver, wire stripper, soldering iron (optional), hot glue gun, scissors/knife |
| Cost Estimate | $10-$30 (depending on materials and motor choice) |
| Time to Build | 1-3 hours (depending on complexity and experience) |
| Skill Level | Beginner to Intermediate |
| Safety Considerations | Avoid short circuits, use proper insulation, and supervise children during operation |
| Customization Options | LED lights, sound effects, remote control, or 3D-printed body |
| Example Tutorials | Numerous online guides (YouTube, Instructables, etc.) with step-by-step instructions |
Explore related products
What You'll Learn
- Gather Materials: List essential components like motors, batteries, wheels, chassis, and basic tools needed
- Assemble Chassis: Build the car's frame using lightweight materials like cardboard or plastic
- Install Motor: Attach the motor to the chassis, ensuring proper alignment with the wheels
- Wire Electronics: Connect the battery, motor, and switch to create a simple circuit
- Test and Adjust: Check functionality, balance, and speed, making tweaks for optimal performance
Gather Materials: List essential components like motors, batteries, wheels, chassis, and basic tools needed
Building an electric toy car starts with gathering the right materials. At its core, you’ll need a motor to provide propulsion, batteries for power, wheels for movement, and a chassis to hold everything together. These components form the backbone of your project, and their quality will determine your car’s performance. For instance, a small DC motor rated at 3–6 volts is ideal for beginners, while rechargeable AA or AAA batteries offer a balance of power and convenience.
Next, consider the wheels—opt for lightweight plastic or rubber ones with good traction. The chassis can be as simple as a piece of foam board, balsa wood, or even a 3D-printed frame, depending on your skill level and tools. Speaking of tools, you’ll need basics like a screwdriver, wire strippers, and a soldering iron (if you’re connecting components permanently). A hot glue gun or epoxy can also be handy for securing parts in place.
While gathering materials, think about compatibility. Ensure the motor’s voltage matches your battery output, and check that the wheels fit the axle size. For younger builders (ages 8–12), pre-wired components or snap-together kits can simplify the process. Older hobbyists might prefer customizing parts for higher speed or durability.
Finally, don’t overlook safety. Use insulated wires to prevent short circuits, and avoid overloading the motor with excessive weight. If working with children, supervise the use of tools and soldering equipment. By carefully selecting and preparing these materials, you’ll set the stage for a smooth and successful build.
Assessing Electric Car Battery Health: Key Indicators and Maintenance Tips
You may want to see also
Explore related products
Assemble Chassis: Build the car's frame using lightweight materials like cardboard or plastic
The foundation of any toy car lies in its chassis, the backbone that supports the entire structure. For an easy electric toy car, opting for lightweight materials like cardboard or plastic is a strategic choice. These materials are not only readily available and cost-effective but also simplify the assembly process, making it accessible for beginners, including children aged 8 and above. Cardboard, for instance, can be easily cut, folded, and glued, while plastic sheets offer durability and a smoother finish.
To begin assembling the chassis, start by sketching a simple design on paper. A rectangular or trapezoidal base works well for stability, with dimensions roughly 10–15 cm in length and 5–8 cm in width. Transfer this design onto your chosen material. For cardboard, use a sharp utility knife or scissors to cut out the shape, ensuring clean edges. If using plastic, a hobby knife or heated blade will prevent cracking. Reinforce the structure by adding side walls or a bottom layer for added strength, especially if the car will carry small weights like a battery or motor.
One practical tip is to use corrugated cardboard for its inherent rigidity, or layer thin cardboard sheets for added durability. For plastic, consider recycling containers like yogurt cups or packaging trays, which can be cut and reshaped. Secure joints with hot glue or strong adhesive tape, but avoid overloading with glue to keep the chassis lightweight. Test the frame’s stability by gently pressing on it; it should hold its shape without bending excessively.
Comparing cardboard and plastic reveals trade-offs. Cardboard is eco-friendly and easier to work with but less durable, especially in humid conditions. Plastic, while more resilient, requires careful cutting and may not be as environmentally friendly unless recycled. For a balance, combine both: use cardboard for the base and plastic for high-stress areas like wheel mounts. This hybrid approach maximizes strength while keeping the chassis light, a critical factor for ensuring the car’s electric components function efficiently.
In conclusion, building a chassis from lightweight materials like cardboard or plastic is a straightforward yet impactful step in creating an easy electric toy car. It’s a task that encourages creativity, problem-solving, and resourcefulness, making it ideal for educational projects or weekend hobbies. By focusing on simplicity and practicality, you’ll have a sturdy foundation ready for the next steps: adding wheels, motors, and electronics.
Powering Electric Fences: Can a Car Battery Be the Solution?
You may want to see also
Explore related products
Install Motor: Attach the motor to the chassis, ensuring proper alignment with the wheels
Attaching the motor to the chassis is a pivotal step in building your electric toy car, as it directly impacts performance and durability. Begin by selecting a motor that matches your car’s scale and desired speed—small DC motors rated between 3V to 6V are ideal for lightweight toy cars. Secure the motor to the chassis using a combination of screws and epoxy glue for added stability. Ensure the motor’s axle aligns perfectly with the drive wheels; even a slight misalignment can cause friction, reduce efficiency, or damage components over time. Use a ruler or caliper to measure and adjust the positioning before finalizing the attachment.
Proper alignment isn’t just about straight lines—it’s about functionality. The motor’s axle should sit at the same height as the wheel’s center, allowing for smooth rotation without binding. If your car uses gears, ensure the motor’s gear teeth mesh seamlessly with the drive gear. A common mistake is over-tightening screws, which can warp the chassis or damage the motor housing. Instead, tighten screws incrementally, checking alignment after each step. For added precision, mark alignment points on the chassis with a pencil before attaching the motor.
Consider the motor’s orientation relative to the car’s direction of travel. Most toy cars use a rear-mounted motor for rear-wheel drive, but some designs may benefit from a mid-mounted motor for better weight distribution. If your motor has a built-in gearbox, ensure it’s positioned to allow clearance for moving parts. Test the alignment by manually spinning the wheels—they should rotate freely without wobbling or rubbing against the chassis. If resistance is felt, recheck the motor’s position and adjust as needed.
For beginners, start with a simple design that uses a direct-drive system, where the motor’s axle connects directly to the wheels. Advanced builders might experiment with belt or chain drives, which require additional alignment steps but offer greater customization. Regardless of complexity, always double-check that the motor is securely fastened and aligned before proceeding to the next step. A well-installed motor not only ensures smooth operation but also extends the lifespan of your toy car, making it a cornerstone of your DIY project.
Stove Top vs. Electric Skillet: Which Saves More Energy?
You may want to see also
Explore related products
Wire Electronics: Connect the battery, motor, and switch to create a simple circuit
The heart of any electric toy car is its circuit, a pathway for electricity to flow and power the vehicle. This circuit, at its most basic, consists of three essential components: a battery, a motor, and a switch. Understanding how to connect these elements is crucial for bringing your toy car to life.
Connecting the Dots: A Step-by-Step Guide
Begin by gathering your materials: a small DC motor (commonly found in toy cars or available online), a 9V battery, a simple toggle switch, and insulated copper wire. Ensure the wire is thin enough to fit into the motor's terminals but thick enough to handle the current. Strip about half an inch of insulation from each end of the wire to expose the conductive copper.
Now, let's assemble the circuit. Connect one end of the wire to the positive terminal of the battery, and the other end to one terminal of the motor. Repeat this process with a new wire, connecting the negative battery terminal to the switch. From the switch, run another wire to the remaining motor terminal. This setup ensures that the circuit is complete only when the switch is turned on, allowing you to control the motor's operation.
The Science Behind the Spark
When you flip the switch, it acts as a gateway, allowing electrons to flow from the battery, through the wires, and into the motor. This flow of electrons, or electric current, is what powers the motor. The motor converts electrical energy into mechanical energy, causing it to spin and, in turn, propel your toy car forward. The beauty of this design lies in its simplicity; by controlling the flow of electricity, you control the car's movement.
Troubleshooting Tips
If your car doesn't zoom ahead as expected, don't fret. Check your connections; loose wires can disrupt the circuit. Ensure the battery is fresh and the motor is securely attached to the car's chassis. Sometimes, a simple adjustment can make all the difference. For added safety, especially for younger builders, consider using a lower voltage battery (e.g., 1.5V) and supervising the wiring process to prevent short circuits.
In essence, creating a simple circuit for your electric toy car is a straightforward process that teaches the fundamentals of electronics. With a few basic components and some careful wiring, you can bring your miniature vehicle to life, sparking curiosity and a deeper understanding of the power of electricity.
Unlocking Savings: Tax Credits for Electric Car Buyers Explained
You may want to see also
Explore related products
Test and Adjust: Check functionality, balance, and speed, making tweaks for optimal performance
Once your electric toy car is assembled, the real fun begins: testing and fine-tuning. Start by placing the car on a flat, smooth surface and powering it up. Observe how it moves—does it veer to one side, struggle to gain speed, or wobble unsteadily? These initial observations are critical for identifying areas that need adjustment. For instance, if the car pulls to the left, the wheels on that side might be misaligned or the motor could be exerting uneven force. Use a small screwdriver to adjust the wheel axles or reposition the motor slightly, ensuring symmetry in its placement.
Balance is just as crucial as functionality. A car that’s top-heavy or unevenly weighted will tip over easily, especially during turns. To test balance, gently tilt the car from side to side. If it feels unstable, redistribute the weight by moving the battery pack or motor closer to the center of the chassis. For younger builders (ages 8–12), adult supervision is recommended when handling tools or adjusting heavy components. Adding small weights, like coins taped to the underside, can also help achieve equilibrium without complicating the design.
Speed optimization requires a blend of mechanical and electrical tweaks. If the car moves too slowly, check the battery voltage—a 3V or 6V battery might need replacing if it’s below 80% capacity. For older enthusiasts (ages 13+), experimenting with gear ratios can yield significant improvements. Swap out the default gear set for one with a higher tooth count on the drive wheel, increasing torque and speed. However, be cautious: excessive speed can strain the motor, so limit gear adjustments to a 20–30% increase in tooth count.
Finally, iterative testing is key to achieving optimal performance. After each adjustment, run the car through a short course with straightaways and gentle curves. Time its laps and note improvements in stability and speed. For example, if the car’s balance improves but speed remains sluggish, focus on reducing friction by lubricating axles with a drop of lightweight machine oil. This methodical approach ensures that every tweak contributes meaningfully to the car’s overall performance, turning a simple toy into a finely tuned machine.
Split AC vs. Ceiling Fan: Which Consumes More Electricity?
You may want to see also
Frequently asked questions
You’ll need a small DC motor, a 9V battery, a battery connector, a switch, wheels (e.g., bottle caps or toy car wheels), a lightweight base (e.g., cardboard or foam board), and basic tools like a glue gun, scissors, and tape.
Attach the motor to the base and secure it with glue or tape. Then, connect a wheel directly to the motor’s shaft using a small screw or by drilling a hole in the wheel to fit snugly. Ensure the wheel spins freely when the motor runs.
Yes, you can use a rechargeable battery, such as a 3.7V lithium-ion battery, as long as it matches the voltage requirements of your motor. Just ensure you have a compatible charger and connector.
You can add a potentiometer (variable resistor) in the circuit to control the speed. Alternatively, use a pulse-width modulation (PWM) circuit if you want more precise control, though this requires basic electronics knowledge.
