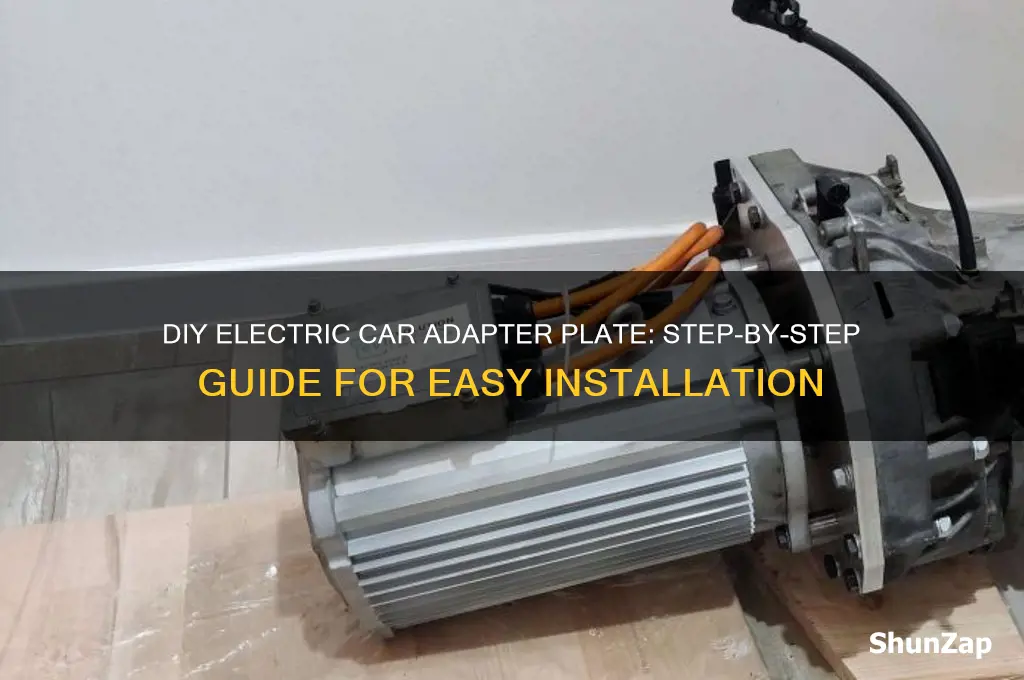

Creating an electric car adapter plate is a crucial step in converting a traditional internal combustion engine vehicle into an electric vehicle (EV). This process involves designing and fabricating a custom plate that securely mounts the electric motor to the vehicle’s existing transmission or drivetrain. The adapter plate must ensure proper alignment, torque transfer, and durability to handle the unique demands of electric propulsion. Key considerations include material selection, such as aluminum or steel, precise measurements for bolt patterns, and integration with the motor’s mounting points. Additionally, factors like weight distribution, cooling, and vibration damping must be addressed to optimize performance and longevity. Whether for a DIY project or professional conversion, crafting an adapter plate requires careful planning, machining expertise, and a thorough understanding of both the vehicle and electric motor specifications.
| Characteristics | Values |
|---|---|
| Purpose | To adapt an internal combustion engine (ICE) vehicle for electric motor installation. |
| Materials Needed | Aluminum or steel plate, CNC machine/plasma cutter, welding equipment, fasteners. |
| Design Considerations | Motor mounting holes, transmission alignment, weight distribution, cooling provisions. |
| Compatibility | Specific to motor/transmission type (e.g., Tesla, Nissan Leaf motors). |
| Thickness | Typically 1/4" to 3/8" (6-10 mm) depending on material and load. |
| Tools Required | CNC mill/lathe, drill press, angle grinder, measuring tools (calipers). |
| Cost Estimate | $200–$800 (materials + machining), varies by complexity. |
| Time Investment | 20–40 hours (design, fabrication, testing). |
| Safety Requirements | Welding PPE, eye protection, proper ventilation during cutting/welding. |
| Legal Compliance | Must meet local vehicle modification regulations (e.g., DOT, EU standards). |
| Testing | Load testing, vibration analysis, alignment checks with motor installed. |
| Common Challenges | Ensuring precise alignment, managing thermal expansion, weight balancing. |
| Advanced Features | Integrated cooling channels, lightweight alloys for reduced weight. |
| Documentation | CAD drawings, torque specs, assembly instructions for replication. |
| Maintenance | Periodic inspection for cracks, corrosion, or loose fasteners. |
| Sustainability | Reuse of ICE vehicle chassis reduces waste; recyclable materials preferred. |
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
![Lectron NACS to CCS Electric Vehicle Adapter with Interlock - (500A/1,000V) - Compatible with Tesla Superchargers - CCS1 EV Fast Charging with Vortex Plus [Check Automaker for Compatibility] - UL 2252](https://m.media-amazon.com/images/I/71W7FPT7hEL._AC_UL320_.jpg)
What You'll Learn
- Material Selection: Choose durable, lightweight materials like aluminum or steel for adapter plate construction
- Design Considerations: Ensure compatibility with motor, transmission, and vehicle frame dimensions
- Mounting Holes: Precision drilling for secure motor and transmission attachment to the plate
- Welding Techniques: Use TIG or MIG welding for strong, clean joints in the plate
- Testing & Fitment: Verify alignment, clearance, and stress points before final installation
Material Selection: Choose durable, lightweight materials like aluminum or steel for adapter plate construction
The choice of material for an electric car adapter plate is a critical decision that directly impacts performance, safety, and longevity. Aluminum and steel are the frontrunners due to their unique properties. Aluminum, known for its lightweight nature, reduces the overall weight of the vehicle, enhancing efficiency and range. Its corrosion resistance also ensures durability, especially in harsh weather conditions. Steel, on the other hand, offers superior strength and rigidity, making it ideal for applications where structural integrity is paramount. However, it’s heavier, which can offset some of the benefits of electric vehicle efficiency. Balancing these factors is key to selecting the right material for your adapter plate.
When constructing an adapter plate, consider the specific requirements of your electric vehicle conversion. For instance, if weight reduction is a primary concern, aluminum alloys like 6061-T6 or 7075 are excellent choices. These alloys provide a high strength-to-weight ratio, ensuring the plate can withstand engine loads without adding unnecessary mass. Steel, particularly stainless steel or mild steel, is better suited for high-torque applications or when the plate must bear significant stress. For DIY enthusiasts, aluminum is often easier to work with due to its machinability, while steel may require specialized tools for cutting and shaping. Always factor in the cost, as aluminum is generally more expensive than mild steel but may offer long-term savings through improved efficiency.
A comparative analysis reveals that the material selection should align with the adapter plate’s function and the vehicle’s design. For example, in a lightweight sports car conversion, aluminum’s weight advantage and thermal conductivity (useful for heat dissipation) make it the preferred choice. In contrast, a heavy-duty truck conversion might benefit from steel’s robustness, even if it means a slight increase in weight. Additionally, consider the environmental impact: aluminum is highly recyclable, while steel production is more energy-intensive. For those prioritizing sustainability, aluminum gains an edge, though both materials can be responsibly sourced and recycled.
Practical tips for material selection include assessing the adapter plate’s thickness and design. A plate that’s too thin may warp under stress, while one that’s too thick adds unnecessary weight. Aim for a thickness of 1/4 inch to 3/8 inch for aluminum and 1/8 inch to 1/4 inch for steel, depending on the application. Use CAD software to simulate stress points and optimize the design before fabrication. Always test the plate’s fitment and alignment before final installation to ensure compatibility with both the electric motor and the vehicle’s existing components. By carefully weighing these factors, you can create an adapter plate that maximizes performance while meeting your specific needs.
Do Electric Cars Retain Resale Value Over Time?
You may want to see also
Explore related products
![Lectron NACS to CCS Electric Vehicle Adapter - 500 Amps / 1,000V - Compatible with Tesla Superchargers - Fast Charge CCS1 EVs with Vortex Plug [Check with Your Automaker for Compatibility]](https://m.media-amazon.com/images/I/71XM02zCInL._AC_UL320_.jpg)
Design Considerations: Ensure compatibility with motor, transmission, and vehicle frame dimensions
The heart of any electric vehicle conversion lies in the seamless integration of the electric motor and transmission with the existing vehicle frame. This integration is achieved through a critical component: the adapter plate. Designing this plate demands meticulous attention to compatibility, ensuring a perfect marriage between the new electric powertrain and the vehicle's structural integrity.
Mismatched dimensions can lead to catastrophic failures, from misaligned drivetrains to compromised safety.
Motor Mounting: Begin by meticulously measuring the bolt pattern and flange dimensions of your chosen electric motor. Compare these measurements against the mounting points on your vehicle's existing transmission or engine block. Consider the motor's weight and torque output – heavier, high-torque motors may require additional reinforcement of the adapter plate or even modifications to the vehicle's subframe. Material selection is crucial; opt for high-strength steel or aluminum alloys capable of withstanding the stresses of propulsion.
Transmission Alignment: The adapter plate must precisely align the motor's output shaft with the transmission's input shaft. This requires careful consideration of shaft diameters, spline counts, and axial positioning. Even a slight misalignment can result in excessive wear, vibration, and potential damage to both components. Utilize precision machining techniques like CNC milling to achieve the necessary tolerances, ensuring a smooth and efficient power transfer.
Vehicle Frame Integration: The adapter plate must not only connect the motor and transmission but also integrate seamlessly with the vehicle's existing frame. This involves careful measurement of the engine bay dimensions, suspension mounting points, and any structural members that may interfere with the new powertrain. In some cases, minor modifications to the frame may be necessary to accommodate the electric motor's size or cooling requirements. Remember, safety is paramount – any alterations to the frame must maintain its structural integrity and comply with relevant safety regulations.
Practical Tips: Utilize CAD software to model the adapter plate design, allowing for virtual fitment checks and stress analysis before fabrication. Consider using shims or adjustable mounting points to fine-tune alignment during installation. Don't underestimate the importance of proper fastening – use high-strength bolts and torque specifications recommended by the motor and transmission manufacturers.
By meticulously addressing these compatibility considerations, you can design an adapter plate that forms the backbone of a successful electric vehicle conversion, ensuring a reliable, efficient, and safe driving experience.
Cuba's Power Sources: Exploring the Island's Electricity Generation and Use
You may want to see also
Explore related products
![[Only for J1772 EVs ] Lectron - Tesla to J1772 Charging Adapter, Max 48A & 250V - Compatible with Tesla High Powered Connectors, Destination Chargers, and Mobile Connectors (White)](https://m.media-amazon.com/images/I/51FaXCWrBWL._AC_UL320_.jpg)
Mounting Holes: Precision drilling for secure motor and transmission attachment to the plate
Precision drilling of mounting holes is the linchpin of a robust electric car adapter plate, ensuring the motor and transmission remain securely attached under the stresses of acceleration, braking, and road vibrations. Inadequate hole placement or misalignment can lead to component failure, compromised safety, and costly repairs. Begin by referencing the motor and transmission manufacturer’s specifications for bolt patterns, hole diameters, and torque requirements. Use a precision drill press with a digital readout to maintain accuracy within ±0.1 mm, as even minor deviations can result in uneven load distribution. For materials like aluminum or steel, select drill bits with a 135-degree split point to prevent walking and ensure clean entry. Always secure the plate in a vice with soft jaws to avoid marring the surface during drilling.
The choice of drilling technique depends on the plate’s material and thickness. For plates thicker than 10 mm, consider step drilling: start with a smaller diameter bit (e.g., 6 mm) to pilot the hole, then gradually increase to the final size (e.g., 12 mm) to reduce the risk of cracking or deformation. When working with hardened steel, use cutting fluid to dissipate heat and prolong bit life. For thinner plates (3–6 mm), a single-pass drilling approach suffices, but ensure the bit’s flutes are sharp to prevent burr formation. Always deburr holes post-drilling using a countersink bit or hand deburring tool to eliminate sharp edges that could damage gaskets or fasteners.
Alignment is as critical as precision. Use a center punch to mark hole locations after transferring measurements from the motor and transmission flanges. Double-check alignment by overlaying the components onto the plate before drilling. For complex setups, consider creating a paper or CAD template to visualize the bolt pattern and ensure symmetry. If the adapter plate requires multiple layers or spacers, drill through all components simultaneously while clamped together to guarantee concentricity. Misaligned holes, even by fractions of a millimeter, can introduce stress concentrations that lead to premature fatigue.
Post-drilling, inspect each hole with a dial indicator to verify dimensional accuracy and parallelism. For critical applications, apply a corrosion-resistant coating (e.g., zinc plating or powder coating) to the plate, ensuring the coating thickness does not interfere with bolt fitment. Torque fasteners to the manufacturer’s specifications using a calibrated torque wrench, and consider adding threadlocker (e.g., Loctite 243) to prevent loosening under vibration. Periodically inspect the mounting hardware for signs of wear or movement, especially during the first 1,000 miles of operation, as this is when most settling occurs.
While precision drilling demands time and attention to detail, the payoff is a reliable, long-lasting adapter plate that forms the backbone of your electric vehicle conversion. Skimping on this step risks not only mechanical failure but also voiding warranties on expensive components like the motor or transmission. Treat this process as a blend of art and science: measure twice, drill once, and prioritize accuracy over speed. With proper execution, your mounting holes will ensure a seamless integration of electric drivetrain components, setting the stage for a smooth, efficient, and safe driving experience.
Electric Cars: Rising Adoption Trends and Future Prospects
You may want to see also
Explore related products
![Raylix Tesla to J1772 Adapter (Max 80A, 250V) [for J1772 Electric Vehicles] Tesla Charger Adapter, NACS to J1772 Adapter Compatible with Tesla Wall Connector Destination Mobile Charger](https://m.media-amazon.com/images/I/71EyvZrZRiL._AC_UL320_.jpg)
Welding Techniques: Use TIG or MIG welding for strong, clean joints in the plate
TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding are the go-to methods for creating robust, clean joints in an electric car adapter plate. TIG welding, known for its precision, uses a non-consumable tungsten electrode and a separate filler rod, making it ideal for thin materials and intricate designs. MIG welding, on the other hand, employs a continuous wire feed and is faster, better suited for thicker materials and larger projects. Both techniques ensure strong, durable connections critical for the structural integrity of the adapter plate.
When choosing between TIG and MIG, consider the material thickness and the desired finish. For aluminum adapter plates, TIG welding is often preferred due to its ability to produce clean, spatter-free welds. MIG welding, while faster, may require additional cleanup and is typically used for steel plates. Ensure the base metal is clean and free of contaminants to achieve optimal adhesion. Preheat the material if necessary, especially for thicker sections, to reduce the risk of warping or cracking during the welding process.
Mastering the technique is key to success. For TIG welding, maintain a consistent arc length and travel speed, using a push or pull technique depending on the material. MIG welding requires proper wire feed tension and gas flow to prevent porosity or underpenetration. Practice on scrap material to fine-tune settings such as amperage, voltage, and shielding gas mixture. A steady hand and controlled movement will result in professional-grade welds that meet the demands of an electric car adapter plate.
Safety should never be overlooked. Wear appropriate personal protective equipment (PPE), including welding gloves, a helmet with auto-darkening lens, and flame-resistant clothing. Ensure proper ventilation to avoid inhaling fumes, especially when working with galvanized or coated materials. Regularly inspect your welding equipment for wear and tear, and follow manufacturer guidelines for maintenance. Adhering to safety protocols not only protects you but also ensures consistent, high-quality welds.
In conclusion, whether you opt for TIG or MIG welding, the goal is to achieve strong, clean joints that withstand the rigors of an electric vehicle’s drivetrain. Each technique has its strengths, and the choice depends on the specific requirements of your adapter plate project. With careful preparation, precise execution, and a focus on safety, you can create a durable and reliable adapter plate that seamlessly integrates into your electric car conversion.
Cruise Ship Electrical Plugs: What Type to Pack for Your Voyage
You may want to see also
Explore related products
![Adapter for Tesla to J1772 EV Charger [Only to J1772], Converter Up to 60Amp 250V AC with Press-Safety-Lock, Compatible with Tesla High-Powered Connectors, Destination/Mobile Chargers,White](https://m.media-amazon.com/images/I/61L3xBoG+lL._AC_UL320_.jpg)
Testing & Fitment: Verify alignment, clearance, and stress points before final installation
Before finalizing the installation of your electric car adapter plate, meticulous testing and fitment verification are crucial to ensure safety, performance, and longevity. Begin by dry-fitting the plate without fasteners to assess alignment with both the motor and transmission mounts. Use a straightedge or laser alignment tool to confirm that the plate sits flush and parallel to the mounting surfaces, avoiding any tilt or skew that could introduce unnecessary stress. Even a minor misalignment can lead to vibration, premature wear, or component failure under load.
Clearance checks are equally vital to prevent interference with surrounding components. Rotate the motor by hand or use a low-power test setup to simulate movement, observing gaps between the adapter plate, drivetrain, and chassis. Pay special attention to areas near exhaust systems (if applicable), brake lines, and suspension components, ensuring at least 1 inch of clearance to account for thermal expansion and dynamic movement. Use calipers or a feeler gauge to measure tight spaces, and mark any potential contact points for modification if necessary.
Stress points are the Achilles’ heel of any adapter plate design, often revealing themselves during load testing. Apply incremental torque to the system using a torque wrench, starting at 50% of the motor’s rated output and increasing in 10% steps while monitoring for deflection, cracking, or deformation. Focus on weld joints, bolt holes, and areas of material thinning, as these are prone to fatigue. If using a custom plate, consider investing in finite element analysis (FEA) software or consulting an engineer to predict stress distribution before physical testing.
Practical tips can streamline this process: coat mating surfaces with a thin layer of chalk or machinist’s dye to highlight contact areas during dry-fitting, and use a dial indicator to quantify alignment deviations within ±0.005 inches. For clearance checks, create a 3D-printed or cardboard mockup of the adapter plate to test fitment without risking damage to the final component. Finally, document all findings with photos and measurements, adjusting the design iteratively until all criteria are met. This methodical approach ensures the adapter plate not only fits but performs reliably under real-world conditions.
Powering Electric Cars with Solar Energy: Is It Possible?
You may want to see also
Frequently asked questions
An electric car adapter plate is a custom-made component used to mount an electric motor or other components to an existing vehicle's transmission or drivetrain. It is needed to ensure proper alignment, fitment, and functionality when converting a traditional internal combustion engine (ICE) vehicle to electric power.
The best materials for an adapter plate are aluminum or steel. Aluminum is lightweight and corrosion-resistant, making it ideal for most applications, while steel offers greater strength and durability for heavier setups.
Measure the bolt patterns and dimensions of both the electric motor and the transmission or drivetrain. Use CAD software to design the plate, ensuring proper alignment and clearance. Include mounting holes for both components and consider adding reinforcement for added strength.
Essential tools include a drill press, angle grinder, welder (if using steel), measuring tools (calipers, ruler), and a plasma cutter or metal saw for cutting the material. CAD software and a CNC machine can streamline the process for precision.
Yes, ensure the plate is securely fastened and properly aligned to prevent drivetrain failure. Use high-quality bolts and torque them to the manufacturer's specifications. Test the setup thoroughly before driving to ensure stability and safety.
![TSL Supercharger Adapter, NACS to CCS Adapter, [Max 500A, 1000V] for Ford, Rivian, Cadillac, Polestar GM& More, NACS to CCS1 Charger Adapters is Compatible with V3 and V4 Tesla Superchargers Station](https://m.media-amazon.com/images/I/61MDDalfHUL._AC_UL320_.jpg)
![400W Power Inverter, FSATBTNE DC 12V to 110V AC Car Plug Adapter Outlet Converter with [65W PD USB-C] & [18W QC USB-A] Fast Charging Ports and 2 AC Outlets Car Power Inverters for Vehicles](https://m.media-amazon.com/images/I/71obrX4Rn8L._AC_UL320_.jpg)
