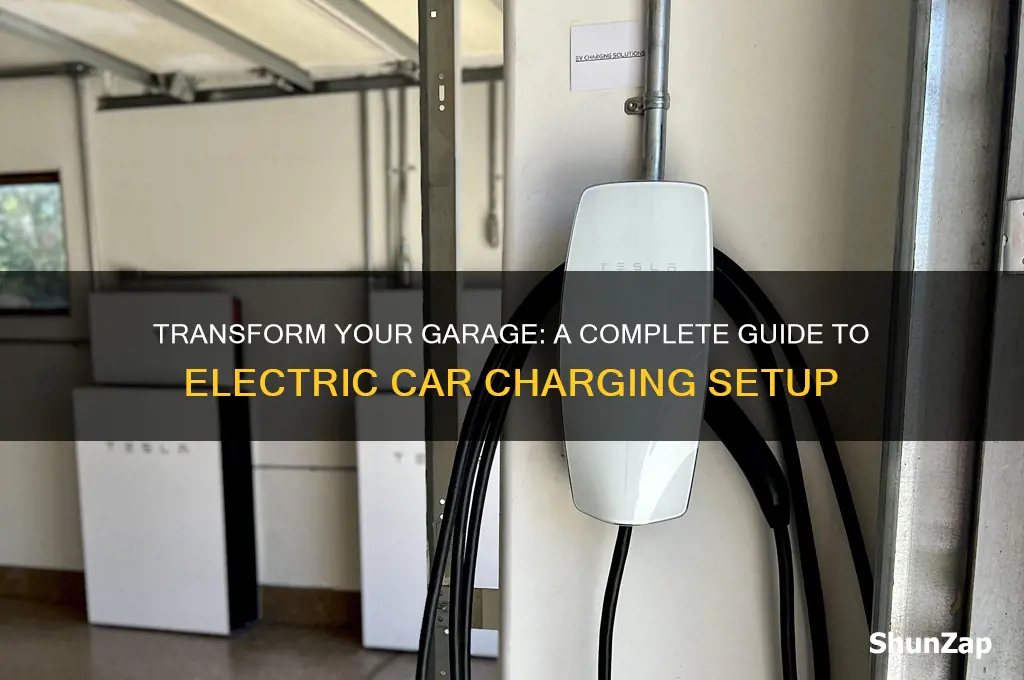

Transforming your garage into a charging station for your electric vehicle (EV) is a practical and eco-friendly upgrade that enhances your EV ownership experience. To begin, assess your garage’s electrical capacity to ensure it can handle the additional load of an EV charger. Next, choose the right charging level—Level 1 for basic overnight charging or Level 2 for faster, more efficient charging—and select a compatible charging unit. Installation typically requires hiring a licensed electrician to set up a dedicated circuit and mount the charger securely. Additionally, consider smart features like Wi-Fi connectivity or scheduling to optimize charging times and reduce energy costs. With proper planning and setup, your garage can become a convenient and reliable hub for keeping your electric car powered up and ready to go.
Explore related products
What You'll Learn
- Charging Station Types: Compare Level 1, Level 2, and DC fast chargers for home use
- Electrical Requirements: Assess amperage, voltage, and circuit breaker needs for safe installation
- Permits & Regulations: Check local codes and obtain necessary permits for charger setup
- Installation Steps: Guide to mounting, wiring, and connecting the charging station properly
- Maintenance Tips: Ensure longevity with regular checks, cleaning, and software updates
Charging Station Types: Compare Level 1, Level 2, and DC fast chargers for home use
Electric vehicle (EV) owners often face a critical decision when setting up their home charging infrastructure: choosing the right charging station type. The three primary options—Level 1, Level 2, and DC fast chargers—each offer distinct advantages and limitations. Understanding these differences ensures you select the best fit for your lifestyle, vehicle, and garage setup.
Level 1 chargers are the simplest and most accessible option, requiring nothing more than a standard 120-volt household outlet. They deliver approximately 2–5 miles of range per hour of charging, making them ideal for drivers with short daily commutes or those who can charge overnight. For example, a Nissan Leaf with a 40-kWh battery would take around 20–40 hours to fully charge using a Level 1 charger. While this option is cost-effective—often free if your garage already has an outlet—it’s best suited for plug-in hybrids or EVs used sparingly. A practical tip: pair Level 1 charging with off-peak electricity rates to maximize savings.
Level 2 chargers, on the other hand, require a 240-volt outlet, similar to what powers a dryer or oven. They provide 12–80 miles of range per hour, significantly faster than Level 1. For instance, the same Nissan Leaf would charge in 6–8 hours with a Level 2 setup. This option is ideal for daily drivers or those with larger batteries, like a Tesla Model 3. Installation costs range from $500 to $2,000, depending on electrical upgrades needed. A caution: ensure your home’s electrical panel can handle the additional load before installing a Level 2 charger.
DC fast chargers, while commonly found in public stations, are rarely installed in homes due to their high cost and specialized electrical requirements. These chargers can deliver up to 100 miles of range in 20–30 minutes but demand a 480-volt connection and cost upwards of $10,000 to install. Unless you own a luxury EV with DC fast-charging capability and have a substantial budget, this option is impractical for home use. However, it’s worth noting that some EVs, like the Porsche Taycan, are optimized for rapid charging, making DC fast chargers a future-proof investment for high-end setups.
In conclusion, the choice between Level 1, Level 2, and DC fast chargers hinges on your driving habits, vehicle specifications, and budget. Level 1 is budget-friendly but slow, Level 2 strikes a balance between speed and cost, and DC fast chargers are overkill for most home garages. Assess your needs carefully to transform your garage into an efficient EV charging hub.
Electric Cars and EMF: Uncovering Potential RF Radiation Risks
You may want to see also
Explore related products
Electrical Requirements: Assess amperage, voltage, and circuit breaker needs for safe installation
Before installing an electric vehicle (EV) charger in your garage, understanding your electrical system’s capacity is critical. Most home EV chargers operate on 240 volts, similar to a dryer or stove, but the amperage (current) they draw varies widely. Level 2 chargers, the most common for home use, typically require 30 to 50 amps, delivering 7.2 to 11 kW of power. This means your electrical panel must support the additional load without overloading circuits. Start by checking your panel’s available capacity and consulting an electrician to ensure compatibility.
Amperage is the lifeblood of your EV charger, dictating how quickly your vehicle charges. A 30-amp charger adds about 25 miles of range per hour, while a 50-amp unit doubles that to 50 miles per hour. However, higher amperage demands more from your electrical system. For instance, a 50-amp circuit requires 10-gauge wiring and a dedicated double-pole 50-amp breaker. If your panel doesn’t have the capacity, upgrading it might be necessary, costing $1,000 to $3,000 on average. Always prioritize safety—overloading circuits can lead to overheating, fires, or damage to your EV.
Voltage consistency is equally important for safe and efficient charging. Most residential homes in the U.S. have 240-volt service, but voltage drops can occur if the wiring is outdated or improperly sized. A voltage drop of more than 5% (below 228 volts) can reduce charging efficiency or trigger error codes on your charger. To prevent this, ensure your wiring is correctly sized and installed by a licensed electrician. Additionally, some chargers come with built-in voltage monitors to alert you to potential issues.
Circuit breakers act as the last line of defense against electrical overloads. A dedicated circuit is essential for EV chargers to prevent tripping breakers or competing with other high-draw appliances. For example, a 40-amp charger requires a 50-amp breaker to account for the 80% load rule, which ensures the circuit isn’t constantly maxed out. If your panel is outdated or lacks space for a new breaker, consider a subpanel installation. While this adds to the cost, it’s a long-term solution that future-proofs your home for additional electrical demands.
Finally, consider your EV’s charging needs and future-proofing your setup. If you plan to upgrade to a faster-charging vehicle or add a second EV, opt for a higher-amperage charger and electrical infrastructure now. For instance, installing a 50-amp circuit instead of a 30-amp one provides flexibility and avoids costly upgrades later. Pair this with a smart charger that allows load balancing, ensuring your home’s electrical system can handle multiple high-draw devices simultaneously. By carefully assessing amperage, voltage, and circuit breaker requirements, you’ll create a safe, efficient, and scalable charging solution for your garage.
Are Rivian Electric Cars the Future of Sustainable Transportation?
You may want to see also
Explore related products
Permits & Regulations: Check local codes and obtain necessary permits for charger setup
Before installing an electric vehicle (EV) charger in your garage, familiarize yourself with local building codes and permitting requirements. These regulations vary by municipality and can dictate everything from the type of charger you install to the electrical upgrades needed. Ignoring these rules may result in fines, forced removal of the charger, or complications when selling your home. Start by contacting your local building department or visiting their website to access relevant codes and permit applications.
The permitting process typically involves submitting detailed plans of your charger setup, including the charger model, electrical specifications, and wiring diagrams. Some areas require inspections at various stages—such as before and after installation—to ensure compliance with safety standards. For instance, a Level 2 charger, which operates at 240 volts, often necessitates a dedicated circuit and may trigger requirements for grounding, conduit sizing, or overcurrent protection. Be prepared to provide documentation from a licensed electrician if your project involves significant electrical work.
Costs associated with permits can range from $50 to $500, depending on your location and the complexity of the installation. While this might seem like an unnecessary expense, it’s a small price to pay for avoiding legal issues and ensuring your setup is safe and up to code. Some regions also offer incentives or rebates for EV charger installations, which may offset permit fees. Research local programs or consult with your utility provider to explore potential savings.
A common oversight is assuming that a simple plug-in charger (Level 1) doesn’t require permits. While Level 1 chargers use a standard 120-volt outlet, certain jurisdictions still mandate permits for dedicated circuits or outlet installations. Always verify requirements rather than making assumptions. Similarly, if your garage is attached to a historic home or located in a homeowners’ association (HOA), additional approvals may be necessary to maintain architectural or community standards.
Finally, consider hiring a professional to navigate the permitting process on your behalf. Electricians experienced in EV charger installations often have established relationships with local inspectors and can expedite approvals. They can also identify potential code issues early, saving time and money. While DIY installations might seem cost-effective, the risk of non-compliance makes professional assistance a worthwhile investment for peace of mind.
Electric Vehicles: A Profitable Future?
You may want to see also
Explore related products
Installation Steps: Guide to mounting, wiring, and connecting the charging station properly
Mounting your electric vehicle (EV) charging station begins with selecting the optimal location. Position it near your parking spot, ensuring easy access to your vehicle’s charging port while avoiding high-traffic areas to minimize tripping hazards. Use a stud finder to locate wall studs for secure mounting, as the charger’s weight requires sturdy support. Mark the height according to your vehicle’s port level, typically 4 to 5 feet above the ground. Drill pilot holes and attach the mounting bracket using stainless steel screws or bolts rated for the charger’s weight. Double-check alignment with a level to ensure stability and aesthetic appeal.
Wiring the charging station demands precision and adherence to safety standards. Start by turning off power at the main panel to avoid electrical hazards. Run a dedicated 240-volt circuit with a minimum of 40-amp capacity, using 8-gauge stranded copper wire for most Level 2 chargers. Conduit installation is recommended to protect wires from damage and comply with local codes. Connect the wiring to the charger’s terminal block, matching colors (black to hot, white to neutral, green or bare to ground). Use wire strippers to expose ½ inch of wire and torque screwdriver to tighten connections securely. Label the circuit breaker clearly to prevent accidental disconnection.
Connecting the charging station involves integrating it with your home’s electrical system and testing for functionality. Once wired, restore power at the main panel and verify voltage at the charger using a multimeter. Follow the manufacturer’s instructions to pair the charger with your home Wi-Fi, if applicable, for smart monitoring features. Plug in your EV and confirm the charger initializes correctly, displaying charging status on its interface. Test the ground fault circuit interrupter (GFCI) by pressing the test button to ensure it trips power as a safety measure.
Throughout installation, prioritize safety and compliance. Wear insulated gloves and safety goggles during wiring to prevent shocks or injuries. Consult a licensed electrician if you’re unsure about any step, especially when dealing with high-voltage circuits. Obtain necessary permits and schedule inspections to ensure your setup meets local regulations. Regularly inspect the charger for wear, loose connections, or damage, and replace components as needed. Proper installation not only ensures efficient charging but also safeguards your home and vehicle from electrical hazards.
San Angelo's Electric Car Charging Stations: Availability and Locations
You may want to see also
Explore related products
Maintenance Tips: Ensure longevity with regular checks, cleaning, and software updates
Regular maintenance is the unsung hero of electric vehicle (EV) ownership, particularly when it comes to home charging. Neglecting your charging setup can lead to inefficiencies, safety hazards, and premature wear. Start with a monthly visual inspection of your charging station. Look for frayed cables, loose connections, or signs of corrosion on the plug and socket. Ensure the unit is securely mounted and that there’s no debris obstructing airflow around the charger. For wall-mounted units, check that the bracket hasn’t shifted or weakened over time. If you notice any damage, discontinue use immediately and consult a certified electrician.
Cleaning your charging equipment is as critical as inspecting it. Dust, dirt, and moisture can accumulate on the charging port and connector, leading to poor contact or even electrical faults. Use a soft, dry cloth to wipe down the charging port on your vehicle weekly, especially after driving in wet or muddy conditions. For the charging connector, avoid harsh chemicals or water; instead, use a compressed air canister to remove debris and a microfiber cloth to gently clean the contacts. Keep the area around your charging station tidy to minimize the risk of accidental damage or tripping hazards.
Software updates are often overlooked but play a vital role in maintaining charging efficiency and safety. Most modern EV chargers have firmware that can be updated to improve performance, fix bugs, or add new features. Check your charger’s manual or manufacturer’s website for update instructions, typically involving a smartphone app or a computer connection. Aim to update your charger’s software at least twice a year or whenever a new version is released. Similarly, ensure your EV’s onboard software is up to date, as this can affect charging speed and compatibility with your home setup.
Finally, consider seasonal maintenance to adapt to environmental changes. In winter, inspect your charging cable for stiffness or cracking caused by cold temperatures, and store it indoors if possible. In summer, ensure your charger isn’t exposed to direct sunlight for prolonged periods, as overheating can degrade its components. If your garage is prone to humidity, invest in a dehumidifier to prevent moisture buildup, which can corrode electrical components. By tailoring your maintenance routine to the seasons, you’ll maximize the lifespan of your charging equipment and keep it running smoothly year-round.
Electricity Sources in Dryer Friction: Uncovering the Power Behind the Heat
You may want to see also
Frequently asked questions
You’ll need a dedicated electric vehicle supply equipment (EVSE) or charging station, a compatible electrical outlet (Level 1 or Level 2), and possibly an upgraded electrical panel to handle the additional load.
Yes, you can use a standard 120V outlet (Level 1 charging), but it’s slow, providing about 2-5 miles of range per hour. For faster charging, consider installing a 240V outlet (Level 2), which provides 12-80 miles of range per hour.
Costs vary depending on your electrical setup, but typically range from $500 to $2,000. This includes the charger, installation, and any necessary electrical upgrades.
Requirements vary by location, but many areas require a permit for electrical upgrades or installations. Check with your local building department or hire a licensed electrician who can handle the permitting process.
