Beatrice Lang

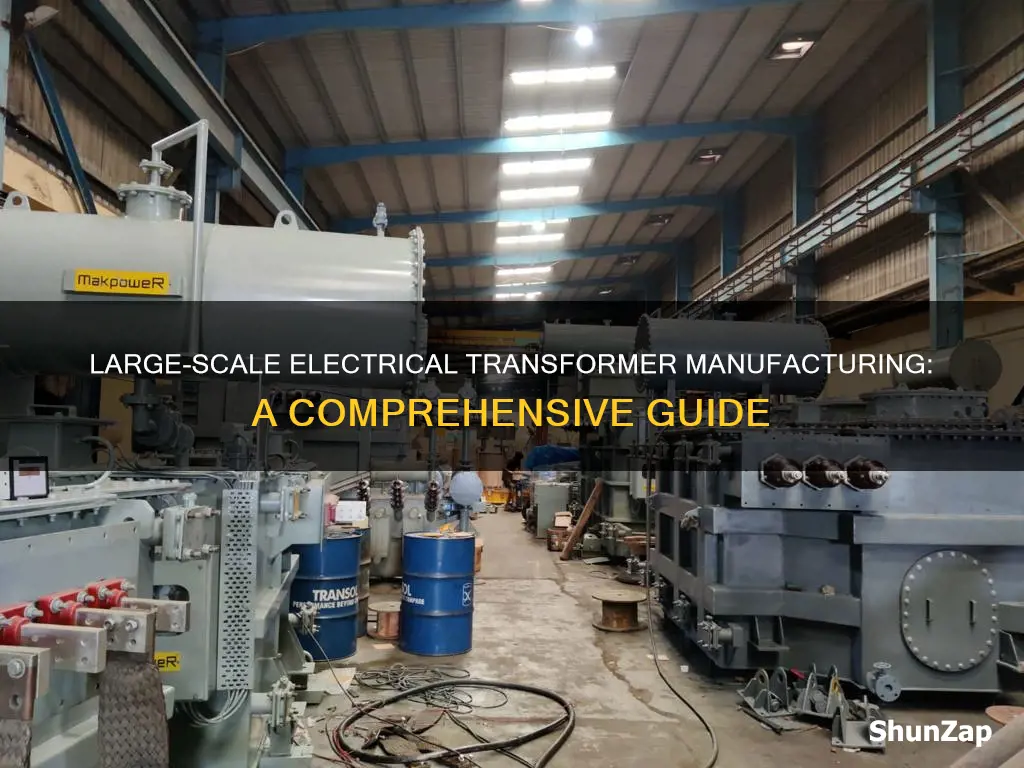

Electric transformers are essential components in modern power systems, enabling the efficient distribution of electricity by converting high-voltage electricity into lower-voltage electricity suitable for everyday use. The manufacturing process for large-scale electrical transformers is a complex and meticulous one, requiring precise execution to ensure the reliability, performance, and safety of the final product. From the initial design stage, where engineers carefully consider customer requirements and technical parameters, to the assembly and welding processes, skilled workers are needed to ensure secure and reliable connections. This article will explore the key steps involved in manufacturing large-scale electrical transformers, including the materials used, assembly techniques, and rigorous testing procedures, to provide insight into the complex process behind these fundamental components of modern electrical infrastructure.
| Characteristics | Values |
|---|---|
| Core | Metal structure made of iron or steel |
| Core shape | Square-shaped, toroidal-shaped, E-shaped, solid-cored, air-cored, steel-laminate-cored |
| Coil | Copper wires wound onto the assembled iron core |
| Coil insulation | Epoxy-coated insulation paper |
| Coil test | "Turn Test" |
| Coil voltage | Low voltage |
| Winding | Critical component of transformer construction |
| Winding insulation | Varnish |
| Winding test | Winding resistance measurement |
| Tank | Made of high-quality steel |
| Tank cleaning | Seven-tank phosphate cleaning process |
| Tank painting | Hot oil-resistant paint |
| Oil | Pure filtered transformer oil |
| Oil temperature protection | Dry-type transformers trip at 130°C, oil-immersed at 90°C |
| Safety | Anti-vibration pads, no accidental short circuits |
Explore related products
![Yinleader 500W Voltage Transformer Power Converter(110V to 220V, 220V to 110V) Step Up/Down Converter 110/120 Volt - 220/240 Volt w/US Power Cord [300W Continuous Power]](https://m.media-amazon.com/images/I/71BQTWHW6LL._AC_UY218_.jpg)
What You'll Learn
Design and planning
The design and planning stage of manufacturing large-scale electrical transformers is a critical phase that involves multiple meticulous steps. Firstly, engineers must carefully consider specific customer requirements and technical parameters. This includes crucial factors such as the rated load, input and output voltage levels, and insulation requirements. Advanced simulations and calculations are then conducted to validate the design's feasibility and efficiency. This stage is essential to ensure the transformer's reliability, performance, and safety.
The next step involves the preparation of comprehensive technical documents and drawings, which will provide detailed guidance for the subsequent manufacturing stages. This stage ensures that all the necessary materials are meticulously prepared and ready for the construction process. The design specifications outlined in these documents will dictate the precise execution of the building process, so attention to detail is paramount.
The core of the transformer, a metal structure usually made of iron or steel, can be designed in various configurations, including square-shaped, toroidal-shaped, E-shaped, solid-cored, air-cored, or steel-laminate-cored. The choice of configuration depends on the specific application and the desired properties, such as minimizing losses or achieving high efficiency in high-frequency applications.
Additionally, during the design and planning stage, it is vital to consider the cooling requirements of the transformer. This includes determining the necessary clearances to facilitate cooling and specifying the type and volume of transformer oil required. The selection of the appropriate oil type is critical for the transformer's performance and lifespan, as certain oils perform better in cold climates, while others offer superior thermal protection.
Furthermore, the design and planning stage should also address the welding and assembly processes. This includes specifying the weld testing requirements to ensure leakproof seams and mechanical strength. The assembly process should be meticulously planned, outlining the sequence of component installation, including essential elements such as cooling systems and oil tanks.
Testing an Electric Breaker: A Step-by-Step Guide
You may want to see also
Explore related products
Coil creation
The number of windings is calculated based on specific customer requirements and technical parameters, such as rated load and input/output voltage levels. Advanced simulations and calculations are conducted to validate the feasibility and efficiency of the design. It is critical that each winding is tight and well-wound to ensure optimal performance and longevity of the transformer system.
During the coil creation process, skilled workers must continually hand-check the windings and maintain the required clearances to facilitate cooling. Every step of the process should be inspected by an experienced technician to ensure quality and minimise material waste.
Once the coil winding is complete, the core assembly is placed vertically with the footplate touching the ground and the top yoke removed. The limbs of the core are then wrapped tightly with cotton tape and varnished. A cylinder made of insulating pressboard or press pan paper is wrapped around all three limbs, and a low-voltage coil is placed on the insulated core limbs. Insulating blocks of specified thickness and number are placed at the top and bottom of the L.V. coil.
Androids' Electric Sheep Dreams: The Apartment Complex Conundrum
You may want to see also
Explore related products
Core assembly
The core of the transformer is a metal structure that is wrapped in coils of insulated wire, allowing magnetic flux to flow. Typically, the core is made from iron or steel and can be shaped in a number of ways, including square, toroidal, E-shaped, solid-cored, air-cored, or steel-laminate-cored.
The core assembly is placed vertically with the footplate touching the ground and the top yoke removed. The limbs of the core are then wrapped with cotton tape and varnished. A cylinder made of insulating pressboard or press pan paper is then wrapped around all three limbs.
The next step is to wind the copper wires onto the assembled core. Each winding layer is insulated with epoxy-coated paper to prevent electrical contact and ensure insulation integrity. This process is critical to maintaining quality, efficiency, and minimal energy loss.
After the core and winding components are complete, the transformer undergoes a rigorous assembly process. Workers assemble all components according to design specifications, ensuring secure and reliable connections without any potential for leakage or short circuits.
Electric Buildings: New Laws Passed?
You may want to see also
Explore related products
Welding and assembly
Assembly of Core and Winding Components:
Before welding, the core and winding assembly must be prepared. The core, typically made of iron or steel, is wrapped with coils of insulated wire. Each winding layer is carefully insulated with epoxy-coated paper to prevent electrical contact and ensure insulation integrity. Skilled workers assemble these components according to design specifications, ensuring no potential for leakage or short circuits.
Installation of Essential Components:
Concurrently with the core and winding assembly, essential components such as cooling systems and oil tanks are installed. Transformers require precise temperature protection, so cooling systems are crucial. Oil tanks are also essential, as transformer oil ensures reliable performance and prolongs equipment lifespan. Pure filtered transformer oil is filled to immerse the assembly, and connections to terminal bushings are made.
Welding Process:
The welding process for large-scale electrical transformers must be executed with precision. All welds are tested to ensure they are 100% leakproof and mechanically strong. The transformer tanks, made of high-quality steel, undergo a rigorous welding procedure to meet international standards and customer specifications. The tanks are then cleaned using a multi-stage process, including grinding and a phosphate cleaning process, to prepare the surfaces for painting.
Final Assembly and Testing:
After welding and assembly, the transformer undergoes final assembly, where core-coil assemblies are placed into the tanks and locked securely. Fittings such as drain valves, bushings, conservators, oil level indicators, and explosion vents are fitted. Following this, rigorous testing is conducted, including insulation resistance tests, to guarantee operational safety and reliability. The transformer is then ready for shipping, ensuring it aligns with the customer's space and electrical connection requirements.
Electric Fences: Are They Legal?
You may want to see also
Explore related products
Testing and debugging
Testing Procedures:
- Winding Resistance Test: This test focuses on evaluating the resistance in the windings of the transformer. It helps identify any defects or irregularities in the windings, ensuring they meet the required standards.
- Insulation Resistance (Megger) Test: While not a pass/fail criterion for new transformers, this test assesses the quality of insulation. It measures the insulation's resistive capability between windings and the core ground, usually in megohms. This test is performed by applying a specified DC voltage through the transformer's conductors.
- Impedance Test: This test measures the losses in the transformer, including watts or power lost or wasted during operation. It takes into account the construction quality and the materials used in the transformer's coil assembly.
- Impulse Testing: Newly manufactured transformers undergo impulse testing to evaluate their ability to withstand large voltage surges, a common occurrence in electrical systems due to lightning or switch operations.
- Leak Tests: Leak tests are conducted to identify any potential leaks in the transformer, ensuring that it is sealed properly and there are no escape points for fluids or gases.
- Transformer Turns Ratio Test: This test determines the ratio of the number of turns of wire on the primary winding to the number of turns on the secondary winding. It helps verify the transformer's ability to step up or step down voltage accordingly.
Debugging and Quality Assurance:
- During the manufacturing process, hand-building the transformer ensures better quality. Automated manufacturing can lead to build quality issues, compromising efficiency and longevity.
- Hand-building allows for uniform tightness and proper winding of the transformer coils.
- Experienced technicians inspect each step of the process, ensuring that windings and stack assemblies are properly hand-checked.
- Anti-vibration pads are installed to minimize noise and vibration during operation.
- Before shipping, manufacturers confirm that the transformer fits the intended space and aligns with existing electrical connections, avoiding the need for custom workarounds.
- Safety is a priority, and techniques such as using electrical tape to prevent accidental short circuits are employed.
