Measuring electric current using a multimeter is a fundamental skill in electrical testing and troubleshooting. A multimeter, a versatile tool capable of measuring voltage, current, and resistance, allows users to accurately determine the flow of electric charge in a circuit. To measure current, the multimeter must be connected in series with the circuit, ensuring all the current passes through the device. Before beginning, it is crucial to select the appropriate current range on the multimeter to avoid damaging the device or obtaining inaccurate readings. By following proper safety precautions and understanding the multimeter’s settings, users can effectively measure electric current, diagnose circuit issues, and ensure the safe operation of electrical systems.
| Characteristics | Values |
|---|---|
| Multimeter Type | Digital or Analog Multimeter |
| Measurement Range | Typically 200 μA to 10 A (varies by model) |
| Connection Method | In-series with the circuit (connect multimeter in the path of current flow) |
| Probe Placement | Red probe to positive terminal, black probe to negative terminal |
| Safety Precautions | Ensure power is off before connecting, use appropriate fuse for high current |
| DC Current Measurement | Select DC current (A--) range on multimeter |
| AC Current Measurement | Select AC current (A~) range on multimeter |
| Auto-Ranging vs. Manual Ranging | Auto-ranging adjusts automatically; manual ranging requires user selection |
| Overload Protection | Built-in fuse to prevent damage from excessive current |
| Accuracy | Typically ±(0.5% to 2% of reading + 3 to 10 digits) |
| Display Resolution | Depends on model (e.g., 0.001 A to 1 A) |
| Measurement Time | Instantaneous reading after stable connection |
| Battery Requirement | Powered by internal battery (typically 9V) |
| Environmental Conditions | Operate within specified temperature and humidity ranges (e.g., 0°C to 40°C) |
| Calibration | Periodic calibration recommended for accuracy |
| Common Mistakes | Incorrect range selection, improper probe connection, blown fuse |
Explore related products
What You'll Learn
- Select Correct Multimeter Range: Choose appropriate current range to prevent damage and ensure accurate readings
- Set Multimeter to Current Mode: Rotate dial to AC or DC current symbol for precise measurement
- Connect Multimeter in Series: Break the circuit and insert multimeter in line with the current flow
- Read Multimeter Display: Observe the screen for current value, ensuring units match (mA, A)
- Safety Precautions: Avoid high-voltage circuits, wear protective gear, and ensure proper insulation
Select Correct Multimeter Range: Choose appropriate current range to prevent damage and ensure accurate readings
Selecting the correct multimeter range is a critical step in measuring electric current accurately and safely. Multimeters are designed with multiple ranges to accommodate various levels of current, from microamps (μA) to amps (A). Choosing the wrong range can lead to inaccurate readings or, worse, damage to the multimeter or the circuit being tested. For instance, if you set the range too low for the actual current flowing, the multimeter’s fuse may blow, rendering it inoperable until replaced. Conversely, setting the range too high can result in a lack of precision, as the needle or digital display may barely move, making it difficult to obtain a meaningful measurement.
To select the appropriate range, start by estimating the expected current in the circuit. If you’re working with a small electronic device, such as a smartphone charger, the current is likely in the milliamp (mA) range. For larger appliances like a hairdryer or power tools, the current could be several amps. If you’re unsure, begin with the highest current range on your multimeter and work your way down. This approach ensures you avoid overloading the meter. For example, if your multimeter has ranges of 200 μA, 20 mA, 200 mA, 10 A, and 20 A, start with the 20 A range for high-power devices and switch to lower ranges as needed.
One practical tip is to observe the multimeter’s behavior as you adjust the range. If the needle deflects fully or the digital display shows an overload indicator (often "OL"), the current is higher than the selected range, and you should switch to a higher setting. Conversely, if the reading is too small to measure accurately, move to a lower range. For digital multimeters, this process is often simplified by an auto-ranging feature, which automatically selects the best range for the measured value. However, manual range selection remains a valuable skill, especially when working with analog meters or in situations where auto-ranging may not be reliable.
A common mistake is underestimating the current in a circuit, particularly in automotive or industrial applications. For example, a car’s starter motor can draw hundreds of amps, far exceeding the capacity of most multimeters. In such cases, using a clamp meter or ensuring your multimeter is rated for high currents is essential. Always check the maximum current rating of your multimeter’s fuse and avoid exceeding it. If you frequently work with high-current circuits, consider investing in a multimeter with a higher amperage rating or using external shunt resistors for added safety.
In conclusion, selecting the correct multimeter range is not just about accuracy—it’s about protecting your equipment and yourself. By starting with the highest range and adjusting downward, observing the meter’s response, and understanding the current demands of your circuit, you can ensure reliable measurements without risking damage. Whether you’re a hobbyist or a professional, mastering this skill is fundamental to effective electrical troubleshooting and testing.
Do Air Conditioners Consume Excessive Electricity? Energy Usage Explained
You may want to see also
Explore related products
Set Multimeter to Current Mode: Rotate dial to AC or DC current symbol for precise measurement
Before attempting to measure electric current with a multimeter, the first critical step is to set the device to the correct mode. This involves rotating the central dial to align with either the AC or DC current symbol, depending on the type of current you’re measuring. AC (alternating current) is commonly found in household outlets, while DC (direct current) is typical in batteries and electronic devices. Selecting the wrong mode can lead to inaccurate readings or damage to the multimeter. This simple yet crucial action ensures the device is calibrated to interpret the flow of electrons accurately, laying the foundation for a precise measurement.
The process of setting the multimeter to current mode is straightforward but requires attention to detail. Start by identifying the current type—AC or DC—and locate the corresponding symbol on the dial. For AC, look for a wavy line, while DC is represented by a solid line with a dashed or dotted extension. Rotate the dial firmly to the desired symbol, ensuring it clicks into place. If your multimeter has multiple current ranges (e.g., 200mA, 10A), choose the highest range that exceeds the expected current to avoid overloading the device. For instance, if measuring a 9V battery circuit, select the 200mA range for precision.
One common mistake is neglecting to check the multimeter’s fuse, especially when measuring high currents. Most multimeters have a dedicated fuse for current measurements, typically rated for 10A or higher. If the fuse blows during a measurement, the multimeter may display an open circuit symbol (OL) or show no reading at all. Always verify the fuse condition before proceeding, and replace it if necessary. This precautionary step ensures both the accuracy of the measurement and the safety of the device.
In practical applications, the choice between AC and DC mode directly impacts the measurement’s relevance. For example, measuring the current draw of a smartphone charger (DC) in AC mode will yield nonsensical results. Conversely, attempting to measure a lamp’s current (AC) in DC mode will show little to no reading. Understanding the context of the circuit—whether it’s powered by a battery, wall outlet, or another source—guides this decision. This awareness not only improves accuracy but also prevents potential errors that could mislead troubleshooting efforts.
Finally, while setting the multimeter to current mode is essential, it’s equally important to connect the device in series with the circuit. Unlike voltage measurements, which are taken in parallel, current measurements require breaking the circuit and inserting the multimeter in line with the flow. This means disconnecting one component, such as a wire or resistor, and attaching the multimeter’s test leads to create a continuous path. Proper connection ensures the entire circuit’s current passes through the multimeter, allowing it to measure the flow accurately. By combining the correct mode selection with proper circuit integration, you can confidently measure electric current with precision and safety.
Using an Electric Pressure Washer with a Bucket: Is It Possible?
You may want to see also
Explore related products
Connect Multimeter in Series: Break the circuit and insert multimeter in line with the current flow
To measure electric current using a multimeter, you must connect the device in series with the circuit. This means breaking the circuit and inserting the multimeter in line with the current flow, ensuring that all the current passes through the meter. Unlike voltage measurements, where the multimeter is connected in parallel, current measurements require this series connection to accurately capture the flow of electrons. Failure to break the circuit properly can lead to incorrect readings or damage to the multimeter, as the full circuit current will be directed through its current-measuring component.
Steps to Connect in Series:
- Power Off the Circuit: Always start by turning off the power to the circuit to avoid electrical hazards.
- Identify the Circuit Path: Locate the specific wire or component where you want to measure current.
- Break the Circuit: Disconnect one of the wires or components to create an open point in the circuit.
- Set the Multimeter: Turn the multimeter dial to the appropriate current range (AC or DC) and ensure the probes are in the correct ports (usually marked as "A" for current).
- Insert the Multimeter: Connect one probe to each side of the broken circuit, ensuring the current flows through the multimeter. The inline connection is critical for accurate measurement.
Cautions and Practical Tips:
When breaking the circuit, avoid touching exposed wires or components to prevent short circuits or shocks. Use insulated tools if necessary. For low-current circuits (e.g., electronics), start with the highest current range and adjust downward to avoid overloading the multimeter. Conversely, for high-current applications (e.g., automotive systems), ensure the multimeter is rated to handle the expected current to prevent damage. Always double-check connections before restoring power.
Comparative Analysis:
Connecting a multimeter in series contrasts sharply with voltage measurements, where the meter acts as a passive observer. Here, the multimeter becomes an active part of the circuit, bearing the full load of the current. This distinction underscores the importance of precision and caution. While voltage measurements are generally safer and less intrusive, current measurements demand a more deliberate approach, as errors can lead to immediate and visible consequences, such as blown fuses or damaged components.
Takeaway:
Mastering the series connection for current measurement is a fundamental skill in electrical troubleshooting. By breaking the circuit and inserting the multimeter inline, you ensure accurate readings while safeguarding both the device and the operator. This method, though straightforward, requires attention to detail and respect for electrical safety principles. With practice, it becomes second nature, enabling efficient diagnosis of circuit issues and informed decision-making in repairs or modifications.
Using Electric Smokers Safely on Screened-In Porches: Tips and Precautions
You may want to see also
Explore related products
Read Multimeter Display: Observe the screen for current value, ensuring units match (mA, A)
The multimeter's display is your window into the electrical current you're measuring, but it's not just about glancing at numbers. Precision matters. A slight misreading or unit mismatch can lead to incorrect diagnoses, damaged components, or even safety hazards. For instance, confusing milliamps (mA) with amps (A) could lead you to believe a circuit is drawing 10 times less current than it actually is, potentially overloading the system.
Always verify the unit displayed aligns with the expected range for your circuit. Most multimeters auto-range, but understanding the scale is crucial.
Reading the display isn't just about the number; it's about context. A reading of 0.5A might seem low, but in a circuit designed for 0.2A, it signals a potential short circuit. Conversely, a reading of 2mA in a high-power device could indicate a broken connection. Familiarize yourself with typical current ranges for different components and systems. A microcontroller might draw a few milliamps, while a motor could pull several amps. This contextual understanding transforms raw data into actionable insights.
Pro tip: If the reading fluctuates, it could indicate a faulty component or intermittent connection.
Unit mismatches are a common pitfall. Multimeters often default to auto-ranging, but manual selection is sometimes necessary. If your multimeter shows "2" but the unit is unclear, it could be 2mA, 2A, or even 200mA depending on the range setting. Always double-check the unit indicator, usually located near the numerical display. Some multimeters use symbols (like "A" for amps and "mA" for milliamps), while others spell out the unit. Don't rely on memory; a quick glance at the unit can prevent costly mistakes.
Modern multimeters often offer additional display features. Some models include graphical representations of current flow, trend lines, or even warnings for abnormal readings. These features can be invaluable for troubleshooting complex circuits. However, don't let fancy displays distract you from the core information: the numerical current value and its unit. Remember, the display is your primary tool for understanding the electrical behavior of your circuit. Treat it with the attention it deserves.
Using Multiple Extension Cords for Electric Chainsaws: Safe or Risky?
You may want to see also
Explore related products
Safety Precautions: Avoid high-voltage circuits, wear protective gear, and ensure proper insulation
Measuring electric current with a multimeter is a straightforward task, but it’s the safety precautions that separate a routine measurement from a hazardous situation. High-voltage circuits, often found in industrial settings or household appliances like air conditioners, pose a significant risk of electric shock or arc flash. Even a brief exposure to currents above 50 volts can be lethal. Therefore, the first rule is unequivocal: avoid high-voltage circuits unless you are a trained professional with the necessary expertise and equipment. Stick to low-voltage systems (below 50 volts) for DIY measurements to minimize risk.
Protective gear is not optional—it’s your first line of defense. Insulated gloves rated for electrical work, safety goggles, and non-conductive footwear are essential. For instance, Class 00 rubber gloves provide protection up to 1,000 volts, while Class 0 gloves are suitable for up to 5,000 volts. Ensure the gear is in good condition; inspect gloves for tears and goggles for cracks before each use. Additionally, wear clothing made of natural fibers like cotton, as synthetic materials can increase the risk of burns in case of an arc flash.
Proper insulation of tools and the work area is equally critical. Use a multimeter with insulated probes and ensure the device itself is rated for the voltage level you’re testing. For example, a CAT III-rated multimeter is suitable for most household and commercial applications, while CAT IV is required for heavy-duty industrial work. Insulate the work area by using rubber mats or standing on a dry wooden surface. Never measure current in wet or damp conditions, as moisture significantly increases conductivity and the risk of shock.
Finally, adopt a cautious mindset throughout the process. Always assume a circuit is live until proven otherwise, even if the power source appears to be off. Use a non-contact voltage tester to verify before connecting the multimeter. Work with one hand in your pocket or behind your back to minimize the risk of creating a path for current through your chest. By combining these precautions—avoiding high-voltage circuits, wearing protective gear, and ensuring proper insulation—you can measure electric current safely and effectively.
Using Rebar for Grounding Electric Fences: Safety and Effectiveness Explained
You may want to see also
Frequently asked questions
Set your multimeter to the "Ammeter" or "Current" mode, typically denoted by an "A" symbol. Ensure you select the appropriate range (e.g., mA for milliamps or A for amps) to avoid damaging the multimeter.
To measure current, the multimeter must be connected in series with the circuit. Turn off the power, open the circuit, and connect the multimeter's probes in line with the flow of current (red probe to positive, black probe to negative).

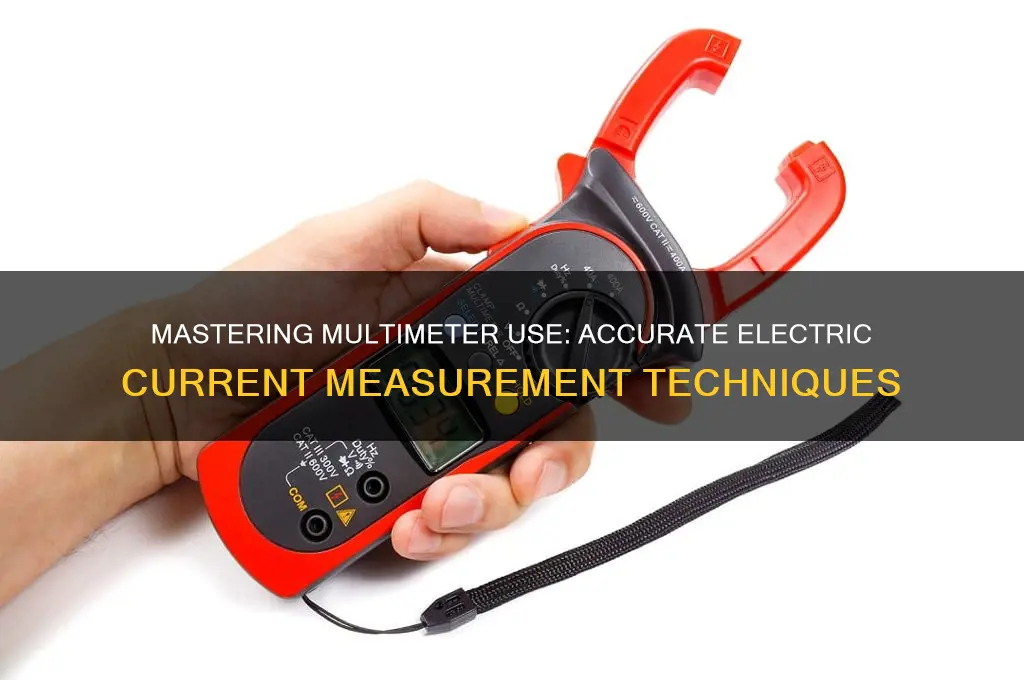

Most multimeters have a limited high-current range (e.g., 10A). For currents exceeding this, use a specialized high-current probe or clamp meter to avoid damaging the multimeter or blowing a fuse.
"OL" or "Overload" indicates the current exceeds the selected range. Switch to a higher current range or check if the circuit is functioning correctly. If the issue persists, verify the multimeter’s fuse is intact.
