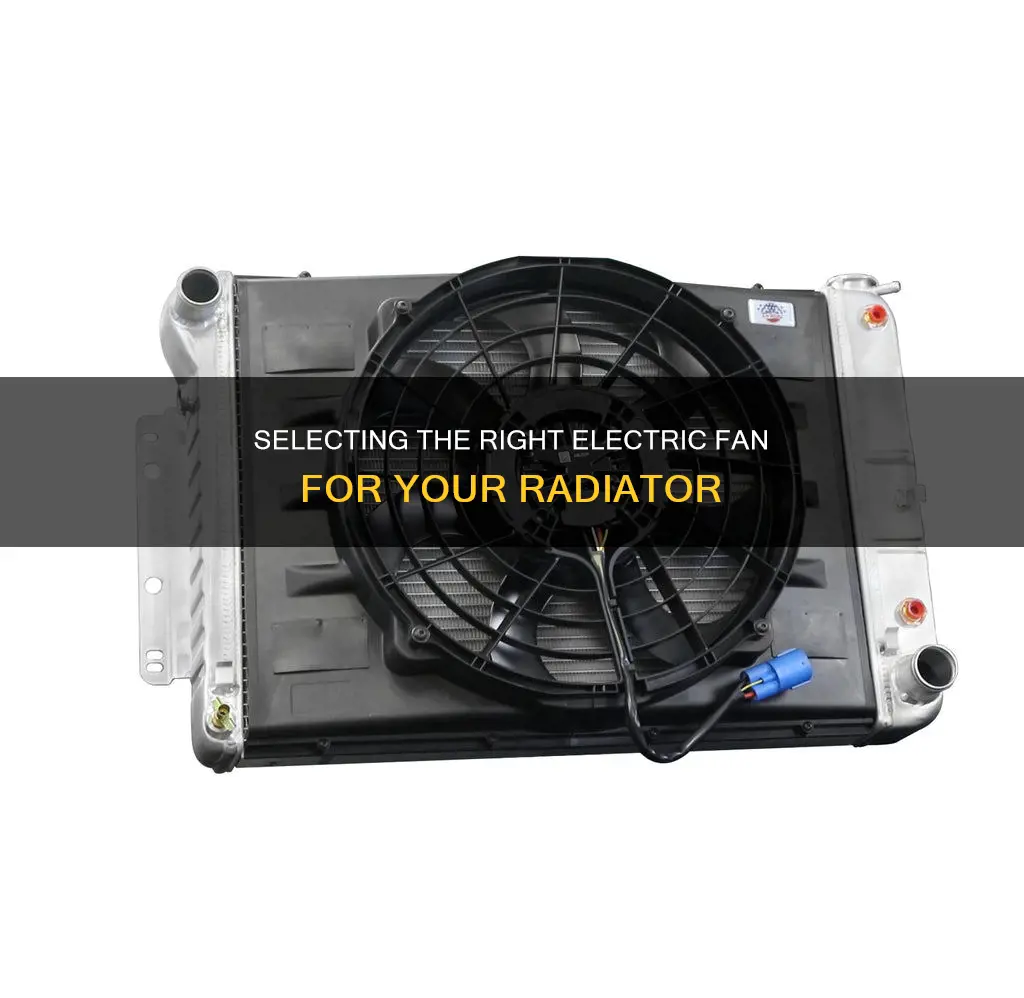

Electric fans are a great way to cool down radiators, but choosing the right one for your needs can be tricky. There are many factors to consider when measuring electric fans for radiators, such as the size of the fan, the radiator core coverage, the minimum airflow required, and the fan style. In this discussion, we will delve into the key considerations for selecting an electric fan that effectively cools your radiator while also taking into account factors like noise levels and space constraints. By understanding these variables, you can make an informed decision about which electric fan will be the perfect fit for your radiator.
| Characteristics | Values |
|---|---|
| Fan type | Electric |
| Fan purpose | Radiator cooling |
| Fan size | Should cover at least 70% of the radiator core |
| CFM (Cubic Feet per Minute) | Dependent on engine size, e.g. 2,500 CFM for 8-cylinder, 2,800 CFM for 5.0-liter engines |
| SP (Static Pressure) | Dependent on CFM and RPM |
| RPM (Rotations Per Minute) | Dependent on SP and CFM |
| Fan style | Puller or pusher, with puller being more efficient |
| Fan noise | S-blade fans are quieter than straight-bladed fans |
| Fan clearance | Fan blades should be at least 18 inches from walls and 8 inches from the ceiling |
Explore related products
What You'll Learn
Measuring radiator and engine components
Radiator Type and Design
Firstly, identify the type of radiator in your vehicle. There are two main types: Tube-and-fin, which consists of a series of tubes with fins attached for improved heat dissipation, and Plate-and-frame, which features alternating layers of plates and frames with fluid flowing between them. Another important distinction is between DOWNFLOW and CROSSFLOW radiators. DOWNFLOW radiators have engine coolant flowing from the top tank to the bottom tank, while in CROSSFLOW radiators, the coolant travels horizontally between the tanks.
Radiator Core Measurements
The radiator core is the primary heat exchange component. To measure it accurately:
- Remove the radiator from the vehicle if necessary.
- Measure the core height, width, and thickness. For DOWNFLOW radiators, the height is measured from top to bottom, while for CROSSFLOW radiators, the height is measured from side to side. The width is the distance between the core side rails, excluding the rails themselves. The most precise way to measure the core depth is by inserting a small piece of wire between the fins until it's flush with the other side; mark and measure the wire.
- Check for any leaks or damage.
- Take multiple measurements to ensure accuracy and refer to the vehicle's service manual for specific radiator specifications.
- Consider the radiator mounting points and brackets. Measure the distance between the mounting holes and note the size and shape of the brackets.
Electric Fan Selection
When choosing an electric radiator fan, there are several factors to consider:
- Fan Style: Puller styles are generally more efficient, especially if they are your primary coolant source. If the radiator has a thick core, a pusher style might be preferred.
- Fan Size: Electric fans come in various sizes, so you need to match the fan to the space available while aiming for about 70% coverage of the radiator core.
- Fan Noise: If noise is a concern, consider the blade shape. S-blade electric fans are typically quieter than straight-bladed fans.
- Fan Performance: Key performance metrics include CFM (Cubic Feet per Minute), which measures how much air the fan can move, and SP (Static Pressure), which indicates the fan's ability to push air through resistance. These factors are crucial for understanding the effectiveness of your cooling system.
Electric Sheep Dreams: Androids and Their Fantasies
You may want to see also
Explore related products
Determining minimum airflow
Determining the minimum airflow for an electric fan on a radiator involves several factors, including the size of the radiator, the available space, the type of fan, and the performance metrics of the fan.
Firstly, it is crucial to measure the radiator core, which is the finned surface between the two tanks. The selected electric fan should cover as much of this space as possible. In some cases, a dual fan setup with a shroud may be more effective in pulling air through a larger area of the radiator than a single fan. It is recommended to aim for about 70% coverage of the radiator core with the fan.
The type of fan also plays a role in determining the minimum airflow. There are two main types: pusher fans and puller fans. Pusher fans are mounted in front of the radiator and can obstruct airflow during vehicle movement due to their positioning. On the other hand, puller fans are mounted behind the radiator and have less impact on airflow at high speeds. Puller fans are generally considered more efficient for primary cooling, while pusher fans can be used as auxiliary fans. The determining factor between the two types is often the available space, as puller fans might struggle with thicker core radiators, making pusher fans a more suitable choice in such cases.
Performance metrics, such as CFM (Cubic Feet per Minute) and SP (Static Pressure), are essential for understanding the minimum airflow requirements. CFM indicates how much air the fan can move, essentially measuring its breathing capacity. The larger the electric fan, the higher the CFM, and the more air it can push or pull. SP refers to the fan's ability to push air through resistance, similar to the force exerted when blowing air through a straw. These metrics are plotted on performance charts at various RPMs to visualise the fan's performance under different conditions.
Finally, it is worth noting that the blade shape of the fan can impact noise levels. S-blade electric fans are often marketed as quieter than straight-bladed fans, so if noise is a concern, this may be a factor to consider. Additionally, the power (watts) of the fan motor and its current draw should be taken into account, as these influence the airflow generated.
Hot Dog Steamers: Electric Options Worth the Investment?
You may want to see also
Explore related products
Coverage of radiator core
When choosing an electric fan for your radiator, one of the most important considerations is the size of the fan and how it fits into the space you have available. Electric fans come in a variety of sizes and styles, so you'll need to select one that matches your setup.
A general rule of thumb for radiator core coverage is to aim for at least 70% coverage of the tube-to-fin area of the core. This ensures a steady draw of air through a large portion of the core, maximizing cooling efficiency. While CFM ratings are important, having sufficient coverage of the radiator core is more crucial.
If you're using an electric fan as your primary coolant source, a puller-style fan is generally recommended by manufacturers as it offers slightly higher efficiency. Puller-style fans are mounted on the backside of the radiator and draw air through the radiator core. However, if your radiator has a thick core, such as a four-row radiator, a pusher-style fan may be preferred as it can be challenging for a puller-style fan to draw air through a thicker core.
To determine the appropriate size of the electric fan for your radiator, you should first remove any existing fan and shroud to accurately measure the radiator core. Measure the finned surface area between the two tanks of the radiator, which corresponds to the tube-to-fin area. This measurement will guide you in selecting an electric fan that provides adequate coverage of the radiator core.
Androids, Electric Sheep, and Dreams: Unraveling the Sparknotes Mystery
You may want to see also
Explore related products
Static pressure and CFM
When selecting an electric fan for a radiator, two key factors to consider are static pressure (SP) and CFM, or cubic feet per minute. Static pressure refers to the fan's ability to push air through resistance, akin to the force exerted when blowing air through a straw. CFM, on the other hand, measures how much air a fan can move, indicating its capacity to circulate air and dissipate heat.
Static pressure is particularly crucial when the fan needs to force air through dense areas, such as a radiator or heatsink. Higher static pressure fans, typically thicker ones, excel at moving air through restrictive spaces. They ensure that the CFM rating is achieved even in the face of obstacles. This is essential for effective cooling, as without sufficient pressure, the fan won't be able to push air through the radiator, rendering the CFM rating moot.
However, static pressure and CFM are not independent factors. The relationship between them is complex and depends on various conditions, including fan speed and radiator impedance. A fan's performance is not solely dictated by its static pressure or CFM rating in isolation; instead, it's the interplay of these factors that determines its effectiveness.
To truly understand a fan's capabilities, it's necessary to delve into performance charts and graphs. These visual representations plot airflow and pressure measurements at various RPMs, offering insights into how CFM and SP interact under different scenarios. By examining these charts, you can identify zones of heightened efficiency, where the CFM and SP curves intersect, and make informed decisions about which fan best suits your specific requirements.
When choosing an electric fan for your radiator, it's important to consider both static pressure and CFM, bearing in mind that they are interdependent. By analysing performance charts and understanding how these factors work together, you can select a fan that delivers optimal cooling efficiency for your unique setup.
Fixing Your Toro Weed Eater: A Step-by-Step Guide
You may want to see also
Explore related products
Puller vs pusher styles
When choosing an electric fan for your radiator, there are two main styles to consider: puller fans and pusher fans. Both have distinct advantages and use cases, and understanding the differences between the two will help you make the right choice for your specific needs.
Puller fans, as the name suggests, are designed to pull air through the radiator. They are typically more efficient at cooling than pusher fans, according to radiator manufacturers. This makes them ideal as a primary coolant source. Additionally, puller fans provide more consistent airflow than belt-driven fans, as they are electrically powered and do not rely on engine power, resulting in no horsepower drain. However, it is important to note that some companies recommend against using puller fans with thick core radiators, as they may struggle to draw air through the denser core.
On the other hand, pusher fans are mounted to the front of the radiator and are used to force more air through the radiator to aid in engine cooling, especially at lower speeds. They are commonly used in cars with significant aftermarket modifications. One advantage of pusher fans is their ability to fit more easily into smaller spaces, as they do not require a fan shroud. However, if you do use a shroud with a pusher fan, it will reduce the amount of radiator core that the airflow is pushed onto.
When deciding between a puller or pusher fan, it is important to consider the space constraints and the type of radiator you have. Puller fans generally require more space in front of the radiator, while pusher fans can be more compact. Additionally, for thick core radiators, a pusher fan may be a better option to ensure effective airflow.
In summary, if you are looking for a primary coolant source and have sufficient space, a puller fan is generally recommended for its superior efficiency. On the other hand, if space is limited or you have a thick core radiator, a pusher fan may be a more suitable choice. Ultimately, the decision between a puller and pusher fan depends on your specific requirements and the constraints of your setup.
Electric Motorcycles and Licensing: What You Need to Know
You may want to see also
Frequently asked questions
Electric fans have more consistent airflow and won't cause horsepower drain as they are electrically powered. They also come in a variety of sizes and styles.
You can measure the performance of an electric fan by looking at its CFM (Cubic Feet per Minute) and SP (Static Pressure) ratings. CFM measures how much air the fan can move, while SP measures the fan's ability to push air through resistance.
Radiator impedance accounts for the resistance a fan faces when mounted on a radiator. Without accounting for radiator impedance, CFM and SP data will only provide theoretical values of a fan's performance in unobstructed mounting or blowing against a solid surface.
First, remove the belt-driven fan and fan shroud. Then, measure the radiator core, which is the finned surface between the two tanks. You should select a fan that covers as much of this space as possible, with a recommended minimum of 70% coverage.
