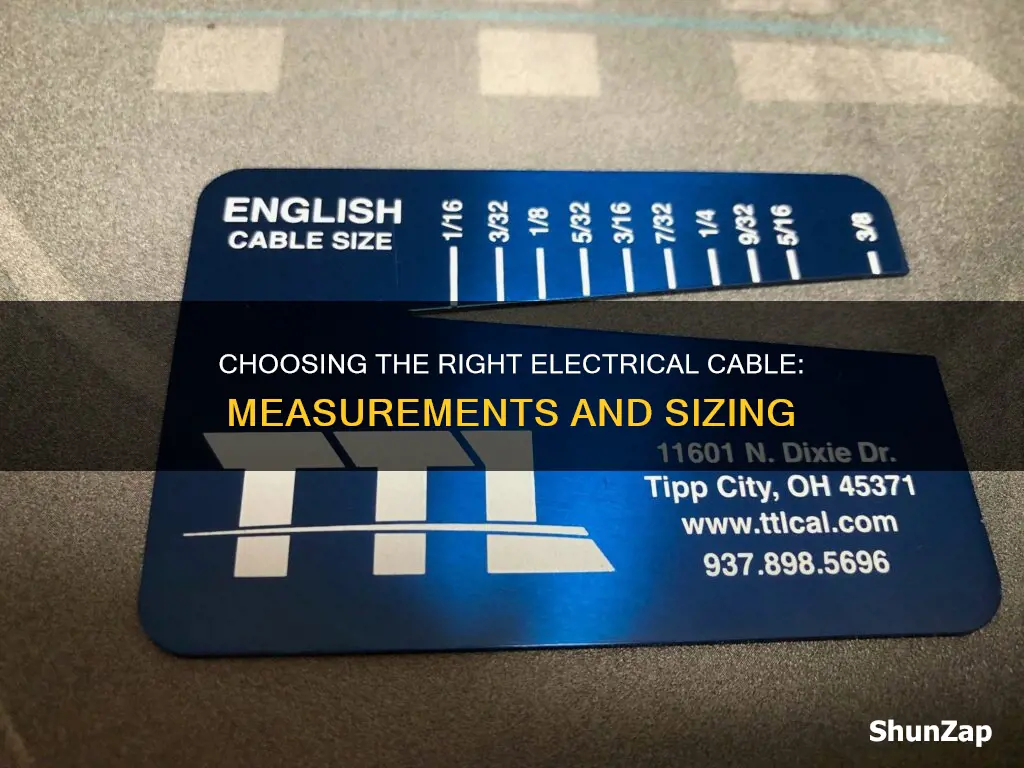

Electrical cables are an essential component of any building design, providing electrical currents with a low-resistance path to power lights, electronics, HVAC systems, and other essentials. The size of these cables is an important consideration, as it can impact the efficiency, safety, and longevity of the electrical system. Undersized wires can lead to overheating and potential hazards, while oversized cables can result in wastage and inefficiency. The right cable size can be determined based on voltage regulation, current-carrying capacity, and short-circuit rating. The cable size is usually measured in AWG or mm^2, with the AWG indicating the diameter and current capacity of the cable. To measure the size of an electrical cable, one can check the markings printed on the insulation or jacket, or use a cable gauge tool. Alternatively, one can measure the diameter of the cross-section of the cable with a vernier caliper and refer to standard wire gauge charts.
| Characteristics | Values |
|---|---|
| Cable size | Diameter and current capacity |
| Gauge number | Indicates diameter and current capacity; higher number = smaller diameter |
| AWG | Standard gauge measurement printed on insulation |
| Amps | Base unit of electric current |
| Voltage drop | Should not exceed 3% |
| Cable length | Total length of positive and negative wires |
| Cable material | PVC, tinned copper, thin wall, double insulation |
Explore related products
$19.95
What You'll Learn
Understanding wire gauges
The gauge number and wire diameter have an inverse relationship. In other words, a higher gauge number indicates a smaller wire diameter. For example, a 14 AWG wire is thicker than an 18 AWG wire. The smallest diameter is 40 AWG at 0.0031 inches, while 0000 AWG has the largest diameter at 0.46 inches. For wires larger than 1 AWG, sizes are denoted using the term "aught". As the number of aughts increases, so does the wire's thickness.
Different wire gauges exist because different electrical applications require different amounts of power. Thicker wires can safely carry more electrical current and are more efficient over long distances. Electrical codes specify minimum wire sizes to ensure safety and performance. Using a wire that's too thin for a high-current application can lead to overheating and potential hazards. On the other hand, oversized cables can result in wastage and inefficiency.
To select the right wire gauge, you should consider the voltage drop, current rating, and safety standards. The voltage drop is the decrease in voltage as electricity travels through a wire. The wire gauge should be such that the voltage drop doesn't exceed 2.5% to 3% of the supply voltage. The current rating should match the load current as closely as possible. Additionally, the wire gauge should meet the safety standards for the specific application.
Electric Fences: One-Time Cost or Ongoing Expense?
You may want to see also
Explore related products
Calculating voltage drop
When electrical current moves through a wire, it is pushed by electrical potential (voltage) and it needs to surpass a certain level of contrary pressure caused by the wire. This contrary pressure is called impedance if the current is alternating, and resistance if the current is direct. The voltage drop is the amount of electrical potential (voltage) loss caused by this contrary pressure. Excessive voltage drop in a circuit can cause lights to flicker or burn dimly, heaters to heat poorly, and motors to run hotter than normal and burn out.
The voltage drop of an insulated cable is dependent on the route length, the required current rating (in amperes), and the total impedance per unit length of the cable. The cable should be able to carry the current load imposed on it without overheating. It should be able to do this under the most extreme temperature conditions it will encounter during its working life.
Ohm's Law is a basic law for calculating voltage drop. The resistance of the wires is often measured and given as length-specific resistance, usually in the unit of ohms per kilometre or ohms per 1000 feet. The formula for a single-phase or direct current circuit is:
> Resistance (in ohms) = voltage (in volts) / current (in amps)
To calculate the voltage drop, you can use the following formulae:
- If you want to calculate the drop in voltage per meter, (Actual length of circuit x volt drop for 1m) /100
- If you want to find the drop in voltage in 100ft (Actual length of circuit x volt drop for 100ft) /100
It is important to note that the run length of the cable should not cause a voltage drop of more than 3%. The IEEE rule B-23 mandates that voltage drop should never be larger than 2.5% of the supply voltage at any place between installation and power supply.
Effective Ways to Descale Your Electric Tea Kettle
You may want to see also
Explore related products
Current rating
The current rating of an electrical cable is an important consideration when selecting the appropriate cable for an electrical system. The cable's current rating indicates its capacity to conduct electricity safely, and it is influenced by several factors.
Firstly, the current rating is directly related to the cable's size, specifically its cross-sectional area. This area is measured in square millimetres (mm²) and represents the space enclosed by the conductor when cut perpendicular to its length. The larger the cross-sectional area, the higher the current-carrying capacity of the cable. This relationship underscores the importance of selecting the appropriate cable size for a given application.
The cable's diameter, indicated in millimetres, is another critical factor in determining its current rating. The diameter and cross-sectional area are closely linked, as a larger diameter corresponds to a larger cross-sectional area, resulting in a higher current rating. The diameter can be measured using a measuring tape, a vernier caliper, or a micrometer.
Additionally, the cable's current rating is influenced by the material used for the conductor and the insulation jacket. A good conducting material, such as copper, offers lower resistance and better conductivity, producing less heat and enabling the cable to carry more current safely. Similarly, a high-quality insulation jacket that can withstand higher temperatures will be able to handle more current before failing.
It is worth noting that the cable's length also plays a role in its current-carrying capacity. Longer cables tend to have higher resistance, which can impact the overall current rating. Moreover, the ambient temperature and installation method should be considered when selecting a cable. The current rating of a cable is typically provided in a cable size chart or datasheet by the manufacturer, aiding in the selection process.
Electrical Heart Problems: Causes and Underlying Reasons
You may want to see also
Explore related products
Cable markings
Cable Size Markings:
The size of a cable is often indicated using the American Wire Gauge (AWG) system, represented by a number followed by "AWG". For example, common markings indicating cable size include "14 AWG", "12 AWG", and "10 AWG". The higher the gauge number, the thinner the wire. Cables sold in Europe may also use square millimetres (mm2) or millimetres (mm) to denote cable size.
Cable Type Markings:
Other Specifications:
Other important specifications are often included in cable markings. For example, certifications and standards may be indicated, such as "CSA" for the Canadian Standards Association. Maximum operating temperatures may be marked, like "75°C" or "90°C". Environmental resistance may also be specified, with markings such as "SUNLIGHT RESISTANT", "OIL RESISTANT", or "FOR DIRECT BURIAL". These markings are crucial for ensuring the cable is suitable for the intended installation environment.
How Much Electricity Does Your TV Actually Use?
You may want to see also
Explore related products
Cable sizing tools
Cable sizing is a crucial aspect of electrical installations, impacting the efficiency, safety, and longevity of the electrical system. Selecting the right cable size can be a challenging task, requiring a blend of mathematical precision and knowledge of electrical standards. Here are some cable sizing tools and guidelines to help you determine the appropriate cable dimensions:
Cable Sizing Calculators
Online cable sizing calculators, such as the ones provided by Doncaster Cables, Cleveland Cable Company, and ELEK Software, offer a convenient way to determine cable sizes. These calculators use various input parameters, including supply type, voltage drop, power or current requirements, cable length, and installation method. By inputting these values, you can obtain recommended cable sizes that meet the necessary electrical standards.
American Wire Gauge (AWG)
The American Wire Gauge (AWG) system is commonly used to measure cable sizes in North America. AWG values indicate the cable's diameter and current capacity, with lower numbers representing thicker wires. Most cables have the AWG printed on their insulation. If not, you can manually determine the AWG by measuring the cable's diameter after cutting it perpendicular to its direction.
Voltage Drop and Current Ratings
Understanding voltage drop and current ratings is essential when selecting cable sizes. The voltage drop should not exceed certain limits, typically 2.5% of the supply voltage, to ensure correct installation and safety. Current ratings, measured in amps, help determine the cable's capacity to handle the expected circuit load. Charts and formulas are available to calculate voltage drop and select the appropriate cable size accordingly.
Cable Construction and Standards
Consider the construction materials and standards associated with different cable types. For example, PVC is commonly used for insulation and sheathing due to its ease of processing. Thin-wall PVC cables offer improved electrical insulation and abrasion resistance. Tinned copper is suitable for marine environments, while double-insulated cables are often used in agricultural and heavy plant machinery. Refer to standards like BS7671 and AS/NZS 3000 for guidance on cable sizing and installation methods.
Safety Considerations
Always prioritize safety when working with electrical cables. Ensure that the electricity is turned off before handling cables. Choose cables with properties suitable for the installation, considering factors such as voltage drop, current rating, and installation environment. Avoid undersized wires that can lead to overheating and potential hazards. By carefully selecting the right cable size and following safety protocols, you can minimize risks and ensure the optimal performance of your electrical system.
Electric Forces: Attraction or Repulsion in Neurons?
You may want to see also
Frequently asked questions
You should consider the cable's cross-sectional area, voltage regulation, current-carrying capacity, and short circuit rating.
The standard unit for measuring electrical cable size is AWG (American Wire Gauge).
Most cables have the AWG printed on the insulation. If not, you can manually determine the AWG by measuring the cable's diameter in inches and then dividing that number by 45.
The appropriate cable size depends on the load current, voltage drop, and cable length. You can use an electrical cable size calculator or refer to standard wire gauge charts to determine the correct cable size for your specific application.
