Imbalance in the energy market occurs when the demand for electricity is not aligned with the supply. This imbalance can be caused by seasonal changes in energy consumption, unexpected spikes in demand or supply, and disruptions in energy infrastructure. It can also be caused by the growth of renewable energy sources such as wind and solar energy, which are more difficult to predict. This imbalance can lead to power outages, higher costs for energy companies, and disruptions in the supply to businesses and consumers. Voltage unbalance, which occurs when the voltage magnitudes of the three phases are not equal, can also cause issues in electrical systems. To calculate voltage unbalance, the most common formula used is the maximum deviation from average. This involves calculating the average voltage and then finding the greatest difference between that and each phase measurement. By understanding and measuring these imbalances, we can work towards creating a more stable and efficient energy system.
| Characteristics | Values |
|---|---|
| Cause of electricity imbalance | Seasonal changes in energy consumption, unexpected spikes in demand or supply, disruptions in energy infrastructure, and the growth of renewable energy sources |
| Effects of electricity imbalance | Power outages, higher costs for energy companies, disruptions in the supply to businesses and consumers, inefficient use of energy resources, and higher CO2 emissions |
| Voltage unbalance calculation | (Max deviation from average V or I/average V or I) x 100 |
| Acceptable voltage unbalance range | Between 1% and 3% |
| Ways to identify and measure transients | Use a three-phase power quality analyzer with a transient function |
| Ways to overcome electricity imbalance | Storing energy in a battery, using energy when demand is low, and activating reserves |
Explore related products
What You'll Learn
Measuring voltage unbalance

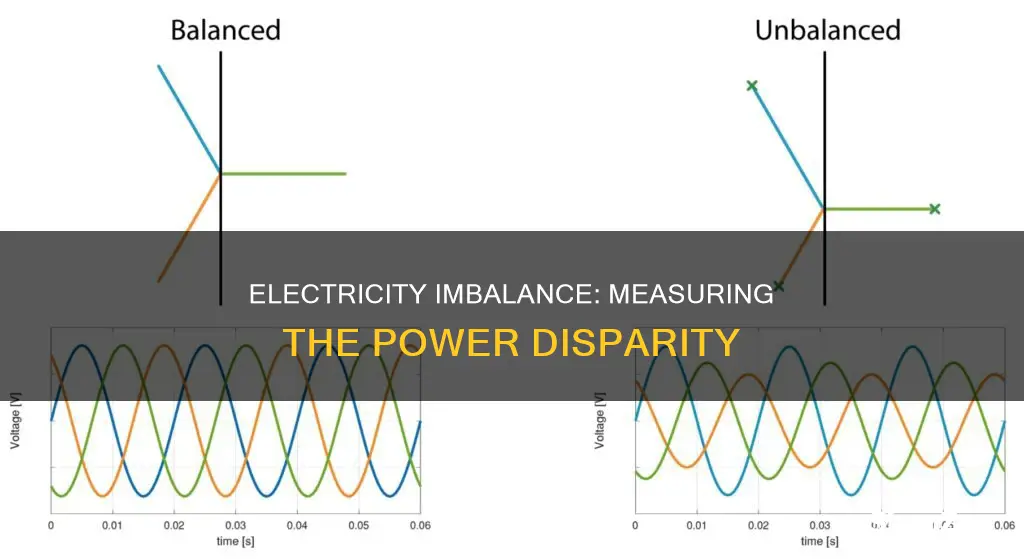

Voltage unbalance is a variation in the phase-to-phase voltage in three-phase electrical systems. It is the measure of voltage differences between the phases of a three-phase system. Voltage unbalance can be caused by an improperly balanced load on electrical distribution circuits, long electrical distribution radial circuits, a blown capacitor bank fuse, or improperly transposed transmission circuits. It can also be caused by problems in the electric utility system and in a facility, such as improperly balanced panel boards and switchgear, and poorly wound electric motors.
Voltage unbalance can be found with a voltmeter by measuring between phases on the compressor's motor terminals, at the disconnect, or at the contactor or starter terminals. A three-phase power quality analyser with a transient function can also be used to identify and measure transients. The meter is set to greater than 50V above the normal voltage, and the display will show the potentially problematic voltage above 50V.
To calculate voltage unbalance, the most common formula used is the "maximum deviation from average". First, calculate the average voltage. Second, subtract the average voltage from each phase measurement to find the greatest difference. Finally, divide the average voltage by the maximum deviation to calculate the voltage unbalance.
Voltage unbalance can cause current unbalance, which can be 6 to 10 times larger than the voltage unbalance. This can lead to torque pulsation, increased vibration and mechanical stress, increased losses, and motor overheating. Voltage unbalance can also indicate maintenance issues such as loose connections and worn contacts. To ensure the reliable operation of electrical equipment, the difference between the highest and lowest voltages should not exceed 4% of the lowest voltage.
Electricity Deposits: Rutherford County's Support for Residents
You may want to see also
Explore related products
Calculating supply and demand
Supply Calculations:
- Total Electricity Supply: Calculate the total electricity supply available from various sources, including traditional power plants, renewable energy sources, and energy storage systems. This involves forecasting and real-time data analysis to determine the expected and actual supply at any given time.
- Supply Forecasting: Consider historical data, seasonal changes in energy consumption, and predicted weather conditions to forecast electricity supply, especially for renewable sources like wind and solar power, which are more variable.
- Reserve Activation: In cases of supply surplus, system operators can activate reserves to balance the market. This involves strategic decisions on when and how much reserve energy to activate to meet demand without creating excess supply.
Demand Calculations:
- Total Electricity Demand: Calculate the total electricity demand from various sectors, including residential, commercial, and industrial consumers. This involves analyzing historical data, current usage patterns, and forecasting future demand.
- Demand Forecasting: Consider factors such as population growth, economic activity, and seasonal variations to forecast future demand. Analyze historical data to identify trends and patterns in electricity consumption.
- Demand Response: Implement demand response programs to manage consumer demand. This includes incentivizing consumers to reduce electricity usage during peak periods or offering flexible pricing structures to encourage off-peak consumption.
Market Equilibrium:
- Imbalance Pricing: Determine the imbalance price, which is the price at which market parties are willing to supply or demand imbalance energy. Changes in the imbalance price can significantly impact the demand for imbalance energy.
- Equilibrium Point: Calculate the equilibrium point where supply equals demand. This involves finding the price point where consumers' demand for electricity matches the suppliers' ability to provide it.
- Intraday Adjustments: Monitor and adjust intraday pricing based on real-time supply and demand dynamics. If there is an unexpected surplus or shortage, adjust the intraday price to encourage consumption or reduce demand accordingly.
Voltage Unbalance Calculations:
- Voltage Unbalance: Calculate voltage unbalance in 3-phase electrical systems to ensure proper functioning and prevent equipment failures. The formula involves finding the maximum deviation from the average voltage and dividing it by the average voltage.
- Acceptable Range: Maintain voltage unbalance within acceptable limits, typically between 1% and 3%. Exceeding these limits can lead to inefficient equipment performance, increased power consumption, and premature equipment failure.
By accurately calculating supply and demand, market operators, energy providers, and grid managers can make informed decisions to balance electricity markets, maintain stable supplies, and optimize costs for consumers.
Jumpstarting Your Harley Electra Glide: A Step-by-Step Guide
You may want to see also
Explore related products
The impact of renewable energy sources
Unbalance can occur at any point in the distribution system. It can be caused by an uneven load on electrical distribution circuits, long electrical distribution radial circuits, a blown capacitor bank fuse, or improperly transposed transmission circuits. Unbalanced three-phase systems can cause three-phase motors and other three-phase loads to experience poor performance or premature failure.
The increasing integration of renewable energy sources into the power system will undoubtedly impact electricity price volatility. The variability of renewable energy sources, such as wind and solar power, can affect the accuracy of electricity price forecasts. Higher forecast errors can lead to increased imbalance volumes and subsequent spot prices. Therefore, there is a growing focus on incentivizing system operators to improve the quality and market availability of forecasts for renewable energy outputs.
The proliferation of renewable power generation is also causing changes in the topology, composition, and dynamics of electrical grids. The distributed nature of renewable energy sources, including at the household level, impacts the stability and resilience of power grids. The addition of household batteries can enable consumer self-sufficiency but does not necessarily improve grid resilience. Furthermore, the drive towards renewable energy production in new building developments can make microgrids susceptible to outages.
In conclusion, the impact of renewable energy sources on the imbalance of electricity is multifaceted. While renewable energy offers significant environmental and economic benefits, it also presents challenges in terms of electricity pricing, grid stability, and resilience. Further research and policy interventions are necessary to optimize the integration of renewable energy sources into the electrical grid while maintaining a stable and reliable power supply.
Electricity Off, No Waves: A Simple Solution to Radiation
You may want to see also
Explore related products
Using power quality analyzers
Power quality analyzers are an effective way to measure the imbalance of electricity. These analyzers are portable, lightweight, and can provide accurate measurements. They are equipped with advanced software that offers valuable insights into the performance of electrical systems.
A three-phase power quality analyzer is a useful tool for identifying and measuring transients, which are sudden changes in voltage or current that can disrupt equipment operations. Transients can be difficult to identify as they may not directly cause damage but can impact performance. By setting the meter to a transient function, users can identify potentially problematic voltages above a certain threshold, such as 50V. If no transients are detected initially, it is advisable to continuously measure and log power quality over time using an industrial power quality logger.
Three-phase power analyzers are particularly relevant for addressing imbalances in three-phase electrical systems, where voltage unbalance is a common issue. Voltage unbalance refers to variations in phase-to-phase voltage, which can lead to current unbalance or the amplification of existing current imbalances. For instance, in a 480V nominal system, phase-to-phase voltage measurements may vary, resulting in readings of 463V, 482V, and 474V.
To calculate voltage unbalance, the formula "maximum deviation from average" is commonly used. This involves calculating the average voltage, subtracting it from each phase measurement to find the greatest difference, and then dividing the average voltage by this maximum deviation to obtain the voltage unbalance percentage.
Power quality analyzers, such as those offered by Fluke, enable users to conduct load studies, troubleshoot issues, quantify energy usage, and generate detailed reports. These tools simplify the complex tasks of power quality logging, troubleshooting, and analysis in three-phase power systems.
Electrical Systems: Hot Spots and Their Presence
You may want to see also
Explore related products
Imbalance price and quantity
The electricity market is a complex system where the equilibrium price (imbalance price) and quantity (system imbalance) are determined by supply and demand. The demand for electricity can be unpredictable due to various factors, including the increasing integration of renewable energy sources such as wind and solar power, which have a stochastic nature. This makes it challenging to accurately forecast both the price and quantity of electricity.
Imbalance prices are essential in incentivizing generators and suppliers to contract ahead of time and fulfil their obligations. As the delivery time approaches, traders must decide whether to trade out of a position or settle it in the balancing market at the yet-to-be-determined imbalance price. This creates uncertainty and risk for traders, who must make decisions without knowing the exact imbalance price.
Imbalance volume forecasting has received more attention in academic literature compared to price forecasting. Early works have proposed the use of Neural Networks to predict imbalance volumes, and studies have shown that very-short-term imbalance volume forecasting can support power system operators. However, valuable information such as intraday market order books, executed trades, and system operator actions is often not included in these forecasts.
The challenge of predicting electricity imbalance prices and volumes has led to the development of various strategies and models. Some studies have focused on day-ahead forecasting and trading strategies, concluding that simple models perform well and are challenging to improve upon. Within-day forecasting can provide more accurate predictions, and the use of algorithmic trading and automated decision-making has become increasingly important.
Regulations, such as the Commission Regulation (EU) 2017/2195, provide guidelines on electricity balancing and stipulate the calculation and geographical aspects of imbalances. TSOs play a crucial role in managing imbalances within the balancing market timeframe and are required to publish information on system balance, estimated imbalance prices, and balancing energy prices in a timely manner.
Do Motion Sensor Light Bulbs Cut Energy Costs?
You may want to see also
Frequently asked questions
Electricity imbalance occurs when there is an uneven distribution of single-phase loads from three-phase circuits, leading to load imbalance. It can also occur when one phase is not working in three-phase motors, causing the remaining phases to meet high currents.
Electricity imbalance can be caused by improperly balanced load on electrical distribution circuits, long electrical distribution radial circuits, blown capacitor bank fuses, and improperly transposed transmission circuits. In a facility, voltage unbalance can be caused by improperly balanced panel boards and switchgear, as well as poorly wound electric motors.
Electricity imbalance can lead to a number of issues, including increased heating and power consumption, reduced equipment efficiency, increased mechanical stress on the system, and unwanted tripping due to increased neutral current.
Electricity imbalance can be measured by calculating the voltage unbalance, which is the variation in phase-to-phase voltage in three-phase electrical systems. The most common formula used is the "maximum deviation from average," which involves calculating the average voltage and then finding the greatest difference between it and each phase measurement.
Electricity imbalance can be corrected through phase balancing or load rearrangement, connection to a higher voltage level, and the use of filtering equipment. Negative sequence current injection is also being used to counter unbalanced faults.
