Putting an electric engine in a car involves a complex process that requires careful planning, technical expertise, and specialized tools. It begins with selecting a suitable donor vehicle, preferably one with a lightweight frame and ample space for battery installation. The internal combustion engine and associated components, such as the fuel tank and exhaust system, are removed to make way for the electric motor, battery pack, and associated electronics. The electric motor is then mounted in place, often using custom adapters or brackets, and connected to the vehicle's transmission or drivetrain. A high-capacity battery pack, typically consisting of lithium-ion cells, is installed to provide power to the motor, and a battery management system is integrated to monitor and regulate the battery's performance. Additional components, such as an inverter, charger, and cooling system, are also installed to ensure the electric powertrain operates efficiently and safely. Throughout the process, it's crucial to follow best practices for wiring, insulation, and safety to create a reliable and functional electric vehicle conversion.
Explore related products
$12.95
What You'll Learn
- Engine Compatibility: Ensure the electric motor fits the car's size, weight, and power requirements
- Battery Installation: Choose and mount the battery pack securely for optimal performance and safety
- Wiring & Controls: Integrate the motor, battery, and controller with the car's existing electrical system
- Drivetrain Modifications: Adapt the transmission, axles, and differential to work with the electric motor
- Safety & Testing: Verify all systems, conduct test drives, and ensure compliance with safety standards
Engine Compatibility: Ensure the electric motor fits the car's size, weight, and power requirements
Selecting the right electric motor for your vehicle conversion is a critical step that demands precision. The motor’s physical dimensions must align with the car’s engine bay to avoid costly modifications or unsafe installations. For instance, a compact sedan like a Honda Civic requires a motor no larger than 200mm in diameter, while a mid-size SUV like a Toyota Highlander can accommodate motors up to 300mm. Measure the available space in your engine bay, accounting for cooling systems and battery placement, before finalizing your motor choice.
Weight distribution is another non-negotiable factor in engine compatibility. An electric motor that’s too heavy can disrupt the car’s balance, compromising handling and safety. For example, a lightweight city car like a Nissan Leaf typically uses a motor weighing around 70–80 kg, while a high-performance conversion might require a motor weighing 120–150 kg. Calculate your vehicle’s current weight distribution and ensure the new motor maintains a front-to-rear balance within 55:45 to 45:55 for optimal stability.
Power requirements dictate not just performance but also the motor’s efficiency and longevity. A motor underpowered for the vehicle’s weight will strain under load, reducing range and lifespan. Conversely, an overpowered motor may deliver unnecessary torque, leading to excessive wear on drivetrain components. For a 1,500 kg vehicle, a motor delivering 80–100 kW is typically sufficient for daily driving, while a 150+ kW motor suits high-performance applications. Match the motor’s power curve to your driving needs, using tools like torque-to-weight ratio calculators for precision.
Practical tips can streamline the compatibility assessment. Start by consulting vehicle-specific conversion kits, which often include motors pre-matched to the car’s size and weight. If opting for a custom build, use 3D modeling software to simulate the motor’s fitment in the engine bay. Additionally, leverage online forums and case studies to learn from others’ successes and failures. For instance, a Tesla Model 3 motor has been successfully adapted to a Mazda Miata, but required custom mounting brackets due to size differences—a detail you’ll only uncover through research.
Ultimately, engine compatibility is a balancing act of size, weight, and power. Skipping this step risks inefficiency, safety hazards, or even project failure. By meticulously measuring, calculating, and researching, you ensure the electric motor not only fits your car but also transforms it into a reliable, high-performing electric vehicle. Treat this phase as the foundation of your conversion—get it right, and the rest of the project falls into place.
Elevation's Impact on Electric Car Performance and Efficiency Explained
You may want to see also
Explore related products

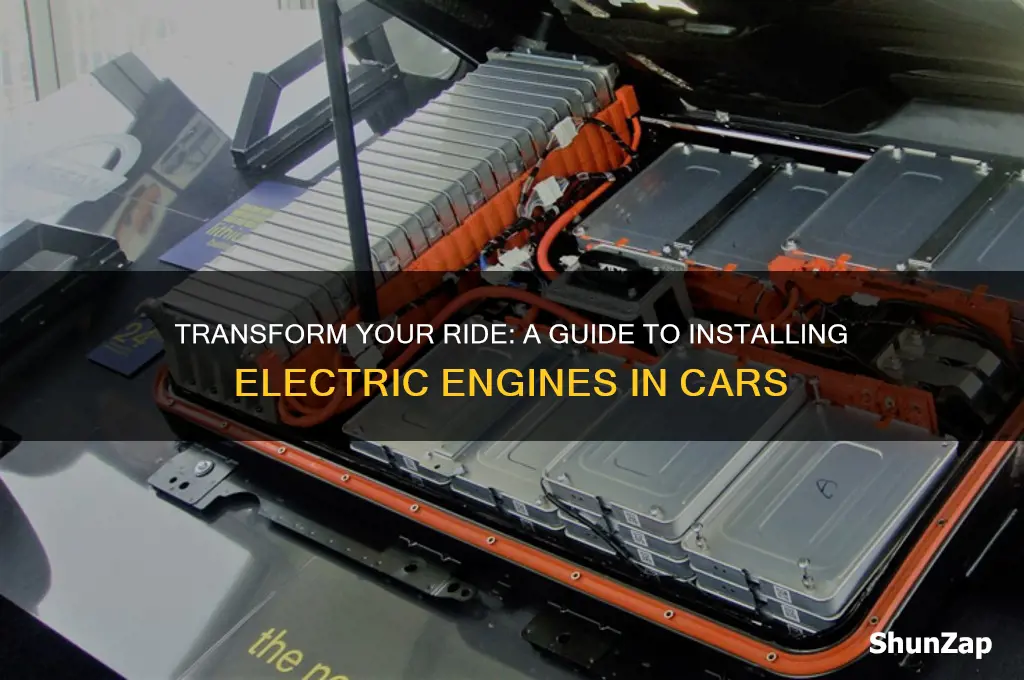

Battery Installation: Choose and mount the battery pack securely for optimal performance and safety
Selecting the right battery pack is the cornerstone of a successful electric vehicle (EV) conversion. Lithium-ion batteries, particularly those using nickel-manganese-cobalt (NMC) or lithium iron phosphate (LFP) chemistries, dominate the market due to their high energy density and longevity. For instance, a Tesla Model 3 uses an NMC battery pack with a capacity of 50–75 kWh, while LFP batteries, like those in some BYD models, offer enhanced safety and thermal stability. When choosing, consider your vehicle’s weight, desired range, and budget. A compact car might require a 20–30 kWh pack, while larger vehicles may need 50 kWh or more. Always opt for batteries with built-in Battery Management Systems (BMS) to monitor cell health, temperature, and voltage, ensuring safety and performance.
Mounting the battery pack securely is as critical as the selection itself. The pack’s weight—often 500–1,000 pounds—demands a robust, vibration-resistant structure. Start by identifying a low, central location, such as the undercarriage or rear cargo area, to maintain balance and minimize rollover risk. Use marine-grade aluminum or steel frames to secure the pack, ensuring it’s at least 4 inches above the ground to prevent water damage. Fasten the frame with Grade 8 bolts and locknuts, torqued to manufacturer specifications. For added safety, incorporate thermal insulation and fire-resistant barriers, especially if using NMC batteries, which pose a higher thermal runaway risk than LFP variants.
Performance optimization hinges on proper thermal management and wiring. Batteries operate best between 68°F and 86°F (20°C–30°C), so integrate liquid or air cooling systems to prevent overheating during high-load conditions. Use 4–8 AWG welding cable for high-current connections, ensuring minimal voltage drop—a 2% drop over a 10-foot run is acceptable. Secure all cables with strain reliefs and protect them with split loom tubing to prevent abrasion. Test the circuit with a multimeter before final installation, verifying continuity and insulation resistance. Poor wiring is a leading cause of EV fires, so precision here is non-negotiable.
Safety should never be an afterthought. Equip the battery compartment with a Class D fire extinguisher and ensure easy access for emergency shutdowns. Install a manual disconnect switch near the driver’s seat, rated for the pack’s maximum current, to isolate the battery in case of malfunction. Regularly inspect mounting hardware for corrosion or loosening, especially after rough terrain driving. Finally, adhere to local regulations—many regions require crash testing or certification for DIY EV conversions. While the upfront effort is substantial, a well-installed battery pack transforms a conventional car into a reliable, efficient electric vehicle, blending innovation with practicality.
Where to Buy a Used Electro-Hydraulic Control Unit (EHCU)
You may want to see also
Explore related products
Wiring & Controls: Integrate the motor, battery, and controller with the car's existing electrical system
Integrating an electric motor, battery, and controller into a car’s existing electrical system is a complex but achievable task, requiring careful planning and precision. The first step is to assess the vehicle’s current wiring harness and electrical load capacity. Most internal combustion engine (ICE) vehicles are designed to handle 12V systems, but electric conversions often require upgrading to a 24V or higher system to accommodate the power demands of the motor and battery. Use a multimeter to test the existing wiring for continuity and ensure it can handle the increased amperage. If the wiring is insufficient, replace it with high-gauge, heat-resistant cables rated for the new system’s voltage and current.
The battery pack, typically lithium-ion or lead-acid, must be securely mounted and connected to the motor via thick, insulated cables. Position the battery as low as possible to maintain the vehicle’s center of gravity, often in the trunk or under the floor. Connect the battery to the controller using cables with appropriate fuses or circuit breakers to prevent overcurrent. The controller acts as the brain of the system, regulating power flow from the battery to the motor based on throttle input. Ensure the controller is compatible with the motor’s voltage and amperage ratings, and mount it in a well-ventilated area to prevent overheating.
Wiring the motor to the controller requires a direct, high-current connection, typically using cables with cross-sectional areas of 50–100 mm², depending on the motor’s power output. Secure these cables with zip ties or clamps to prevent movement and potential damage. The throttle system must be adapted to send signals to the controller, often involving replacing the mechanical linkage with a potentiometer or Hall effect sensor. Calibrate the throttle to ensure smooth power delivery, using the controller’s programming interface if available.
Safety is paramount during integration. Install a high-voltage disconnect switch near the battery to isolate the system in case of emergencies. Ground the entire system to the vehicle’s chassis using a dedicated grounding cable to prevent electrical shocks. Test all connections with a continuity tester and perform a load test before driving. Finally, integrate auxiliary systems like lighting, heating, and air conditioning by connecting them to a DC-DC converter, which steps down the high-voltage battery power to 12V for compatibility with the car’s original accessories.
Successful integration hinges on meticulous planning and adherence to electrical standards. Consult the motor, battery, and controller manuals for specific wiring diagrams and torque specifications. If unsure, seek guidance from a professional electrician or EV conversion specialist. With careful execution, the result is a seamlessly integrated electric powertrain that retains the functionality and safety of the original vehicle’s electrical system.
Gas vs. Electric: Which Cars Accelerate Faster on the Road?
You may want to see also
Explore related products
Drivetrain Modifications: Adapt the transmission, axles, and differential to work with the electric motor
Converting a traditional internal combustion engine (ICE) vehicle to electric power requires more than just swapping the engine. The drivetrain—transmission, axles, and differential—must be adapted to work seamlessly with the electric motor. Unlike ICEs, electric motors deliver maximum torque instantly, which can overwhelm components designed for gradual power delivery. Here’s how to approach these critical modifications.
Step 1: Evaluate the Transmission
Electric motors operate efficiently over a wide RPM range, often eliminating the need for a multi-speed transmission. For simplicity, many conversions remove the existing transmission and install a single-speed reduction unit directly between the motor and driveshaft. However, retaining the original transmission can offer benefits like improved efficiency at highway speeds or better torque management. If keeping the transmission, ensure it’s compatible with the electric motor’s output and consider removing the clutch in manual setups, as electric motors don’t require gear changes under load.
Caution: Torque and Heat Management
Electric motors produce peak torque from zero RPM, which can stress transmission components not designed for such loads. Use a torque limiter or reduce the motor’s output to prevent damage. Additionally, transmissions may overheat due to continuous high-torque operation. Install an external cooler or upgrade to heavy-duty components if retaining the original system.
Step 2: Modify Axles and Differential
The differential and axles must handle the electric motor’s instantaneous torque delivery. In rear-wheel-drive setups, a limited-slip differential (LSD) or spool can improve traction by evenly distributing power to both wheels. For front-wheel-drive vehicles, consider upgrading to stronger CV joints and axles rated for higher torque. If using a high-performance motor, custom axles or a reinforced differential housing may be necessary to prevent failure under load.
Practical Tip: Match Components to Motor Output
Calculate the motor’s peak torque and ensure all drivetrain components are rated for at least 20% more than this value. For example, if the motor produces 300 lb-ft of torque, use components rated for at least 360 lb-ft. This buffer accounts for real-world stresses and ensures longevity.
Drivetrain modifications are a balancing act between simplicity and performance. While removing the transmission and upgrading the differential adds complexity, it maximizes efficiency and reliability. Conversely, retaining the original transmission reduces costs but may limit performance. Tailor your approach to the vehicle’s intended use—daily driving favors simplicity, while racing or off-roading demands robust upgrades. With careful planning and precise execution, the drivetrain can be adapted to harness the full potential of an electric motor.
Electric Vehicles: California's Green Revolution
You may want to see also
Explore related products
Safety & Testing: Verify all systems, conduct test drives, and ensure compliance with safety standards
Before hitting the road, every electric vehicle conversion demands rigorous scrutiny. Think of it as a medical checkup for your newly electrified car. Start by verifying all systems: battery management, motor controllers, cooling mechanisms, and safety features like insulation and emergency shutoffs. Use multimeters to check voltage and resistance, and diagnostic tools to ensure communication between components. A single overlooked fault can lead to overheating, short circuits, or worse.
Test drives aren’t just for thrill-seekers; they’re critical safety trials. Begin in controlled environments—empty parking lots or private roads—to assess acceleration, braking, and handling. Gradually increase speed and complexity, monitoring battery temperature, motor efficiency, and system response. Log data at every stage: voltage drops, current spikes, and thermal behavior. For instance, a 10% deviation in motor efficiency at 50 mph could signal misalignment or wiring issues. Repeat tests under varying conditions—rain, heat, cold—to expose vulnerabilities.
Compliance with safety standards isn’t optional; it’s your shield against legal and physical risks. Familiarize yourself with regulations like FMVSS (Federal Motor Vehicle Safety Standards) in the U.S. or UNECE standards in Europe. Key areas to address include crashworthiness, electromagnetic compatibility, and fire safety. For example, batteries must pass UN 38.3 testing for shock, vibration, and thermal stability. Hiring a certified engineer to inspect your conversion can save time and ensure adherence to these benchmarks.
Finally, think long-term. Safety isn’t a one-time event but an ongoing commitment. Install monitoring systems that alert you to anomalies—unusual battery drain, erratic motor behavior, or rising temperatures. Schedule biannual inspections to check for wear, corrosion, or loose connections. Treat your electric conversion like a high-performance machine: respect its limits, maintain it meticulously, and prioritize safety over speed. After all, the road to electrification is thrilling, but only when traveled responsibly.
Electric Cars vs. Gasoline: Reducing Air Pollution for a Greener Future
You may want to see also
Frequently asked questions
While many cars can be converted to electric, not all are ideal candidates. Factors like vehicle weight, chassis design, and available space for batteries play a crucial role. Older, lighter cars with manual transmissions are often easier to convert than newer, heavier models.
Key components include an electric motor, battery pack, motor controller, charger, DC-DC converter, and adapters for the drivetrain. You’ll also need wiring, cooling systems, and potentially a new transmission or differential, depending on the car.
Costs vary widely depending on the car, components, and whether you do it yourself or hire a professional. DIY conversions can range from $6,000 to $15,000, while professional conversions can cost $20,000 or more. Battery costs alone can account for a significant portion of the budget.
