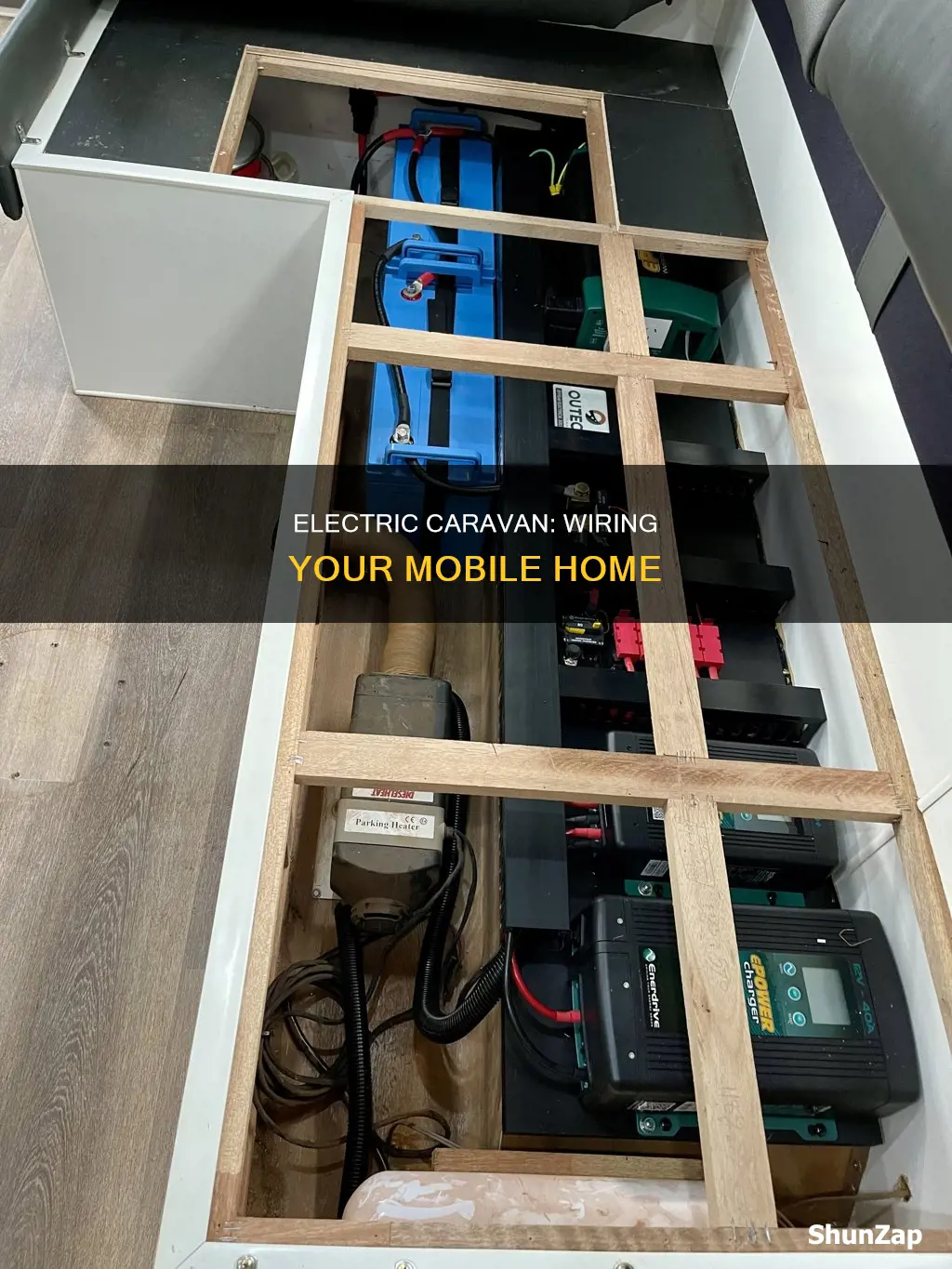

Electric Caravan: Wiring Your Mobile Home

Caravan electrics can be complicated, with two electrical systems in most modern caravans: a 240v system and a 12v system. The 240v system powers high-wattage appliances such as TVs, hairdryers, kettles, and fridges, while the 12v system runs low-wattage items like water pumps, strip lights, and the gas side of the water heater. Connecting your caravan to an electric hook-up allows you to use more electric appliances simultaneously and those with higher voltages. To do this, you'll need a campsite mains hook-up cable (also called an extension lead), which is typically orange and 25 metres long. One end connects to the electric hook-up point, while the other end connects to your caravan's outlet. It's important to ensure your electrical system is safe and in good condition, and you should always turn off all electric appliances and plug switches before connecting to the mains.

Characteristics and Values Table for Electric in a Caravan

Electric hook-up cables

To connect your caravan to an electric hook-up, you will need a 25-metre campsite mains hook-up cable, also called an extension lead. This cable is typically orange in colour, making it easily visible in the dark and reducing the risk of tripping for passersby. One end of the cable, the male end, will feature a three-pin connector that attaches to the electric hook-up point, while the other end, the female end, connects to your caravan's outlet. Ensure that your cable meets the IP44 international standard, which guarantees protection against condensation, spray, and moisture. In the UK, the cable should also comply with BS EN 60309-2.

Before connecting your caravan to the electric hook-up, it is crucial to take safety precautions. Start by turning off all electric appliances and plug switches in your caravan. Next, locate the mains consumer unit and turn off the switches there, including the caravan isolator switch. This step is essential to prevent any electrical hazards. Make sure to consult your caravan's handbook if you're unsure about the location of the isolator switch or any other procedures.

Once you've turned off the necessary switches, it's time to unwind the hook-up cable. This step is crucial, as passing a current through a coiled cable can lead to overheating and even cause a fire. As you unravel the cable, carefully inspect it for any signs of damage. Ensure that it is in good working order before proceeding.

When purchasing a hook-up cable, you can find them at caravan dealers, major retailers, electronic shops, and camping or outdoors shops. Online retailers like Amazon also offer a range of options. Remember to check the product specifications and ensure the cable meets the necessary safety standards, such as IP44 and BS EN 60309-2 (for the UK).

Additionally, it's important to understand the electrical system of your caravan. Most modern caravans have two electrical systems. One system powers appliances through a hook-up lead, including the refrigerator, three-pin mains sockets, 240v lighting (if fitted), and other high-wattage devices. The other system uses an onboard battery to power low-wattage items such as water pumps and 12v strip lights. This 12v system ensures that even during a power cut, you'll still have access to basic lighting and water.

Battery options

Caravan batteries are used to power 12v systems, which include the water pump, strip lights, and toilet pump. There are a few options for powering your caravan, each with its own advantages and disadvantages.

12v deep cycle battery

The 12v deep cycle battery is the most common battery for caravans. It is designed to discharge a consistent amount of energy over a longer period of time, unlike a typical car battery, which delivers high energy in shorter bursts.

AGM battery

The AGM battery is an upgrade on the standard deep cycle battery. It charges more easily, lasts longer, and provides more consistent voltage for 90% of its discharge. However, it is also more expensive.

Lithium-ion battery

Lithium-ion batteries are the most expensive option, but they are considerably lighter in weight and provide more consistent voltage for 90% of their discharge. For maximum performance, it is important to use the correct charger with this type of battery.

Leisure battery

Leisure batteries are designed to provide power steadily over a long period of time and then recharge. They are often used together with solar panels, which can be a great option for those looking to explore more remote and rural areas.

Liquefied Petroleum Gas (LPG)

LPG is an alternative energy supply that is often used for cooking and heating in caravans. It comes in two forms: propane and butane. Propane is better for colder weather, while butane is less toxic and contains more energy per litre.

Solar panels

Solar panels are becoming increasingly popular for caravans, as they provide free energy from the sun to power a battery. This allows you to travel to remote locations without access to mains electricity and still operate your fridge and basic appliances.

Other considerations

When choosing a battery, it is important to consider the voltage of your caravan's electrical system. Most caravans have both 12v and 240v systems, and it is important to use a battery that is compatible with your system. Additionally, you should regularly check the operation of your battery to ensure that it is working properly.

It is also worth noting that some caravan sites may limit the maximum current loading per caravan, so it is important to check the permitted current before plugging in your appliances. Exceeding the permitted current will result in tripped circuit breakers, which can be inconvenient for you and your fellow caravanners.

240v vs 12v systems

Most modern caravans have two electrical systems. The 240v mains system runs household appliances such as TVs, hairdryers, fridges, and kettles. It also includes 240v lighting, a transformer, an immersion heater, and a space heater (if fitted).

The 12v system, on the other hand, runs low-wattage items such as water pumps, strip lights, the toilet pump, the gas side of the water heater, and any blown air heating fans. This system uses a dedicated leisure battery, which is designed to give a steady output over a longer period of time, making it better suited for running 12v appliances when the caravan is not hooked up to the mains.

One of the main differences between the two systems is their voltage measurement. Voltage is the pressure of the power and is measured in volts. Another difference is their plug-in interface. 240v power is the standard electrical power supply found in homes, powering appliances through rectangular double powerpoint sockets. However, in a caravan, you can only use 240v power when connected to an external power source, such as a mains supply via a caravan park.

Additionally, unlike 240v systems, which require a qualified electrician, 12v systems can be worked on by non-electricians. When working on a 12v system, it is important to use electrical cables of the right size, ensuring that the diameter of the conductor (excluding insulation) is suitable for the system.

When connecting your caravan to an electric hook-up, you will need a 25-metre campsite mains hook-up cable (also called an extension lead). This cable is typically orange in colour and has a male end with a three-pin connector to attach to the electric hook-up point, and a female end that connects to the caravan's outlet.

Safety precautions

Safety should always be the top priority when dealing with electricity. Here are some safety precautions to follow when putting electricity in a caravan:

Firstly, ensure you are using the correct equipment. In the UK, an electric hook-up cable should be compliant with BS EN 60309-2. The cable should be a standard 25-metre campsite mains hook-up cable, typically orange in colour, with a three-pin connector on one end and rated up to IP44 to protect against moisture. It is also important to check that the cable is free from any damage and in good working order.

Before connecting to the electricity supply, turn off all electric appliances and plug switches in your caravan, as well as the switches in the mains consumer unit, including the caravan isolator switch. This will help prevent any accidents or electrical overloads.

Be aware of the voltage and ampere requirements of your appliances. The 240-volt system, also known as mains power, runs high-wattage household appliances. The 12-volt system, on the other hand, is powered by an onboard battery and runs low-wattage items. Ensure you do not exceed the number of amps supplied by your caravan site.

Regularly check your leads for any nicks or cracks in the insulation and replace any damaged cords. It is also important to have a qualified and certified electrician carry out periodic checks and a full safety inspection every one or two years. Additionally, consider installing safety devices such as fire extinguishers, smoke alarms, and fire blankets to protect against potential electrical fires.

Lastly, be mindful of the dangers of carbon monoxide poisoning, especially when using appliances that burn fuel such as gas, oil, coal, or wood. Ensure proper ventilation and maintenance of these appliances to prevent accidental exposure to carbon monoxide.

Energy-saving measures

Solar Panels

Solar panels are a renewable and continuous energy source that can provide a passive source of electricity. Monocrystalline solar panels are more efficient and work well in various lighting conditions. When paired with solar panels, a portable power station like the EcoFlow battery can be charged during peak sun hours when sunlight is strongest. A solar charge controller can also be used to regulate power flow and prevent battery overcharging.

Window Enhancements

Windows play a vital role in ventilating and maintaining air circulation in the caravan. Removable tints on the windows can control the amount of light entering the caravan and help regulate the internal temperature. Bug screens can also be added to keep insects out while still allowing airflow.

Efficient Appliances

When choosing appliances, prioritize energy efficiency. LED lights, for example, drastically reduce power consumption compared to traditional incandescent bulbs. Opt for low-wattage devices and those specifically designed for caravan use, such as a 12V fridge instead of a traditional cooler. Consider investing in a three-way fridge, which can run off three different power sources: 240V on a powered site or generator, 12V when on the road or remote, and LPG.

Motion Sensor Lighting

Installing motion sensor or task lighting can reduce unnecessary power usage by lighting only the areas in use. This is especially beneficial if you section off the lights based on importance.

Generator as Backup

While generators can be a cost-effective way to power your caravan and provide a direct power supply to appliances, they can also add extra weight and require recharging. Newer inverter generators are more energy-efficient and quieter than older models.

By implementing these energy-saving measures, you can improve the energy efficiency of your caravan, maximize your off-grid experience, and reduce worries about power shortages.
