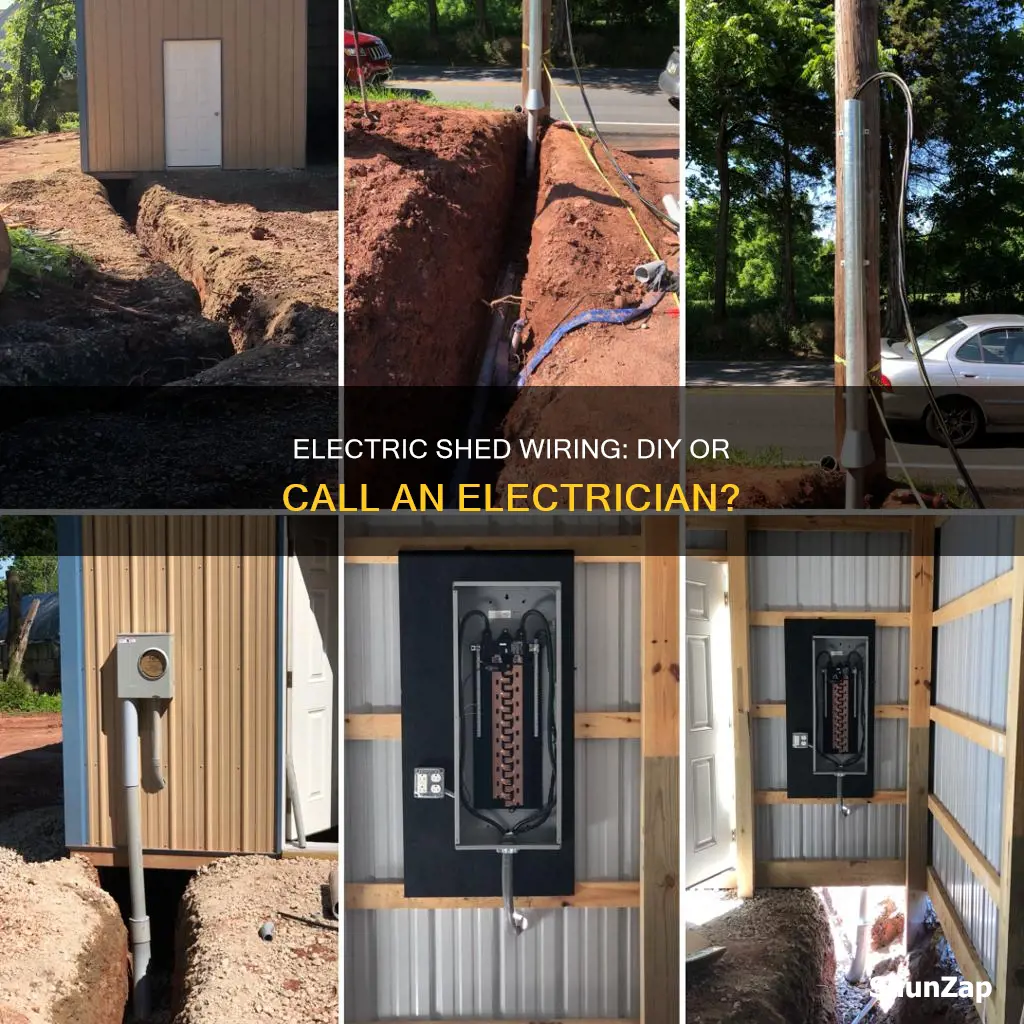

Electric Shed Wiring: Diy Or Call An Electrician?

Electrifying your shed can be a great way to transform your outdoor space. From a simple storage area, your shed can become a buzzing workshop, a cosy art studio, an entertainment hub, a home office, or even the centre of your garden parties. However, it's important to remember that electrifying a shed is more than just a DIY project. It requires careful planning, adherence to regulations, and a strong focus on safety. In this discussion, we will explore the process of installing electricity in a shed, the benefits it brings, and the key considerations to keep in mind.

Characteristics and Values Table for Electrifying a Shed

Planning and safety considerations

Firstly, recognise the scope of the project. Electrifying your shed is more than a simple DIY task; it requires careful planning and adherence to regulations. Major domestic electrical installations, including those that involve laying electrical cable from your house to a garden building, must comply with Part P building regulations in England and Wales. This is important not just for safety but also for any future plans to sell your property, as non-compliance could impact your property's value and saleability.

Next, assess your power needs. Consider what you plan to use the shed for and what electrical appliances you'll be using. For instance, if you intend to use heaters or power tools, you'll need to factor this into your electrical plan. This will help you determine the wiring method, burial depth, and type of circuit required. The National Electrical Code (NEC) provides guidelines on burial depths, which range from 4 to 24 inches depending on the wiring method and location.

Now, plan the electrical route. Identify the power source, whether it's your electrical panel or a junction box with an existing circuit, and plot the shortest route with the fewest pipe bends from the source to your shed. If your shed is some distance from your house, you may need to use PVC piping to protect the electrical wiring. Ensure the piping is large enough to accommodate the required wire size, and consider putting in extra pipes for future expansion.

Finally, for your safety and to ensure compliance with regulations, it is highly recommended to consult a licensed electrician. They can advise on specific requirements, such as grounding electrodes, and ensure your installation meets the necessary standards. Remember, electricity can be dangerous, and it's always better to seek professional guidance than risk an unsafe installation.

Burial depth and wiring method

The burial depth of your wiring will depend on the wiring method and the location of the wire. The National Electrical Code (NEC) outlines the rules for burial depth in table 300.5(A), with depths ranging from 4 to 24 inches. If you are running a residential branch circuit rated 120 volts or less, and it is protected by a 20-amp (or less) ground-fault circuit interrupter (GFCI), then your wiring method options are simplified.

One option for wiring your shed is to use direct burial cable. This method involves burying the electrical cable directly in the ground without any additional protection. The burial depth for this method will depend on the specific type of cable you are using and your local code requirements. It is important to use a cable that is rated for direct burial and to follow the manufacturer's recommendations for burial depth.

Another option is to use conduit, which is a protective tubing that the electrical wire is run through. The right conduit to use in this case is a liquidtight conduit approved for use in underground or outside installations. It is a metal conduit covered by resistant plastic. You should consult your local electrical code to determine the required burial depth for conduit installations. One source suggests burying the conduit between 18 and 24 inches deep.

It is important to note that if you are running wiring under concrete patios, slabs, or driveways, the depth requirements may be different from those for wiring run under your yard. Additionally, if you plan to heat or cool your shed or expand your electrical system in the future, you may need to install a subpanel instead of a single circuit. It is always a good idea to consult a licensed electrician or your local electrical inspector to ensure that your installation is safe and compliant with all relevant codes and regulations.

Electrical circuit and junction box

Electrifying your shed is a great way to transform your garden space. It can be a buzzing workshop, a cosy art studio, or even the hub for garden parties. However, it is important to remember that this is not just a simple DIY project and careful planning, safety precautions, and adherence to regulations are crucial.

To begin, you need to determine where you will get power for your shed. This can be your electrical panel or a junction box with an existing circuit, provided it has the capacity. It is important to ensure safe and accessible wiring from your house to the shed. You should also obtain any necessary permits and be aware of any buried electrical wires on your property.

The National Electrical Code (NEC) sets specific rules for burial depth, which range from 4 to 24 inches depending on the wiring method and location. If you are installing a residential branch circuit rated 120 volts or less, with a 20-amp or lower ground-fault circuit interrupter (GFCI), the NEC guidelines become more straightforward.

When it comes to wiring your shed, you can start by wiring a switch in the first box that enters the shed. From there, run non-metallic sheathed cable (NM-B) to a GFCI receptacle and then connect it to the rest of the shed receptacles. Remember that outdoor and accessory building receptacles must be GFCI-protected. Finally, complete the wiring at your house or seek assistance from a licensed electrician.

It is recommended to use liquid-tight conduit or direct burial electrical cable for your wiring. This type of conduit is approved for underground or outside installations and is a metal conduit covered by resistant plastic. Ensure that you follow the relevant electrical codes and guidelines, such as using unsheathed wires inside the conduit.

Grounding electrode and conduit

When running electricity to a shed, you may need to install a grounding electrode and conduit. The National Electrical Code (NEC) sets the rules for burial depth, which ranges from 4 to 24 inches, depending on the wiring method and the location of the buried wire. If you are running a residential branch circuit rated 120 volts or less, with a 20-amp ground-fault circuit interrupter (GFCI), your choice is simplified.

To install the conduit, first, determine the power needs of the shed, including the voltage and amperage requirements. This will dictate the size of the feed wire and the new circuit breaker needed at the house's main panel. Adding a subpanel next to the house's main breaker can simplify the wiring connections. Plan the route of the conduit, limiting bends to 360 degrees as per NEC rules. Mark the route with chalk or marking paint and purchase the necessary materials.

When installing the conduit, place a couple of inches of sand in the trench to protect it from sharp rocks. Ensure the trench is deep enough so that even with the sand, the conduit will be 18 inches or more below the surface. Use 1 ½ inch PVC conduit to allow ample room for pulling wires. Secure the joints with special glue and use a propane torch to soften the plastic pipe for gentle bends. Once the conduit is laid, cover it with a protective layer of sand and red caution tape to alert future diggers to the underground power line.

As per NEC 250.32(A), a grounding electrode is required for a building supplied by a branch circuit or feeder. This can be achieved by driving a ground rod into the earth outside the shed, connecting to the ground terminals. This ensures the safety of the electrical system by providing a path for stray voltage or electrical currents, protecting users from potential harm.

Calling an electrician

Firstly, you will need to ensure that any work complies with the relevant building regulations. In England and Wales, for example, major domestic electrical installations must comply with Part P building regulations. This includes laying electrical cable from your house to a garden building. Failure to obtain the necessary certification could cause issues when selling your property in the future. There is also the issue of liability should any damage occur to your property, or that of your neighbours, as a result of a non-certified, sub-standard electrical installation.

Secondly, there are a number of technical considerations that an electrician will be able to advise on. For instance, the National Electrical Code (NEC) sets out rules on burial depth for outdoor underground wiring, which ranges from 4 to 24 inches depending on the wiring method and location of the buried wire. If you are running a residential branch circuit rated 120 volts or less, protected by a 20-amp (or less) ground-fault circuit interrupter (GFCI), then an electrician can advise on the most suitable option. They will also be able to recommend the correct wire and amp/voltage for your needs, as well as the right conduit to use.

Thirdly, an electrician will be able to advise on any safety considerations. For example, it is important to ensure that any wires are pulled through a conduit using an electrician's fish tape, and that a suitable lubricant is used if necessary. They will also be able to wire a switch inside your house for safety reasons, allowing you to turn off the electricity to the shed if needed.

Finally, an electrician will be able to provide you with peace of mind that the work has been carried out to a high standard and in compliance with all relevant regulations. This can help to avoid any potential issues or hazards further down the line.
