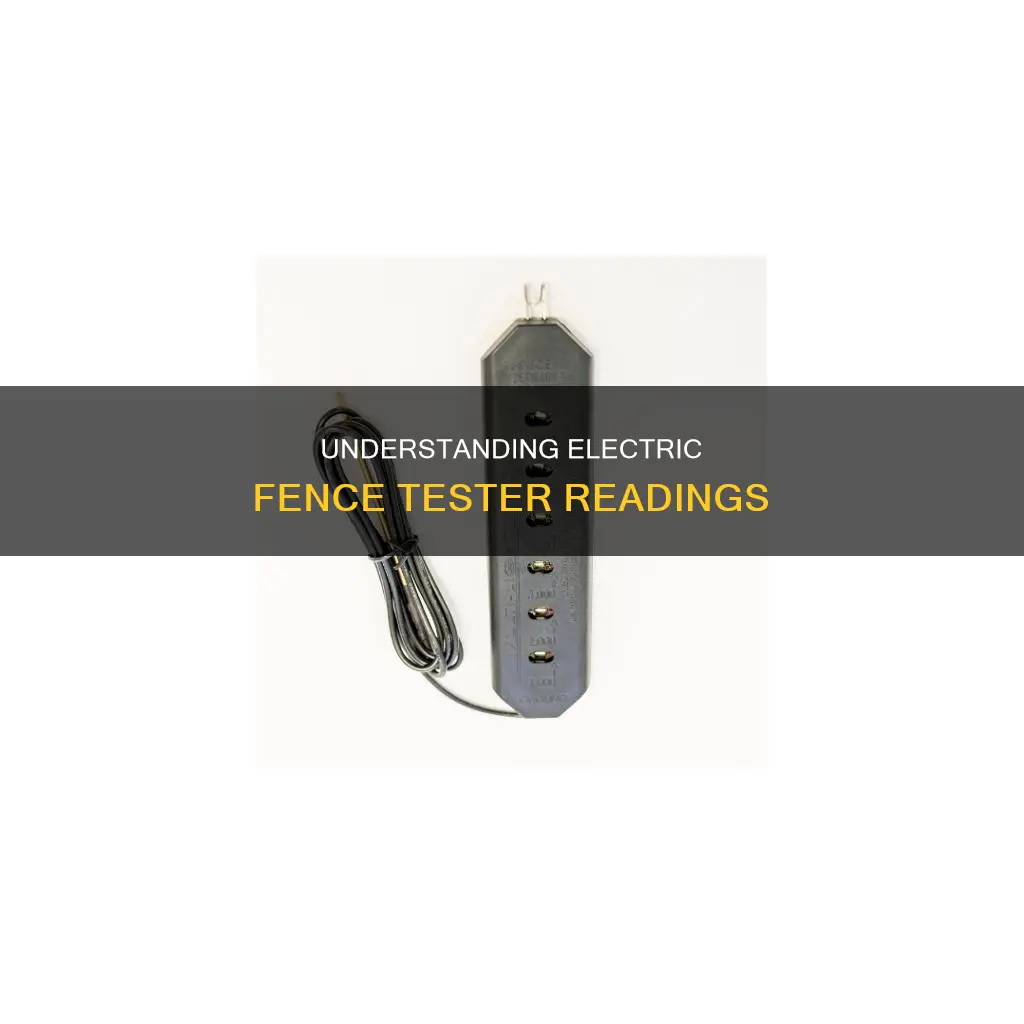

Electric fence testers, also known as voltage meters or voltage testers, are tools used to identify voltage drops and faults in electric fences. They are designed to be easy to use and come in a variety of styles and price points. Most models include a handheld meter with a digital readout and a metal prong on top, with an attached metal probe at the end of a wire. The digital screen on the voltmeter will display the voltage, which can then be compared to the fence manual to ensure it is within the correct range. This is important to ensure the fence is functioning properly and to maintain the safety of humans and animals that may come into contact with it.
| Characteristics | Values |
|---|---|
| Purpose | To test an electric fence |
| Use | Detect voltage in electric fences |
| Price | $10-$50 USD |
| Features | Handheld meter with a digital readout, a metal prong, and an attached metal probe at the end of a wire |
| Usage | Point the meter at the fence when within 5 ft (1.5 m) of it |
| Voltage | Compare the voltage reading to your fence manual, which will tell you what the fence’s voltage should be (Most electric fences have a voltage of 2,000 to 10,000 volts) |
| Grounding | Ensure proper grounding as poor grounding is the most common cause of a malfunctioning electric fence |
| Vegetation | Keep up with trimming along the fence as tall grass, branches, weeds, brush, or other plants touching the fence can drain voltage |
Explore related products
What You'll Learn
Buy a voltmeter or voltage tester
If you are looking to buy a voltmeter or voltage tester, there are a few things to consider. Firstly, you need to decide whether you want a standalone voltmeter or a multimeter, which has a voltmeter setting. A multimeter is more versatile and can measure a variety of electrical quantities, including voltage, current, and resistance. It also has additional features like data logging, which is useful for monitoring electrical systems over time. On the other hand, a voltmeter provides highly precise voltage measurements, making it ideal for applications where accuracy is critical, such as electronics development or electrical system calibration.
Standalone digital voltmeters are typically used in professional settings where precise voltage measurements are required for a dedicated purpose. They can be more expensive, with prices ranging from a few dollars to over a thousand. For example, Fluke offers a high-quality digital multimeter, while cheaper options are available from retailers like Walmart and Sears.
When choosing a voltmeter or multimeter, it's important to consider the voltage range you'll be working with. Most voltmeters have multiple voltage options, allowing you to adjust the sensitivity to get an accurate measurement without damaging the device. Choose a range above the maximum expected voltage. For example, household batteries are usually 9V or below, while car batteries are around 12.6V when fully charged. Household outlets are typically 240V in most countries and 120V in the US.
Additionally, consider the type of voltage you'll be testing. AC voltage (alternating current) from wall outlets can be dangerous, so a non-contact tester is often recommended for safety. DC voltage (direct current), such as from batteries, is safer to measure with direct contact. Make sure your voltmeter or multimeter has the appropriate settings and capabilities for your intended use.
Lastly, ensure that your voltmeter or multimeter comes with the necessary accessories, such as test leads (probes). Some multimeters may not include probes, so you'll need to purchase them separately. These leads are essential for connecting to the circuit and taking accurate measurements.
UL vs. EU Electrical Standards: Who's the Boss?
You may want to see also
Explore related products
Check the voltage reading
Checking the voltage reading on an electric fence tester is a straightforward process. Firstly, ensure you have purchased a suitable electric fence tester, also known as a voltmeter or voltage tester. These are designed for easy use on electric fencing and are a worthwhile investment for anyone with an electric fence.
To check the voltage, start by testing the fence charger with your electric fence tester. Move to the section of the fence furthest from the charger, and refer to your owner's manual to determine the correct voltage range. Point the tester at the fence, and ensure you are within 5 feet of it. The tester should indicate whether there is a charge or not. If there is no charge, move steadily closer to the fence until you get a reading.
If your tester provides voltage readings, compare the voltage reading to your fence manual. Most electric fences have a voltage of 2,000 to 10,000 volts. Repeat this process along the fence, moving closer to the charger, to identify weak spots.
If you encounter voltage drops or issues, you can use a more complex model of the electric fence tester, known as an "electric fence fault finder", to identify the problem. These models display voltage in kilovolts (kV) and amps of current, allowing you to troubleshoot ground or short issues effectively.
Electricity in Our Butts: Is It Possible?
You may want to see also
Explore related products
Compare to the fence manual
Electric fence testers, also known as voltage testers or voltmeters, are essential tools for maintaining an electric fence. They allow you to check the voltage of your fence to ensure it is functioning properly and safely.
When using an electric fence tester, it is important to compare the voltage reading on the tester to the fence manual. The fence manual will specify the correct voltage range for your fence, which is typically between 2,000 and 10,000 volts, depending on the type of animals the fence is intended to contain.
For example, if your fence manual states that the correct voltage for your fence should be 6,000 volts, and your fence tester reads 2,000 volts, then there is a problem with your fence. This could be due to various issues, such as a faulty energizer, power outage, or vegetation touching the fence and draining the voltage.
By regularly testing your fence with an electric fence tester and comparing the readings to your fence manual, you can ensure that your fence is functioning correctly and effectively. This will help keep your livestock safe and secure while also protecting them from receiving dangerous electric shocks.
Additionally, it is important to note that there are different types of electric fence testers available, such as non-contact voltmeters and more complex models like the "electric fence fault finders." Non-contact voltmeters are simple to use and will indicate the presence or absence of voltage, but they do not provide specific voltage readings. On the other hand, electric fence fault finders display the voltage in kilovolts (kV) and amps, making them more suitable for troubleshooting ground or short issues.
Jumping off Electrical Lines: Mario's Guide
You may want to see also
Explore related products
$9.95
$12.34 $12.99
Identify voltage drops
Voltage drops can be caused by a variety of factors, including faulty grounding, vegetation touching the fence, damaged insulators, and power outages. To identify voltage drops in an electric fence, you will need a fence tester, also known as a voltage meter or voltage tester. These tools are specifically designed to detect voltage in electric fences and typically feature a digital readout and a metal prong.
Begin by testing the fence charger with your electric fence fault finder to ensure that it is functioning properly. Move on to testing the fence sections closest to the charger, taking voltage readings as you move further from the charger. Voltage drops in these sections indicate problems on the line. Continue down the fence line, following any "fault arrows" on the fence tester display until you locate the short.
When using a non-contact voltmeter, stand within 3 to 5 feet of the electric fence and point the blinking tip of the voltmeter towards it. If the voltmeter glows with a steady red light and beeps, it indicates a charge. If not, slowly move closer to the fence. If the voltmeter still doesn't light up or beep, it suggests a lack of charge in the wire.
Repeat the test every 100 feet or so along the fence to confirm your results and identify any areas with voltage drops. If you notice a drop, back up by 50 feet and test again to pinpoint the beginning of the drop.
Additionally, if your fence has completely lost power, check your battery or power source. For solar-powered fences, test your battery voltage, as batteries may need to be replaced after about 1,000 days or after extended periods without sunlight. For battery-operated fences, check if the battery has been drained by a short along the fence or frequent testing by animals.
Master Electric Toothbrush Brushing: Tips and Techniques
You may want to see also
Explore related products
Find weak spots
Electric fences can be a great tool to secure your property or keep your livestock on pasture. However, they can be extremely frustrating when they malfunction. Here are some ways to find weak spots in your electric fence:
Use a Voltmeter
A voltmeter is a reliable tool for testing an electric fence. It is designed to detect voltage in electric fences and is easy to use. Most models have a handheld meter with a digital readout and a metal prong on top, with an attached metal probe at the end of a wire. To test your fence, start with the section furthest from the charger and work your way closer to it. Compare the voltage reading to your fence manual, which will tell you what the voltage should be. Most electric fences have a voltage of 2,000 to 10,000 volts. If you get a reading below 2,000 volts, there is a fault in the energizer.
Check for Common Issues
Understanding common issues with electric fences can help you troubleshoot and address problems promptly. Some of these issues include loss of power due to a faulty power source, blown fuse, tripped breaker, or faulty energizer. Ground faults can be caused by poor grounding, insulator issues, or hot wire connection with vegetation or brush. Vegetation touching the fence can also drain voltage, so it is important to keep the area around the fence trimmed.
Test the Ground Wire
If your fence has completely depowered, the problem may be with your battery or power source. If you have a ground wire, use the voltmeter to check the voltage on it. If your fence model doesn't use a ground wire, stick the metal end of the probe several inches into the soil. Touch the prong on the tester to each charged wire, and the digital readout should give you a voltage reading.
Inspect the Fence Line
Inspect the entire fence line for any signs of breaks or damage. Ensure that the hot wire is not touching fence posts, woven wire, or anything else. Look for loose wire connections and tighten them if necessary. If you're using polywire, look for cuts or worn areas in the line.
Call for Help
If you are unable to find the weak spots in your fence or are uncomfortable handling electrical components, it is best to call a professional fence company or local electrician for help. They can quickly identify and resolve any problems with your electric fence.
Baseboard Heater Wattage: How Much Power Do You Need?
You may want to see also
Frequently asked questions
An electric fence tester, also known as a voltage meter or voltage tester, is a device used to test the voltage of an electric fence.
First, ensure you have a voltage tester specifically designed for reading the energy from an electric fence. Then, follow these steps:
- Move to the section of the fence furthest from the charger.
- Stick the meter's probe into the soil or the ground wire.
- With the probe still touching the ground, touch the metal prong on the tester to the charged wire.
- The digital readout should give you a voltage reading.
Compare the voltage reading to your fence manual, which will tell you what the fence's voltage should be. Most electric fences have a voltage of 2,000 to 10,000 volts. If your reading is under 2,000 volts, there is a fault in the energizer. If your reading is over 2,000 volts, the energizer is operating properly.
There are several reasons your electric fence may have stopped delivering shocks, including:
- Power outage: Electric fences need energy to work, so a power outage can prevent your electric fence from working.
- Weather: Heavy snow or rain can cause your electric fence to lose voltage.
- Faulty grounding: Poor grounding is a common cause of malfunctioning electric fences.
- Vegetation: Tall grass, branches, and other plants that touch an electric fence can drain voltage.
