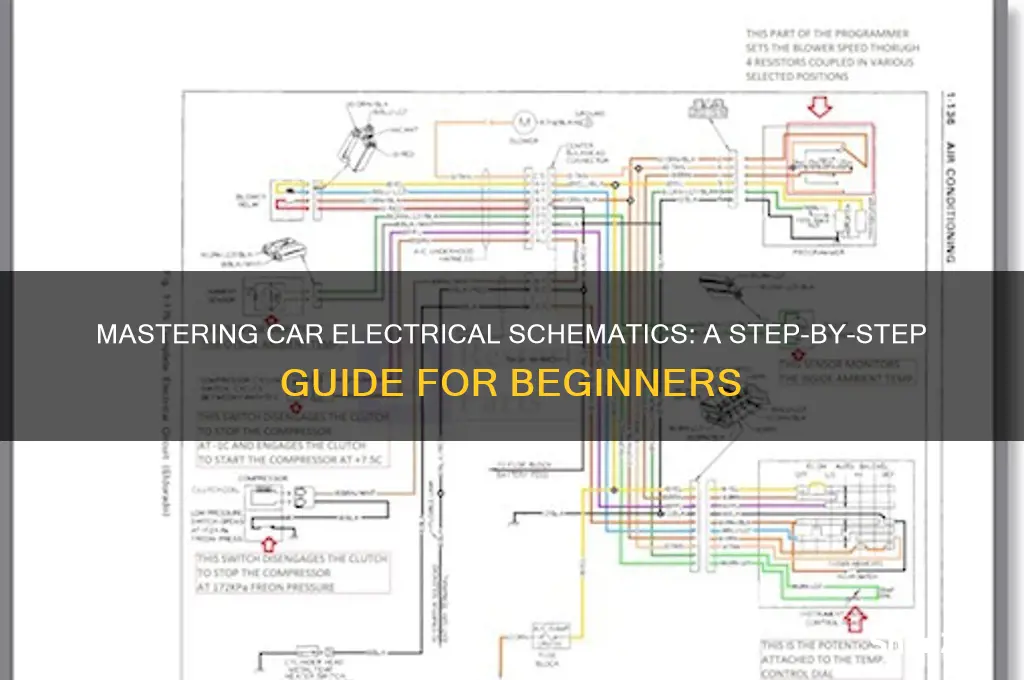

Reading electrical schematics for cars is an essential skill for anyone involved in automotive repair, diagnostics, or customization. These diagrams serve as the blueprint of a vehicle’s electrical system, detailing the wiring, components, and connections that power everything from the engine to the infotainment system. Understanding schematics requires familiarity with symbols, such as those for switches, relays, and fuses, as well as the ability to trace circuits to identify power sources, grounds, and signal paths. By mastering how to interpret these diagrams, technicians can efficiently troubleshoot issues, perform repairs, and ensure the proper functioning of a vehicle’s electrical systems. Whether you’re a professional mechanic or a DIY enthusiast, learning to read car electrical schematics is a valuable skill that enhances your ability to work on modern vehicles.
| Characteristics | Values |
|---|---|
| Understanding Symbols | Familiarize with standardized symbols for components like batteries, switches, and relays. |
| Circuit Paths | Trace the flow of electricity from the power source to the load and back to the ground. |
| Wire Colors and Codes | Learn the color-coding system for wires (e.g., red for power, black for ground). |
| Component Identification | Identify components like fuses, resistors, capacitors, and sensors using their symbols. |
| Schematic Layout | Understand the hierarchical layout, starting with main systems and branching into sub-systems. |
| Voltage and Current Ratings | Note voltage and current ratings for components to ensure compatibility and safety. |
| Grounding Points | Identify grounding symbols and their locations in the schematic. |
| Connector and Pin Numbers | Locate connectors and their pin numbers for proper wiring and troubleshooting. |
| Fuse and Relay Locations | Identify fuse boxes and relay locations for maintenance and diagnostics. |
| Diagnostic Codes | Understand how diagnostic trouble codes (DTCs) relate to specific circuits. |
| Wiring Diagrams vs. Schematics | Differentiate between wiring diagrams (physical layout) and schematics (functional layout). |
| Legend and Key | Refer to the legend or key for symbol meanings and abbreviations. |
| System Integration | Understand how different systems (e.g., lighting, engine management) interconnect. |
| Updates and Revisions | Check for the latest schematic revisions, especially for newer car models. |
| Tools for Reading Schematics | Use digital tools or software (e.g., AutoCAD, PDF readers) for easier navigation. |
| Safety Precautions | Always disconnect the battery before working on electrical systems to avoid shocks. |
Explore related products
What You'll Learn
- Symbol Identification: Learn common symbols for components like batteries, switches, motors, and sensors
- Circuit Tracing: Follow wires and connections to understand power and signal flow
- Fuse and Relay Basics: Identify fuse boxes, relay functions, and their roles in circuits
- Grounding Systems: Understand grounding points and their importance in electrical stability
- Diagnostic Codes: Decode error codes using schematics to troubleshoot issues effectively
Symbol Identification: Learn common symbols for components like batteries, switches, motors, and sensors
Electrical schematics in cars are like roadmaps, guiding technicians through the intricate network of wires, components, and connections. At the heart of this map are symbols—each representing a specific component. Mastering these symbols is the first step to decoding any schematic. For instance, a battery is typically depicted as a series of parallel lines, with the longer line representing the positive terminal. Recognizing this symbol instantly clarifies the power source in the circuit. Similarly, switches are often shown as a break in a line with a diagonal or horizontal bar, indicating their ability to interrupt or complete the circuit. Without understanding these symbols, even the simplest schematic becomes a puzzle.
Consider the motor symbol, which usually appears as a circle with an "M" or a series of curved lines inside. This representation simplifies the complexity of the motor’s internal workings, allowing you to focus on its role in the circuit. Sensors, on the other hand, are often shown as a rectangle with a triangle or a set of parallel lines inside, depending on the type. For example, a temperature sensor might have a thermometer-like symbol within the rectangle. These symbols are not arbitrary—they are standardized across the automotive industry, ensuring consistency across different schematics. Familiarizing yourself with these standards is crucial for accurate interpretation.
A practical tip for learning these symbols is to create a reference chart. Start by identifying the most common components in automotive schematics: batteries, switches, motors, and sensors. Pair each component with its corresponding symbol and include a brief description of its function. For example, note that a relay (symbolized by a rectangle with a coil and contacts) acts as an electrical switch controlled by a low-power signal. Review this chart regularly, and test yourself by identifying symbols in real schematics. Over time, this practice will make symbol recognition second nature.
One common pitfall is assuming that symbols are universal. While many are standardized, variations exist, especially in older or international schematics. For instance, European schematics might use slightly different symbols for the same component compared to American ones. Always cross-reference unfamiliar symbols with a reliable guide or manufacturer’s documentation. Additionally, pay attention to the context in which a symbol appears. A resistor, for example, might be shown as a zigzag line, but its value (measured in ohms) is often indicated nearby, providing critical information about its role in the circuit.
In conclusion, symbol identification is the cornerstone of reading electrical schematics for cars. By learning the common symbols for components like batteries, switches, motors, and sensors, you gain the ability to navigate complex circuits with confidence. Combine this knowledge with practical tools like a reference chart and a keen eye for context, and you’ll be well-equipped to tackle any schematic. Remember, the goal isn’t just to recognize symbols but to understand how they interact within the larger system—a skill that transforms schematics from abstract diagrams into actionable insights.
Post-Sharpening Care: Best Tools to Use After Electric Knife Sharpeners
You may want to see also
Explore related products
Circuit Tracing: Follow wires and connections to understand power and signal flow
Understanding the flow of power and signals in a car's electrical system is akin to deciphering a complex roadmap. Circuit tracing is the process of following wires and connections to map out how electricity moves from the source to the component and back. This technique is essential for diagnosing issues, modifying systems, or simply gaining a deeper understanding of your vehicle’s electrical architecture. Start by identifying the power source, typically the battery, and trace its path through fuses, relays, and switches to the load, such as a light bulb or motor. Pay attention to wire colors and labels, as these often indicate function (e.g., red for power, black for ground). Use a wiring diagram as your guide, but remember that real-world connections may vary due to manufacturing differences or aftermarket modifications.
A practical approach to circuit tracing involves using tools like a multimeter or test light to verify continuity and voltage. Begin at the battery and test each segment of the circuit, ensuring power is present where expected. For example, if troubleshooting a non-functional headlight, trace the wire from the bulb back to the fuse box, checking for breaks or corrosion along the way. Signal flow, on the other hand, often involves sensors and control modules. Follow the path from the sensor (e.g., a coolant temperature sensor) to the module (e.g., the ECU) and then to the actuator (e.g., a cooling fan). Understanding this flow helps pinpoint whether the issue lies in the sensor, wiring, or module itself.
One common pitfall in circuit tracing is overlooking ground connections. A poor ground can mimic a broken wire, causing components to malfunction. Always verify ground points by testing for continuity between the ground wire and the vehicle’s chassis. Another tip is to document your findings as you trace circuits. Label wires, take notes, or sketch a simplified diagram to avoid confusion, especially in complex systems like modern engine management networks. This documentation becomes invaluable when referencing the circuit later or explaining it to a mechanic.
Comparing circuit tracing to solving a puzzle highlights its methodical nature. Each wire and connection is a piece that, when correctly placed, reveals the complete picture. Unlike puzzles, however, circuits often have multiple paths and redundancies, such as dual-wire systems for critical components like fuel pumps. Understanding these redundancies ensures you don’t mistakenly diagnose a functional backup circuit as faulty. Additionally, modern vehicles often incorporate CAN bus systems, where signals are transmitted digitally rather than through dedicated wires. In such cases, tracing involves monitoring data flow using specialized tools like a scan tool or oscilloscope.
In conclusion, circuit tracing is a skill that bridges theoretical knowledge with hands-on application. It requires patience, attention to detail, and the right tools. By systematically following wires and connections, you can demystify even the most intricate automotive electrical systems. Whether you’re a DIY enthusiast or a professional technician, mastering this technique empowers you to diagnose and repair issues with confidence, ensuring your vehicle’s electrical system operates reliably and efficiently.
Exploring the Availability of Electric Cars in the Philippines Today
You may want to see also
Explore related products
Fuse and Relay Basics: Identify fuse boxes, relay functions, and their roles in circuits
Fuses and relays are the unsung heroes of a vehicle's electrical system, acting as critical safeguards and switches that ensure components operate efficiently and safely. Fuses, typically housed in a fuse box under the dashboard or in the engine compartment, are designed to interrupt the circuit if an overload occurs, preventing damage to wiring and devices. Relays, on the other hand, act as high-power switches, allowing a low-current circuit (like a switch in the cabin) to control a high-current device (like headlights or a fuel pump). Identifying these components on a schematic is the first step to diagnosing electrical issues or understanding a circuit’s design.
To locate a fuse box, consult your vehicle’s manual, which often includes a diagram labeling each fuse and its corresponding circuit. Fuse boxes are usually marked with a symbol resembling a fuse or a series of rectangles on schematics. Relays are depicted as rectangles with multiple connections, often labeled with their function (e.g., "Fuel Pump Relay"). When examining a schematic, trace the power flow from the battery to the component, noting where fuses and relays are positioned. For instance, a headlight circuit will show a relay near the battery, enabling the low-current switch inside the car to activate the high-power headlights safely.
Understanding relay functions requires recognizing their role as intermediaries. A relay consists of a coil and contacts; when the coil is energized, it closes the contacts, completing the high-current circuit. This design protects switches and wiring from excessive current. For example, a starter motor relay allows the ignition switch to control the high-amperage starter without overheating. Schematics often use a diagonal line through the relay symbol to indicate the coil’s control circuit, while parallel lines represent the contacts.
Practical tips for working with fuses and relays include using a multimeter to test for continuity in a fuse or checking if a relay clicks when activated. Always replace fuses with the correct amperage rating, as using a higher-rated fuse can lead to fire hazards. When replacing a relay, ensure the new one matches the pin configuration and function. For troubleshooting, start by inspecting fuses for visible damage and testing relays for proper operation before diving into complex wiring issues.
In summary, fuses and relays are fundamental to a vehicle’s electrical integrity, serving as protective and control elements. By identifying their locations and functions on schematics, you can diagnose problems efficiently and understand how circuits operate. Mastery of these basics transforms electrical schematics from abstract diagrams into actionable blueprints for maintenance and repair.
Why Electric Cars Accelerate Faster: Unlocking Instant Torque Power
You may want to see also
Explore related products
Grounding Systems: Understand grounding points and their importance in electrical stability
Grounding systems are the unsung heroes of automotive electrical stability, silently ensuring that every component operates within safe voltage parameters. In a car’s schematic, grounding points are represented by symbols resembling small triangles or flags connected to the chassis or engine block. These points act as the return path for electrical current, completing the circuit and preventing voltage buildup that could damage sensitive electronics. Without proper grounding, even a minor fault can cascade into system-wide malfunctions, from flickering lights to complete power loss. Identifying these points on a schematic is step one; understanding their role is critical for diagnosing and resolving electrical issues.
Consider the analogy of a river: the positive wire is the flow, and the ground is the riverbed guiding it back to the source. In a car, the chassis often serves as the primary ground, but modern vehicles may have multiple grounding points for specific systems, such as the engine control module or infotainment system. A weak or corroded ground connection can introduce resistance, causing voltage drops that starve components of power. For instance, a faulty ground to the fuel pump might result in erratic fuel delivery, leading to stalling or poor performance. Always inspect grounding points for cleanliness and tightness, especially in older vehicles where corrosion is common.
When troubleshooting, start by verifying the integrity of grounding points. Use a multimeter to check for continuity between the suspected ground and the battery negative terminal. A reading above 0.1 ohms indicates a problem. For example, if the headlights dim when the turn signals are activated, a poor ground in the lighting circuit could be the culprit. Upgrading to heavier gauge grounding wires or adding supplementary grounds can improve stability in high-demand systems like aftermarket audio setups. However, avoid over-grounding, as redundant connections can create loops that interfere with signal integrity.
The importance of grounding extends beyond functionality to safety. A compromised ground can cause electrical current to seek alternate paths, potentially through the vehicle’s frame or even the driver’s body. This risk is particularly acute in systems like the airbag or anti-lock brakes, where reliability is non-negotiable. When modifying a vehicle, always consult the schematic to ensure new components are grounded correctly. For instance, LED lighting upgrades require proper grounding to prevent hyper-flashing or error codes. Treat grounding as a cornerstone of electrical design, not an afterthought.
In summary, grounding systems are the backbone of a car’s electrical stability, demanding attention proportional to their importance. By mastering their identification and maintenance, you’ll not only resolve common issues but also safeguard the vehicle’s performance and safety. Whether you’re a DIY enthusiast or a professional technician, prioritizing grounding points in your schematic analysis will yield dividends in both efficiency and reliability. Remember: a well-grounded system is a well-behaved system.
Trump's Take on Electric Vehicles: Love or Hate?
You may want to see also
Explore related products
Diagnostic Codes: Decode error codes using schematics to troubleshoot issues effectively
Modern vehicles generate diagnostic trouble codes (DTCs) when their onboard computers detect anomalies in sensor data or system performance. These codes, often displayed as a series of letters and numbers (e.g., P0300 for random misfire), serve as a starting point for troubleshooting. However, interpreting them requires more than a code definition; it demands understanding the underlying circuitry. This is where electrical schematics become indispensable. By cross-referencing DTCs with schematics, technicians can trace the code to specific components, circuits, or sensors, transforming abstract errors into actionable insights.
Consider a scenario where a vehicle triggers a P0420 code, indicating catalyst system efficiency below threshold. Without a schematic, one might assume the catalytic converter is faulty and replace it prematurely. However, a schematic reveals the circuit includes oxygen sensors, wiring harnesses, and the ECU. Analyzing the diagram shows how the ECU compares pre- and post-catalyst O2 sensor data to assess converter efficiency. This insight suggests testing sensor functionality, checking for exhaust leaks, or inspecting wiring integrity before condemning the converter. The schematic contextualizes the code, preventing misdiagnosis and unnecessary repairs.
Decoding DTCs with schematics follows a systematic process. First, identify the code’s system (e.g., powertrain, chassis) and locate the corresponding schematic section. Next, trace the circuit associated with the code’s parameter (e.g., camshaft position sensor circuit for P0340). Pay attention to grounds, power sources, and signal paths, as issues often stem from these areas. Use a multimeter to verify voltage, resistance, or continuity at key points, comparing readings to schematic specifications. For instance, a P0171 code (system too lean) might prompt testing fuel injector circuits for open circuits or low voltage, as depicted in the schematic.
While schematics are powerful tools, their effectiveness hinges on accuracy and caution. Modern vehicles often have variant-specific diagrams, so ensure the schematic matches the vehicle’s make, model, and year. Be mindful of high-voltage systems in hybrids or EVs, where schematics highlight safety-critical components like battery management systems. Additionally, schematics may not account for intermittent faults, requiring patience and repeated testing. Pairing schematic analysis with live data streaming from a scan tool can further validate findings, bridging static diagrams with dynamic vehicle behavior.
Mastering the integration of diagnostic codes and electrical schematics elevates troubleshooting from guesswork to precision. It shifts focus from replacing parts to understanding relationships between components and signals. For instance, a P0442 code (EVAP system leak detected) might seem straightforward, but a schematic reveals the circuit includes the purge valve, charcoal canister, and pressure sensor. Testing each component in sequence, guided by the diagram, isolates the leak source efficiently. This method not only saves time and resources but also fosters a deeper comprehension of vehicular systems, turning error codes into opportunities for learning and problem-solving.
Best Oil for Gardenline Electric Chainsaw Maintenance and Performance
You may want to see also
Frequently asked questions
Basic symbols include circles for switches, zig-zag lines for resistors, arrows for diodes, and rectangles for relays. Familiarize yourself with these to understand component placement and function.
The power source, usually the battery, is often represented by a symbol with a + and - sign or a box with diagonal lines. It’s typically the starting point for tracing circuits.
A dotted line usually indicates a hidden or optional connection, such as a wire that runs behind other components or a feature available only in certain vehicle models.
Start at the power source (battery) and follow the lines to the load (e.g., light, motor). Pay attention to switches, fuses, and grounds along the way to understand the circuit’s operation.
