Learning how to read schematic diagrams of electrical circuits is a highly useful skill. Electrical schematics are diagrams that illustrate the connections between wires and components in an electronic circuit. They are like a map for building or troubleshooting circuits. To read them, one must memorise the most common schematic symbols and understand what they represent. Each physical component, such as a resistor, capacitor or transistor, has a unique symbol. For example, resistors are usually represented by a few zig-zag lines, while capacitors have two terminals running perpendicularly into plates. Logic gates, which process signals that represent true or false values, also have their own symbols. The ability to interpret these symbols is fundamental to understanding how a circuit works.
| Characteristics | Values |
|---|---|
| Component symbols | Resistors are represented by zig-zag lines or a featureless rectangle; capacitors have two terminals running into plates, with a curved plate indicating a polarized capacitor; batteries are shown as parallel lines, with longer lines representing positive terminals and shorter lines representing negative terminals. |
| Component names | Usually a combination of one or two letters and a number, with the letter identifying the component type (e.g., R for resistors, C for capacitors, U for integrated circuits). Each component should have a unique name. |
| Wire connections | Wires are represented by lines, and connections are shown by dots. |
| Voltage sources | Symbols indicate whether the source is supplying direct current (DC) or alternating current (AC). |
| Logic gates | Schematic symbols represent logic gates, which are electronic circuits processing true or false values. The four standard functions are AND, OR, NOT, and XOR. |
| Integrated circuits | Schematics may show integrated circuits, which contain resistors, capacitors, and transistors. Common functions include audio amplifiers, timers, and microprocessors. |
| Understanding functionality | Reading schematic symbols is a basic skill, but understanding the underlying electrical engineering and circuit functionality is more complex and requires study and practice. |
Explore related products
What You'll Learn

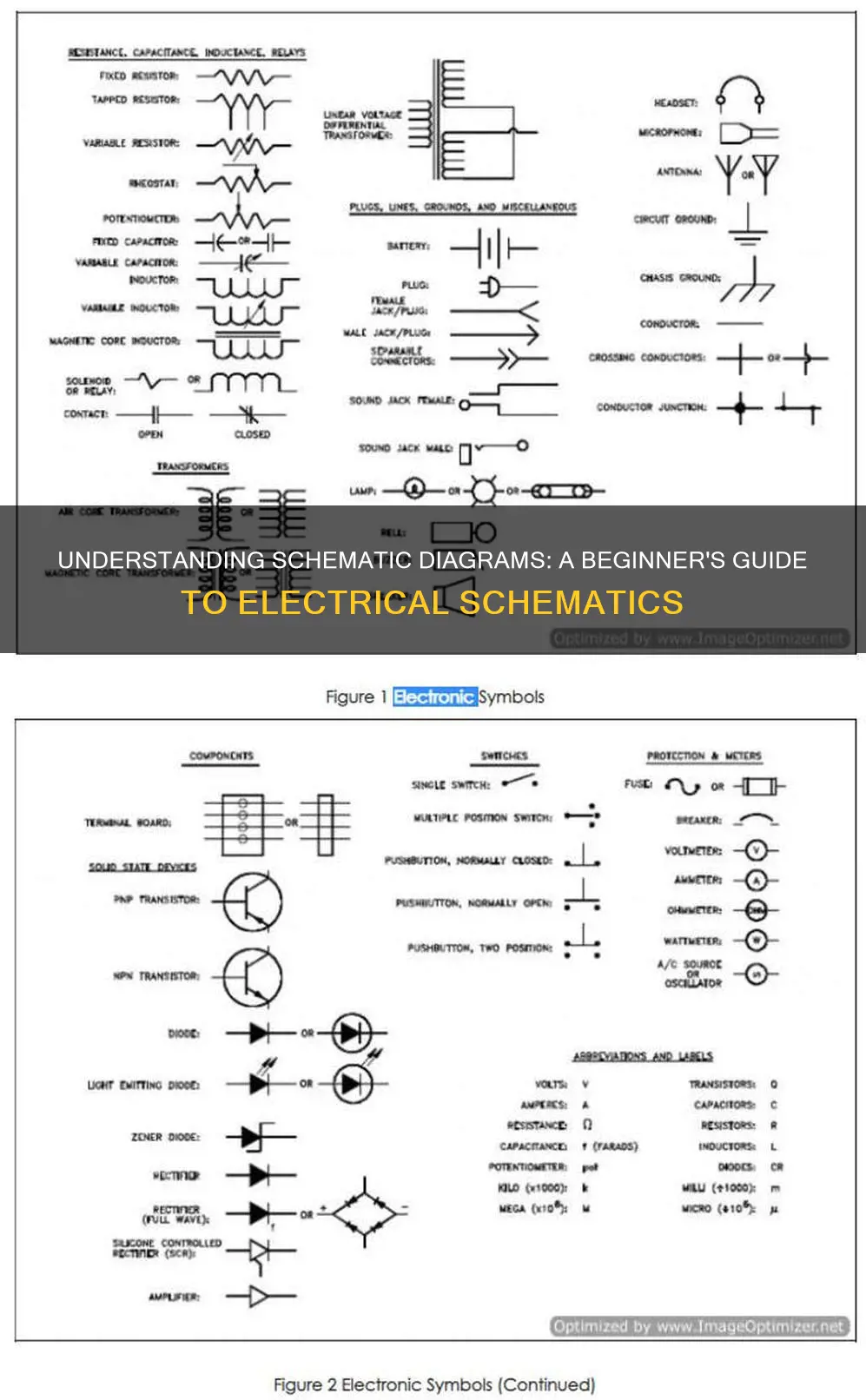

Understanding component symbols
When creating a circuit diagram, it is essential to understand the common electrical engineering symbols and what they mean. These symbols are standardised graphical representations of electrical components, showing how they are connected within a circuit.
Circuit diagrams use nationally or internationally recognised symbols to represent the individual components used in the construction of a circuit. These symbols are connected by lines, which represent the wires or component leads that connect the components. Arrows can be used to indicate the direction of conventional current flow around a circuit or through a component. Symbols joined with a dot indicate an electric connection between components. Plus and minus symbols indicate the direction of charge for direct current (DC) only. A backwards, rotated S-symbol (a wave symbol) indicates alternating current (AC). An arrow parallel to the wire direction also indicates current direction.
Some of the most common electrical symbols include:
- Wires: A straight, featureless line indicates a wire connecting one device to another.
- Fuses: The wire symbol section also includes fuse symbols.
- Connected wires: Solid junctions represent wire connections.
- Unconnected wires: One wire jumping over another indicates the wires are not connected.
- Batteries: A pair of straight lines of different lengths represents one battery cell, which outputs a constant voltage. The longer line represents the positive terminal, while the shorter line connects to the negative. More pairs of lines indicate multiple cells.
- Voltage source: A constant voltage source other than a battery is indicated by a plus and minus sign, showing the discharge direction.
- Controlled voltage source: A diamond shape indicates that the voltage can be varied.
- AC voltage source: A voltage source using AC is indicated by a plus and minus sign.
- Current source: An arrow indicates a constant current source and its direction.
- Controlled current source: A diamond shape indicates that the current can be varied.
- Ground: An indispensable part of circuit safety, ground symbols depict a safe current termination.
- Resistors: The prefix is just the first letter of the component (R).
- Inductors: Inductors are prefixed with L because current has already been given the letter I.
- Integrated circuits: These are usually prefixed with IC, but can sometimes be prefixed with U.
- Crystals: Crystals are usually labelled as XTAL but can sometimes be labelled with a Y.
- Transistors: The connecting leads of a bipolar junction transistor (BJT) are identified as E (emitter), B (base), and C (collector).
- Relays: Relays form switches in your electrical circuit. There are four major types of relay symbols, labelled with both the full name (e.g. Single Pole Single Throw) and its abbreviation (e.g. SPST).
