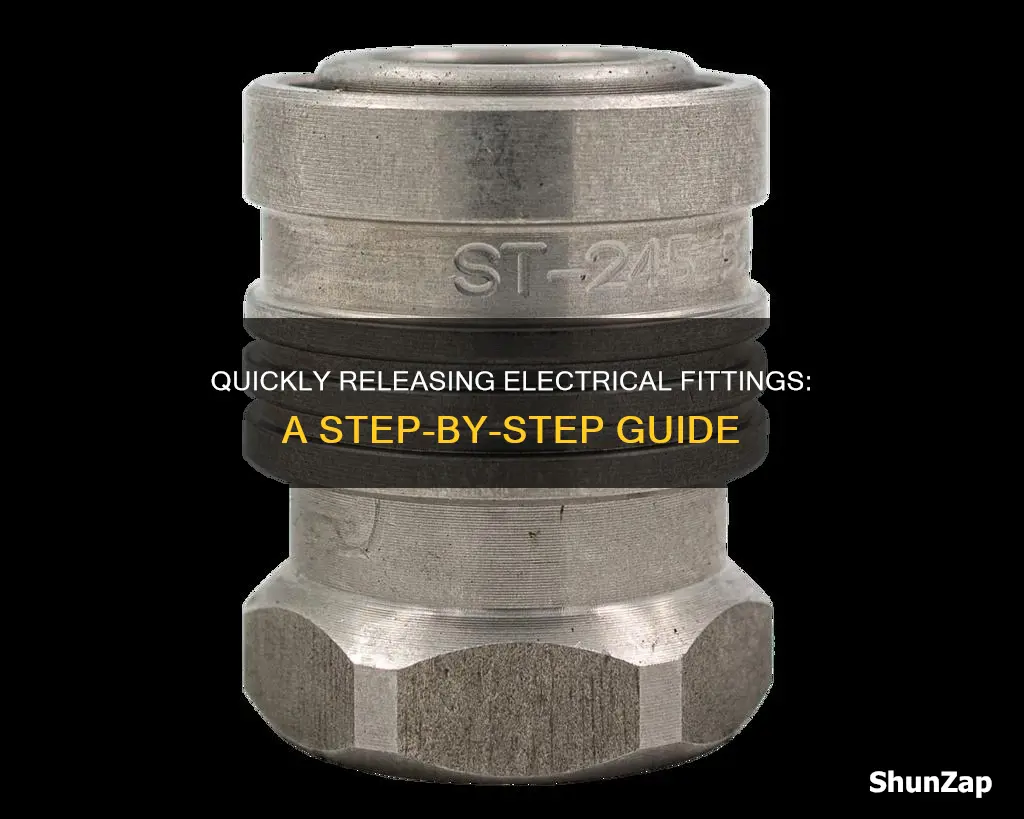

Quick-connect fittings are used to provide fast, secure, and reliable connections for the transportation of water. They are used in a variety of applications, from household water filtration systems to office water coolers. These fittings consist of three elements: the connecting body, the collet, and the O-ring. The connecting body holds the fitting together, while the O-ring creates a tight seal to prevent water from escaping. Quick-connect fittings can be released by pushing a button or lever, or by pulling on the fitting. However, they may sometimes get jammed due to built-up pressure, dirt, or improper installation. To release a jammed quick-connect fitting, one can try pulling the trigger on the gun when the machine is off, twisting and pulling away, or using a tool like a screwdriver to leverage the pressure.
| Characteristics | Values |
|---|---|
| Steps to release quick-connect fittings | Close the main water supply valve, open the valve with a spigot or faucet, remove the collar, and pull on the nylon ring |
| Common issues with quick-connect fittings | Leaking due to improper installation, damage, or forceful pressure; jamming due to built-up pressure or dirt |
| Solutions to common issues | Ensure tubing reaches the O-ring, use a collet release tool, release pressure by pulling the trigger, clean dirt and grit, use a disconnecting clip |
| Types | Electrical, plumbing, pressure washing |
| Use cases | Transporting water, connecting wires |
Explore related products
What You'll Learn
Ensure the tubing is pushed in far enough to depress the O-ring
When pushing the quick-connect fitting onto the tubing, it is essential to ensure that the tubing is pushed in far enough to depress the O-ring and create a seal. If the tubing does not reach the O-ring, water can bypass the collet's teeth, causing leaks. The pushback from the resistance created when the tubing reaches the collet might lead you to believe that the tubing has been fully inserted, but it may not have reached the O-ring.
To ensure that your tubing reaches the O-ring, you can measure the tubing before inserting it into the fitting. Take a ruler and measure 3/8ths of an inch from the mouth of the tubing. Mark this point with a pen or a marker. When you push the tube into the fitting, ensure that the mark disappears completely under the collet. This indicates that the tubing has been pushed in far enough to compress the O-ring.
It is important to note that the O-ring inside the quick-connect fitting should be clean and straight. A jagged or unevenly cut tube can damage the O-ring and prevent a watertight seal from forming. To ensure a clean, straight cut, use a tube cutter with a sharp blade. Additionally, avoid overstretching the O-ring, as this can lead to tears and leaks. It is recommended to use a lubricant to guide the O-ring into place without causing damage.
By following these steps and ensuring that the tubing is pushed in far enough to depress the O-ring, you can create a secure and reliable connection with your quick-connect fittings.
Electric Fans Installation Guide for Silverado
You may want to see also
Explore related products
Disconnect the correct fittings
Disconnecting quick-connect fittings can be a challenging task, especially when dealing with plumbing or pressurised systems. Before attempting any disconnection, it is crucial to ensure you are working on the correct fittings.
Quick-connect fittings are designed for fast and dependable connections and disconnections. They are commonly used in plumbing applications, such as water treatment systems, office water coolers, and espresso machines. These fittings consist of three main components: the connecting body, the collet, and the O-ring.
To disconnect the correct fittings, follow these steps:
- Identify the Type of Fitting: Quick-connect fittings can vary depending on the application. For example, plumbing fittings may have colour-coded bags, as seen with SharkBite brass push-to-connect fittings.
- Locate the Disconnecting Mechanism: This could be a disconnecting clip, a button, or a lever. For example, SharkBite fittings have a disconnecting clip that needs to be snapped onto the pipe.
- Release the Fitting: Once you have located the disconnecting mechanism, it's time to release the fitting. If it is a clip, snap it onto the pipe to release the tube from the fitting. If it has a button or lever, simply push it to release the joint from the adapter.
- Handle with Care: In some cases, quick-connect fittings can be challenging to release due to pressure or grit buildup. If you encounter resistance, try using an object like a screwdriver to leverage pressure and help release the fitting. Alternatively, you may need to use a collet release tool to press down the collet and remove the fitting.
- Check for Damage: Before reusing any fittings or pipes, inspect them for damage. Leaks in quick-connect fittings are often caused by a damaged O-ring, improper installation, or eroded tubing. Ensure the O-ring is clean, straight, and intact before reusing.
By following these steps and paying close attention to the type of fitting and its release mechanism, you can successfully disconnect the correct quick-connect fittings. Remember to wear appropriate protective gear, such as work gloves, and always ensure the water supply is shut off before working on plumbing systems.
Electric Supplies: A-Van's One-Stop Shop in Hawthorne, NJ
You may want to see also
Explore related products
Use a collet release tool
If you are struggling with a particularly stubborn quick-connect fitting, you can use a collet release tool to press down on the collet and remove the fitting. This tool is especially useful when working in tight spaces or where minimal tubing is exposed.
The collet provides the teeth for the fitting to bite down on the tubing and keep it securely in place. When pressure is applied to the fitting (i.e. when a piece of tubing is inserted), the collet is pressed up against the taper inside the connecting body.
To use a collet release tool, first identify the size of your fittings and collet. Common sizes include 1/4" and 3/8". The John Guest PI-TOOL, for example, features both a 1/4" and 3/8" end, allowing it to work with a variety of fitting and valve sizes.
Once you have the correct tool, slide it over the collet ring on the quick-connect fitting. This will allow you to easily remove the tubing. With the tool in place, simply press down on the collet and pull the fitting towards you to remove it.
After removing the fitting, you can proceed with further maintenance or repairs. Remember to address the cause of the leak, if applicable, before reassembling the components.
Henry's Law Electricity: Calculating the Constant
You may want to see also
Explore related products
Close the main water supply valve
Closing the main water supply valve is a crucial step in preparing for plumbing repairs or addressing emergencies such as a burst pipe or water leak. Here is a detailed guide on how to close the main water supply valve:
Locate the Main Water Valve:
The main water valve can typically be found in several locations, either inside or outside your house. If your home has a basement or crawl space, it is often located on an interior wall near the front, where the water enters from the water meter. For houses built on a slab, the valve may be near the hot water heater or inside the garage. In warmer areas, the main water valve is usually located outside, sometimes on an exterior wall. Underground shut-off valves are also commonly installed outside at the property line, and accessing these may require a plumber.
Turn Off the Water Supply:
Once you have located the main water valve, proceed to turn off the water supply. For round "wheel" handle valves, turn the handle clockwise, which may take two or more full revolutions. For lever handle valves, slowly turn the lever handle a quarter turn until it is perpendicular to the pipe.
Release Pressure from Pipes:
After turning off the water supply, it is important to release the pressure from your pipes. To do this, open a tub or sink faucet (both hot and cold) on the highest level of your home. Watch the spout to ensure that water has stopped flowing, and then continue to open faucets throughout the home as needed.
Bleed Air from the Lines:
To bleed air from the lines, slowly open the hot and cold faucets one at a time, starting from the highest level of the home and working your way down. Let the water run for a couple of minutes to restore water pressure and flush out any remaining air in the plumbing system.
Important Considerations:
- Always turn the water back on slowly by gradually turning the main water valve handle to the open position. Never turn the handle quickly.
- If you are going on a long vacation, it is recommended to turn off the main water valve.
- In the case of frozen pipes, turn off the main water valve as soon as possible to prevent further damage.
- If you are unable to locate the main water valve or have doubts, contact a local plumber or utility company for assistance.
- Do not tamper with the city shut-off side or the meter itself, as it is illegal to do so.
- Old water valves can be damaged and corroded, so only use your hand to turn them on or off. If it cannot be turned by hand, call a professional plumber.
Heart's Electrical Changes: Causes and Triggers
You may want to see also
Explore related products
Push the button or lever on the fitting
Quick-connect fittings are used to securely connect two wires or pipes. They are popular in plumbing applications and are also known as FASTON terminals, tab terminals, or blade connectors.
To release a quick-connect fitting, you need to push the button or lever on the fitting. This will release the joint from the adapter in just a few seconds. Before attempting to release the fitting, ensure that you have disconnected the correct pipes or wires.
If the fitting is particularly stubborn, you can use an object like a screwdriver to leverage the pressure. Place the flat edge of the screwdriver against the fitting and press down as you pull the fitting towards you. If this does not work, a collet release tool can be used to press down on the collet and remove the fitting.
It is important to note that leaks in quick-connect fittings are usually caused by a damaged O-ring, improper installation, or forceful pressure. To prevent leaks, ensure that the O-ring inside the fitting is clean and straight, and that the tubing is cut cleanly and inserted deep enough into the fitting to create a tight seal.
Adjusting Electric Car Seats: A Manual Override Guide
You may want to see also
Frequently asked questions
Quick-connect fittings can be released by pushing a button or lever on the fitting. Before doing this, ensure that you have closed the main water supply valve.
Quick-connect fittings are used to securely connect and disconnect two wires or pipes. They are commonly used in plumbing applications and electrical terminals.
If your quick-connect fitting is jammed, it may be due to built-up pressure in the line. Try releasing the pressure by pulling the trigger on the gun when the machine is off. If this doesn't work, try using an object like a screwdriver to leverage pressure on the fitting as you pull it towards you.
Leaks in quick-connect fittings are often caused by improper installation. To prevent this, ensure that the tubing has been inserted deep enough into the fitting to reach the O-ring and create a tight seal.
