Disconnecting automotive electrical connectors can be a challenging task, especially with older vehicles where the plastic becomes brittle and the sensor bonds with its connector. There are various types of connectors, such as male and female connectors and waterproof connectors, and each has a slightly different method of release. It is essential to identify the connector type and locate the locking latch before attempting to disconnect. To avoid damage to the connector or its casing, wires, or cables, or potential damage to the vehicle's electrical system, it is recommended to disconnect the vehicle's battery before starting. Using a terminal removal tool or a de-pin release tool specifically designed for this purpose can make the process safer and more efficient. Other tools that can be used include a small flat-head screwdriver, insulated gloves, safety glasses, and a heat gun.
Characteristics and Values of Automotive Electrical Connector Removal Techniques
| Characteristics | Values |
|---|---|
| Tools | Electrical Connector Separator Tool, Hose Pliers, Flat-head Screwdriver, Terminal Removal Tool/De-pin Release Tool, Safety Gloves, Safety Glasses, Heat Gun |
| Techniques | Prying, Pinching, Pushing, Wiggling, Applying Heat, Applying Soapy Water, Using Picks |
| Considerations | Identify Connector Type, Locate Locking Latch, Avoid Oil-based Substances, Disconnect Power Source |
Explore related products
What You'll Learn
Using a screwdriver
Removing automotive electrical connectors can be a delicate process, and it is important to take your time and be careful to avoid damaging the connectors or wires. Before you begin, make sure you have gathered the necessary tools, including a small flat-blade screwdriver, safety glasses, and a terminal removal tool or de-pin release tool.
First, disconnect the battery to prevent any electrical shorts from occurring while you work. Then, locate the connector by identifying its type through its physical appearance and markings. Once you have located the connector, use a flat-head screwdriver to pry up the locking tab. Be cautious when performing this step, as you do not want to break any of the small plastic pieces that you need to pry up to release the terminal and wiring from the back of the connector.
If your connector has a locking mechanism with latches at the top and bottom, use a flat-blade screwdriver to release these latches. Be sure to choose a screwdriver that is insulated and be careful not to damage the connectors. Once you have released the latches, you can use a de-pin release tool to lift or slide the pin lock or retainer, disengaging the lock retainer.
Finally, pull the connector apart to fully disconnect it. It is recommended to clean the connectors before reconnecting and to apply a small amount of dielectric grease to the plastic parts of the connector to make reconnection and future disconnection easier.
Examining Electricity Sources: A Guide to Verification
You may want to see also
Explore related products
Applying heat
When removing automotive electrical connectors, applying heat can be an effective method, especially when dealing with stubborn or old connectors. Here are some detailed instructions on how to apply heat safely and effectively:
When removing automotive electrical connectors, applying heat can help soften the plastic and make it easier to release the tabs. It is important to be cautious and use the right tools to avoid damaging the connector or the surrounding components. Start by identifying a suitable heat source, such as a hairdryer or a heat gun. Gently heat the connector, focusing on the plastic areas, especially around the tabs. Be careful not to overheat any wires or other sensitive components.
The use of a heat gun is a common recommendation for releasing stubborn connectors. The heat softens the plastic, making it more pliable and less brittle, which can help prevent breakage during removal. It is important to be cautious and patient when applying heat, as excessive heat can damage the connector or surrounding components. Always start with a low heat setting and gradually increase if needed.
Once the plastic has softened, carefully use a small flat-head screwdriver or a similar tool to gently press down on the tabs while pulling the connector halves apart. Work slowly and gently to avoid breakage. If the connector is still difficult to remove, you can try applying a small amount of lubricant, such as WD-40, to further loosen the connection. However, be cautious when using lubricants, as some products can damage certain materials. Always refer to the manufacturer's recommendations for safe lubricant use.
In some cases, connectors may be held together with heat-based glue. In such instances, applying heat will melt the glue, making it easier to separate the connectors. Again, be cautious and avoid overheating, as this could damage the wires or other sensitive components.
Remember to wear appropriate safety gear when working with heat, such as heat-resistant gloves and eye protection. Additionally, ensure the work area is well-ventilated to prevent the buildup of fumes. By following these instructions, you can effectively utilize heat to remove automotive electrical connectors while minimizing the risk of damage to your vehicle's electrical system.
Why Lifeline Trumps Electric E-brake
You may want to see also
Explore related products
Using a pick
Firstly, ensure that the vehicle's electrical power source is disconnected. This can be done by disconnecting the battery. This will prevent any electrical accidents or damage to the electrical system. It is also recommended to wear protective gear, such as insulated gloves and safety glasses, to safeguard against potential hazards.
Once the power source is disconnected, identify the connector type and locate the locking tab or latch. This is usually at the top or bottom of the connector. If the connector is stubborn, you can apply some Kroil or WD40 to the area and give it some time to work its way in. Then, gently wiggle the pick to help release the tab.
Insert the pick between the two halves of the connector and gently pull them apart. This will require some patience, as you don't want to use excessive force and risk damaging the connector or the electrical wires. If the connector is still difficult to remove, you can try applying gentle heat with a heat gun to loosen any grime or corrosion.
Setting Up Electricity in Factorio: A Beginner's Guide
You may want to see also
Explore related products

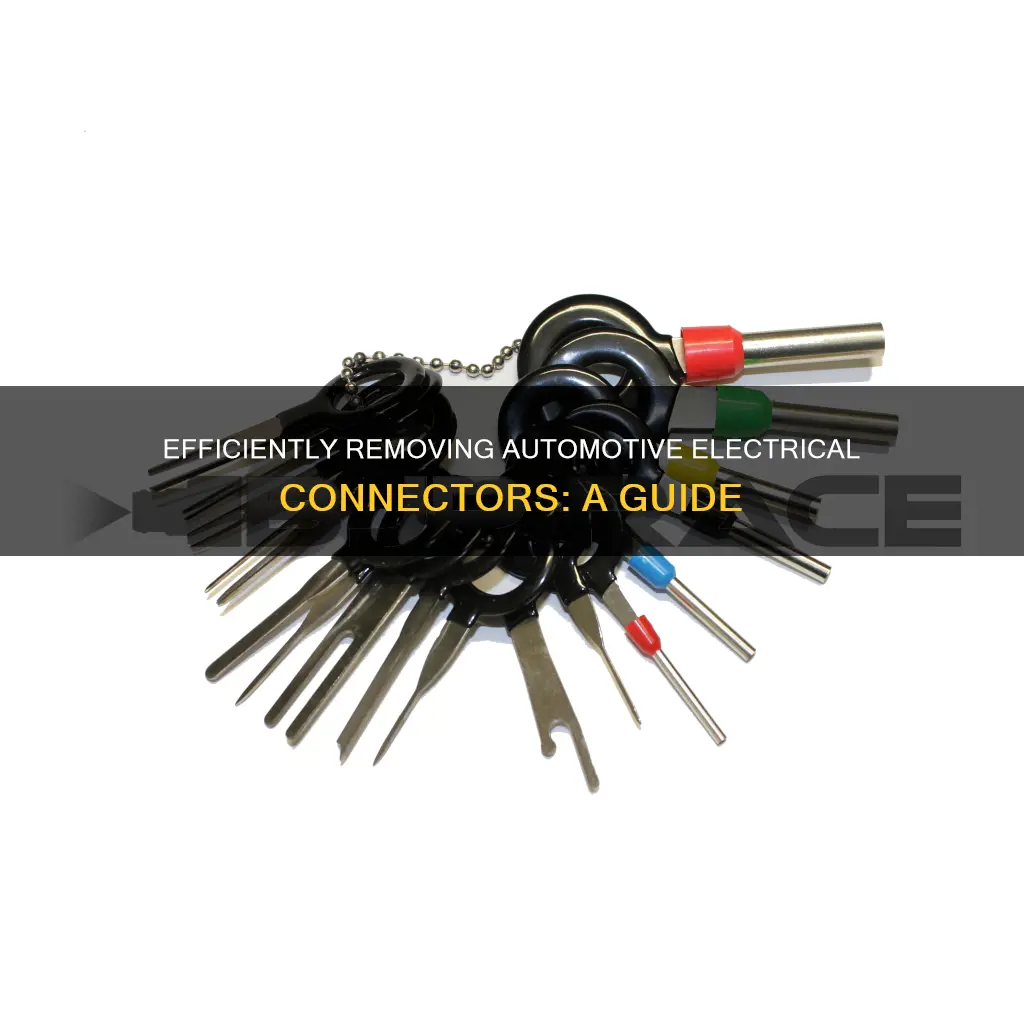

Using a terminal removal tool
There are various terminal removal tools available, such as the iCrimp IWS-123D DT Series Terminal Extraction Tool Kit, which includes a small flat-blade screwdriver to release the locking latches/pin lock retainers on the connectors. Other options include the MENKEY Terminal Removal Tool Kit, which comes with 39 pieces, and the Electrical Connector Separator Tool, which is a 2-piece set. These tools can be purchased from online retailers such as Amazon and Walmart.
When using a terminal removal tool, it is important to choose one that suits the type of connector you are working with. It is also essential to wear safety glasses and insulated gloves to protect against potential hazards such as debris, sparks, and electric shock. Before beginning the removal process, ensure that the vehicle's electrical power source is disconnected by detaching the battery.
To use the terminal removal tool, simply push and pull the terminal pins. There is no need to pry open the terminals, and this method allows for easy maintenance of the original wire harness while plugging in new electronic devices.
Customizing Electrical Cords: Changing Colors, Adding Style
You may want to see also
Explore related products
Using a blow gun
Firstly, ensure that you have identified the correct connector you want to remove. Automotive electrical connectors are typically located near the electrical components they connect, such as the battery, starter motor, or under the hood of the vehicle. They are usually black or grey plastic housing with two or more terminals.
Once you have located the connector, the next step is to use the blow gun to remove any debris or crud that may be blocking the connection. Direct the compressed air from the blow gun onto the connector to blow away any dirt or grime. This step is crucial as dirt and debris can seize the two halves of the connector together over time.
After blowing away the debris, you may need to use a pick or a small flat-head screwdriver to lift the lock or release tab on the connector. Be cautious during this step, as slipping with the screwdriver can damage the connector or surrounding components.
If the connector is still difficult to release, you can try applying heat to it using a heat gun or a hair dryer. Heating the connector will soften the plastic, making it easier to release the tab. However, exercise caution when applying heat to avoid melting the plastic or damaging any nearby components.
Finally, you can apply a small amount of lubricant, such as WD-40, to further loosen the connector. Ensure that the lubricant is not oil-based, as oil can deteriorate the connector seals.
By following these steps, you should be able to successfully remove the automotive electrical connector using a blow gun. Remember to work carefully and patiently, as some connectors can be more stubborn than others.
How to Connect Rigid to PVC Conduit
You may want to see also
Frequently asked questions
You can use a terminal removal tool or a de-pin release tool. You can also use a small flat-blade screwdriver to release the locking latches. Other tools include the Lisle 13120 Electrical Connector Separator, flat head screwdrivers, and heat guns.
It is important to disconnect the vehicle's battery to prevent electrical accidents. You should also wear insulated gloves and safety glasses to protect yourself from hazards such as electric shock, debris, and sparks.
You can try cleaning the connectors with WD40 or electrical contact cleaner and then carefully prying at the seams with a tool. You can also try using a heat gun to melt any glue that might be holding the connectors together.
Common types of connectors include male and female connectors and waterproof connectors. There are also various styles of terminal removal tools to choose from, such as the iCrimp IWS-123D DT Series Terminal Extraction Tool Kit.
You can try using slip joint pliers to grab onto the sides of the connectors and wiggling them out while pressing down on the clip. You can also try splicing in a new connector or fabricating your own connectors with epoxy or resin if the old ones are too damaged.
