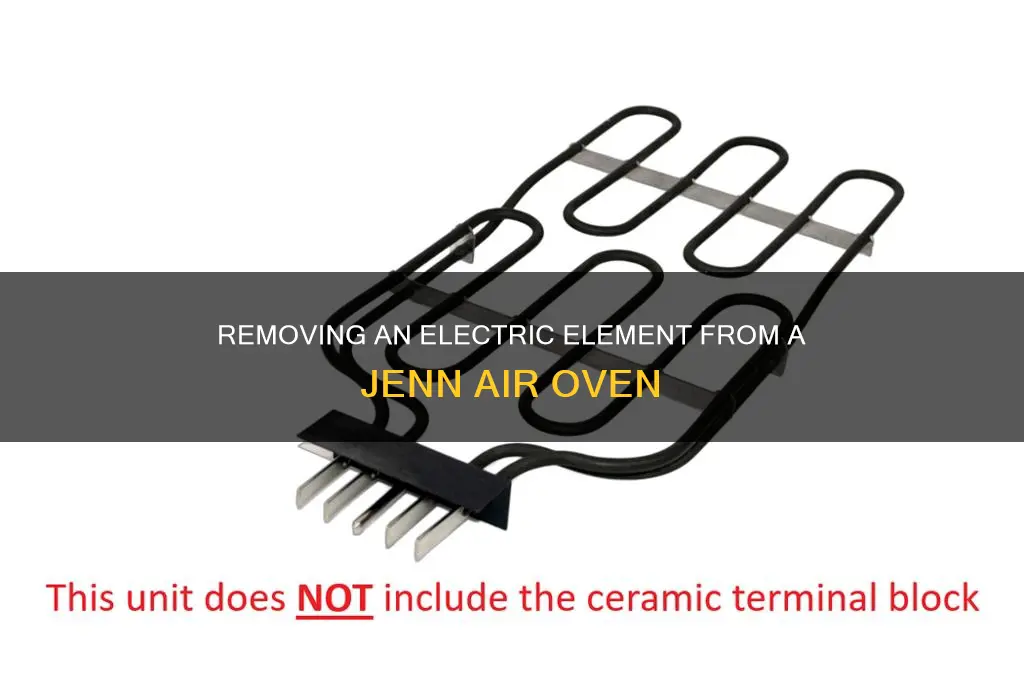

Jenn-Air offers a range of electric stoves, ovens, and cooktops that are widely used. However, issues with the heating element are common, and knowing how to remove and replace it is essential for maintenance. The process involves disconnecting power, unscrewing the element, and detaching wires before installing a new element. Online resources and part retailers provide guidance and replacement parts for specific Jenn-Air models, making repairs more accessible to users.
| Characteristics | Values |
|---|---|
| Jenn-Air Model | S125, JJW9830DDP, SVE 46700W, 800264, 800263, D120, JES9800AAB |
| Jenn-Air Type | Electric Stove, Electric Double Wall Oven, Freestanding Stove/Oven, Convection Oven, Wall Oven |
| Parts Replaced | Bake Element, Broiler Element, Heating Element, Back Panel, Control Board, Control Panel, Down Draft Motor, Gasket, Computer Panel, Burners |
| Part Details | 8-inch diameter, 5-turn, 240 Volt 2100 Watt, 3600W, 90% of heat for baking, OEM Parts, 365-Day Returns |
Explore related products
What You'll Learn
- Removing the back panel on a Jenn-Air S125 electric stove
- Replacing the heating elements in a Jenn-Air model 800264 convection oven
- Replacing the bake element in a Jenn-Air SVE 46700W freestanding stove/oven
- Removing the control panel on a Jenn-Air 30 Electric Double Wall Oven - Model #JJW9830DDP
- Replacing the Jenn-Air Range Bake Element - 3600W
Removing the back panel on a Jenn-Air S125 electric stove
To remove the back panel on a Jenn-Air S125 electric stove, you will need to first pull the stove out to access the back panel. There will be a series of screws along the edges of the back panel. Remove these screws, and then push on the panel to pop it off.
If you are replacing the heating element, you will need to turn off the oven or turn the circuit breaker off before beginning work. Once the back panel is removed, you can then unscrew the wires from the back of the oven and pull the element out through the front.
If you are replacing the bake element, you will need to remove the screws going into the back convection cover vent panel below and above the panel. There may also be screws going through the bottom bake element into the back wall that you will need to unscrew. Pull the element forward and disconnect the wires connected to the element.
If you are replacing the broiler element, there may be screws going into the back panel as well as ones going up into the ceiling, so be sure to remove all of these before pulling the element forward and disconnecting the wires.
Electric Eels' Reproductive Secrets: Unlocking Nature's Mysteries
You may want to see also
Explore related products
Replacing the heating elements in a Jenn-Air model 800264 convection oven
To replace the heating elements in a Jenn-Air model 800264 convection oven, you must first unplug the oven or turn off the circuit breaker. Safety first!
Next, open the oven door and remove the screws from the back convection cover vent panel, both above and below the panel. There will be screws going through the bottom bake element into the back wall of the oven, so unscrew these and pull the element forward. Disconnect the two wires connected to the element.
Now, simply plug in the new element, ensuring that it is secure and that the screws are tightened.
If you are replacing the broiler element, there will be screws going through the back of the oven, as well as ones going up into the ceiling. Remove these screws, pull the element forward, and disconnect the wires to the old element.
If you are replacing the bake element, it is important to note that it is not unusual for a bake element to short out and arc in one spot. If this occurs, disconnect the power to the stove until the element has been replaced.
You can find genuine Jenn-Air replacement parts online, with some retailers offering same-day shipping and 365-day returns.
Staying Safe: Electrical Tower Distance Precautions
You may want to see also
Explore related products
Replacing the bake element in a Jenn-Air SVE 46700W freestanding stove/oven
To replace the bake element in a Jenn-Air SVE 46700W freestanding stove/oven, you will first need to turn off the oven and disconnect the power supply by unplugging the oven or turning off the circuit breaker.
Next, open the oven door and locate the screws holding the back convection cover vent panel in place. Remove the screws both above and below the panel. There should also be screws going through the bottom bake element into the back wall that you can unscrew. Once all the screws are removed, carefully pull the element forward and disconnect the wires connected to the element. Be sure to note how the wires are connected so that you can attach the new element correctly.
Now, take your new bake element and connect the wires, ensuring they are secure. Then, push the new element into place and secure it by screwing it into the back wall and the back convection cover vent panel.
Finally, close the oven door and restore power to the oven by plugging it back in or turning on the circuit breaker. Test the oven to ensure the new bake element is functioning correctly.
Protect Your Electric Gate: Prevent Break-Ins
You may want to see also
Explore related products
Removing the control panel on a Jenn-Air 30 Electric Double Wall Oven - Model #JJW9830DDP
To remove the control panel on a Jenn-Air 30" Electric Double Wall Oven - Model #JJW9830DDP, first pull the oven out about 4-6 inches so that you can access the screws on both the right and left sides. Then, open the top door and remove the mounting screws. Next, open the bottom door and remove the mounting screws from there. Finally, close the top door and open the bottom door oven a few inches. Now, you can remove the screws coming in from the sides behind the control panel.
Please note that removing this control panel is a bit harder than others because of the need to pull the oven out to access the screws.
Setting Up Your Electric Account: A Step-by-Step Guide
You may want to see also
Explore related products
Replacing the Jenn-Air Range Bake Element - 3600W
To replace the Jenn-Air Range Bake Element of 3600W, you will need to first unplug the oven or shut off the house circuit breaker. The bake element is found at the bottom of the oven and supplies the heat for baking.
Next, open the oven door and remove the screws going into the back convection cover vent panel below and above the panel. There should be screws going through the bottom bake element into the back wall that you can now unscrew. Pull the element forward and disconnect the two wires connected to the element.
Then, plug in the new element. The new bake element should have push-on terminal ends, with a terminal depth of three inches, making a total element length of nineteen inches.
Finally, secure the element with additional support brackets. You can then turn on the circuit breaker or plug the oven back in.
Battery-Operated Electric Blankets: Warmth and Comfort Anywhere
You may want to see also
Frequently asked questions
First, unplug the oven or turn off the house circuit breaker. Then, open the oven door and remove the screws going into the back convection cover vent panel below and above the panel. There should be some screws going through the bottom bake element into the back wall that you can unscrew. Pull the element towards you until the wires are exposed, disconnect the wires, and remove the element.
First, unplug the oven or turn off the house circuit breaker. Then, remove any oven racks. After that, remove the two screws at the bottom of the back end of the oven holding the metal "floor" in place. Finally, remove the back panel.
First, pull the oven out so that you can access the two screws on both the right and left sides holding the control panel onto the frame of the oven. Then, remove the mounting screws going through the right and left trim of the oven holding it into the cabinet.
If the breaker pops, you will need to fix the breaker before turning the oven back on.
