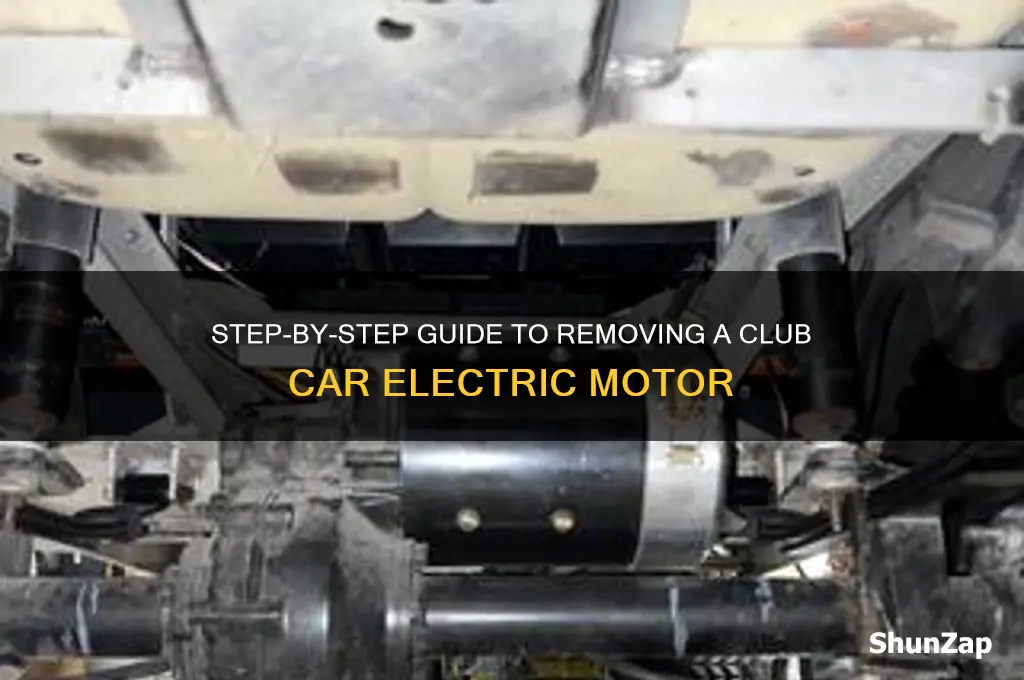

Removing the electric motor on a Club Car golf cart requires careful preparation and attention to detail. Begin by ensuring the cart is parked on a flat, stable surface and the power is completely disconnected to prevent accidents. Gather the necessary tools, including wrenches, sockets, and a jack or lift for easier access. Start by removing the motor cover and disconnecting the battery cables to isolate the electrical system. Next, locate and detach the motor controller and speed sensor connections, taking note of their positions for reassembly. Use the appropriate tools to loosen and remove the motor mounting bolts, then carefully lower the motor from its housing. Always refer to the Club Car service manual for model-specific instructions to ensure a safe and successful removal process.
| Characteristics | Values |
|---|---|
| Tools Required | Wrenches, sockets, screwdrivers, pry bar, jack, jack stands, safety gloves |
| Safety Precautions | Disconnect battery, wear safety gear, ensure vehicle is on a flat surface |
| Vehicle Model Compatibility | Club Car DS, Precedent, Carryall (electric models) |
| Motor Location | Underneath the vehicle, near the rear axle |
| Steps to Remove Motor | 1. Disconnect battery cables 2. Remove rear seat or body panel 3. Locate motor and disconnect wiring harness 4. Remove mounting bolts 5. Carefully lower the motor using a jack or pry bar |
| Wiring Harness Connections | Typically includes speed sensor, direction switch, and main power cables |
| Mounting Bolts Size | Commonly 1/2 inch or 9/16 inch, depending on model |
| Estimated Time to Complete | 1-2 hours, depending on experience and tools |
| Difficulty Level | Moderate to Advanced |
| Post-Removal Inspection | Check for damaged wires, worn bearings, or other issues before reinstalling |
| Reinstallation Tips | Ensure proper alignment, torque bolts to specifications, reconnect wiring |
| Common Issues | Stripped bolts, corroded connections, difficulty accessing motor |
| Replacement Parts Needed | New motor, gaskets, bolts (if damaged) |
| Reference Sources | Club Car service manual, online forums, YouTube tutorials |
Explore related products
What You'll Learn
Gather Tools and Safety Gear
Before tackling the electric motor removal on your Club Car, ensure you’re equipped with the right tools and safety gear. This isn’t just about efficiency—it’s about preventing injury and damage to your vehicle. Start by gathering a socket set (metric and SAE), wrenches, a torque wrench, screwdrivers, and a pry bar. These tools are essential for loosening bolts, disconnecting wires, and maneuvering components. Additionally, a rubber mallet can be handy for gently persuading stubborn parts without causing harm.
Safety gear is equally critical. Wear nitrile gloves to protect your hands from grease and sharp edges, and safety goggles to shield your eyes from debris. A dust mask is advisable if you’re working in a dusty environment. While it may seem excessive, these precautions are non-negotiable. One misplaced shard of metal or a slip of a tool can turn a routine task into a trip to the emergency room.
Consider the workspace itself as part of your preparation. Park the Club Car on a flat, stable surface and engage the parking brake. If possible, use wheel chocks for added security. Adequate lighting is often overlooked but crucial—a drop light or portable LED lamp can illuminate hard-to-see areas, reducing the risk of mistakes.
Finally, organize your tools and gear within arm’s reach. A magnetic tray or toolbox keeps everything accessible and minimizes the chance of losing small parts. This setup not only streamlines the process but also reinforces a disciplined approach to the task. By prioritizing preparation, you’re not just gathering tools—you’re setting the stage for a safe, efficient, and successful motor removal.
Mastering Phase Button Use on Your Acoustic-Electric Guitar
You may want to see also
Explore related products
Disconnect Battery and Wiring
Before attempting any work on your Club Car's electric motor, prioritizing safety is paramount. The battery, a powerhouse of energy, poses a significant risk if mishandled. Always don insulated gloves and safety goggles to protect yourself from potential electrical shocks and acid spills. Locate the battery compartment, typically situated beneath the seat or in a dedicated compartment, and identify the positive and negative terminals.
Utilizing a wrench or socket set, carefully loosen and remove the nuts securing the battery cables to the terminals. Start with the negative terminal first, followed by the positive, to minimize the risk of short circuits. Once disconnected, secure the cables away from the battery to prevent accidental contact.
The wiring harness, a complex network of cables, connects the motor to the battery and other components. Trace the harness from the motor, identifying any connectors or clips along its path. Consult your Club Car's service manual for a detailed diagram of the wiring layout, ensuring you understand the specific connections related to your model. Gently detach any connectors, taking note of their orientation for reassembly. Some connectors may require the use of a flathead screwdriver to release locking mechanisms.
For added safety, consider using electrical tape to insulate exposed terminals and prevent accidental contact during the motor removal process. This simple step can significantly reduce the risk of electrical hazards.
Remember, patience and attention to detail are crucial when disconnecting the battery and wiring. Rushing through this step can lead to damage or, worse, personal injury. By following these precautions and utilizing the appropriate tools, you'll create a safe environment for the subsequent motor removal process.
Mastering Smooth Acceleration: Tips to Get Moving in Your Electric Car
You may want to see also
Explore related products
Remove Motor Mounting Bolts
The motor mounting bolts are the linchpins securing your Club Car’s electric motor to the frame. Without loosening these, the motor won’t budge. Typically, you’ll find four bolts—two on each side of the motor—fastened with a torque specification of around 45 to 55 foot-pounds. Before you begin, ensure the vehicle is on a level surface, the power is disconnected, and the wheels are chocked for safety. Grab a ½-inch socket wrench or impact gun, as these bolts are often tightened with significant force during assembly.
Analyzing the process, removing these bolts requires both precision and patience. Start by spraying penetrating oil on the bolts to loosen any rust or debris. Allow it to sit for 10 minutes—this small step can save you from snapping a bolt later. Position yourself so you can see the bolts clearly; awkward angles can lead to stripped threads or dropped tools. If the bolts resist, apply steady pressure rather than brute force. A broken bolt here can turn a two-hour job into a full-day repair, requiring drilling and extraction tools.
Persuasively, investing in the right tools for this step is non-negotiable. A torque wrench ensures you don’t overtighten the bolts during reassembly, while a breaker bar provides the leverage needed for stubborn bolts. For Club Car models pre-2000, consider using a bolt extraction kit as a precautionary measure, as older bolts are more prone to corrosion. Skipping these tools might seem cost-effective initially but could lead to costly repairs down the line.
Comparatively, this step differs from removing bolts on a gas-powered Club Car, where the motor is often lighter and secured with fewer fasteners. Electric motors are heavier and require a more robust mounting system, making bolt removal a critical juncture in the process. Unlike gas models, electric motors also have additional wiring to manage, so keeping track of bolt positions can help during reassembly.
Descriptively, as you turn the wrench, you’ll feel the bolts gradually release their grip, accompanied by a satisfying metallic clink as each one loosens. Once removed, inspect the mounting plate for wear or damage—cracks or warping could indicate a need for replacement. Lay the bolts aside in a labeled container to avoid misplacement. With the bolts out, the motor will still be attached by wiring and possibly a drive shaft, but the hardest part of the physical separation is complete. This step is your gateway to accessing the motor for repair, replacement, or maintenance.
Locating Electrical Shorts: A Guide for Vehicle Owners
You may want to see also
Explore related products
Detach Drive Shaft or Coupler
Detaching the drive shaft or coupler is a critical step in removing the electric motor on a Club Car, as it disconnects the motor from the vehicle’s drivetrain. This process requires precision and the right tools to avoid damaging components or compromising safety. Begin by locating the coupler, typically found between the motor and the differential. It is often secured with a retaining bolt or clip, which must be removed to separate the two halves of the coupler. Use a socket wrench or appropriate tool to loosen the bolt, ensuring not to strip the threads. Once the bolt is removed, gently pull the coupler apart, taking care not to force it, as this could damage the splines or alignment pins.
Analyzing the coupler’s design can provide insight into the detachment process. Most Club Car models use a splined coupler, which relies on a precise fit between the motor and differential shafts. If the coupler is stubborn or stuck, apply penetrating oil to the joint and allow it to sit for 10–15 minutes before attempting separation again. In some cases, a rubber mallet can be used to tap the coupler gently, but avoid excessive force, as this may misalign the components. Always inspect the coupler for wear or damage during this step, as a worn coupler may need replacement to ensure optimal performance after reinstallation.
For a persuasive argument, consider the long-term benefits of properly detaching the drive shaft or coupler. A careful approach not only protects the motor and drivetrain but also simplifies future maintenance. Rushing this step or using improper tools can lead to costly repairs, such as replacing a damaged differential or motor shaft. By investing time and attention here, you ensure the Club Car remains reliable and efficient, reducing downtime and extending its lifespan. This step is not just a technical requirement—it’s a preventive measure that pays dividends in the long run.
Comparatively, detaching the drive shaft or coupler on a Club Car differs from similar processes in gas-powered vehicles. Electric models lack the complexity of a transmission, making the coupler the primary connection point between the motor and wheels. In contrast, gas models often involve removing a drive belt or chain, which requires different tools and techniques. Understanding this distinction ensures you apply the correct method for your specific vehicle, avoiding unnecessary complications. Always refer to the Club Car’s manual for model-specific guidance, as variations may exist between years or series.
Descriptively, the drive shaft or coupler detachment process is a hands-on task that demands focus and dexterity. Picture the coupler as a cylindrical component with splines or grooves that interlock with the motor and differential shafts. As you remove the retaining bolt, you’ll notice the coupler halves begin to separate, revealing the precision engineering that keeps the vehicle moving. This moment is both a technical achievement and a visual reminder of the Club Car’s intricate design. Take a moment to clean the coupler and inspect its condition before proceeding, ensuring a smooth and successful motor removal.
Avoid Turkey Bags in Electric Roasters: Risks and Better Alternatives
You may want to see also
Explore related products
Lift and Extract the Motor
Lifting and extracting the electric motor from a Club Car is a pivotal step in the removal process, demanding precision and the right tools. Begin by ensuring the vehicle is securely positioned on a flat surface, with the parking brake engaged and wheel chocks in place to prevent movement. Disconnect the battery to eliminate any risk of electrical shock, a critical safety measure often overlooked in haste. With the preliminary steps complete, focus shifts to the motor itself, which is typically mounted beneath the vehicle, connected to the drivetrain via a coupling or spline.
The extraction process starts with loosening the bolts securing the motor to the frame. These bolts are often tightened to high torque specifications, requiring a torque wrench or a breaker bar for effective removal. Apply penetrating oil to stubborn bolts to ease this step, allowing the oil to sit for 10–15 minutes before attempting to turn them. Once the bolts are removed, carefully support the motor’s weight using a jack or a transmission jack, ensuring it doesn’t drop or strain the wiring harness still attached.
With the motor supported, disconnect the wiring harness by locating the connector plug, usually encased in a protective cover. Gently pry open the cover and detach the plug, taking care not to damage the pins or wires. Some models may have additional sensors or cables attached, such as speed sensors, which should be disconnected with equal caution. Labeling these connections with tape or a marker can simplify reassembly later.
The final step involves lifting the motor clear of the vehicle. Coordinate the jack’s movement with a helper or use a hoist if available, ensuring the motor remains balanced and doesn’t swing unexpectedly. Once free, place the motor on a stable surface, preferably a workbench or a wheeled cart, to facilitate inspection or replacement. This phase requires teamwork and patience, as the motor’s weight (typically 50–70 pounds) can make it unwieldy to handle solo.
In summary, lifting and extracting the electric motor from a Club Car is a methodical process that hinges on safety, preparation, and careful execution. By following these steps—securing the vehicle, loosening bolts, disconnecting electrical components, and coordinating the lift—even a novice can successfully remove the motor without causing damage. Attention to detail and the use of appropriate tools transform this potentially daunting task into a manageable procedure.
Electric Cars and Motor Oil: Unraveling the Maintenance Myth
You may want to see also
Frequently asked questions
You will need a socket set, wrenches, a screwdriver, and possibly a pry bar. Additionally, having a repair manual specific to your Club Car model is highly recommended.
First, ensure the vehicle is turned off and the battery is disconnected. Then, remove the coupling or adapter plate connecting the motor to the transaxle. Use the appropriate tools to loosen and remove the bolts securing the motor in place.
Yes, always disconnect the battery to prevent electrical shocks or accidental operation. Support the motor properly during removal to avoid damage to the vehicle or injury. Additionally, take note of the wiring connections and their positions for easier reinstallation.
