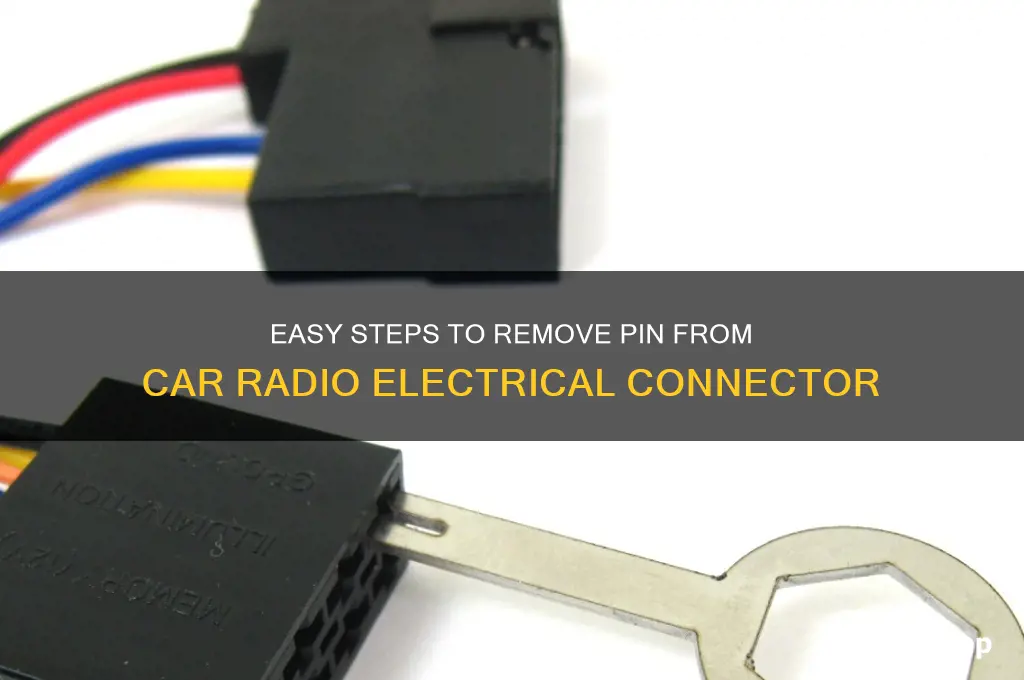

Easy Steps To Remove Pin From Car Radio Electrical Connector

how to remove pin from electrical connector of car radio

Removing the pin from an electrical connector of a car radio requires careful attention to detail to avoid damaging the connector or the radio itself. Start by locating the specific connector you need to work on, typically found at the back of the radio unit. Use a small, non-conductive tool like a plastic pry tool or a spudger to gently lift the locking mechanism, which is often a small tab or clip securing the pin in place. Once the lock is disengaged, carefully pull the pin straight out of the connector, ensuring not to bend or break any surrounding components. If the pin is stubborn, avoid excessive force and inspect for any additional locks or retaining mechanisms. Always refer to the car radio’s manual or a wiring diagram for guidance specific to your model.

Characteristics Values
Tools Required Small flathead screwdriver, pin removal tool (if available), needle-nose pliers
Connector Type Typically ISO or proprietary connectors (varies by car make/model)
Pin Type Male or female pins, depending on connector design
Removal Method Gently pry or lift the pin retention clip, then pull the pin straight out
Caution Avoid bending pins or damaging the connector housing
Alternative Method Use a pin removal tool specifically designed for car radio connectors
Common Issues Stuck pins due to corrosion or debris; ensure connector is clean
Safety Tip Disconnect the car battery before working on electrical connectors
Compatibility Methods may vary; consult vehicle-specific manuals or guides
Post-Removal Inspect pins and connector for damage before reinstallation

shunzap

Identify the correct pin type and location in the car radio connector

Before attempting to remove a pin from a car radio connector, it's crucial to identify the correct pin type and location to avoid damaging the connector or the radio. Car radio connectors typically use one of three pin types: flat pins, round pins, or blade pins. Each type requires a specific approach for removal. Flat pins are commonly found in older car models and are characterized by their rectangular shape, while round pins are more prevalent in modern vehicles due to their durability. Blade pins, on the other hand, are thin and flat, often used in compact connectors. Understanding the pin type is the first step in ensuring a successful and safe removal process.

Once the pin type is identified, locating the specific pin within the connector is the next challenge. Most car radio connectors have a standardized layout, but variations exist depending on the manufacturer and model. Refer to the car’s service manual or a wiring diagram to pinpoint the exact location of the pin you need to remove. For instance, the power pin is often located at one of the corners, while the ground pin may be positioned centrally. Using a magnifying glass or a bright light can help you inspect the connector closely, especially in tight or poorly lit spaces. Precision is key, as mistaking one pin for another can lead to electrical issues or permanent damage.

An analytical approach to identifying the correct pin involves comparing the connector’s layout with the radio’s functionality. For example, if you’re removing a pin related to the antenna, trace the antenna wire back to the connector to confirm its position. This method reduces guesswork and increases accuracy. Additionally, some connectors have color-coded pins or markings that correspond to specific functions, such as red for power or black for ground. Familiarizing yourself with these conventions can streamline the identification process. Always double-check your findings against a reliable source to ensure you’re targeting the right pin.

A practical tip for identifying pin location is to use a non-conductive tool, like a plastic spudger or a toothpick, to gently probe the connector. This allows you to feel the pin’s position without risking a short circuit. If the connector is particularly dense, take a photo before starting and label the pins as you identify them. This visual reference can be invaluable if you need to reinsert the pin later or troubleshoot issues. Remember, patience and attention to detail are essential when working with delicate electrical components.

In conclusion, identifying the correct pin type and location in a car radio connector requires a combination of research, observation, and caution. By understanding the pin types, consulting reliable resources, and using practical techniques, you can confidently proceed with the removal process. This step not only safeguards your car radio but also ensures a smoother overall experience, whether you’re repairing, upgrading, or troubleshooting the system.

shunzap

Use a pin removal tool or small pick to extract the pin

A pin removal tool or small pick is often the most precise and safe method for extracting a pin from an electrical connector, especially in delicate car radio systems. These tools are designed to fit snugly into the pin’s housing, allowing you to apply controlled force without damaging surrounding components. Unlike improvised tools like paperclips or needles, pin removal tools are engineered with a flat, forked tip that evenly distributes pressure, reducing the risk of bending or breaking the pin. For car radios, where connectors are often densely packed, this precision is critical to avoid short circuits or dislodging adjacent pins.

When using a pin removal tool, start by identifying the pin you need to extract. Most car radio connectors have a locking mechanism or a small release tab that must be depressed before the pin can be removed. Insert the tool into the release mechanism, ensuring it aligns with the pin’s housing. Apply gentle, steady pressure to disengage the locking clip, then carefully pull the pin straight out. Avoid twisting or angling the tool, as this can damage the connector. If the pin resists, inspect the connector for debris or misalignment, as forcing it may cause permanent harm.

For those without a dedicated pin removal tool, a small pick or precision screwdriver can serve as a substitute, though with greater caution. Choose a pick with a flat, thin blade that matches the width of the pin’s release mechanism. Avoid using sharp or pointed tools, as they can gouge the plastic housing or scratch metal contacts. When improvising, test the tool on a less critical connector first to ensure it doesn’t slip or cause damage. Always work in a well-lit area and consider magnifying glasses or a flashlight to improve visibility, especially in cramped car interiors.

One common mistake when using picks or tools is applying too much force or misaligning the instrument. If the pin doesn’t release easily, double-check that the tool is correctly positioned and that the locking mechanism is fully depressed. In some cases, the connector may require slight wiggling or warming with a hairdryer to loosen stubborn pins. However, heat should be used sparingly and only on plastic connectors, as excessive temperatures can warp components or melt insulation. Patience and precision are key to avoiding costly repairs.

In conclusion, using a pin removal tool or small pick is a reliable method for extracting pins from car radio connectors, provided it’s done with care. Whether employing a specialized tool or improvising, the goal is to apply controlled force while minimizing the risk of damage. By understanding the mechanics of the connector and working methodically, you can safely remove pins without compromising the integrity of your car’s electrical system. This approach not only preserves functionality but also ensures future repairs or upgrades remain feasible.

shunzap

Apply gentle force to avoid damaging the connector housing

The electrical connectors in car radios are often delicate, designed to ensure a secure fit while maintaining signal integrity. Applying excessive force during pin removal can deform the plastic housing, leading to poor contact or permanent damage. Understanding the material properties of these connectors—typically nylon or polypropylene—reveals their susceptibility to stress fractures under sudden pressure. This vulnerability underscores the importance of a measured approach when extracting pins.

Begin by inspecting the connector for any locking mechanisms or retention clips that secure the pins in place. Some connectors feature a sliding release tab or a hinged cover that, when disengaged, reduces the force required for pin extraction. If no such mechanism exists, use a non-conductive tool like a plastic spudger or a blunt, thin-tipped instrument to gently pry around the pin’s base. Apply force gradually, leveraging the tool against the connector housing rather than directly on the pin itself. This distributes pressure more evenly, minimizing the risk of cracking the plastic.

A comparative analysis of successful pin removal techniques highlights the value of patience and precision. For instance, professional technicians often use a "rocking" motion, tilting the tool slightly back and forth to loosen the pin’s grip without forcing it out in one motion. This method contrasts with the brute-force approach commonly attempted by amateurs, which often results in broken connectors. The key takeaway is that slow, controlled movements are more effective than sudden bursts of force.

In practice, apply no more than 2–3 pounds of force when prying, especially if the connector is aged or brittle. If resistance persists, reassess the angle of approach or consider warming the connector slightly with a hairdryer set to low heat. Mild warmth (around 120°F) can soften the plastic, making it more pliable without compromising its structural integrity. Always test the temperature on a nearby surface to avoid melting the connector.

Finally, adopt a persuasive mindset: treating the connector as a precision component rather than a disposable part fosters respect for its design. By prioritizing gentle force, you not only safeguard the immediate functionality of the car radio but also preserve the connector for future use or resale. This approach aligns with both practical repair goals and long-term sustainability principles.

shunzap

Verify pin orientation before reinsertion to ensure proper connection

Before reinserting a pin into a car radio's electrical connector, pause to verify its orientation. Misaligned pins can cause poor connections, leading to intermittent audio, complete signal loss, or even damage to the radio’s circuitry. Each pin typically corresponds to a specific function—power, ground, speakers, or antenna—and inserting it incorrectly may short-circuit these functions. Take a moment to compare the pin’s shape, notch, or color-coding (if present) with the slot it’s intended for, ensuring alignment with the connector’s keyway or guide marks.

Analyzing the consequences of skipping this step underscores its importance. For instance, a reversed power and ground pin can create a direct short, blowing fuses or damaging components. Similarly, misaligned speaker pins might result in distorted audio or no sound at all. While some connectors are designed to prevent incorrect insertion, many car radio harnesses rely on the user’s attention to detail. Treat this verification as a critical checkpoint, akin to double-checking measurements before cutting material—a small effort that prevents costly mistakes.

To streamline the process, adopt a systematic approach. First, document the pin’s original position with a photo or diagram before removal. If the connector lacks visual cues, consult the radio’s manual or an online wiring diagram for your vehicle’s make and model. Use a magnifying glass or flashlight to inspect the pin and slot for subtle alignment features, such as a flat edge or a slight ridge. If working with multiple pins, label them with tape or a marker to avoid confusion during reinsertion.

Persuasively, consider this: verifying pin orientation is not just a precaution—it’s a respect for the precision engineering behind automotive electronics. Modern car radios integrate complex circuits that rely on accurate connections to function optimally. By taking this step seriously, you’re not only safeguarding your equipment but also honoring the craftsmanship that went into its design. Think of it as aligning the final piece of a puzzle, where precision ensures the complete picture emerges as intended.

In practice, this verification becomes second nature with repetition. For beginners, pair the task with a tactile cue, such as aligning the pin with the connector while holding it under a bright light to highlight alignment features. Advanced users might invest in a pin-straightening tool or a connector guide to ensure consistency. Regardless of experience, treating this step as non-negotiable transforms it from a potential oversight into a habit that ensures reliable, long-lasting connections.

shunzap

Test the radio after pin removal to confirm functionality

After removing the pin from your car radio’s electrical connector, the first step is to reassemble the connection carefully. Ensure the pins align correctly with their corresponding slots to avoid damage or poor contact. Once reconnected, turn the ignition to the accessory position to power the radio without starting the engine. This minimizes the risk of electrical surges that could harm the unit during testing.

Testing the radio immediately after pin removal serves a dual purpose: it confirms the radio still functions and verifies that the connector was reassembled properly. Start by checking basic operations like power-on, volume control, and station tuning. If the radio fails to turn on, double-check the connector for loose pins or incorrect alignment. A malfunctioning radio at this stage could indicate a damaged component or a faulty connection, requiring further inspection.

For a thorough test, evaluate all radio features, including Bluetooth connectivity, CD playback (if applicable), and auxiliary input. Pay attention to audio quality and responsiveness of controls. If the radio powers on but exhibits issues like static, distorted sound, or unresponsive buttons, the problem may lie in the wiring or the radio itself. In such cases, consider consulting a professional to diagnose and resolve the issue.

A practical tip is to keep a log of the radio’s performance before and after pin removal. Note any changes in functionality, such as weaker signal reception or delayed response times. This documentation can help identify whether the pin removal process affected the radio’s performance or if the issue predates the procedure. Testing systematically ensures you catch any problems early, preventing further complications.

Finally, if the radio functions flawlessly after testing, it confirms that the pin removal and reassembly were successful. However, monitor the radio’s performance over the next few days to ensure no latent issues arise. Consistent functionality post-testing not only validates your work but also builds confidence in handling similar tasks in the future. Always prioritize safety and precision when working with car electronics to avoid costly mistakes.

Frequently asked questions

Locate the wiring harness connected to the back of the radio. The pin you need to remove is typically part of a specific wire (e.g., power, ground, or speaker). Refer to your car radio's manual or a wiring diagram to identify the correct pin.

You’ll need a small, thin tool like a pin removal tool, a paperclip, or a small screwdriver. Some connectors may require a specialized release tool to safely remove the pin without damaging the connector.

Yes, most connectors allow you to remove individual pins. Gently pry open the connector housing or use a release mechanism (if available) to access the pin. Be careful not to force it to avoid damaging the connector.

Apply gentle, steady pressure using the appropriate tool. Avoid excessive force, as it may break the pin or connector. If it’s still stuck, inspect for debris or damage and consider using a lubricant like electrical contact cleaner to ease removal.
