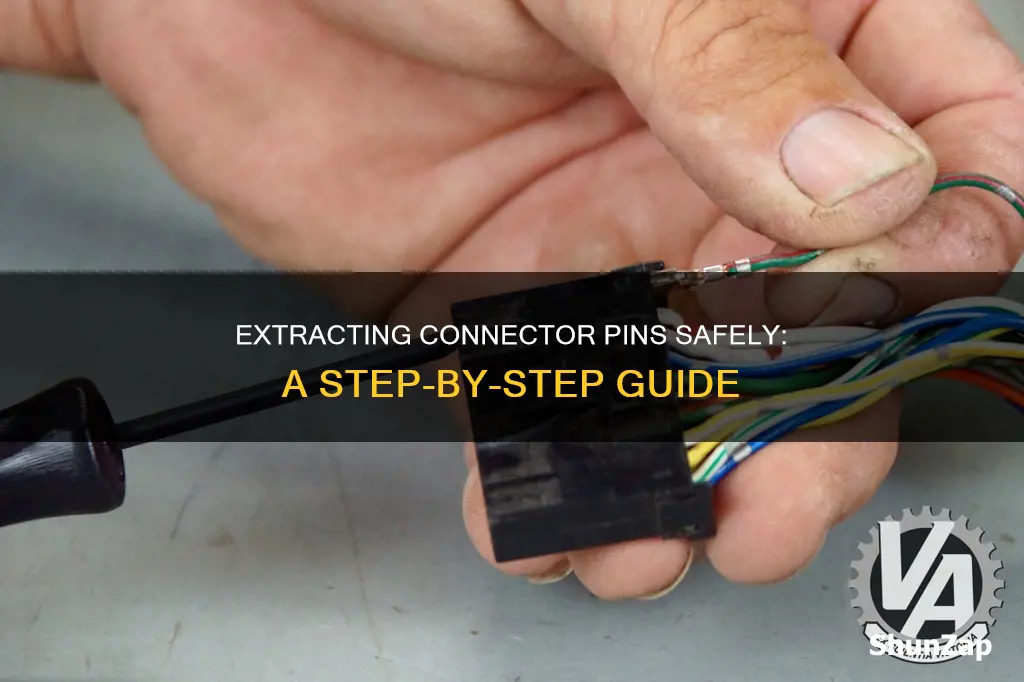

Removing pins from an electrical connector can be a simple process, but sometimes it can be quite difficult. This is because each connector has its own unique features. For example, some connectors have easy-to-access catches that can be released with a mini screwdriver, while others have built-in catches that must be pushed down on to release the terminals. When removing the pins, it's important to use one hand to pry on the catch and create a separation, while simultaneously using the other hand to gently pull the wires out from the back of the connector.
| Characteristics | Values |
|---|---|
| Process | Depinning |
| Tools | Mini screwdriver |
| Steps | 1. Remove the front face of the connector. 2. Locate the catch. 3. Pry the catch up, down, or away to release the terminals and wires. 4. Pull the wires out gently. 5. Reinsert the terminals and listen for a light click. 6. Perform a gentle pull test. |
Explore related products
What You'll Learn
Identify the catch mechanism
To identify the catch mechanism of an electrical connector, you must first remove the front face or the front plastic piece of the connector. This will expose the openings containing the catches or locking mechanisms that secure the terminals. Each connector type has a unique catch mechanism, so it is important to identify which type you are working with. For example, the Z27C2 connector, commonly used for fog lamps and headlights in vehicles like Honda, Toyota, and Lexus, has an easy-to-access catch. On the other hand, connectors like the L64A2 have a built-in catch mechanism.
Once you have identified the type of connector and located the catch, you can release the locking mechanism. To do this, use a mini screwdriver to pry or apply gentle force to the catch. The specific action required may vary depending on the connector. In some cases, you may need to push down on the catch, while in others, you might need to pry it up, down, or away. As you release the catch, you will simultaneously release the lock holding the pins and wires in place.
It is important to note that when removing the wires and pins from the rear of the connector, you must continue to apply pressure to the catch with one hand while using the other hand to gently pull the wires out. Releasing the catch too early is a common mistake that can make the process more challenging. By understanding the specific catch mechanism of your electrical connector and carefully manipulating it during the removal process, you can successfully release the pins and wires without damaging the connector.
Additionally, when reinserting the pins back into the connector, you can use the catch mechanism as an indicator of proper placement. If the pins are correctly inserted, you will hear a light click, indicating that the catch mechanism has locked back into place, securing the pins in their correct positions. Once all the terminals are reinserted and locked into place, you can perform a gentle pull test to ensure that the connections are secure.
