Electric cables in caravans can get damaged due to several reasons, including wear and tear, pest damage, or accidental damage. The most common issue is a damaged electric towing cable, which can be caused by the cable dragging on the ground while the caravan is in motion. To repair a damaged electric cable on a caravan, you will need to assess the type and extent of the damage, disconnect the battery (if applicable), and cut and replace the damaged section of the cable. In some cases, you may need to strip back the insulation, rejoin the wires, and use electrical tape or other materials to insulate and protect the repaired section. It is important to take safety precautions when working with electricity and to consult a professional if you are unsure about the repair process.

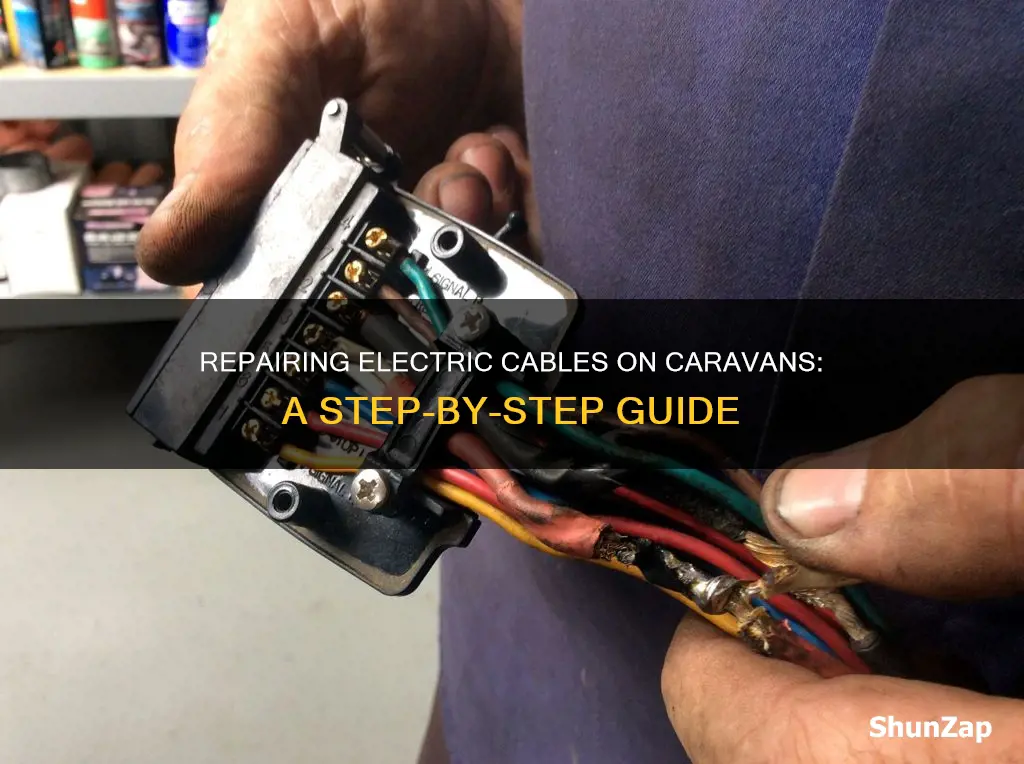

Repairing an electric cable on a caravan
| Characteristics | Values |
|---|---|
| Temporary fix | Electrical connector blocks and electrical tape |
| Preventative measure | Loop elastic or rubber around the cable and breakaway cable and hook it to the tow hitch |
| Permanent fix | Strip insulation, rejoin wires, wrap with electrical tape |
| Cable size | 1.5mm for up to 10m, 2.5mm for longer lengths |
| Cable colour | Orange or yellow for visibility |
Explore related products
What You'll Learn
Prevent cable drag with elastic or rubber loops
Preventing cable drag is an important step in ensuring the safety of your caravan. The breakaway cable is a critical safety component that plays a vital role in keeping your caravan secure during towing. It is designed to apply the brakes and disconnect if the caravan becomes detached from the towing vehicle.
To prevent cable drag, you can use elastic or rubber loops to keep the cable off the ground and allow for turning. Here are some detailed methods to achieve this:
- Use an appropriate length of elastic looped around the cable and the breakaway cable. You can then hook it onto your tow hitch, allowing for turning and ensuring the wire doesn't drag on the ground.
- Cut up an old inner tube to make rubber rings, which can be used to hold excess cable by hooking it onto the jockey wheel handle. This prevents the cable from dragging on the ground while still allowing freedom of movement.
- Utilise a length of Velcro "hook and loop" tape. This method ensures the cable doesn't scrub the ground while still permitting necessary movement.
- If your cable is too long, you can wrap it once around the coupling rubber. This keeps the cable clear of the road and provides enough length for turning.
By implementing these methods, you can effectively prevent cable drag and reduce the risk of damage or snapping, ensuring a safer caravanning experience.
Finding Electrical Shorts: A DIY Guide
You may want to see also
Explore related products
Temporarily repair with electrical connector blocks
If you need to temporarily repair an electric cable on your caravan, electrical connector blocks can be used. This method was shared by a user who had to make a quick repair to their towing electric lead, which had snapped while they were travelling.
Firstly, disconnect the battery before cutting the damaged cable. Then, strip back the insulation and rejoin each wire. You can then use electrical connector blocks to join the wires. It is recommended to take photos of the connection box before you start tampering with the wires as a failsafe.
After the repair is complete, you can wrap the whole section with gaffer tape. This will not look pretty, but it will work. This method is only recommended as a temporary solution and should be replaced with a permanent fix as soon as possible.
Cutting Down Electricity Bills: Easy Ways to Save at Home
You may want to see also
Explore related products
Disconnect the battery before cutting damaged cable
When repairing a damaged electric cable on a caravan, it is important to prioritise safety. One crucial step is to disconnect the battery before cutting the damaged cable. This is a standard safety precaution when working on any electrical system, and it helps to prevent accidental short circuits or electrical shocks.
To disconnect the battery, locate the battery compartment in your caravan. It is usually found near the tongue or hitch of the caravan. Once located, follow the manufacturer's instructions to safely disconnect the battery. This may involve removing the negative cable first to prevent potential sparks near the battery.
After disconnecting the battery, you can proceed with cutting the damaged cable. Make sure you have the necessary tools, such as wire cutters or wire strippers, and exercise caution when handling the exposed wires. It is recommended to wear protective gear, such as insulated gloves and eye protection, to safeguard against any potential hazards.
Before making any cuts, carefully inspect the cable to identify the extent of the damage. Look for signs of fraying, exposed wires, or damaged insulation. Take note of the cable routing and any attachment points to ensure proper installation during the repair process. It is also helpful to take photographs of the cable before removing it to refer to during the repair process.
By disconnecting the battery and taking the necessary precautions, you can safely cut the damaged cable and prepare for the next steps in the repair process, such as stripping and reconnecting wires or installing a new cable. Remember to work carefully and methodically to ensure a safe and effective repair of your caravan's electric cable.
Oral-B Electric Toothbrush: Waterproof Wonder?
You may want to see also
Explore related products
Cable size depends on load and length
When repairing or replacing an electric cable on a caravan, it is important to consider the cable size, which depends on two key factors: the load it needs to supply and the length of the cable.
The load refers to the amount of electrical power that the cable needs to carry to the connected devices. Different devices will have different power requirements, and the cable size should be chosen accordingly. Using a cable that is too small for the load may lead to safety hazards.
The length of the cable is also a critical factor. Longer cables will typically have higher resistance, resulting in a voltage drop. As a rule of thumb, the voltage drop should not exceed 3%. To minimize voltage drop, it is recommended to use shorter cable lengths when possible.
To determine the appropriate cable size, calculations can be performed based on the load and length. For example, consider the brake lights on a caravan. If you have a 1.0 mm² cable connected to a battery that needs to supply two light bulbs with a total load of 50 watts at 12 volts, you can calculate the voltage drop. By using the 'W/m' - Ohms per metre figure provided by the manufacturer, you can first calculate the current as 50 watts / 12 volts = 4.17 Amps. Then, considering the cable's resistance of 0.038 W/m and a length of 12 metres, the voltage drop can be calculated as (0.038 W/m x 4.17 Amps x 12 metres) / 1000 = 1.901 Volts.
By performing similar calculations, you can ensure that the selected cable size is appropriate for the load and length required for your caravan's electrical system.
How to Know: New Dryer Cord Needed?
You may want to see also
Explore related products
Ready-made leads are generally cheaper than custom cables
When it comes to repairing or replacing electric cables on a caravan, there are a few options to consider. One option is to purchase ready-made leads, which are often more cost-effective than custom cables. Ready-made leads are pre-assembled and can be found at various price points to suit different budgets. They are widely available and can be purchased off-the-shelf, making them a convenient choice for those who need a quick fix or are on a tighter budget.
Ready-made leads can be found in standard lengths, such as 10 metres or 25 metres, which are commonly used for connecting caravans to electricity sources. These leads are designed to meet the necessary safety standards, such as the British Standard 7671, which specifies that hook-up cables must have a rating of 25 amps with 2.5mm copper cores to minimise heating and voltage drop. Ready-made leads that adhere to these standards can provide safe and reliable connections for your caravan.
Custom cables, on the other hand, are made-to-order and tailored to specific requirements. They can be designed to fit unique specifications or to address particular challenges associated with your caravan setup. While custom cables offer a higher level of personalisation, they typically come at a higher cost. The customisation and specialised manufacturing processes involved contribute to the higher price tag of custom cables.
It is worth noting that, regardless of the option chosen, safety should always be a top priority when dealing with electric cables and connections. Whether using ready-made leads or custom cables, ensuring compliance with relevant standards, such as the IET Wiring Regulations (BS 7671), is crucial for the protection of your caravan and the safety of your family. Additionally, taking preventive measures, such as using elastic or rubber bands to keep cables off the ground, can help avoid damage caused by cable drag.
