Replacing an electric circuit breaker is a simple process but requires extreme caution. Before attempting to replace a circuit breaker, it is important to understand the basics of electricity and how to work with it safely. It is always recommended to get a qualified electrician to perform any electrical work. However, if you are confident in your abilities and have some experience working with electricity, there are a few steps you can follow to replace a circuit breaker. First, locate the electrical panel in your home, typically found in the basement, garage, utility room, or hallway. Open the panel door and look for an index that tells you which area of the home each breaker serves. Then, locate the corresponding breaker that needs to be replaced. Before beginning any work, ensure that you have cut the power supply outside the panel for safety.
Explore related products
What You'll Learn
Identify the faulty breaker
Before attempting to replace an electric circuit breaker, it is important to identify whether the breaker is faulty and needs to be replaced. Here are some ways to identify a faulty breaker:
Firstly, frequent tripping of the breaker is a common sign of a faulty circuit breaker. If your circuit breaker trips often, it could be a sign of a chronic issue. Older homes with circuit breakers that cannot support modern appliances may experience this issue. However, frequent tripping could also be due to an overloaded circuit, so try moving some electrical appliances to other circuits. If the breaker continues to trip, it is likely faulty and needs to be replaced.
Secondly, noticeable fluctuations in power could indicate a faulty breaker. If you observe flickering or dimming lights, especially if they are on the same circuit, the circuit breaker could be to blame. However, it is important to check if the issue is with the appliance itself by plugging it into a different circuit.
Thirdly, if you experience frequent power outages or brownouts, this could strain and shorten the lifespan of your circuit breaker. Overburdened circuits can also contribute to the failure of your circuit breaker.
Finally, if you notice any burning smells or hear crackling or buzzing noises, this could indicate loose or frayed wiring, which is a serious issue that requires immediate attention by a professional electrician.
To directly test whether a circuit breaker is faulty, you can use a digital multimeter to check the voltage levels. Ensure you work with caution when dealing with live electricity. Unplug or turn off all devices connected to the breaker to prevent a power surge. Then, open your panel and use the multimeter to compare the reading with the breaker requirements. If the reading is significantly different or the breaker reads 0, it needs to be replaced.
Access to Electricity in Zambia: Who Has Power?
You may want to see also
Explore related products
Turn off the main circuit
Before starting any electrical project, it is essential to know how to turn off the power in your home. Turning off the main circuit breaker is a critical step in ensuring your safety and preventing damage to your electrical system. Here is a comprehensive guide to help you through the process:
Locate the Main Circuit Breaker:
First, you need to find the main electrical service panel, which houses the circuit breakers. In modern homes, this panel is typically located inside, in the basement, garage, or utility closet. It is usually a grey metal box, but it may be painted to blend in with the wall, especially in apartments. If you live in an older home, you might have a fuse box instead of a circuit breaker.
Access the Circuit Breakers:
Once you've located the service panel, open the door carefully. Ensure that the floor around you is dry before proceeding. Be cautious, as electricity can still be live even if the main circuit is off.
Identify the Main Circuit:

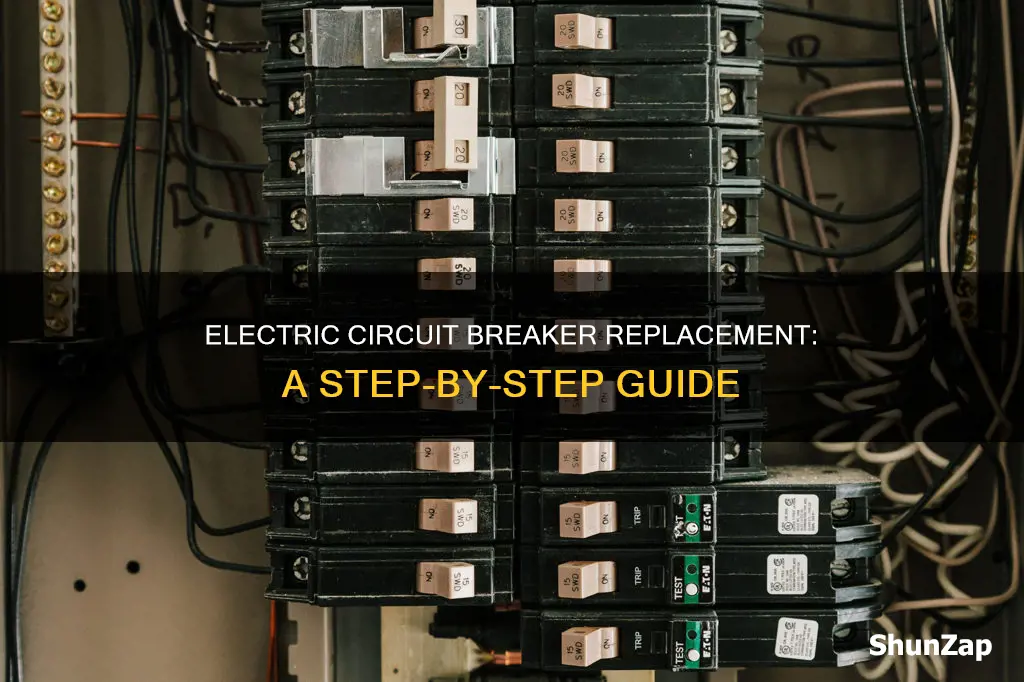

Inside the panel, you will see rows of individual circuit breakers, which look like toggle switches, and a main breaker at the top or bottom. The main breaker is typically larger than the individual breakers and controls the power to your entire house.
To turn off the main circuit, flip the lever of the main breaker to the "off" position. You may hear an audible click, and you might see a red or orange tab appear in a small window on the breaker. This step is crucial in cutting off the power supply to your home, allowing you to work safely on electrical projects or repairs.
Additional Precautions:
Before turning the power back on, it is recommended to unplug sensitive appliances from power outlets to protect them from potential power surges. Additionally, ensure that all lights in your home are off, and test multiple outlets with a non-contact electrical tester to verify that the power is indeed off.
Starting Your Electrical Business: A Beginner's Guide
You may want to see also
Explore related products
Remove the metal frame
Before beginning any work on your electric circuit breaker, it is important to take safety precautions. The service panel is where the utility's power comes into your house, and portions of it carry deadly levels of electricity at all times. Removing the panel cover exposes the live elements, so you must be very careful not to touch them. Stand to the side of the panel to protect yourself from the rare but dangerous occurrence of an arc flash while turning off the breaker. Use one hand to limit the potential injury an accidental shock can cause.
To remove the metal frame around the circuit breakers, first, turn off the main circuit breaker that powers the entire panel. This will shut off the power to all of the circuits in your house. You can use a cordless drill or a screwdriver to remove the screws of the panel's outer cover. Support the cover with your free hand to keep it in place while unscrewing the last couple of screws, so the heavy panel doesn't drop down.
Once the screws are loosened, carefully tilt the cover away from the panel using both hands and set it aside. Be extremely cautious not to touch anything inside the panel. Even with the main breaker off, the power company cables and their terminals remain live, so do not touch them.
Now, locate the faulty circuit breaker on the exposed panel. Unsnap the circuit breaker from the bus bar by gently rocking it away from the centre of the panel. It should come out easily by hand, so do not use any tools. Pull the breaker straight out to release it from the bus bar. You may need to wiggle it a bit or give it a gentle tug to free the tab on the breaker body's outside corner from the slot on the bus bar.
Transferring Electricity Connection in UP: A Step-by-Step Guide
You may want to see also
Explore related products
Test the breaker
Testing a circuit breaker is necessary to determine the flow of electricity in a circuit breaker panel. Before you begin, ensure that the area around the circuit breaker box is dry, and that you are wearing rubber-soled shoes and safety gloves. It is also important to unplug all appliances and turn off all the lights that are powered through the breaker you want to test.
One way to test a circuit breaker is with a multimeter, which can measure volts, amps, and ohms. To test a circuit breaker with a multimeter, first set it to AC voltage mode. Then, place the black probe on the panel's ground bar, and the red probe on the breaker terminal. If you have a single pole breaker, check to see if the reading is around 120 V. If the multimeter shows 0 V, your breaker might be tripped, faulty, or not receiving power.
You can also test for a circuit overload with a clamping ammeter. To do this, clamp the ammeter to a single wire, not the cable. If the test is positive for an overload or short in the circuit, you can proceed with solutions to solve the problem.
If you are unsure how to test a breaker, it is recommended to schedule a professional multimeter test to determine if it needs replacement.
Ionic Bond Conductivity: Aqueous Solutions and Electrical Flow
You may want to see also
Explore related products
Replace the breaker
Before you begin, it is important to note that you should always exercise extreme caution when working with electrical systems. If you are not a qualified electrician, it is recommended that you call a licensed electrician to replace the breaker for you.
Now, to replace the breaker, first, locate the electrical panel in your home. This is usually found in the basement, garage, utility room, or hallway. Once you have found the panel, open the door and look for an index that tells you which area of the home each breaker serves. This will help you identify the breaker that needs to be replaced.
Next, remove the metal frame surrounding the circuit breakers by loosening the screws on the electrical panel. With the frame removed, you should now be able to see and access the breakers. Locate the breaker that you need to replace and unscrew the wire connected to it. Remove the old breaker by pulling it out of the panel.
Before installing the new breaker, it is important to test the circuit to ensure there is no power running through it. Use a multimeter voltage tester for this; these are more reliable than non-contact testers. Set the multimeter to "Ohms" to test the resistance. Place one lead of the multimeter on the screw terminal and the other on the supply terminal of the breaker. Turn the breaker to the "off" position, being careful to keep the leads in contact with the terminals. The reading on the multimeter should be "0L". Repeat this process with the breaker in the "on" position; the reading should now be "0". If the multimeter reads "0L" again, it means the breaker is not functioning properly and should be replaced.
Now you can install the new breaker. Ensure that the breaker is in the "off" position before wiring it in. Screw the wire into the new breaker and insert it into the panel. Once the new breaker is securely in place, you can replace the metal frame by screwing it back into the electrical panel.
Finally, turn the breaker to the "on" position and check that power has been restored to the circuit and the affected room.
Electric Toothbrush Charging: Cord or No Cord?
You may want to see also
Frequently asked questions
A faulty unit may show signs that it is not working properly, but even if it passes a continuity test, it may still be weak and need replacing. You can use a multimeter voltage tester to check the continuity of a breaker, which will tell you if it is opening and closing properly.
Always assume that wires are live and treat the circuit as such, even when it is off. Never work on a circuit panel that is live and always turn off the main circuit that feeds the panel box. If you are unfamiliar with working in a circuit panel, call a licensed electrician.
First, locate the electrical panel and identify which breaker needs to be replaced. Turn off the main breaker. Remove the metal frame around the circuit breakers by loosening the screws. Unscrew the wire from the breaker and remove it. Install the new breaker, ensuring it is in the off position before wiring it in. Reattach the metal frame and turn the main breaker back on.
