Replacing the backup buzzer on a 2003 Electric Club Car is a straightforward task that can enhance safety and functionality, as the buzzer alerts others when the vehicle is in reverse. To begin, locate the buzzer, typically found near the rear of the vehicle, often mounted under the seat or on the frame. Disconnect the battery to ensure safety, then remove the wiring harness connected to the buzzer. Next, unscrew or unclip the old buzzer from its mounting location and replace it with the new one, ensuring it is securely fastened. Reconnect the wiring harness, reattach the battery, and test the buzzer by shifting the vehicle into reverse to confirm it functions correctly. This process requires basic tools and minimal technical skill, making it an accessible DIY repair for Club Car owners.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Electric Club Car |
| Component to Replace | Backup Buzzer |
| Tools Required | Screwdriver, Pliers, Multimeter (optional) |
| Replacement Steps | 1. Locate the backup buzzer (usually near the rear of the vehicle). 2. Disconnect the battery to ensure safety. 3. Remove the mounting screws or clips holding the buzzer. 4. Disconnect the wiring harness from the buzzer. 5. Install the new buzzer by reversing the removal steps. 6. Reconnect the battery and test the buzzer. |
| Buzzer Location | Typically mounted near the rear bumper or under the seat frame. |
| Buzzer Type | 12V DC backup alarm buzzer (specific part number may vary). |
| Common Issues | Buzzer not sounding, intermittent noise, or complete failure. |
| Safety Precautions | Always disconnect the battery before working on electrical components. |
| Part Compatibility | Ensure the replacement buzzer matches the original specifications. |
| Estimated Time | 15-30 minutes depending on accessibility and experience. |
| Difficulty Level | Beginner to Intermediate |
| Additional Tips | Use a multimeter to test the buzzer before installation if unsure. |
Explore related products
What You'll Learn
Locate the backup buzzer in the 2003 electric Club Car
The backup buzzer in a 2003 electric Club Car is a critical safety component, alerting others when the vehicle is in reverse. Locating it is the first step in any replacement process, and it requires familiarity with the vehicle’s layout. Start by accessing the rear compartment, typically located under the seat or in the battery area, depending on the model. The buzzer is often mounted near the reverse switch or integrated into the wiring harness connected to the controller. A systematic approach ensures you don’t overlook its position, saving time and frustration.
Analyzing the Club Car’s design reveals that the backup buzzer is usually housed in a small, weather-resistant enclosure to protect it from the elements. This enclosure is often secured with screws or clips, making it accessible with basic tools. If the buzzer is not immediately visible, trace the wiring from the reverse switch to identify its location. In some cases, the buzzer may be tucked behind other components, such as the battery tray or controller box, requiring careful inspection. Understanding these nuances ensures a precise and efficient location process.
For a practical approach, begin by turning off the Club Car and removing the key to ensure safety. Lift the seat or open the rear compartment to expose the wiring and components. Use a flashlight to illuminate hard-to-see areas, as the buzzer’s enclosure can blend into the surrounding components. If the wiring is complex, refer to the vehicle’s manual or a wiring diagram to pinpoint the buzzer’s connection points. This methodical strategy minimizes the risk of damaging nearby parts while locating the buzzer.
Comparing the 2003 model to newer versions highlights differences in buzzer placement. Earlier models often have simpler layouts, with the buzzer directly connected to the reverse switch. Newer Club Cars may integrate the buzzer into a more centralized control system, complicating the search. However, the 2003 model’s straightforward design makes it easier to locate the buzzer once you understand its typical position. This comparison underscores the importance of focusing on the specific model’s characteristics.
In conclusion, locating the backup buzzer in a 2003 electric Club Car involves a combination of knowledge, observation, and methodical inspection. By understanding the vehicle’s layout, analyzing its design, and employing practical techniques, you can efficiently identify the buzzer’s position. This foundational step sets the stage for a successful replacement, ensuring the Club Car remains safe and functional for its intended use.
Jaguar's Electric Four-Wheel Drive: Reality or Future Concept?
You may want to see also
Explore related products
Tools required for replacing the backup buzzer
Replacing the backup buzzer on a 2003 electric Club Car requires a specific set of tools to ensure the job is done efficiently and safely. The process involves accessing the buzzer, disconnecting it, and installing the new one, which demands precision and the right equipment. Here’s a detailed breakdown of the tools you’ll need, organized to guide you through the task seamlessly.
Essential Hand Tools: Begin with a Phillips-head screwdriver, typically a #2 size, to remove the screws securing the buzzer’s housing. A flat-head screwdriver may also be necessary for prying or adjusting components gently. Needle-nose pliers are invaluable for gripping small wires or connectors, ensuring you don’t damage delicate parts during disassembly or reassembly. Additionally, a small wire stripper is essential if you need to expose wire ends for a secure connection.
Electrical Testing Equipment: Before proceeding, verify the buzzer’s functionality with a multimeter. This tool allows you to test voltage and continuity, ensuring the issue lies with the buzzer itself and not the wiring. A non-contact voltage tester can also be used to confirm power is off before handling electrical components, adding an extra layer of safety.
Specialized Tools and Supplies: Depending on your Club Car’s model, you might need a trim removal tool to access hidden panels without causing damage. Electrical tape or heat shrink tubing is recommended for insulating any exposed wires after installation. If the buzzer is mounted with bolts, a socket wrench set with appropriate-sized sockets will be required.
Practical Tips for Tool Use: Always handle tools with care, especially when working around electrical components. Keep the workspace organized to avoid losing small parts like screws or connectors. If you’re unsure about a tool’s application, consult the Club Car’s manual or a trusted repair guide. Investing in high-quality tools ensures longevity and precision, making future repairs smoother.
By gathering these tools and understanding their specific roles, you’ll be well-prepared to replace the backup buzzer on your 2003 electric Club Car. This approach not only simplifies the task but also minimizes the risk of errors, ensuring a successful and safe repair.
Electric vs. Petrol Cars: Uncovering the True Environmental Impact
You may want to see also
Explore related products
Steps to remove the old backup buzzer
The backup buzzer in a 2003 Electric Club Car is a small but crucial component, alerting others when the vehicle is in reverse. Removing the old buzzer requires precision and care to avoid damaging surrounding components. Begin by locating the buzzer, typically mounted near the rear of the vehicle, often under the seat or behind the access panel. Ensure the Club Car is powered off and the key is removed to prevent accidental activation during the process.
Analyzing the buzzer’s mounting mechanism is the next critical step. Most backup buzzers are secured with screws or clips. Use a Phillips-head screwdriver or a flathead screwdriver, depending on the screw type, to carefully remove the fasteners. If the buzzer is clipped in, gently pry it loose with a plastic trim tool to avoid scratching the surrounding plastic or metal. Take note of the wiring harness connected to the buzzer; it will need to be disconnected before the old unit can be fully removed.
Disconnecting the wiring harness requires attention to detail. Locate the connector plug attached to the buzzer, typically a small, rectangular component with a release tab. Press the tab firmly and pull the connector straight out—do not twist or force it, as this can damage the wiring. If the connector is stubborn, inspect it for debris or corrosion and clean it gently with a cotton swab and isopropyl alcohol. Labeling the wires or taking a photo before disconnection can help during reinstallation.
With the wiring disconnected, the old buzzer is now ready for removal. Gently lift it out of its mounting location, being mindful of any additional clips or brackets that may still be holding it in place. Inspect the mounting area for signs of wear, corrosion, or damage. If the area is dirty or corroded, clean it with a soft brush and electrical contact cleaner to ensure proper functionality of the new buzzer. Properly disposing of the old buzzer, especially if it contains electronic components, is also important for environmental safety.
Finally, before proceeding to install the new buzzer, test the wiring harness for continuity using a multimeter. This ensures the electrical circuit is intact and will function correctly with the replacement buzzer. If the test reveals issues, trace the wiring back to the source to identify and repair any faults. Taking these methodical steps not only ensures the safe removal of the old backup buzzer but also prepares the Club Car for a seamless installation of the new component.
Hawaii's Electrical Power: Understanding the Standard Voltage Used in the Islands
You may want to see also
Explore related products

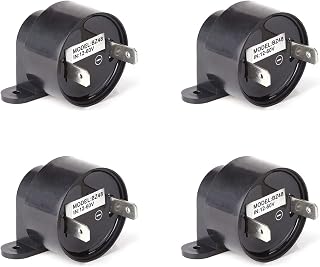

Choosing the correct replacement backup buzzer for the vehicle
Replacing the backup buzzer on a 2003 Electric Club Car begins with selecting the right component. The original buzzer operates on a 12V system, so compatibility is critical. Opt for a replacement buzzer rated for 12V DC to ensure seamless integration with the vehicle’s electrical system. Avoid higher voltage models, as they may damage the wiring or fail to function correctly. Always verify the voltage requirements before purchasing to prevent unnecessary complications.
Next, consider the buzzer’s sound output and tone. The backup buzzer serves a safety function, alerting pedestrians and drivers when the vehicle is in reverse. Choose a buzzer with a decibel level comparable to the original, typically around 85–90 dB, to maintain effectiveness without being overly loud. Additionally, ensure the tone matches the standard beeping pattern, as deviations may confuse others or fail to meet safety standards. Some buzzers offer adjustable tones, but simplicity is often best for this application.
Physical dimensions and mounting compatibility are equally important. The replacement buzzer must fit within the existing housing or bracket without modification. Measure the original buzzer’s diameter and depth, and compare these to the replacement’s specifications. Most Club Car buzzers are 2–3 inches in diameter, but slight variations exist. If the new buzzer doesn’t align with the mounting holes, you may need an adapter plate or slight adjustments to the wiring harness.
Finally, prioritize durability and weather resistance. Electric Club Cars are often used outdoors, exposing components to moisture, dust, and temperature fluctuations. Select a buzzer with a sealed or water-resistant casing to prevent corrosion and ensure longevity. While aftermarket options may be cheaper, OEM (Original Equipment Manufacturer) parts are designed specifically for the vehicle, offering a higher likelihood of compatibility and reliability. Investing in a quality replacement now can save time and money on future repairs.
Choosing the Right Guitar Wire: A Guide to Electric Guitar Wiring
You may want to see also
Explore related products
Installing the new backup buzzer and testing it
The final step in replacing the backup buzzer on your 2003 Electric Club Car is installing the new unit and ensuring it functions correctly. This process requires attention to detail and a methodical approach to avoid complications. Begin by aligning the new buzzer with the mounting location, typically near the rear of the vehicle, ensuring it fits securely into the designated slot. Most models use a simple clip or screw mechanism, so have a Phillips-head screwdriver or appropriate tool ready. Tighten the screws just enough to hold the buzzer firmly—overtightening can damage the plastic housing or strip the threads.
Once installed, reconnect the wiring harness to the buzzer. The connector should snap into place with a distinct click, confirming a secure connection. If your Club Car uses a soldered connection, inspect the joints for any signs of fraying or corrosion before proceeding. After securing the buzzer, restore power to the vehicle by reattaching the battery cables or flipping the main power switch. This step is crucial, as it allows the buzzer to receive the necessary voltage to operate.
Testing the new backup buzzer is straightforward but essential to verify its functionality. Engage the reverse gear and listen for the distinct audible alert. The buzzer should emit a steady, clear sound, typically around 85–90 decibels, which is loud enough to alert nearby pedestrians without being overly obtrusive. If the sound is faint or intermittent, double-check the wiring connections for looseness or corrosion. In some cases, a faulty ground connection can cause poor performance, so ensure the grounding point is clean and securely attached.
For a more thorough test, ask a helper to stand behind the vehicle while you shift into reverse, ensuring the buzzer is audible from a distance of 10–15 feet. This practical test mimics real-world conditions and confirms the buzzer’s effectiveness in alerting others. If the buzzer fails to sound at all, use a multimeter to check for voltage at the connector when the vehicle is in reverse. A reading of 12 volts indicates the issue lies with the buzzer itself, while no voltage suggests a problem with the wiring or reverse switch.
In conclusion, installing and testing the new backup buzzer is a critical step in ensuring your 2003 Electric Club Car operates safely. By following these specific steps and conducting a thorough test, you can confidently restore this essential safety feature to your vehicle. Remember, a properly functioning backup buzzer not only complies with safety standards but also protects both you and those around you.
Electric Cars: Eco-Friendly, Cost-Effective, and High-Performance Alternatives to Gas
You may want to see also
Frequently asked questions
The backup buzzer is typically located under the seat, near the battery compartment, or mounted on the frame behind the driver’s side. Refer to your Club Car manual for the exact location.
You’ll need basic tools such as a screwdriver (Phillips or flathead, depending on the screws), wire strippers, and possibly a wrench or pliers to disconnect the wiring harness.
First, turn off the Club Car and disconnect the battery. Then, locate the wiring harness connected to the buzzer and unplug it. Remove any screws or mounting brackets holding the buzzer in place.
Yes, connect the wiring harness to the new buzzer and temporarily reconnect the battery. Engage the reverse gear to ensure the buzzer sounds correctly before securing it in place.
