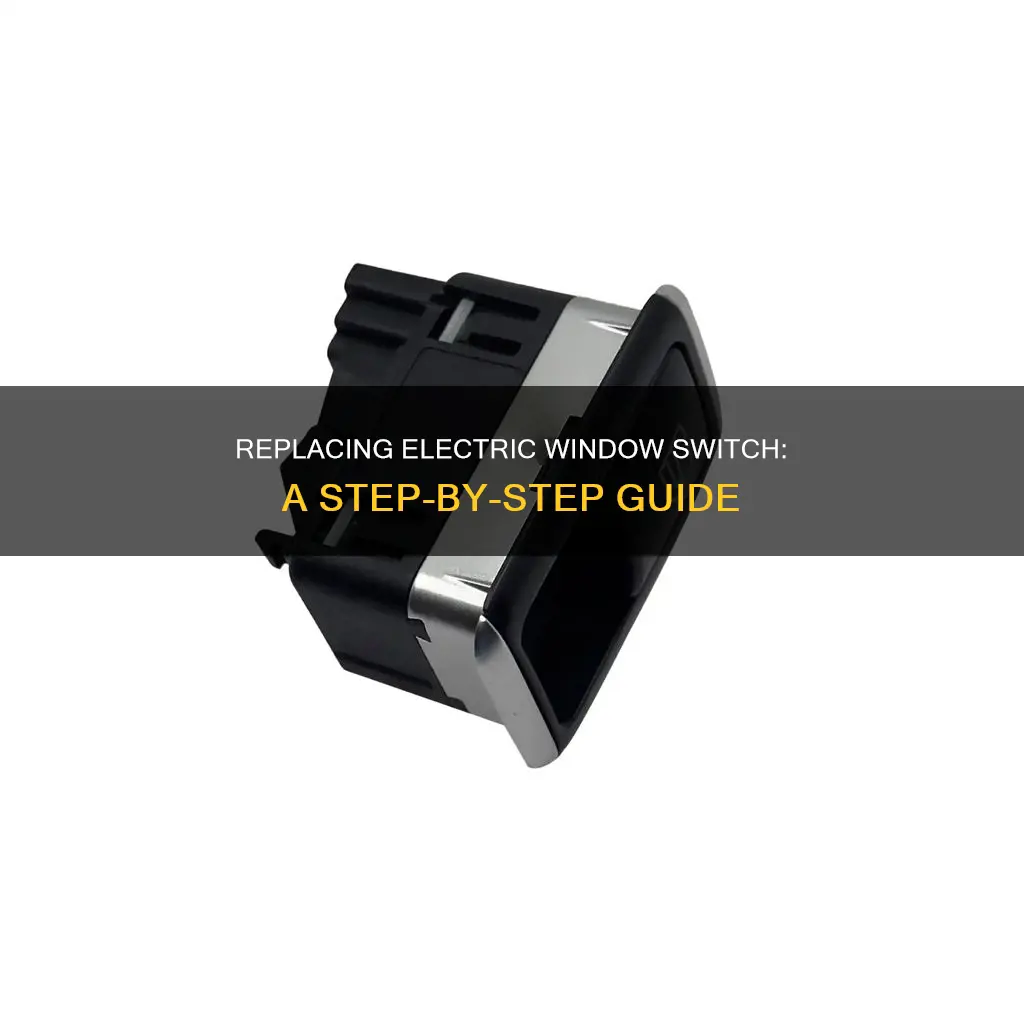

Electric window switches are a convenient feature in modern vehicles, but they can sometimes malfunction due to wire corrosion or water damage. When this happens, the window may become locked in one position, requiring a replacement of the switch. Fortunately, this is a simple DIY task that can be completed within an hour to an hour and a half. The process involves checking the power switch function, prying out the locking tabs with a screwdriver, cleaning the harness with an electrical cleaner, installing the new switch, and testing its functionality. With the right tools and guidance, anyone can perform this maintenance task and avoid an unnecessary trip to the service centre.
Explore related products
What You'll Learn
Check the power switch function
To check the power switch function, turn the key to the 'on' position. Now, press the 'up' side of the switch. The door window should go up regardless of whether the door is open or closed. Next, press the 'down' side of the switch. The door window should go down whether the door is open or closed.
Now, press the 'cut out' switch to lock the passenger windows. Check each window to make sure they are locked. Then, press the 'cut out' switch again to unlock the passenger windows and check that each window operates. If your door window does not open, there may be a need for further diagnosis of the power window switch assembly or a possible electronic component failure.
You can also use a ohmmeter to check the window switch. When the window switch is depressed in the open direction, you should read a low resistance (less than 1 ohm) from terminals 1 to 4 and terminals 2 to 3. When the window switch is depressed in the close direction, you should read a low resistance from terminals 1 to 3 and terminals 2 to 5. If the measurements taken are not within specification, the window switch is bad.
Additionally, you can turn on the vehicle's electrics and depress the switch, checking that the wiper motor is driving the window up and down in both directions. If it isn't working, you may have a faulty switch or the problem could lie deeper within the system.
Electricity on the Great Wall: A Modern Mystery
You may want to see also
Explore related products
Pry out the locking tabs
To pry out the locking tabs of the electric window switch, you will need a small pocket flat-tip screwdriver. With the screwdriver, gently pry out the locking tabs on the power window switch. Be careful not to apply too much force as you don't want to damage the tabs or the surrounding components. The locking tabs are what secure the switch in place, so you will need to apply enough force to release them. If you are having trouble releasing the tabs, you may need to use a different tool, such as needle-nose pliers, to help you get a better grip and apply more force.
Once the locking tabs have been released, you can then pull out the switch from the base or cluster. It may take some force to remove the switch, as it is designed to be securely held in place. However, be careful not to use too much force, as you don't want to damage the switch or any surrounding components. If you are having difficulty, you can try wiggling the switch gently from side to side as you pull to help loosen it from its housing.
After removing the switch, it is important to clean the harness with an electrical cleaner to remove any moisture or debris. This will ensure a complete connection when the new switch is installed. Failure to do so may result in poor connectivity and affect the performance of the switch. Once the harness is clean, you can then proceed to install the new power window switch.
When installing the new switch, ensure that the locking tabs snap securely into place. These tabs are crucial in holding the switch securely and preventing it from becoming loose. Gently tap the switch with your hand or a soft mallet to ensure it is securely seated and that the locking tabs are fully engaged. Once you are satisfied that the new switch is securely in place, you can then proceed to reconnect the harness and snap the power window base or cluster back into the door panel.
