Trystan Casey

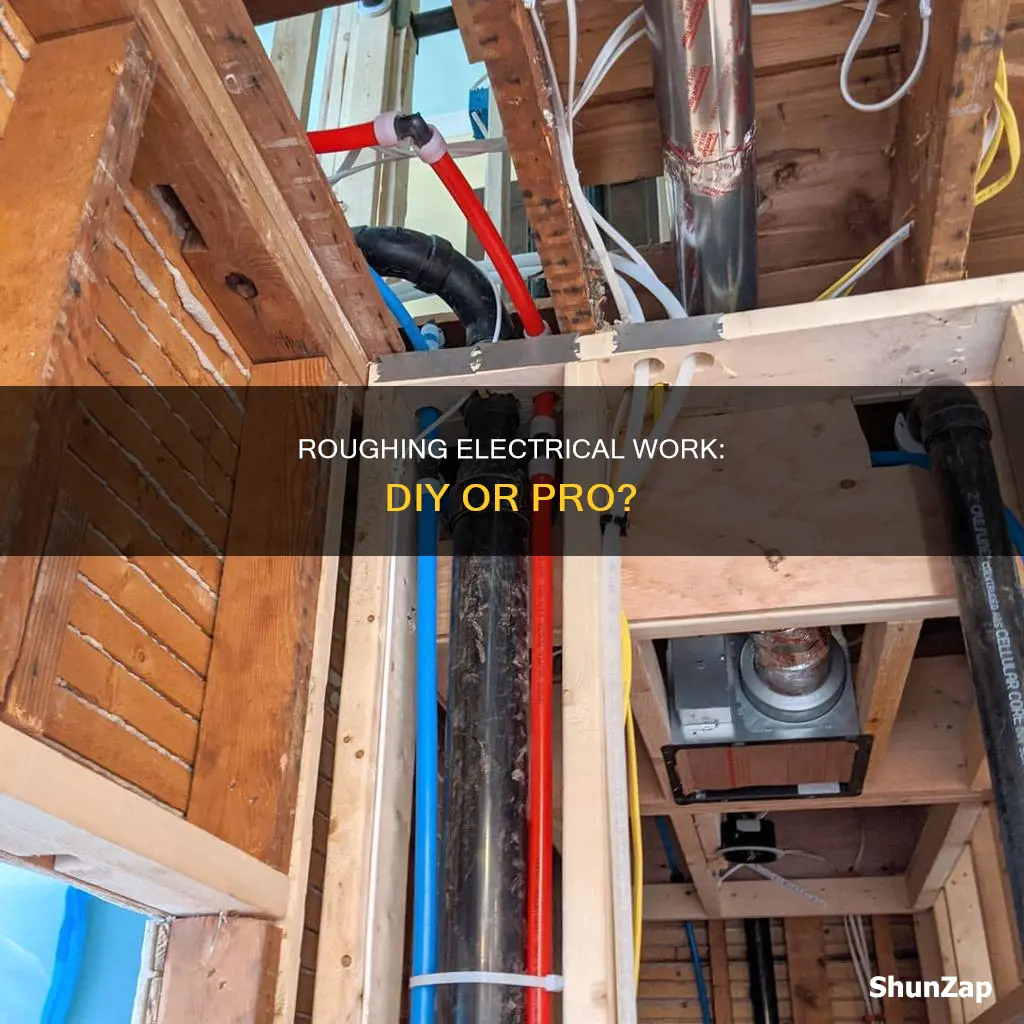

Roughing in the electrical wiring in a new construction house is a complex task that requires careful planning and attention to safety. It involves laying the groundwork for the electrical system, including running wires through the walls and ceilings and installing boxes for power outlets, light switches, and light fixtures. This work is typically done while the walls are still open, allowing easy access to the framing. It is important to prioritize safety, follow local electrical codes, and have your work inspected by a licensed electrician and your local government before covering the walls. Proper installation minimizes the risk of electrical fires or shocks and ensures your electrical system is robust and reliable.
| Characteristics | Values |
|---|---|
| Safety | Minimises the risk of electrical fires or shocks |
| Functionality | Provides convenient access to power throughout the space |
| Future-proofing | Installing adequate outlets and circuits during construction is easier and more cost-effective than adding them later |
| Planning | Determine where to place outlets, light fixtures and switches |
| Outlets | Should be placed so that no point along a wall is more than 6 feet from one |
| Boxes | Choose a box that’s slightly larger than required to prevent overcrowding; use plastic or steel boxes |
| Wiring | Use flexible non-metallic cable (Romex) and a wire stripper |
| Inspection | Have your work inspected by your local government before covering the walls |
| Surges | Use isolated ground receptacles and surge protectors to protect delicate electronic devices |
| Circuits | Ensure the proper number of circuits for the electrical demand of the space |
| GFCI and AFCI | GFCI protection is required for outlets or appliances near water sources; AFCI protection is required for most electrical circuits in a home |
| Electrical boxes | Boxes should be flush with the wall and large enough to accommodate the wires |
| Box heights | Outlets should be at least 12 inches above the floor and switches should be at least 48 inches above the floor |
| Cables and wires | Cable sheathing should stick into the box at least 1/4 inch so that the cable clamps grip the sheathing of the cable |
Explore related products
What You'll Learn
Planning and preparation
Understand the Basics
Start by understanding the basics of electrical rough-ins. Electrical rough-in refers to the process of laying the groundwork for your house's electrical system. It involves running wires through the walls and ceilings and preparing boxes for power outlets, light switches, and lighting fixtures. This work is typically done while the walls are still open, allowing easy access to the framing and providing flexibility for adjustments.
Assess Your Electrical Needs
Before beginning the installation process, carefully plan your electrical layout. Determine the placement of lighting fixtures, outlets, and their switches. Consider the number and type of outlets required, especially if you have delicate electronic devices that may need surge protection. Understand the specific electrical codes and requirements for your locality, as these norms must be followed during the rough-in process.
Gather the Necessary Materials
Standard electrical rough-in materials include various sizes of electrical wires, electrical boxes, conduit to protect wiring, and staples to secure wires within wall and ceiling cavities. Consult with a licensed electrician to determine the appropriate wire gauge and type of outlet and switch boxes required for your project. Flexible non-metallic cable (Romex) is commonly used for household wiring, but ensure you select the right type and gauge for your specific needs.
Obtain Permits and Inspections
Electrical work can be dangerous, so it's important to obtain the necessary permits and schedule inspections. Contact your local building department to obtain a permit and arrange for a rough-in inspection with a building official. Draw a detailed plan of the room wiring, showing lighting, switch, and outlet locations. Review this plan with the inspector to ensure it meets any special requirements and adheres to electrical codes.
Safety Considerations
Always prioritize safety during the planning and preparation phase. Consult with a licensed electrician, especially for circuit design and connections to the main electrical panel. Ensure you have the right tools, such as wire strippers, to perform the work safely. Avoid long spans of unsupported wiring, and use cable staples to secure the cable to the studs if you can't run it through them.
Protective Gloves: Essential for Ditch Witch Operators
You may want to see also
Explore related products
Safety considerations
Safety is a key consideration when installing electrical rough-ins. This complex task requires careful planning and attention to detail to ensure a safe and functional electrical system. Here are some essential safety tips to follow:
Comply with Regulations and Standards
Electrical rough-ins must adhere to strict safety codes and standards. These regulations are designed to ensure the electrical system's safety and functionality. Non-compliance can lead to legal and regulatory issues. It is important to research and follow local building codes and electrical standards to ensure your installation meets legal and safety requirements.
Hire a Licensed Electrician
Hiring a licensed electrician is strongly recommended for any electrical project. They possess the expertise to execute the work safely and can follow the necessary safety protocols and local electrical codes. Amateur installation can lead to code violations and safety hazards.
Proper Planning
Careful planning is critical to ensuring a safe and effective electrical system. Start by assessing your power needs and creating a detailed electrical installation wiring diagram. Identify the placement of lighting fixtures, outlets, switches, and junction boxes, considering factors like furniture placement, traffic flow, and future needs.
Avoid Wire Damage
Take extreme care to avoid damaging electrical wires during installation. Nicking or cutting wires can weaken them and lead to issues such as short circuits or poor connections. Always use the correct gauge wire for different appliances and fixtures.
Grounding
Proper grounding is essential for electrical safety. It provides a safe path for excess electrical current to dissipate into the earth, protecting people and equipment from electric shock and reducing the risk of fires. Ensure that your electrical system has a proper grounding electrode system, typically connected to a metal water pipe or a ground rod.
Surge Protection
If you have delicate electronic devices, consider using isolated ground receptacles and surge protectors to safeguard against current fluctuations and interference. This extra layer of protection can be invaluable for sensitive appliances and devices.
Remember, safety should always be the top priority when working with electrical systems. Do not hesitate to consult professionals and follow the necessary precautions to safeguard your home and loved ones.
Millions in Houston Without Power
You may want to see also
Explore related products
Required tools and materials
Roughing in the electrical wiring in a new house is a complex task that requires careful planning and execution. It involves laying the groundwork for the electrical system, including running wires through the walls and ceilings and installing boxes for power outlets, light switches, and light fixtures. Here is a list of the tools and materials required for the job:
- Electrical Cable: Flexible, non-metallic cable, commonly known as Romex, is the standard for household wiring. It is available in various gauges, so consult with an electrician to determine the appropriate gauge for your project.
- Outlet and Switch Boxes: These boxes are essential for housing outlets and light switches. They come in different ratings and capacities, so select the ones that suit your specific needs.
- Switches and Outlets: The type of switches and outlets you need will depend on the installation requirements. GFCI or AFCI outlets may be mandatory in certain areas, especially near water sources. Consult with a licensed electrician to ensure you purchase the correct types. The number of switches required will depend on the number of light fixtures and whether you need 2-way or 3-way switches.
- Wire Strippers: This special-purpose tool is used to cut and strip electric wire. A recommended option is the Klein No. 1412, available at hardware stores and home centres.
- Conduit: Conduit is necessary to protect the wiring and ensure it is securely housed.
- Staples: Staples are used to secure wires within wall and ceiling cavities, providing additional safety and stability.
- Recessed Light Housings: These are installed according to the manufacturer's instructions, with enough slack left in the wire for connections.
- AFCI Breaker: An AFCI (Arc-Fault Circuit Interrupter) breaker is required for circuit protection and must be installed in an available slot in the main electrical panel.
- Tape or Zip Ties: After running cables to each box, group wires of the same colour together and use tape or zip ties to bundle them neatly. Label the circuits to make connecting switches and outlets easier.
- Green Ground Wire Connector: This is used to splice ground wires together.
- Wire Connectors: Used to splice the stripped ends of white and black wires, as well as pigtails.
Remember, rough-in electrical work should be inspected by a licensed electrician or a local building official to ensure it meets code requirements and safety standards.
Grounding Yourself at Home: Simple Electrical Safety Measures
You may want to see also
Explore related products
$69.99 $74.08
Installation process
The electrical rough-in process typically happens once the framing of a house or room has been completed but before the drywall or other wall coverings have been installed. It involves laying the groundwork for your house's electrical system, which includes running wires through the walls and ceilings and setting up boxes for power outlets and light switches.
Before starting the installation process, it is important to carefully plan the electrical layout, determining the placement of outlets, light fixtures, and switches. This plan should be reviewed by a licensed electrician and a local inspector to ensure it meets code requirements and safety standards.
During the installation process, electrical cables and wires are pulled through the wall studs or other framing components and inserted into the wall and ceiling boxes. It is recommended to use flexible, non-metallic cable (Romex) and plastic or spacious electrical boxes. When pulling cables through the studs, ensure there is at least 1-1/4 inches between the back face of the stud and the cable, and protect the cable with a metal nail plate if necessary. Leave about 4 extra feet of cable at the panel for the electrician to work with when connecting the circuits. Group wires of the same colour together and label each cable with the location of the circuit.
After the cables are run to each box, cut the wires to leave at least 6 inches protruding and strip the ends of the wires, being careful not to damage the inner wires. Connect the ground wires by threading them through a green ground wire connector and splicing them together. Splice the white and black wires with wire connectors, and cover the unstripped end of the black wire with a connector for safety.
Once all the wiring is complete, an inspection is typically required to ensure the installation meets safety and code requirements. This includes checking the placement and height of outlets and switches, the clamping of cables in the boxes, and the proper number of circuits for the electrical demand of the space.
Setting Up Your Electric Account: A Step-by-Step Guide
You may want to see also
Explore related products
$88.99
Connecting to the main electrical panel
Before beginning any work, it is crucial to shut off the main power to the panel for safety reasons. Once you have confirmed that the power is off, you can proceed with the installation process. Remember to exercise caution throughout the entire process to prevent accidents or damage to the electrical system.
When connecting to the main electrical panel, it is essential to have enough cable length to work with. Leave about 4 feet of extra cable at the panel to provide ample length for connections. Label each cable with the corresponding circuit location to ensure proper identification during installation.
The next step is to cut the wires, ensuring that they protrude at least 6 inches past the face of the box. Cut one of the bare copper ground wires 6 inches longer than the others. Thread this long ground wire through the designated hole in a special green ground wire connector. Splice all the ground wires together by holding them tightly and twisting the connector in a clockwise direction until secure.
Strip the insulation from the ends of the white and black wires, as well as one end of each 6-inch-long pigtail. Splice these wires together using wire connectors. For safety measures, cover the unstripped end of the black (hot) pigtail with a wire connector. Be extremely cautious during this process to avoid nicking or damaging the inner wires, as advised by electrician Sergey Nikolin.
After completing the wiring connections, double-check all connections for security and accuracy. Tape over the breaker to prevent accidental activation before restoring power. Once the power is restored, re-check all connections and cable placements to ensure everything is functioning correctly.
Electric Eels: Nature's Electricians Unveiled
You may want to see also
Frequently asked questions
Electrical roughing in involves running electrical wiring, installing outlet boxes, and setting up light fixtures before the walls are closed. It is a critical part of the building and remodelling process as it lays the groundwork for the final installation of outlets, switches, and lighting fixtures.
First, you need to plan the placement of all electrical items, using a unique electrical shorthand or script to identify the placement of items. Next, you can start running the electrical cables through the building's framing and installing electrical boxes for outlets and switches. Finally, you can set up connections for light fixtures and connect the new circuit to the main electrical panel.
Electrical wiring mistakes can be deadly, so it is important to obtain a permit and schedule an inspection with a building official when you are finished. It is also important to use the correct type of outlet and switch boxes, rated for their use and capacity. You should also be aware of the number of wires you can safely put in an electrical box and ensure that boxes are securely fastened.
