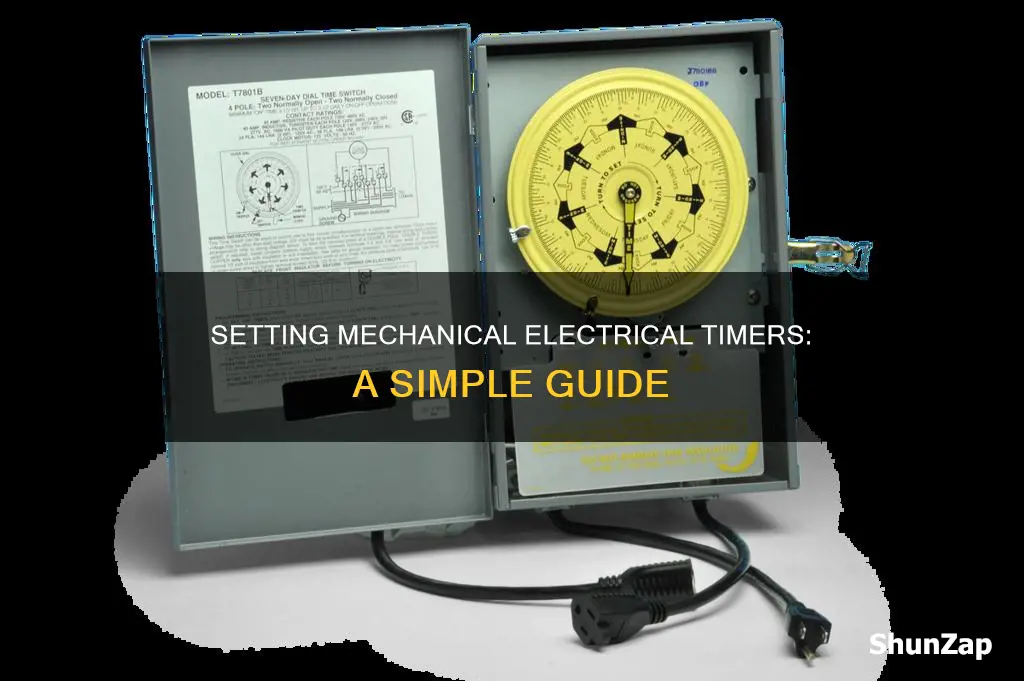

Mechanical electrical timers are a convenient way to control the timing of electrical appliances or systems. They are simple, reliable, and easy to use, making them suitable for both residential and commercial applications. Mechanical timers are also cost-effective and do not require batteries. They are a great way to automate your lights, control appliances, or manage your garden irrigation. In this guide, we will walk you through the steps to set up and use a mechanical electrical timer.
| Characteristics | Values |
|---|---|
| Type | Plug-in |
| Use | Control lights, appliances, and other electrical devices in homes, commercial areas, and industrial timed systems. |
| Installation | Plug into a wall outlet, then plug the appliance into the timer. |
| Setting the time | Turn the dial so the arrow lines up with the current time. |
| Setting on/off times | Push the pins down for the times you want the appliance to be on. Pins are set by toggling them off/on or in/out. |
| Setting the timer | Adjust the knob to the desired time setting. |
| Safety | Mechanical timers with individual circuits are the best option. Do not use plug timers outside. |
| Cost | Less expensive than digital timers and do not require batteries. |
| Troubleshooting | Check timer settings, wiring, components, power supply, and fuses. Replace batteries if necessary. |
Explore related products
What You'll Learn
Setting a mechanical timer for the first time
Firstly, you need to plug your mechanical timer into a wall outlet. These timers are designed to be easy to use and simply plug into any indoor or outdoor outlet. Once plugged in, you can set the current time by turning the dial to the correct time of day. This dial is also how you will set the times for your device to be on or off.
The next step is to set the times you want your device to activate and deactivate. Mechanical timers usually have pins or segments around the dial, which you can use to designate intervals. Push the pins inward for "on" times and leave them pulled out for "off" times. Each pin or segment typically represents a 15-minute interval, so you can be precise with your scheduling. You can also use the dial to set the duration, turning it clockwise until you reach the desired time.
Once you have set your timer, you can plug your device into the timer's outlet. It is a good idea to test the timer and make any necessary adjustments. You should also periodically check the timer to ensure it is functioning correctly.
Mechanical timers are a simple yet powerful tool to streamline your daily routines. They are versatile and easy to use, making them a great option for a range of applications.
Building an Electric Fish Scaler: DIY Guide
You may want to see also
Explore related products
How to set the on and off times
Setting a mechanical electrical timer is a straightforward process. Mechanical timers are a safe and cost-effective option, and they do not require batteries.
Firstly, plug the timer into a suitable power outlet. Then, set the current time by turning the dial so that the arrow lines up with the correct time of day. Mechanical timers feature a dial with markings representing time intervals, and you turn the dial to select the desired duration.
To set the on and off times, use the pins or segments located around the dial. Each pin or segment usually represents a 15-minute interval, allowing for precise scheduling. Push the pins inwards for "on" times and leave them pulled out for "off" times. For example, if you want a light to turn on at 7 pm, set the first pin at that position and the second pin at the time you want it to turn off. You can then test the timer by manually advancing it to the "On" pin to see if the light comes on and advancing it to the "Off" position to verify the light turns off.
Some timers also have an override switch, which allows for manual control without disrupting the programmed schedule. This can be useful for unexpected changes or immediate needs, but remember to check that your timer is not set to override as it will then ignore your scheduling.
Heart Data Privacy: Is Your Heartbeat Data Secure?
You may want to see also
Explore related products
Troubleshooting a mechanical timer
Firstly, it is important to consult the manual for your specific timer, as different brands and models will have varying instructions and mechanisms. Mechanical timers can be durable, but they may wear out over time, so it is important to check for any signs of damage or degradation.
Look out for any physical damage, such as cracked dials, broken pins, or loose wiring, as this can affect the timer's functionality and safety. If you notice any unusual noises, such as grinding or clicking sounds, this could indicate internal damage or misaligned components.
If your timer is not responding to adjustments or failing to activate connected devices, it may be beyond repair and might need replacing. Newer models may offer improved efficiency and features.
Check the timer's settings to ensure it is set correctly. Misalignment of time indicators can lead to improper operation. Mechanical timers may have a dial that you turn to set the time, or they might have pins that you toggle on or off to set the desired times. Ensure that the pins are not stuck due to dirt, dust, or corrosion.
Inspect the power outlet and connections for any issues. Verify that the timer is plugged in and receiving power. Loose connections or blown fuses can disrupt functionality. Mechanical timers require a consistent power supply to function correctly, so check for any tripped circuit breakers or malfunctioning circuits.
Finally, if your timer has internal components, open the casing and clean and lubricate these parts.
Waste-to-Energy: Powering Our World With Human Waste
You may want to see also
Explore related products
Using a mechanical timer with an electric vehicle
Mechanical timers are a great way to control the electricity supply to your appliances. They are generally considered safer than outlet timers and do not require batteries to operate.
When using a mechanical timer with an electric vehicle (EV), there are a few things to keep in mind. Firstly, always refer to the user manual of your EV and the timer for specific instructions. Some vehicles, like the Peugeot ION, recommend against using timers, adaptors, or multi-way connectors. Secondly, ensure you are using the correct type of extension cord for your EV. For example, a Level 1 EVSE typically works with any extension cord, but a Level 2 EVSE may require a 10-gauge extension cord.
To set up a mechanical timer for your EV, start by plugging the timer into a wall outlet. If your timer has an On/Off switch, toggle it to the On position. Then, plug your EV's charging cable into the timer. Set the dial on the mechanical timer to the current time by aligning the arrow with the correct position. Next, set the pins or toggles for the On and Off times. For example, if you want your EV to start charging at 10:00 p.m. and stop at 6:00 a.m., set the first pin at 10:00 p.m. and the second pin at 6:00 a.m. Finally, test the timer by manually advancing it to the On position to ensure your EV begins charging as intended.
As an alternative setup, you can coordinate your EV charging with your hot water heater. You can wire a J1772 cable into your off-peak hot water heater so that when the heater turns on at night, it also triggers your EV to start charging. This method may require consultation with your power provider.
Disconnecting Toyota Electrical Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
Using a mechanical timer for cooking
Mechanical timers are a great way to control your cooking appliances and ensure precision and accuracy in your dishes. They are also safer than outlet timers and do not require batteries.
To set a mechanical timer for cooking, first plug the timer into a wall outlet. Then, turn it on and plug your appliance, such as an oven or a slow cooker, into the timer. Now, turn the dial so that the arrow lines up with the current time. Newer mechanical timers may have a switch that allows you to turn the timer On, Off, or set it to Auto or Timer. When set to Auto or Timer, electricity will flow through at the times you set, turning your appliance on and off. When set to Off, the timer will not operate, and when set to On, you can operate the appliance manually.
To set the times for your appliance to be on, push the pins down. For example, if you want your slow cooker to turn on at 7 a.m. and turn off at 5 p.m., set the first pin at 7 a.m. and the second at 5 p.m. You can test the timer by manually advancing it to the On position to see if your appliance turns on. Reset the timer to the current time after testing.
Mechanical timers are a great, straightforward option for cooking, offering precision and accuracy in your dishes.
